Connector Identification

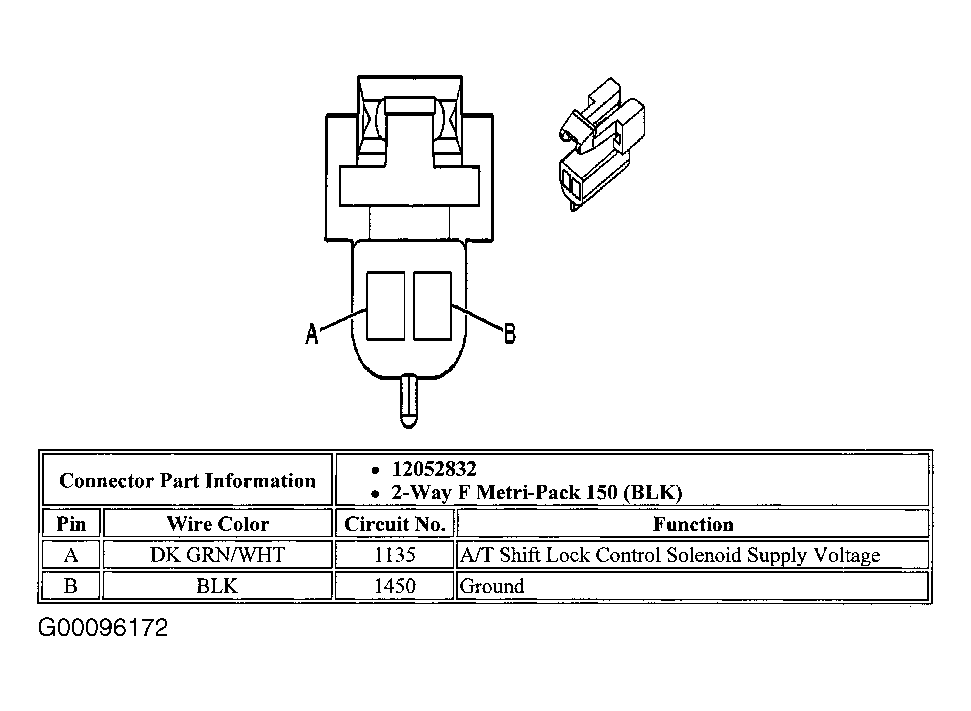

Fig 1: Identifying A/T Shift Lock Actuator Connector Terminals
G00096172Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Stoplamp Switch Connector (C1) Terminals
G00079825Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Stoplamp Switch Connector (C2) Terminals
G00079826Courtesy of GENERAL MOTORS CORP.
