Body Control System Connector End Views

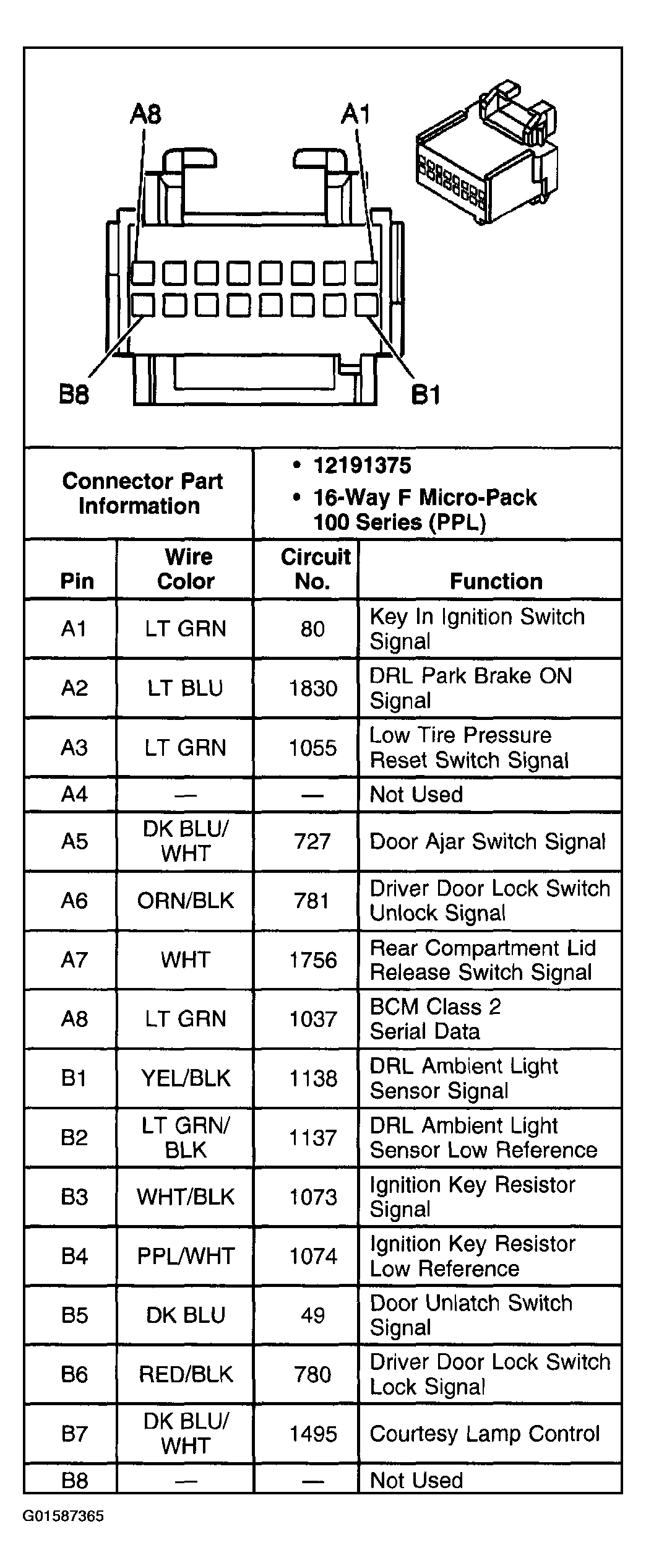

Fig 1: Body Control Module Connector End Views (BCM) C1

Courtesy of GENERAL MOTORS CORP.

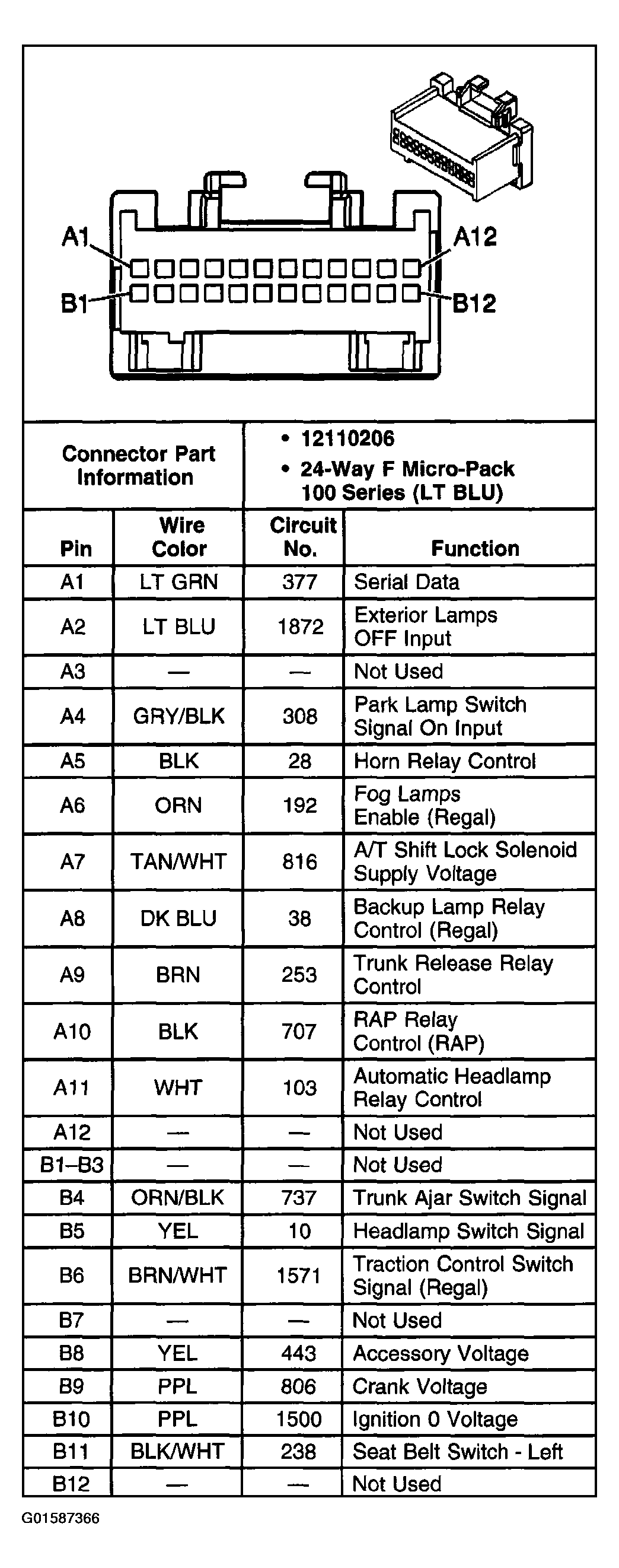

Fig 2: Body Control Module Connector End Views (BCM) C2

Courtesy of GENERAL MOTORS CORP.

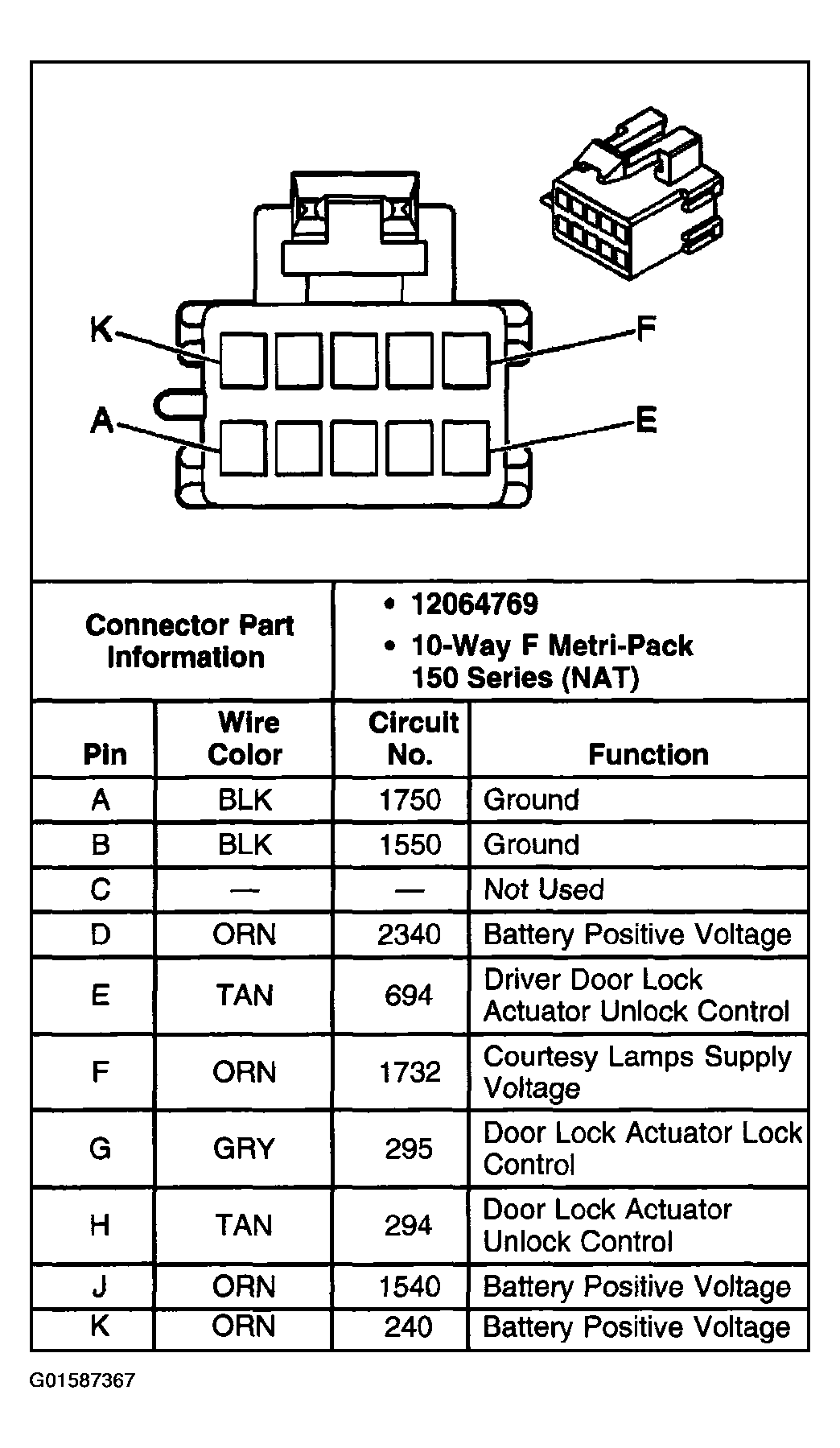

Fig 3: Body Control Module Connector End Views (BCM) C3

Courtesy of GENERAL MOTORS CORP.

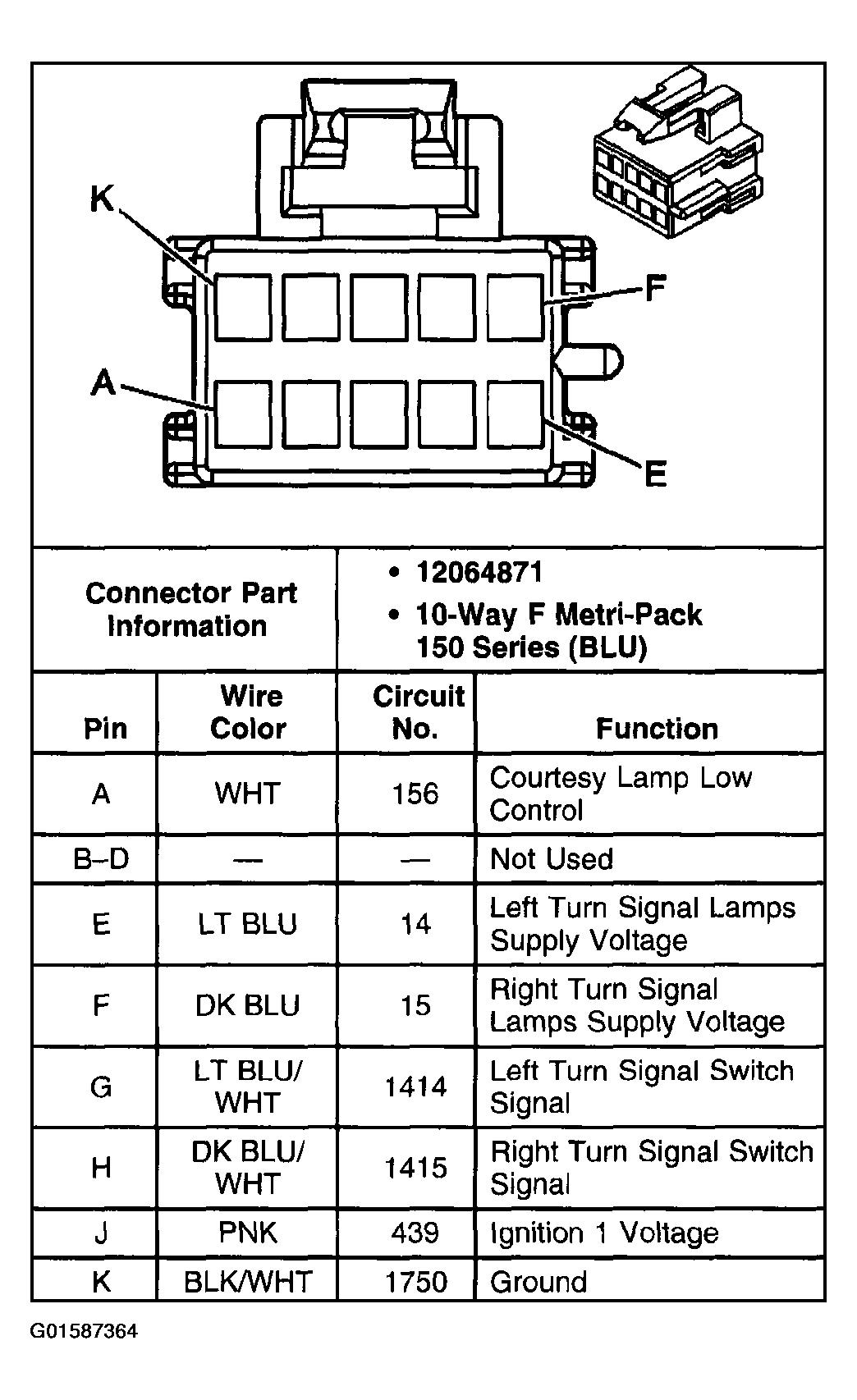

Fig 4: Body Control Module Connector End Views (BCM) C4

Courtesy of GENERAL MOTORS CORP.
