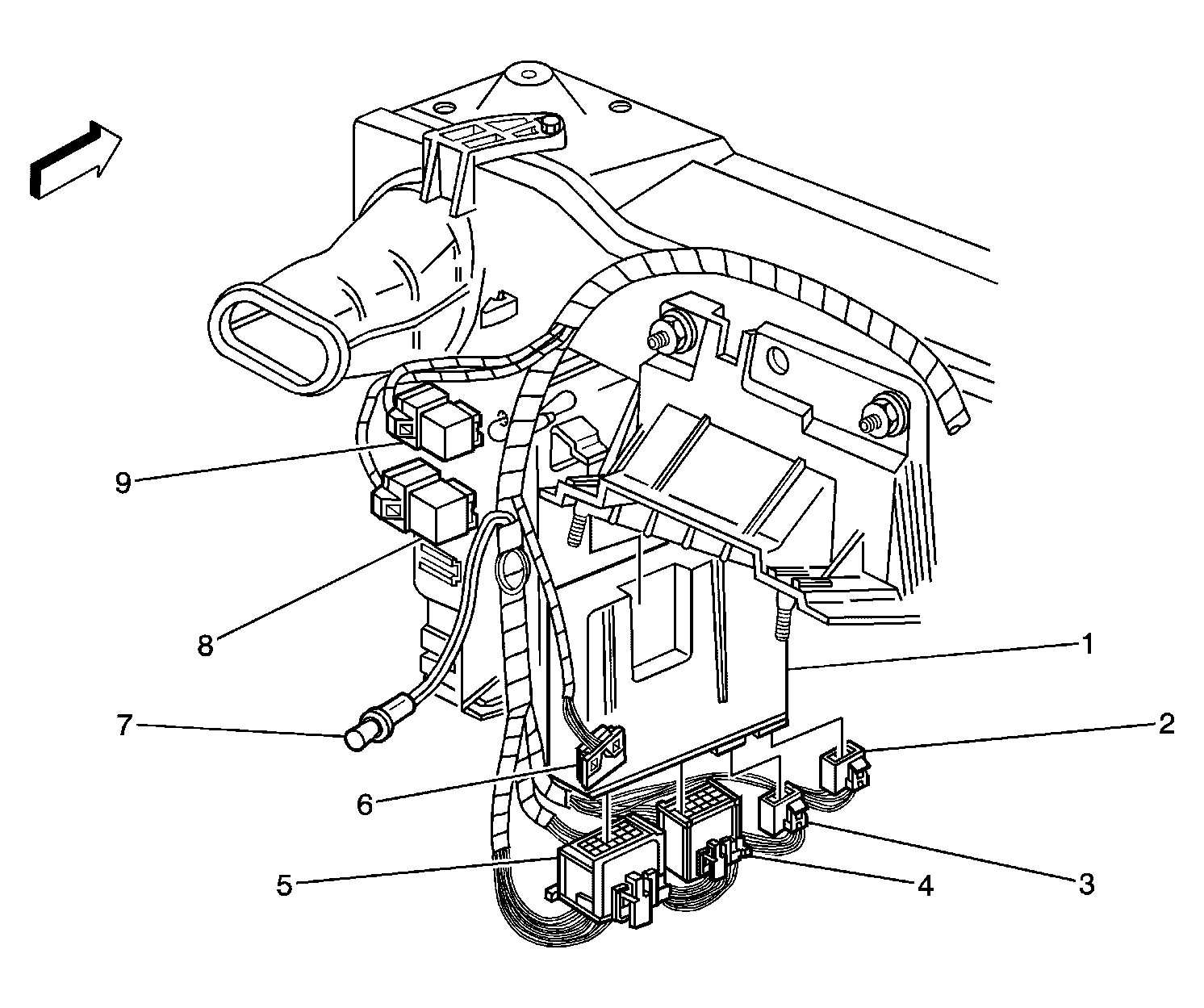

Body Control System Component Views
WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Body Control Module (BCM) |
| 2 | Body Control Module (BCM) Connector, C4 |
| 3 | Body Control Module (BCM) Connector, C3 |
| 4 | Body Control Module (BCM) Connector, C2 |
| 5 | Body Control Module (BCM) Connector, C1 |
| 6 | Fog Lamp Switch Connector |
| 7 | I/P Courtesy Lamp - Left |
| 8 | Turn Signal/Hazard Flasher Module |
| 9 | Backup Lamp Relay |
