Connector Identification

To identify starter connectors, see Fig 1 .

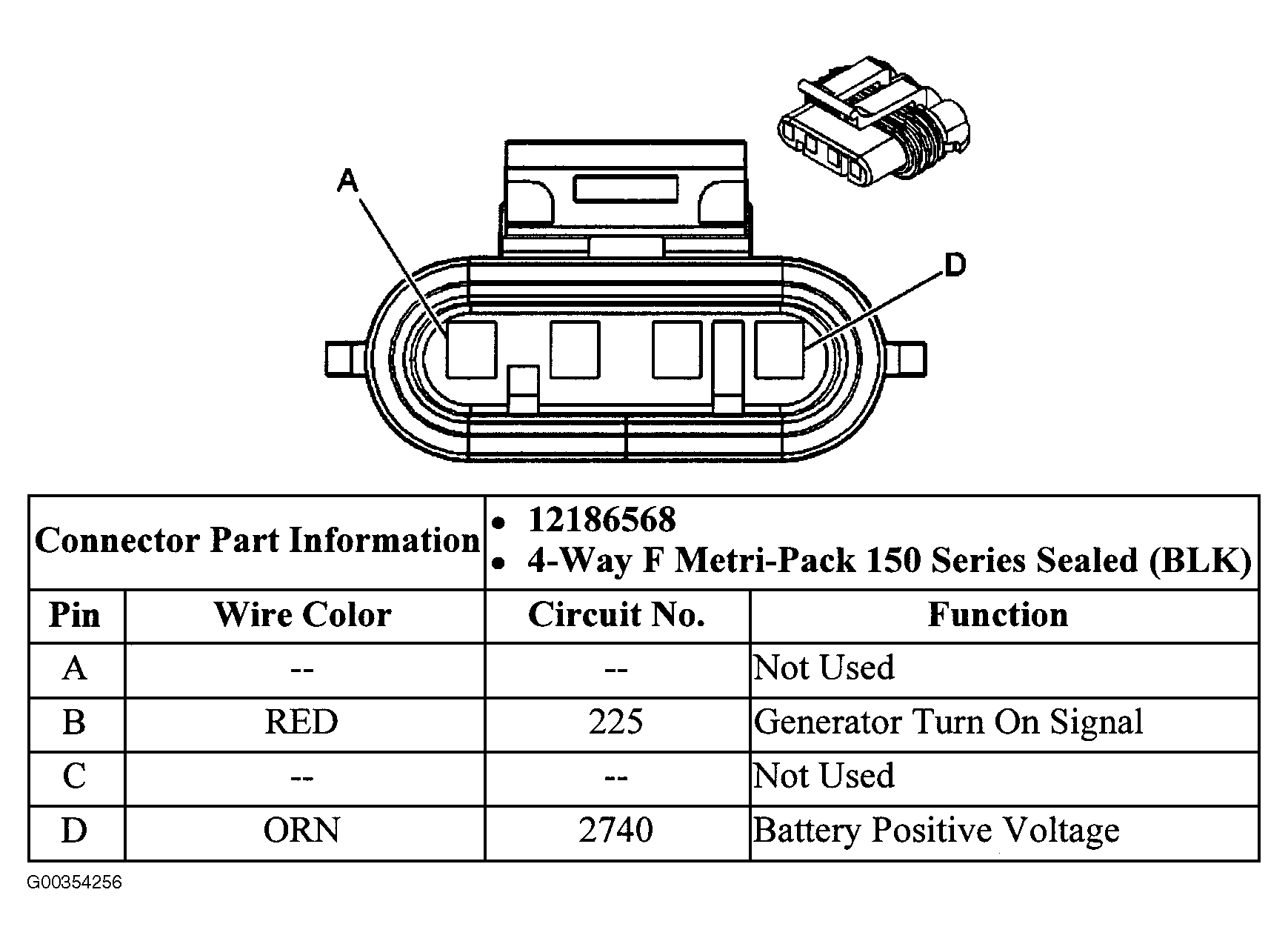

Fig 1: Identifying Starter Electrical Connector
G00354256Courtesy of GENERAL MOTORS CORP.
