Keyless Entry Component Views

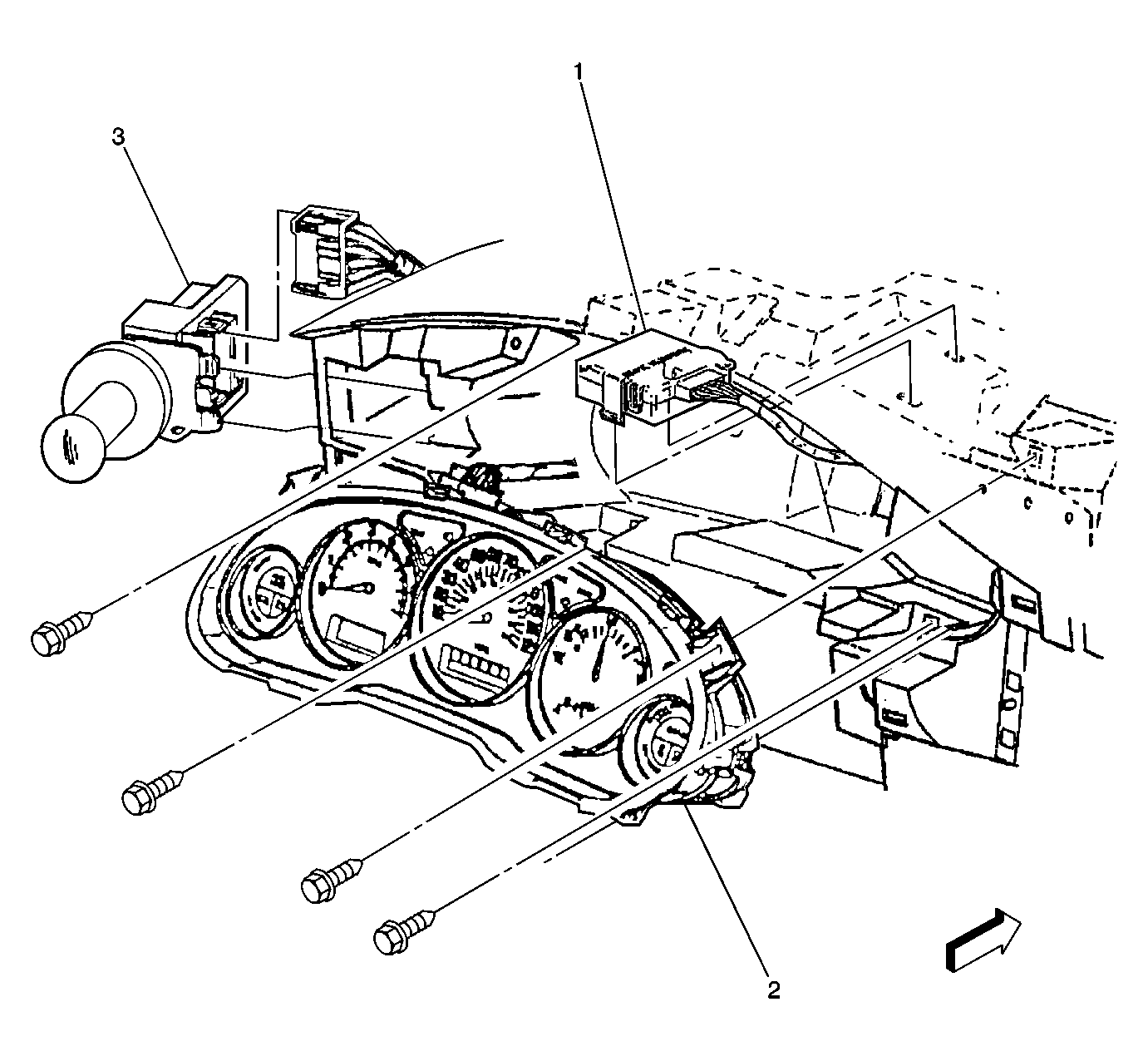

Fig 1: Left Side of Instrument Panel Components
GM329644Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Remote Control Door Lock Receiver (RCDLR)
2 Instrument Panel Cluster (IPC)
3 Headlamp Switch
