Home >> Buick >> 2004 >> Century Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System >> Repair Instructions >> Remote Control Door Lock Receiver Replacement >> Installation Procedure

Installation Procedure

  1. Install the remote control door lock receiver (1). Make sure the retainers are fully seated.
  2. Connect the electrical connector (2).
  3. Install the IP cluster (3). Refer to Instrument Panel Cluster (IPC) Replacement in Instrument Panel, Gages, and Console.

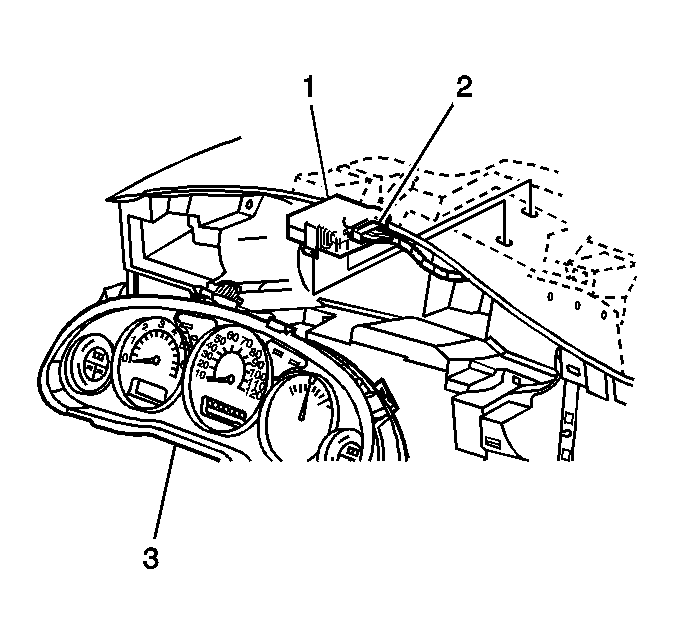

    4. Fig 1: Remote Control Door Lock Receiver, Instrument Panel Cluster & Electrical Connector
    GM799410Courtesy of GENERAL MOTORS CORP.
  4. Program the transmitter to the new receiver. Refer to Transmitter Programming .
