Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

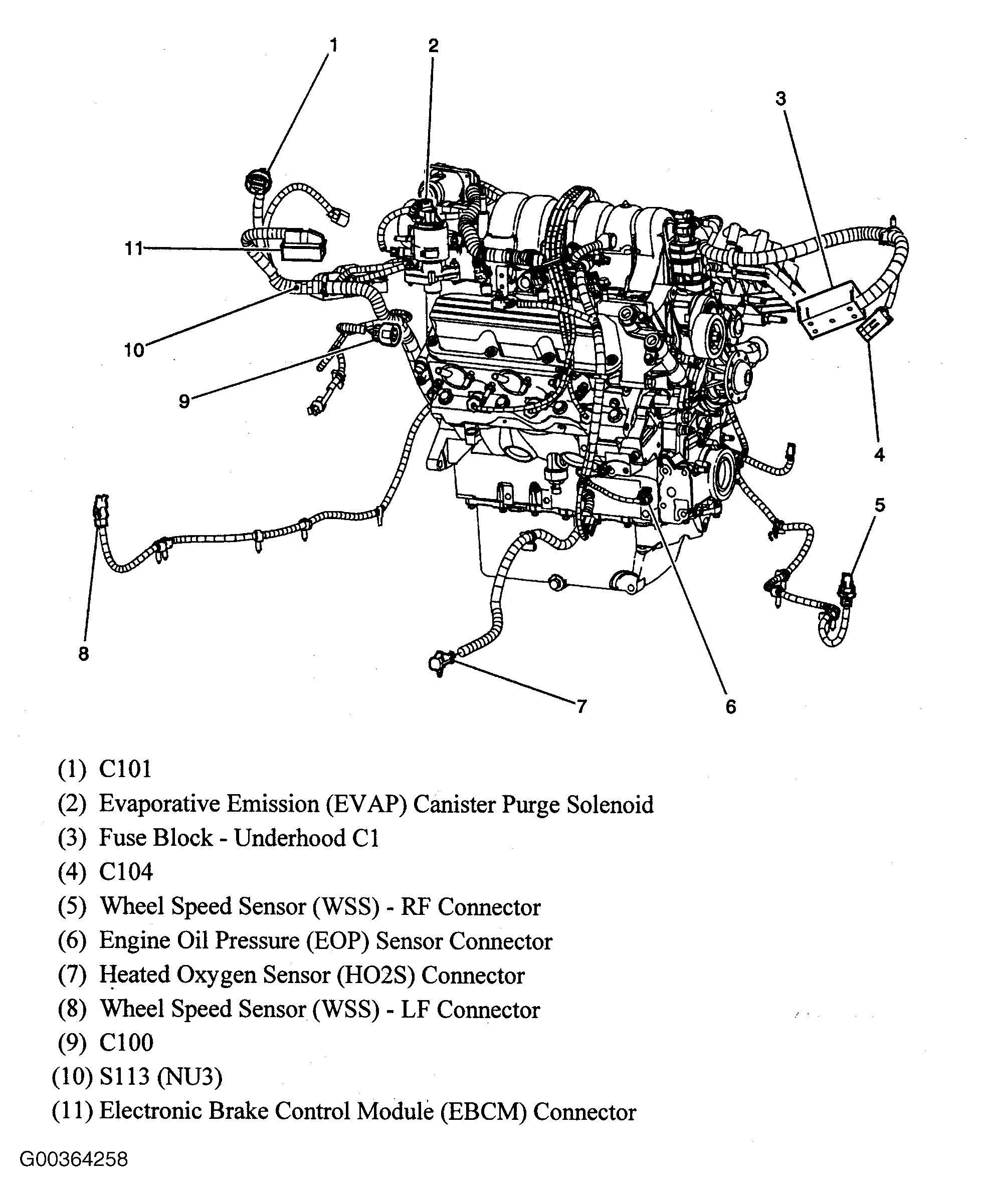

Fig 1: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

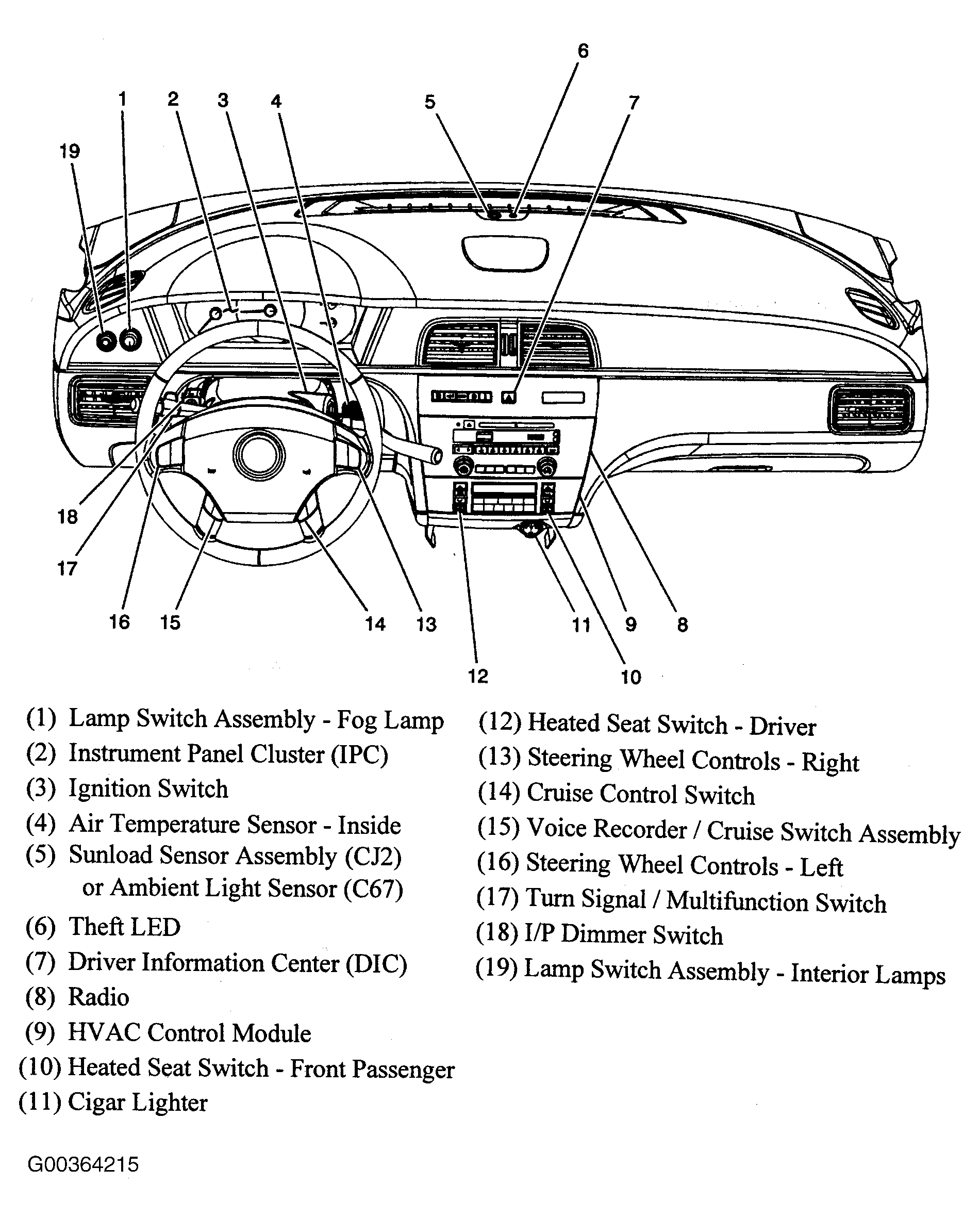

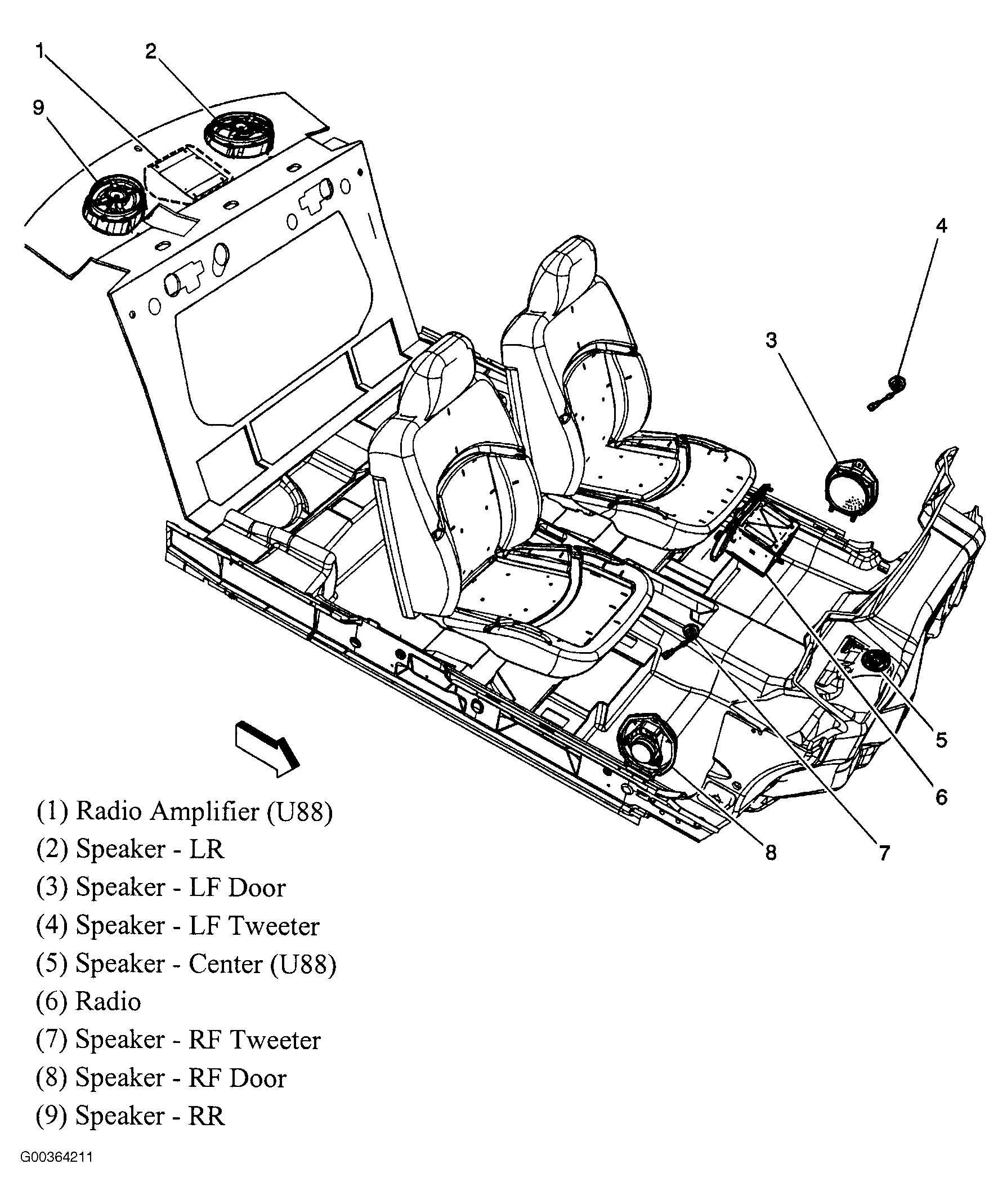

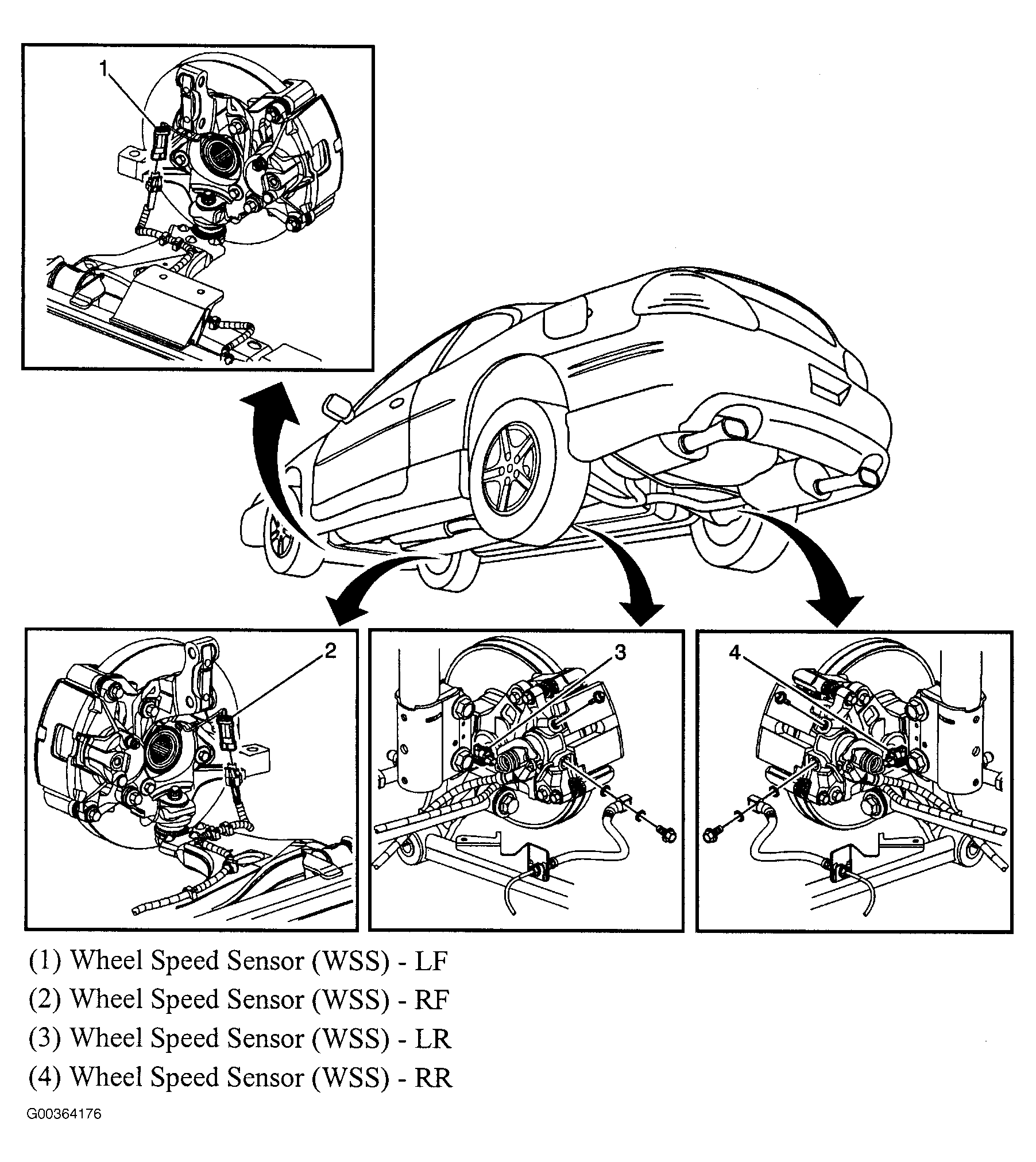

Fig 2: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

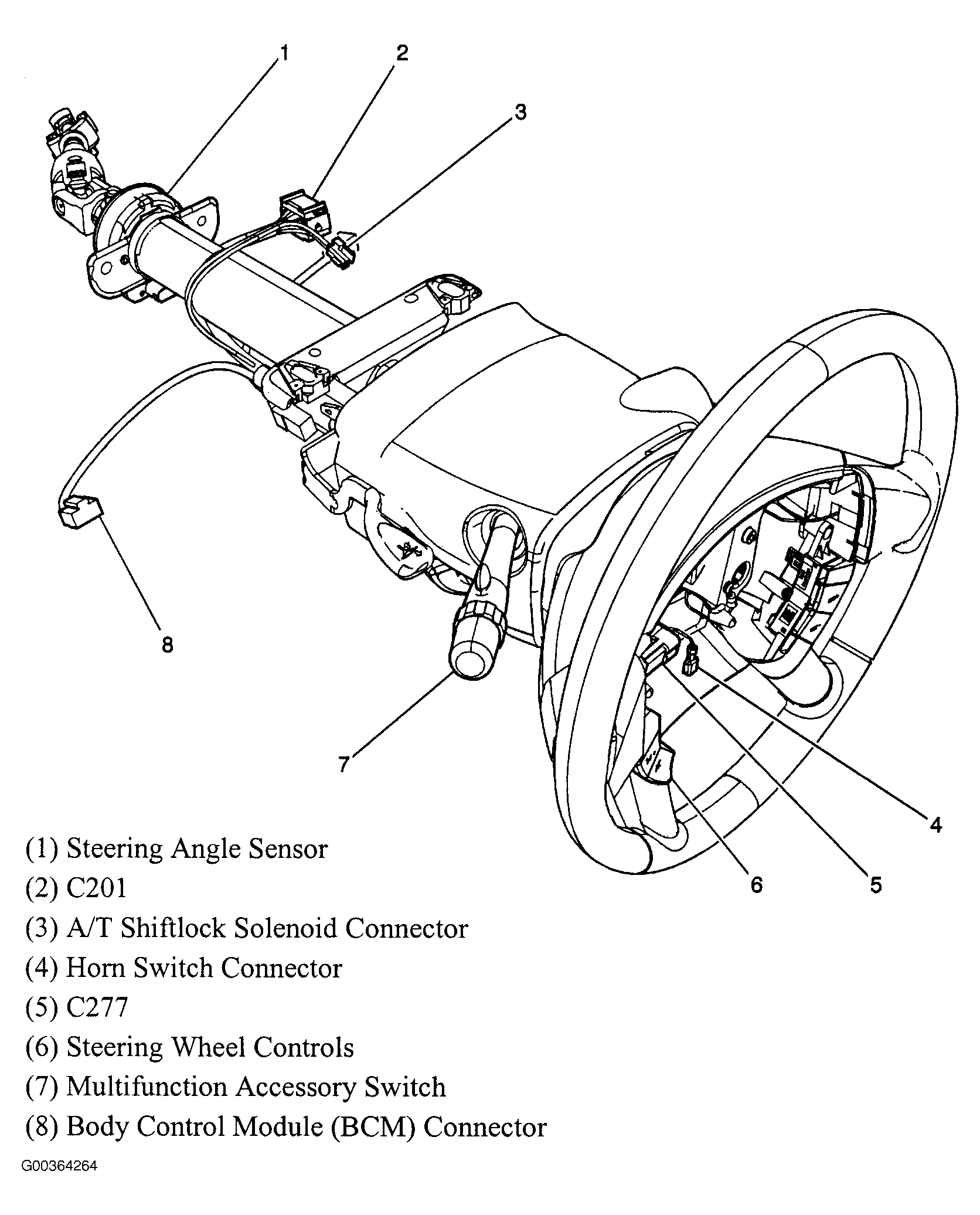

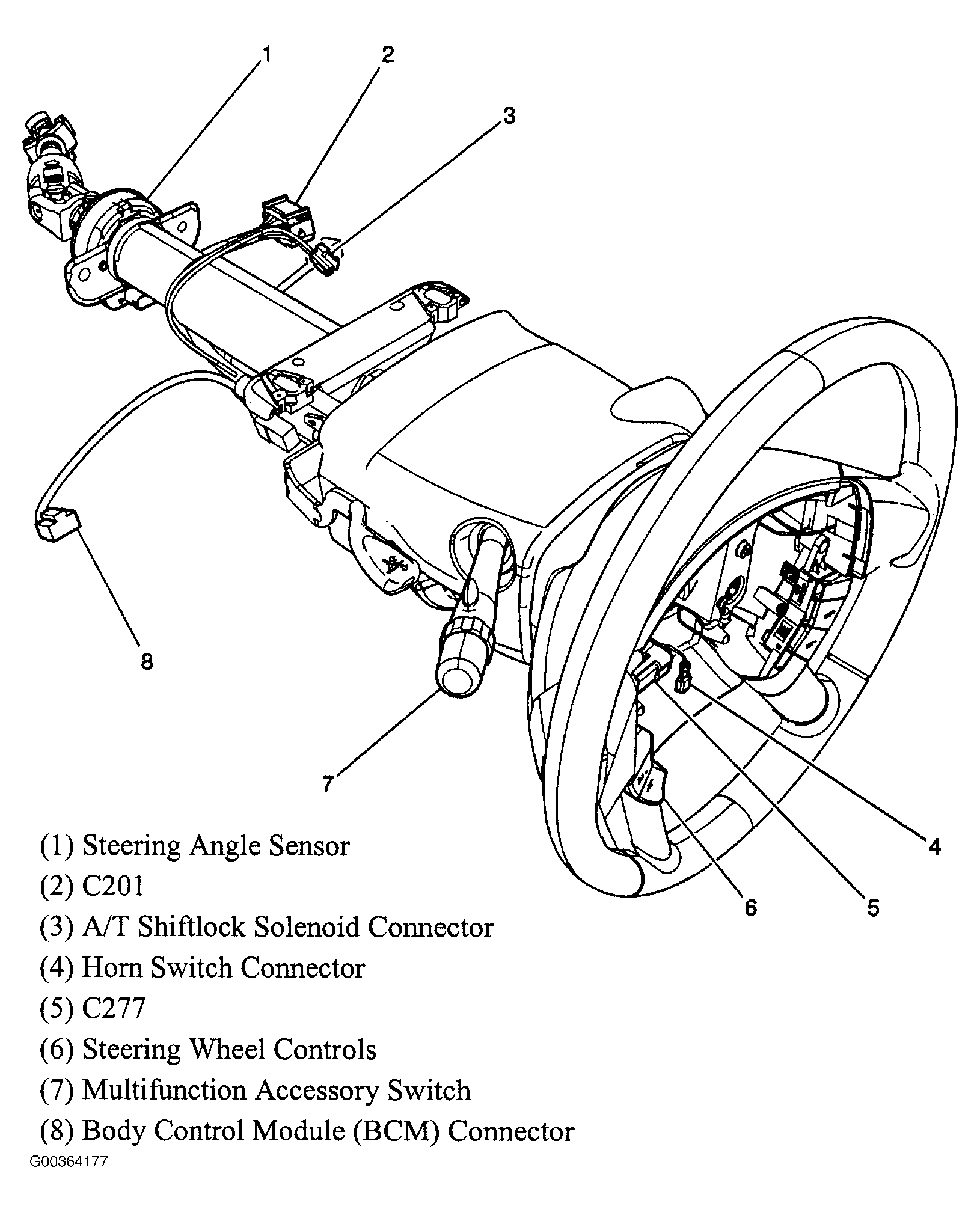

Fig 3: Steering Column
Courtesy of GENERAL MOTORS CORP.

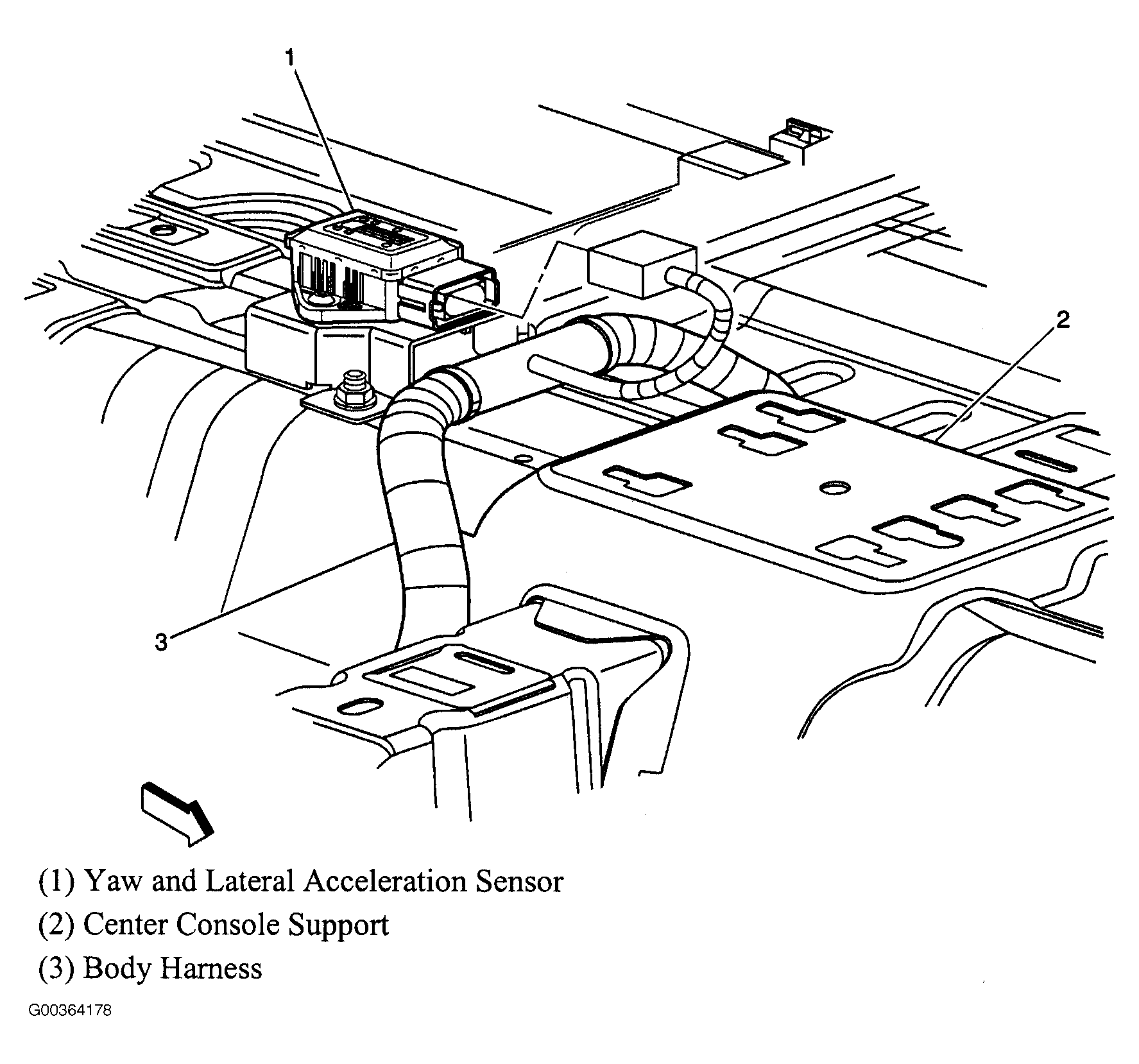

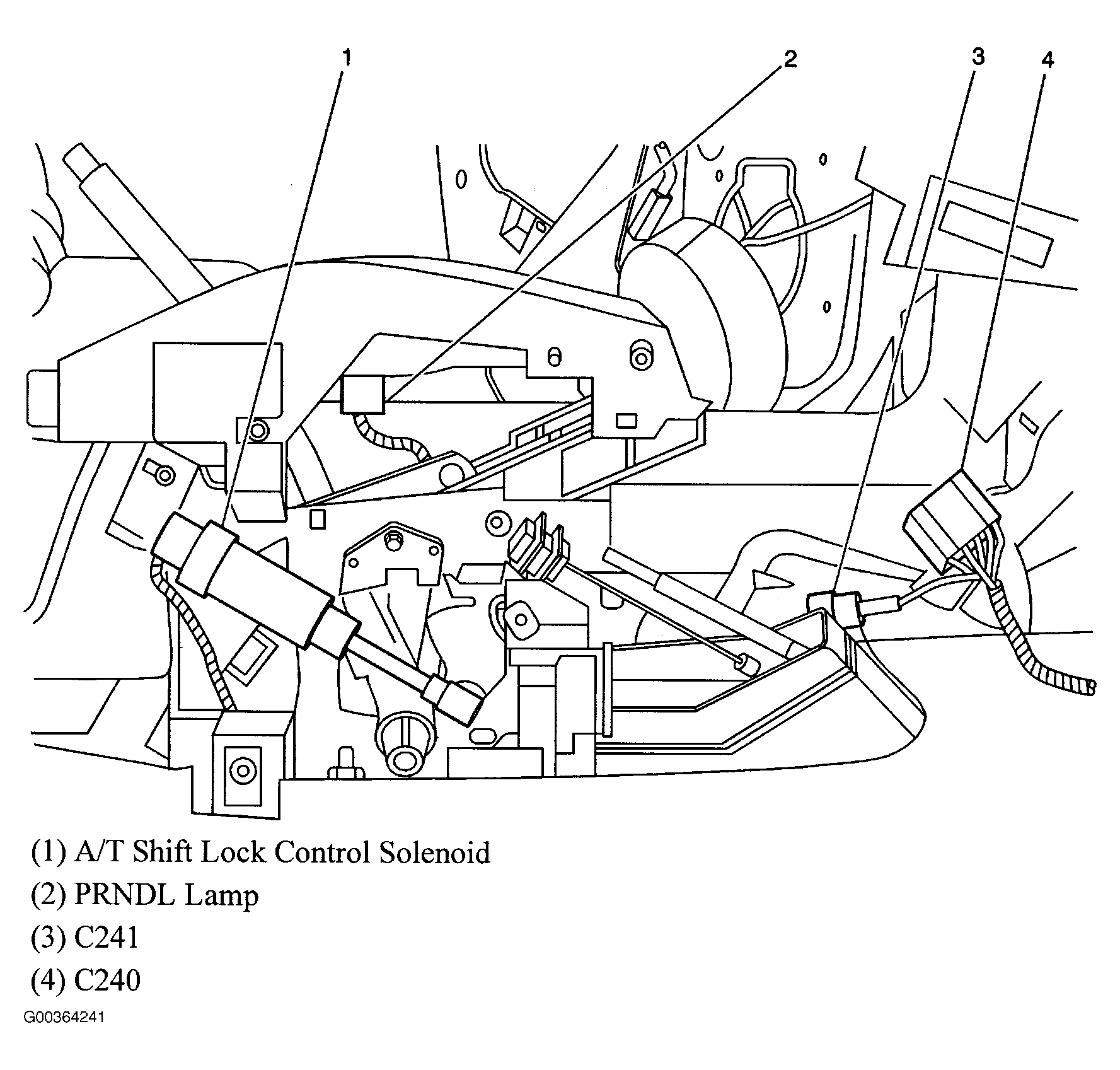

Fig 4: Center Console Support
Courtesy of GENERAL MOTORS CORP.

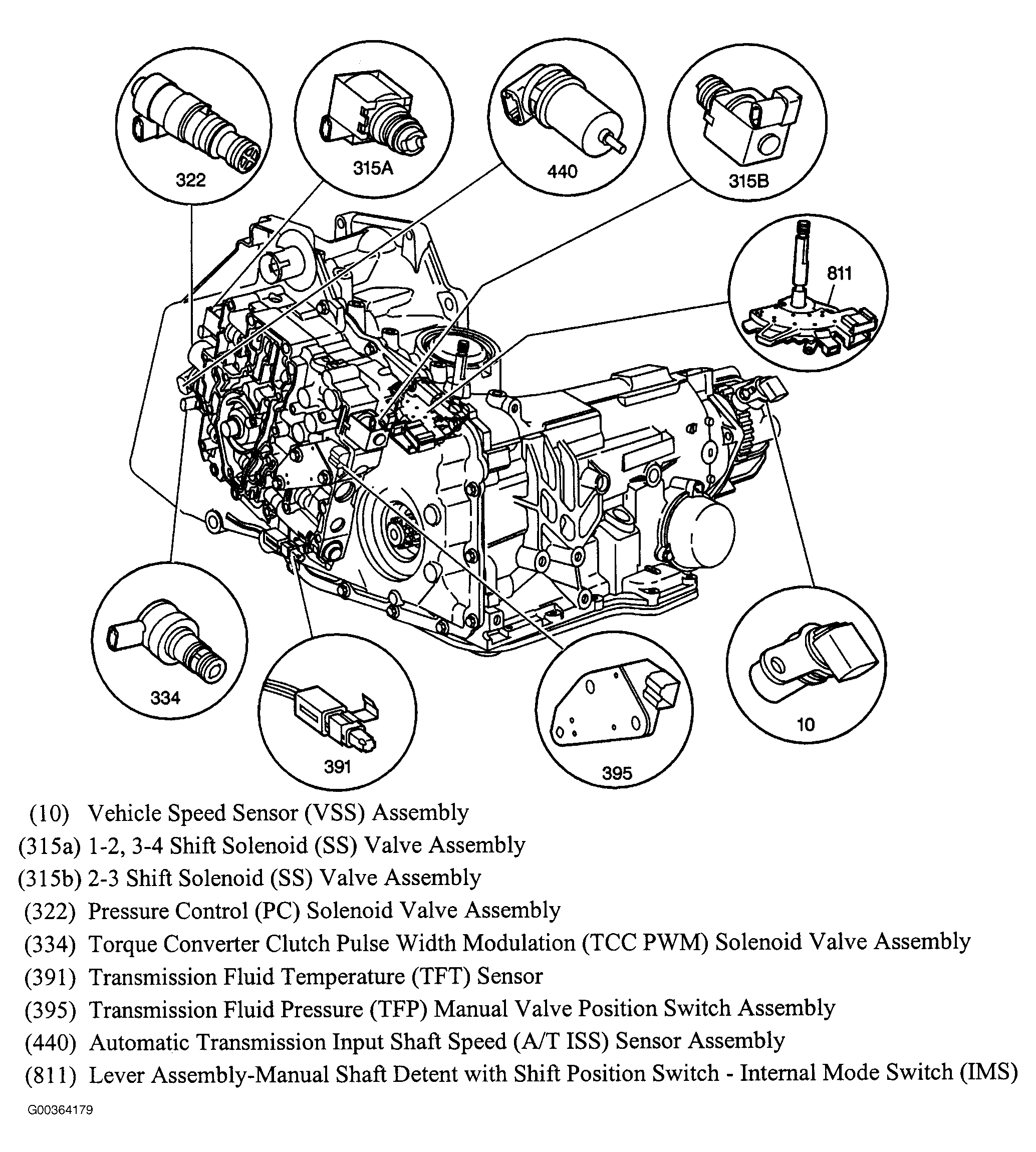

Fig 5: Automatic Transmission Assembly
Courtesy of GENERAL MOTORS CORP.

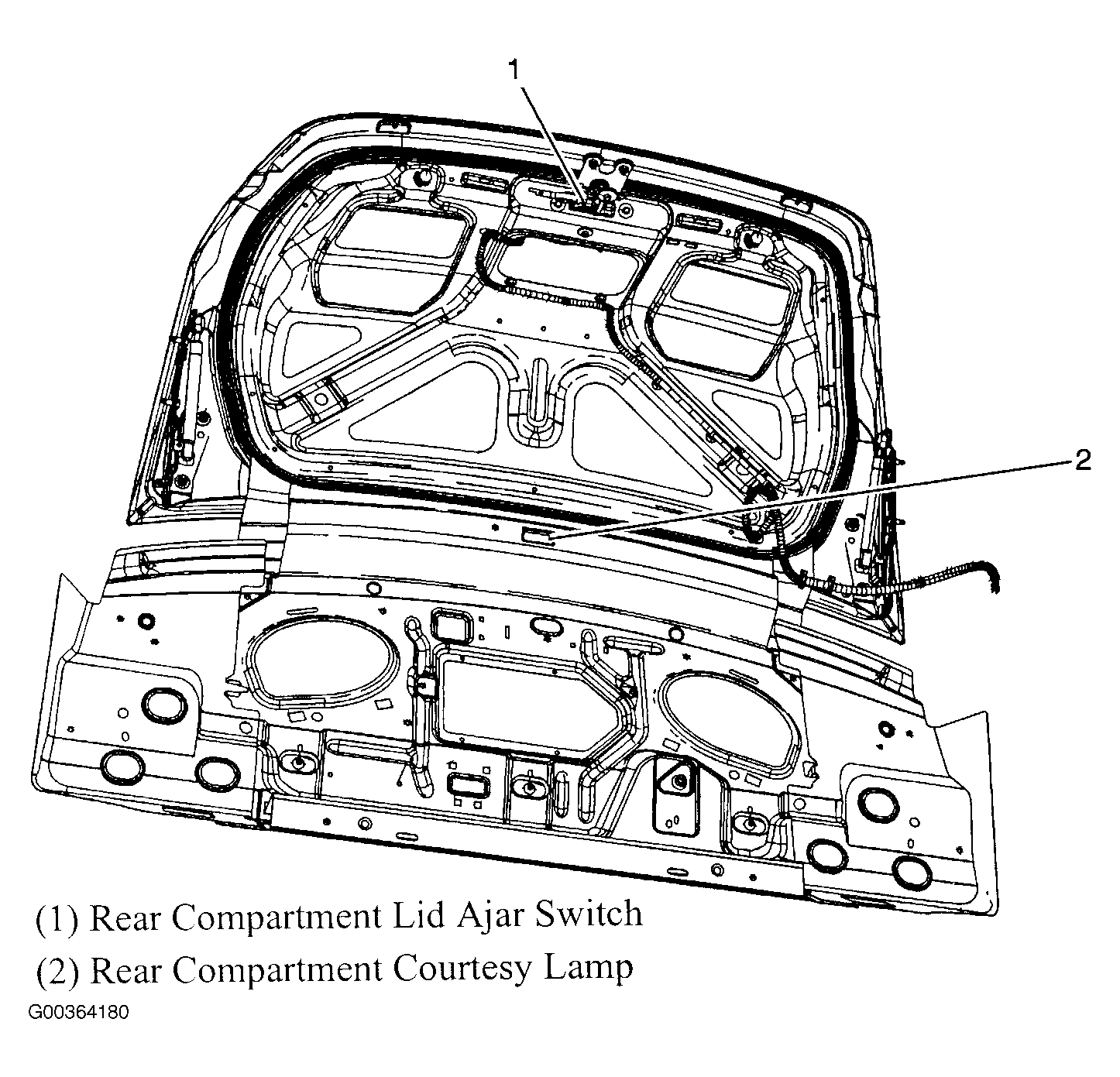

Fig 6: Trunk Lid
Courtesy of GENERAL MOTORS CORP.

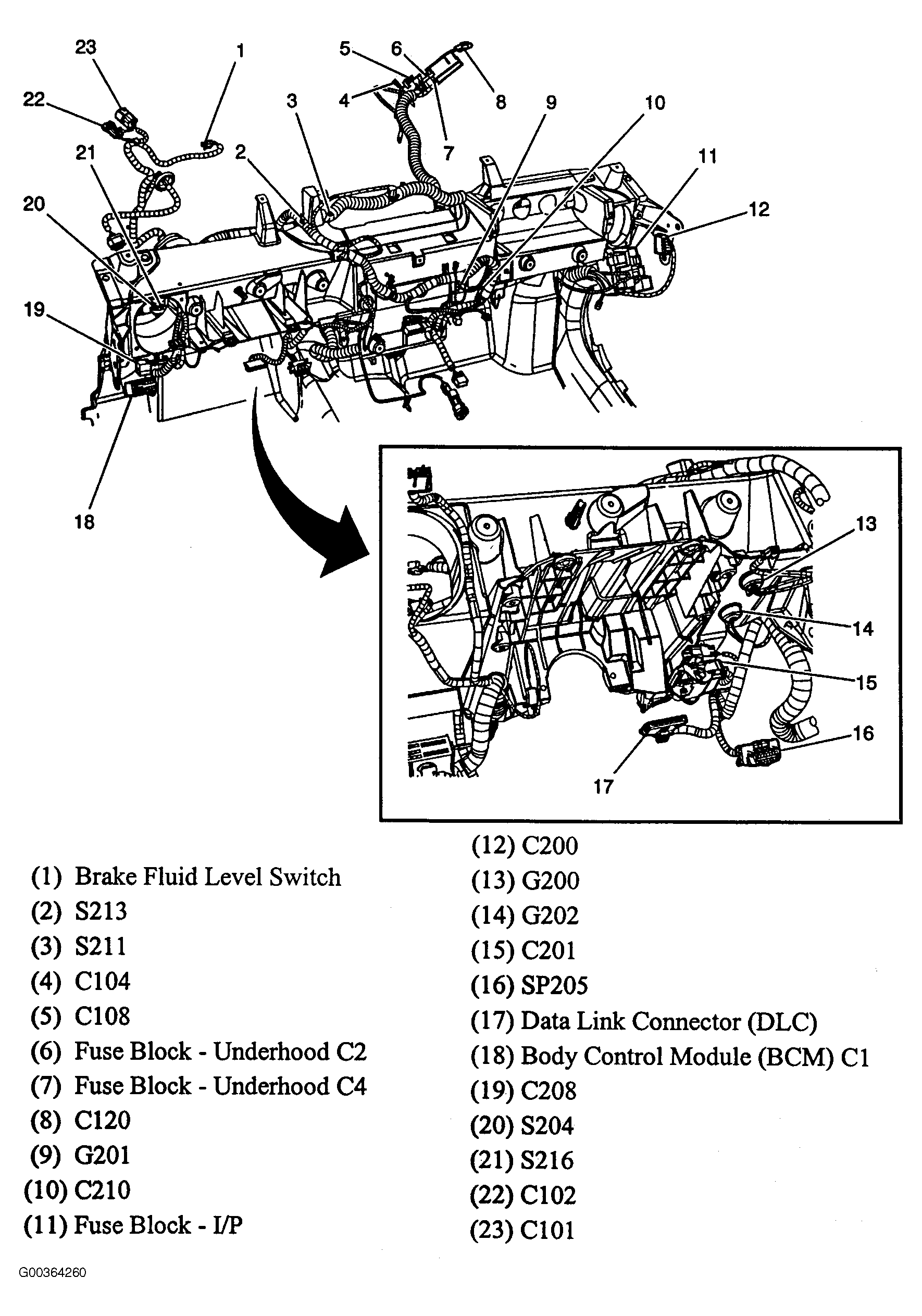

Fig 7: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 8: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

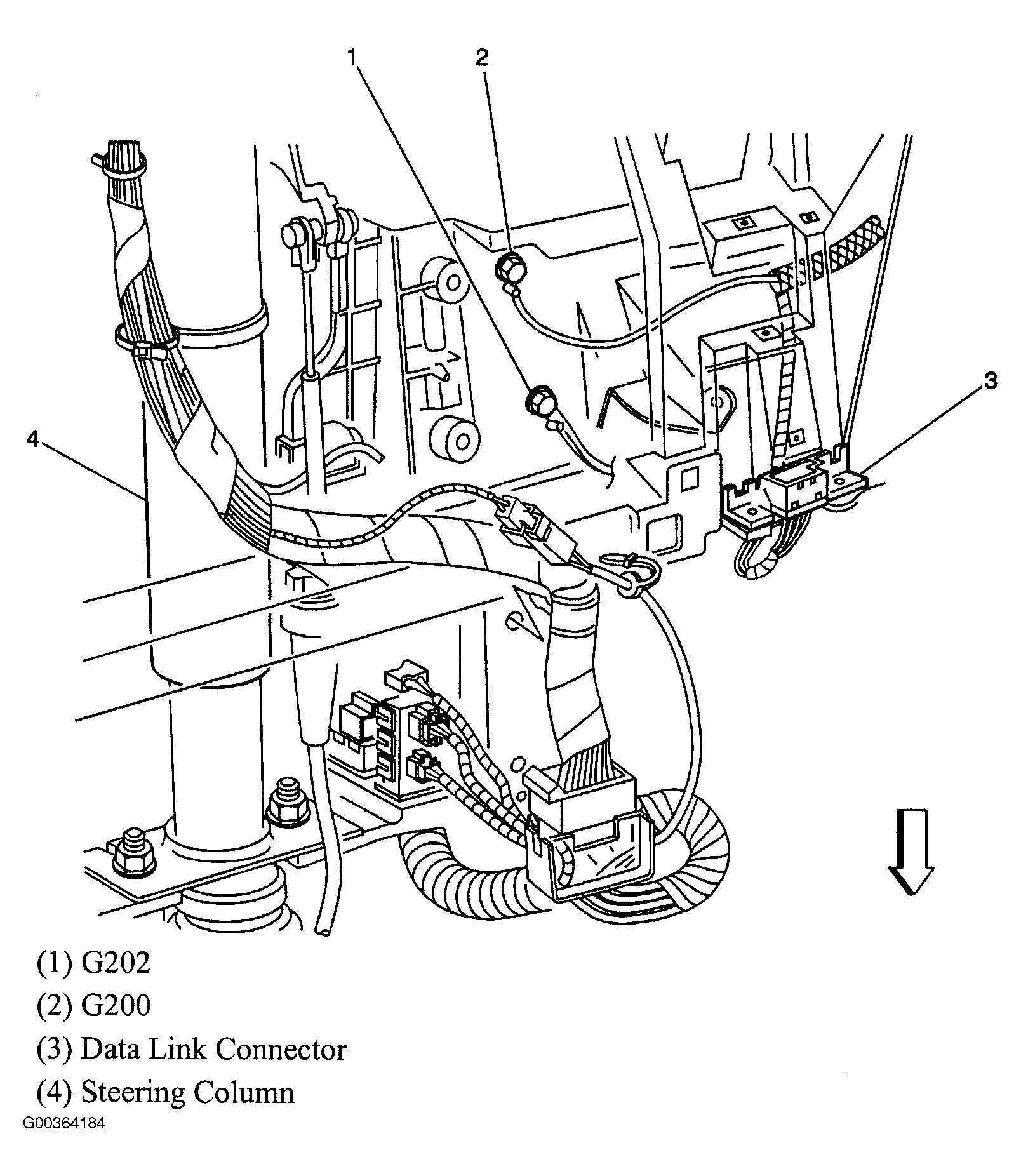

Fig 9: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 10: Dash
Courtesy of GENERAL MOTORS CORP.

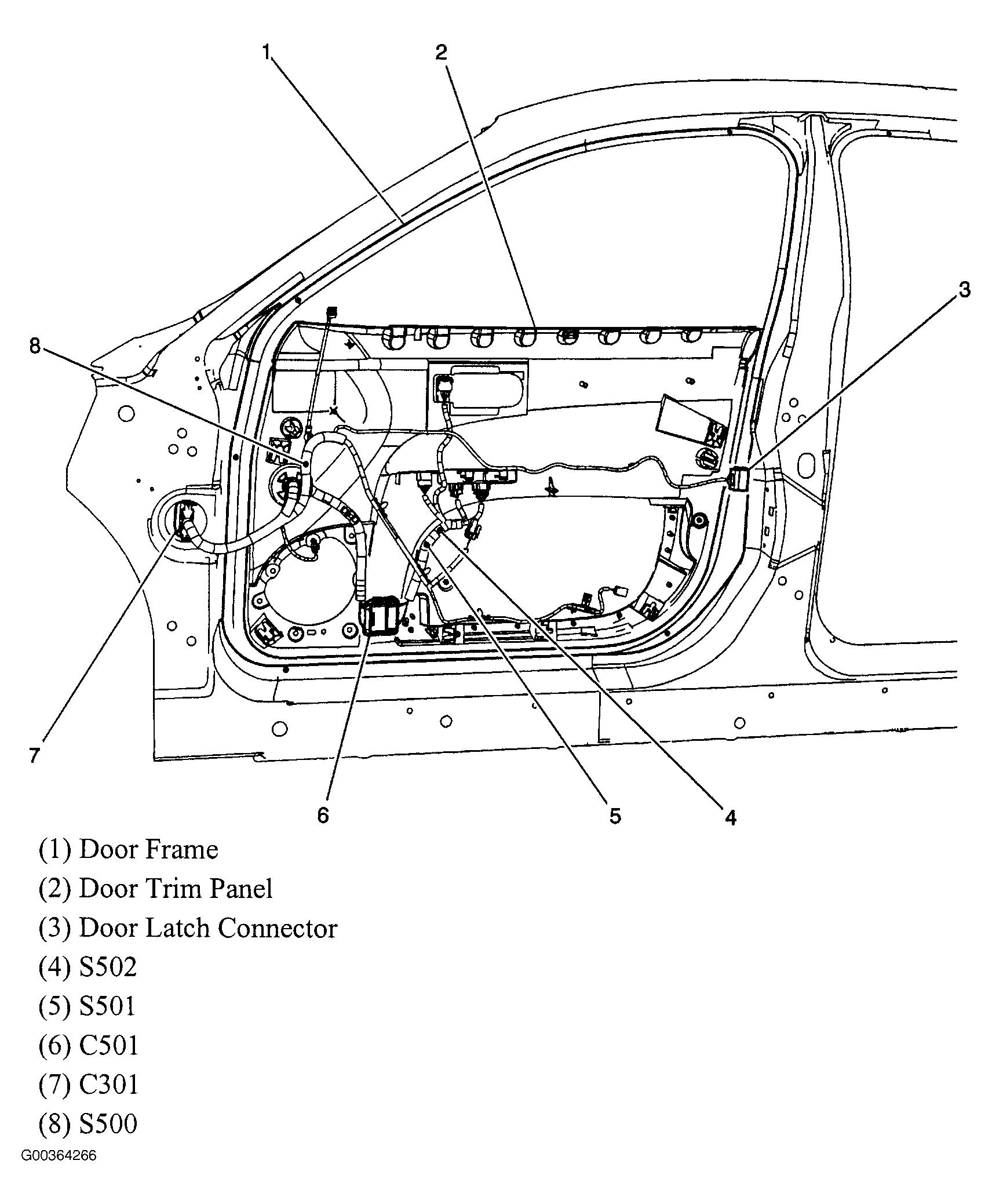

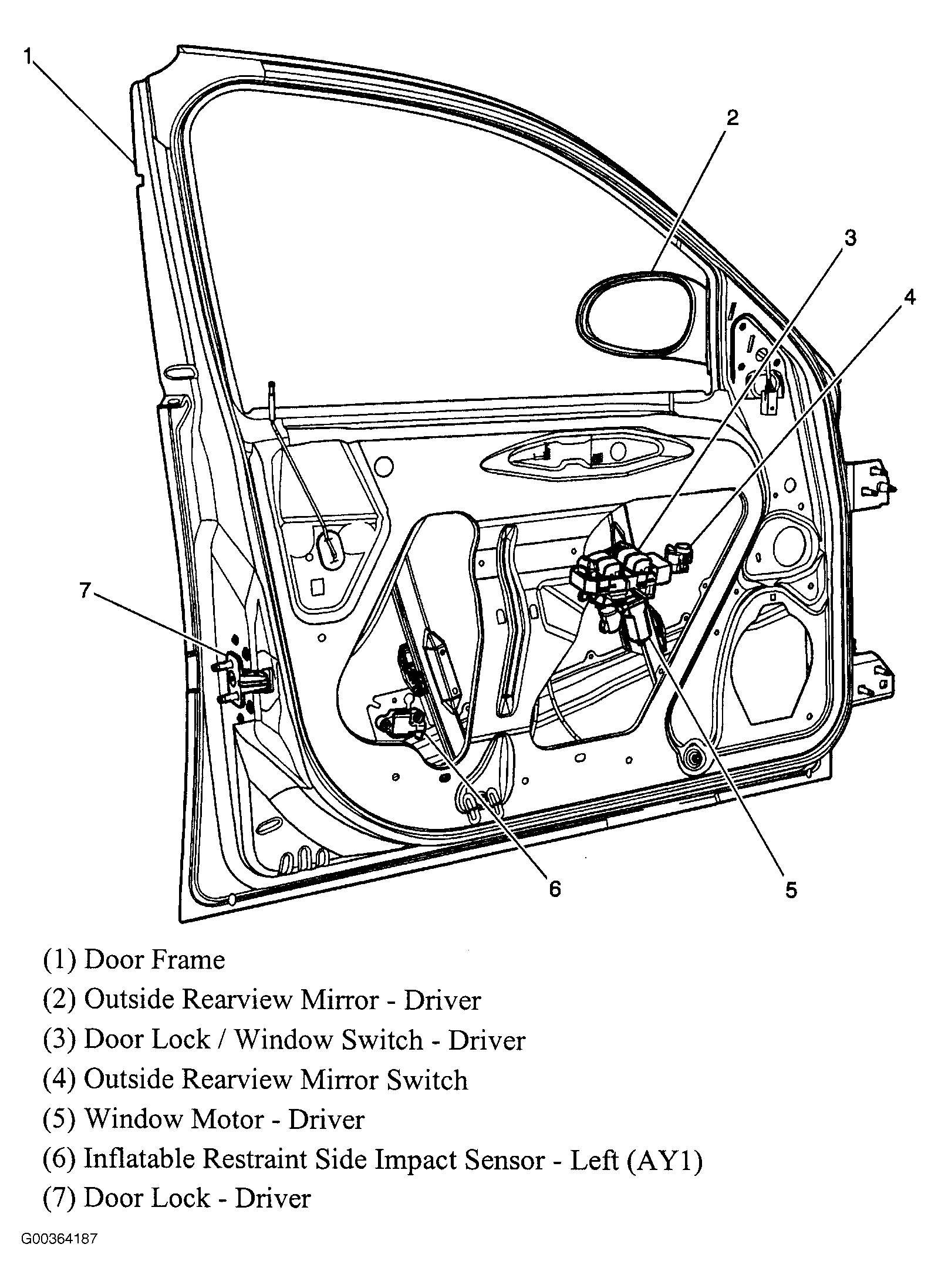

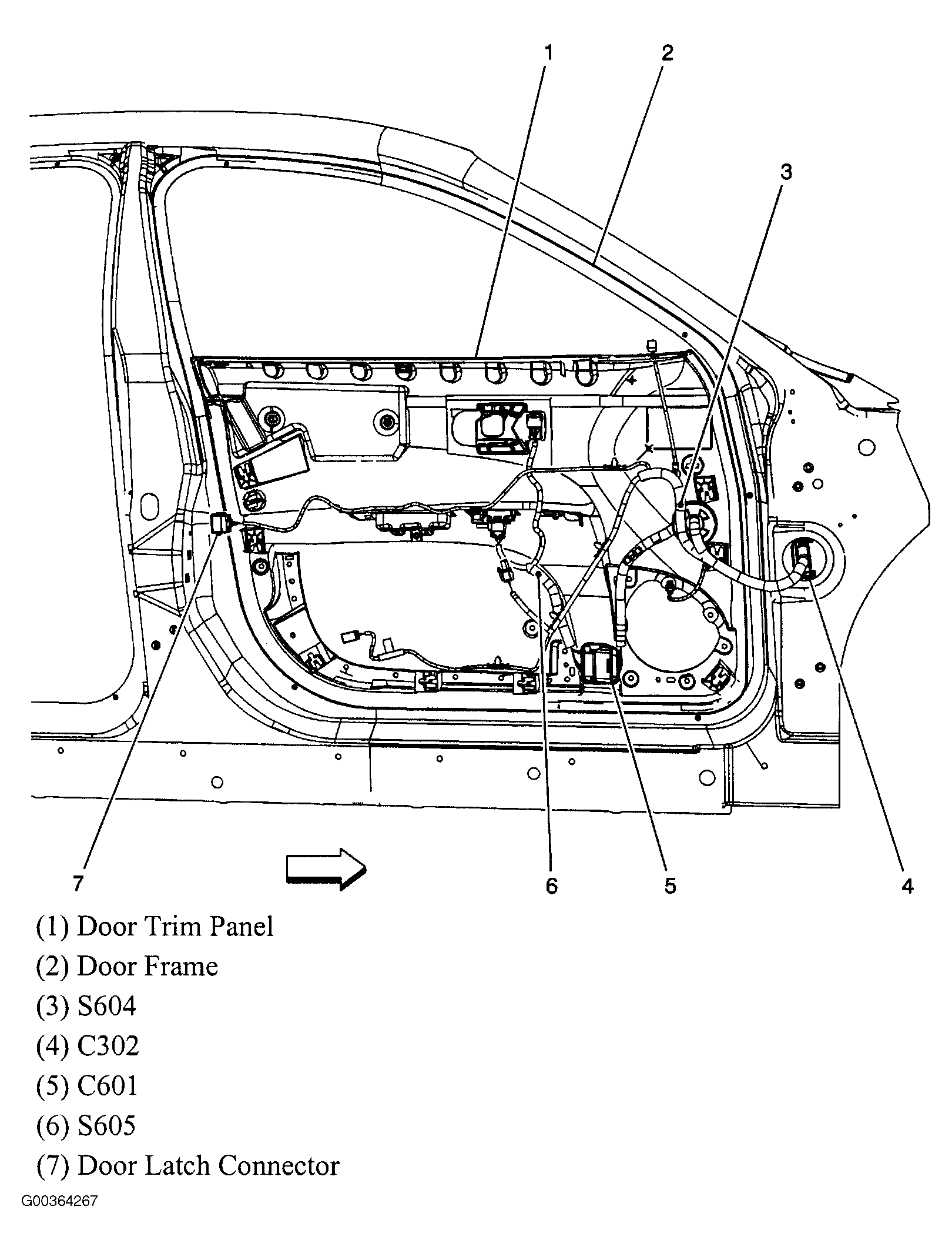

Fig 11: Driver's Door
Courtesy of GENERAL MOTORS CORP.

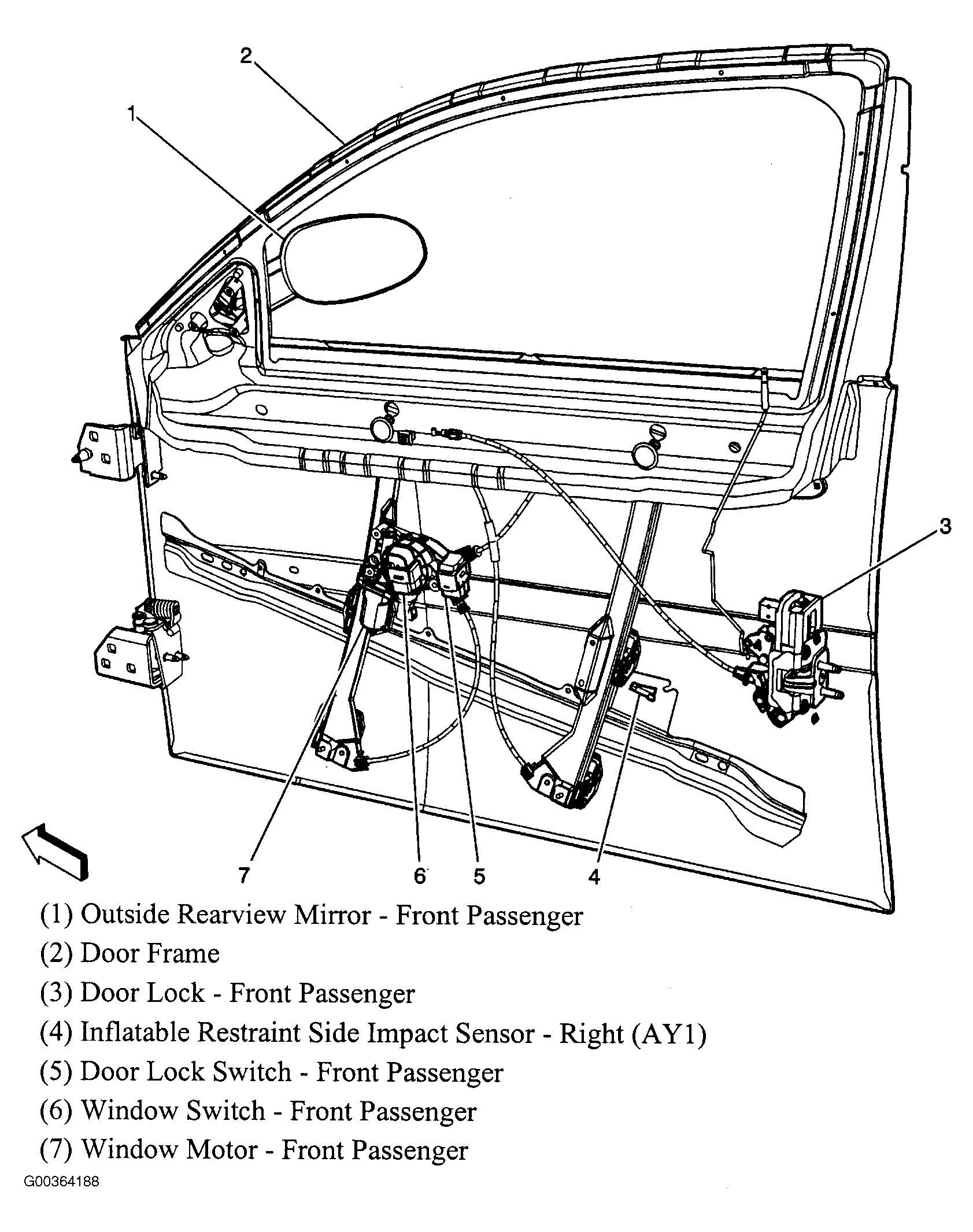

Fig 12: Right Front Door
Courtesy of GENERAL MOTORS CORP.

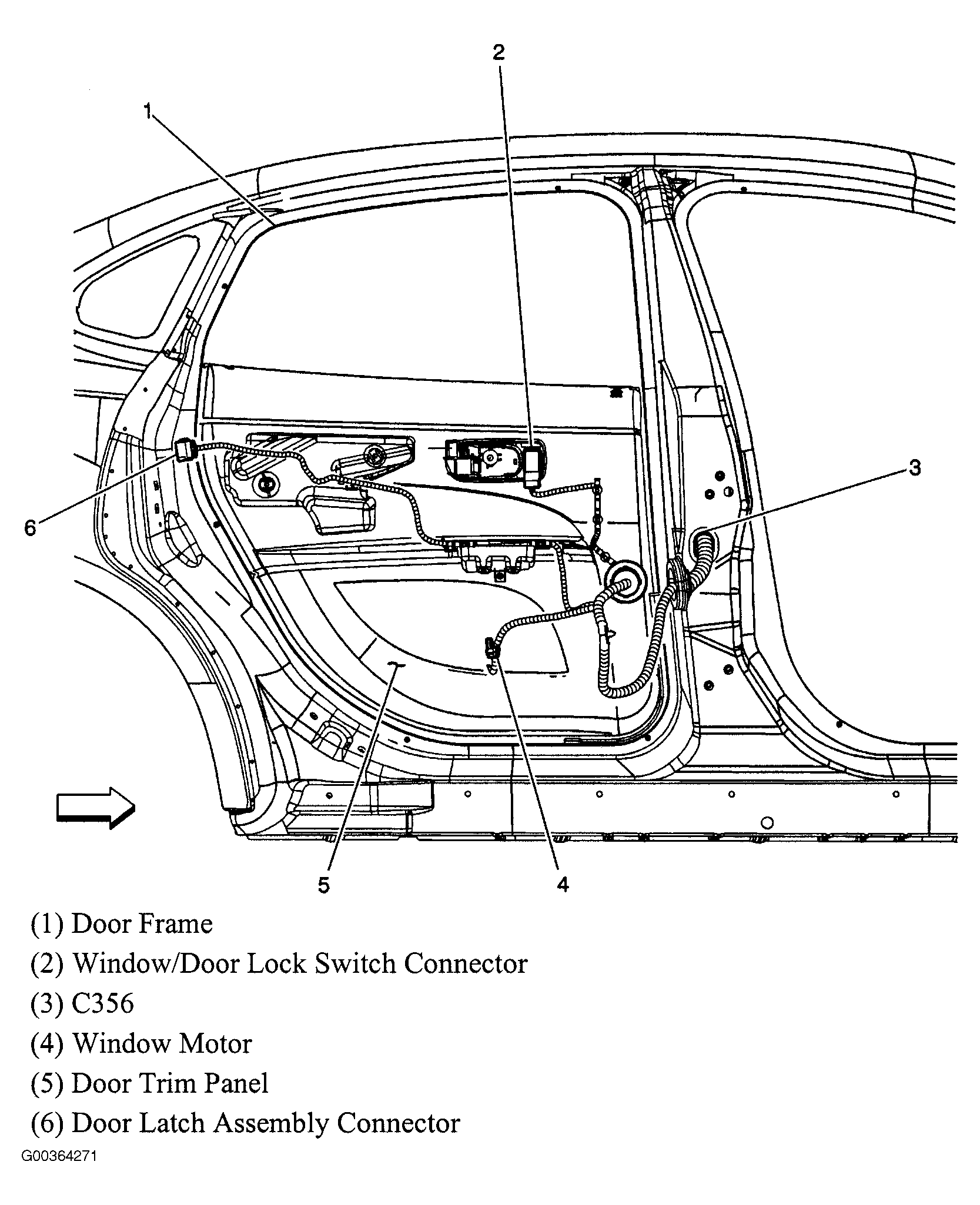

Fig 13: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Rear Passenger's Door
Courtesy of GENERAL MOTORS CORP.

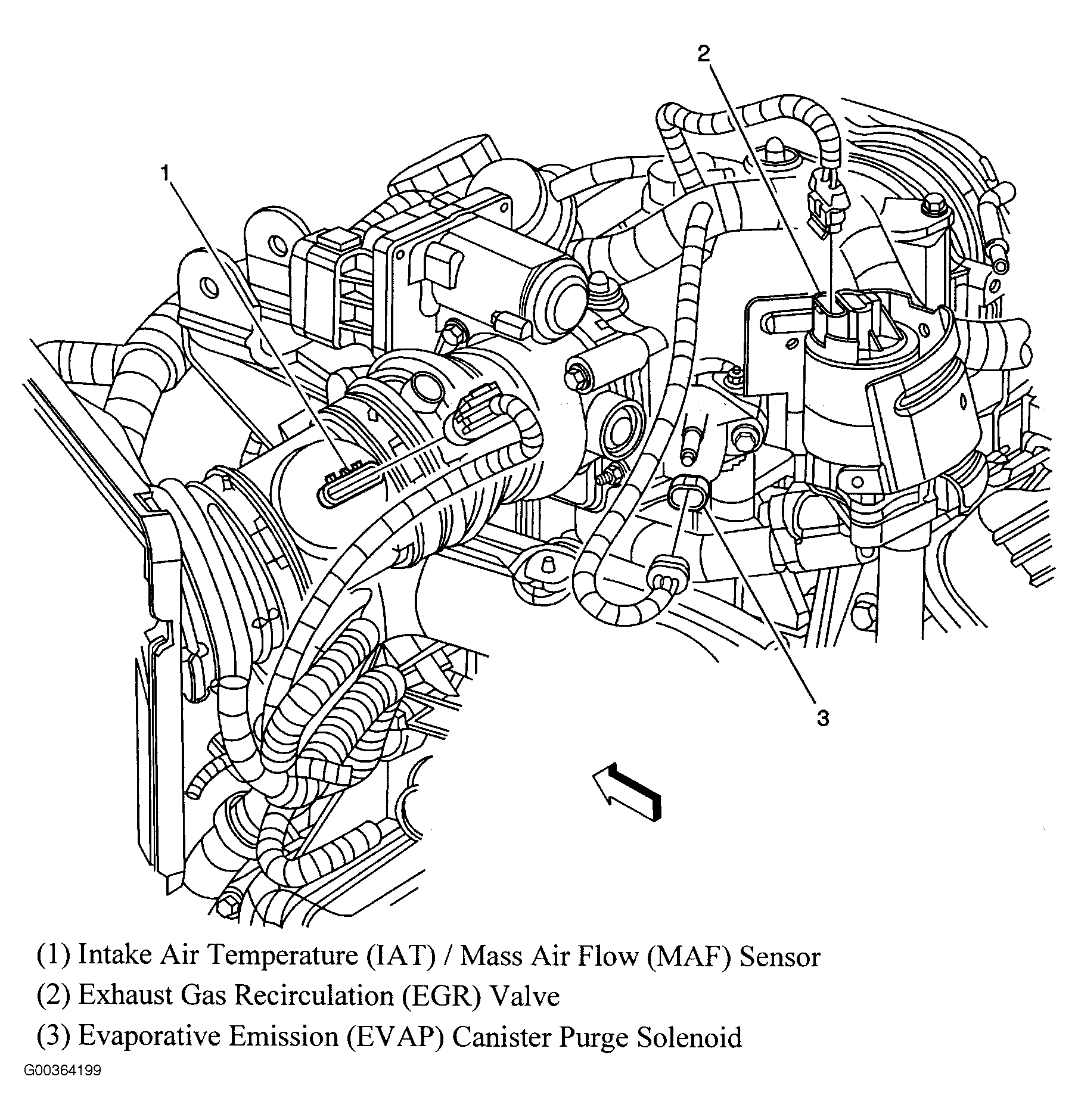

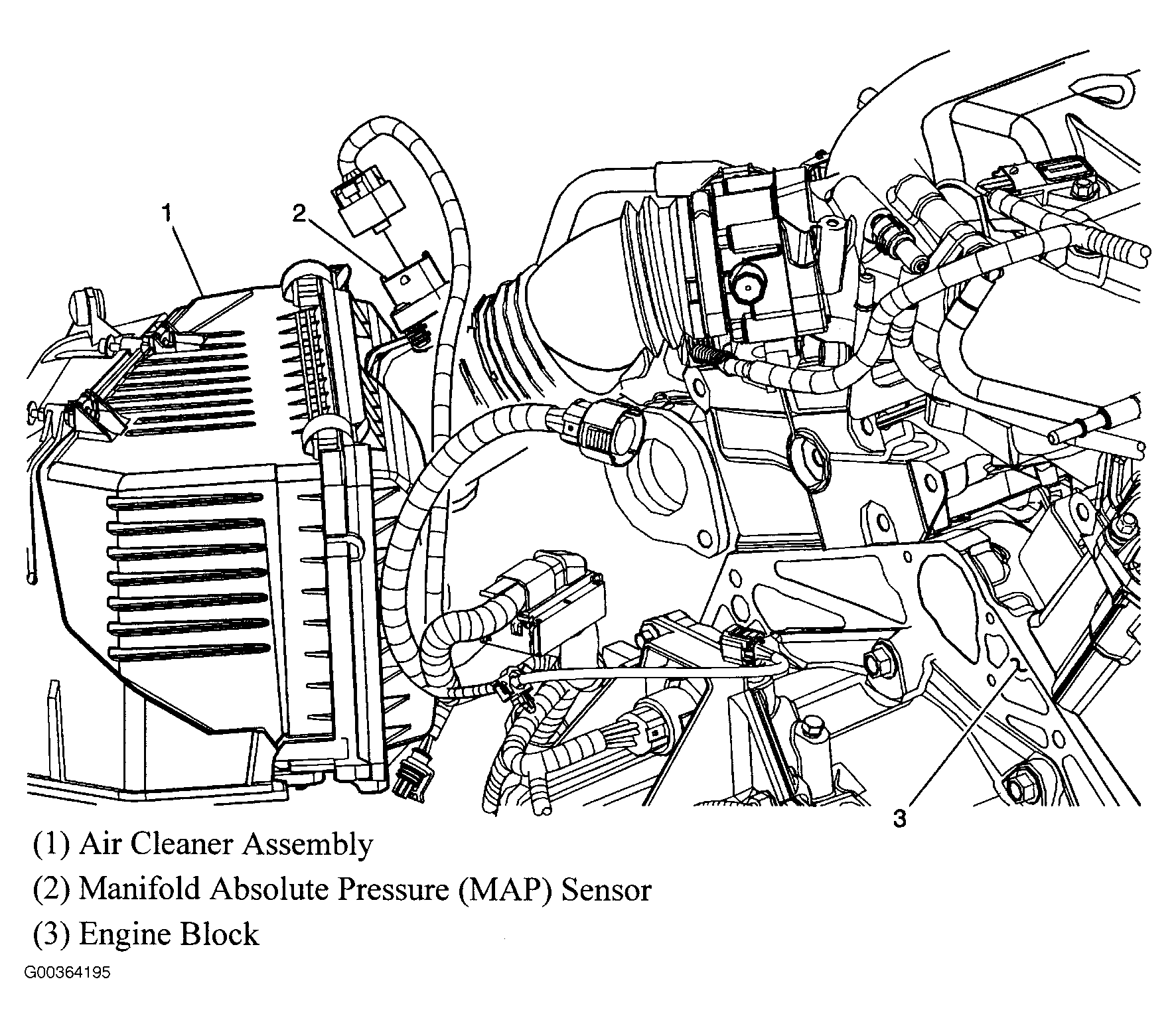

Fig 15: Engine Control Components (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Engine Control Components (3.6L)
Courtesy of GENERAL MOTORS CORP.

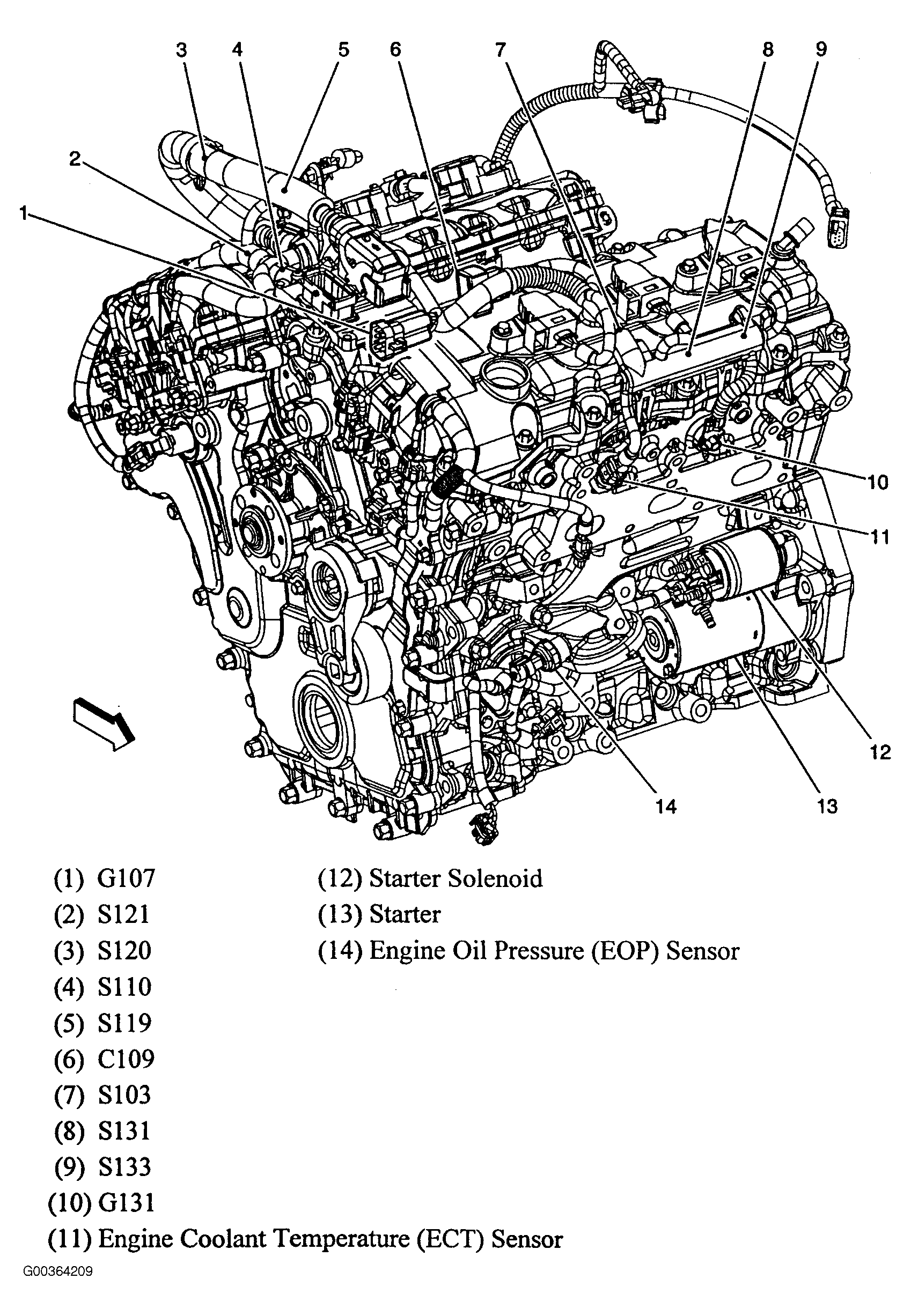

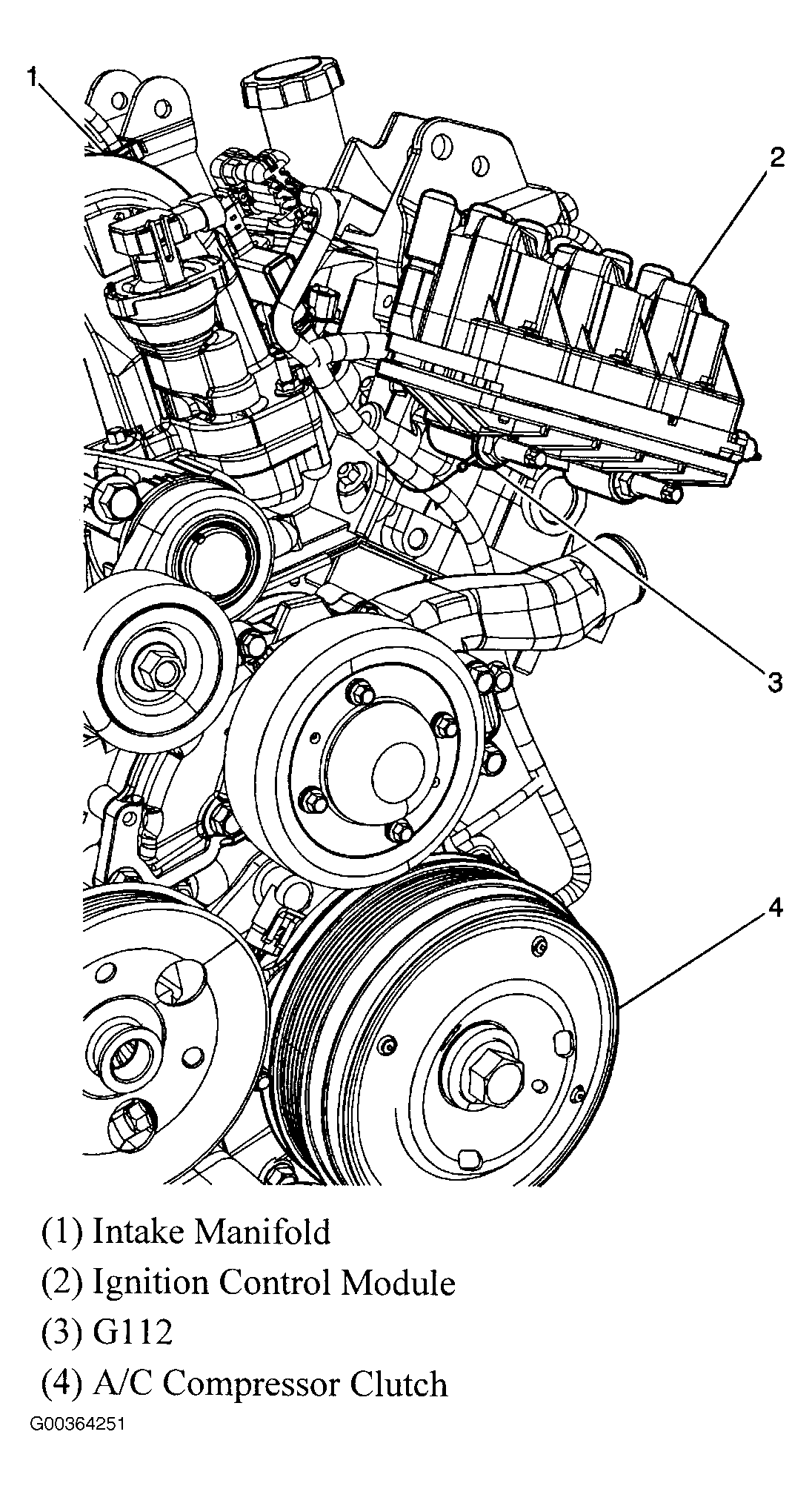

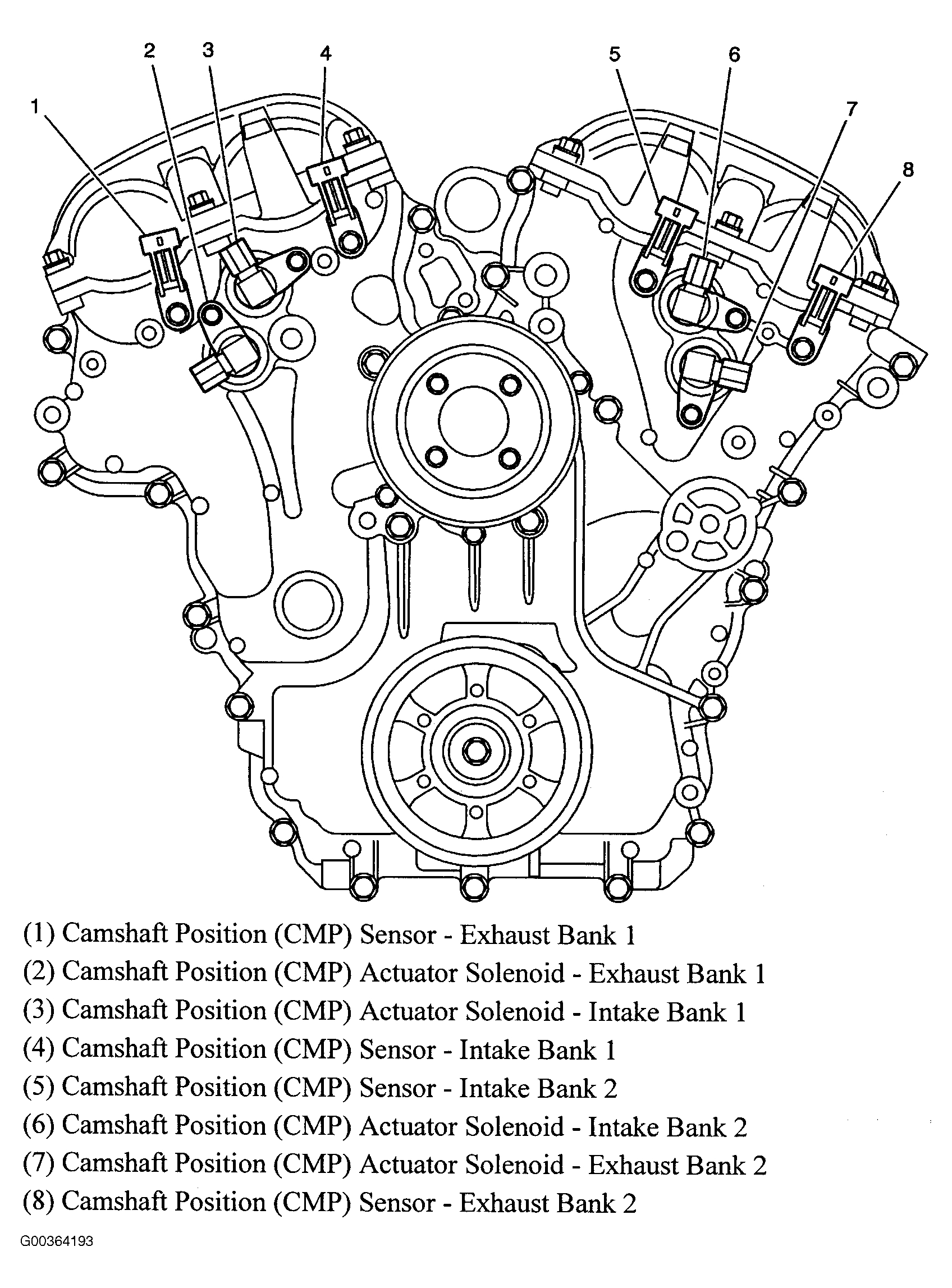

Fig 17: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

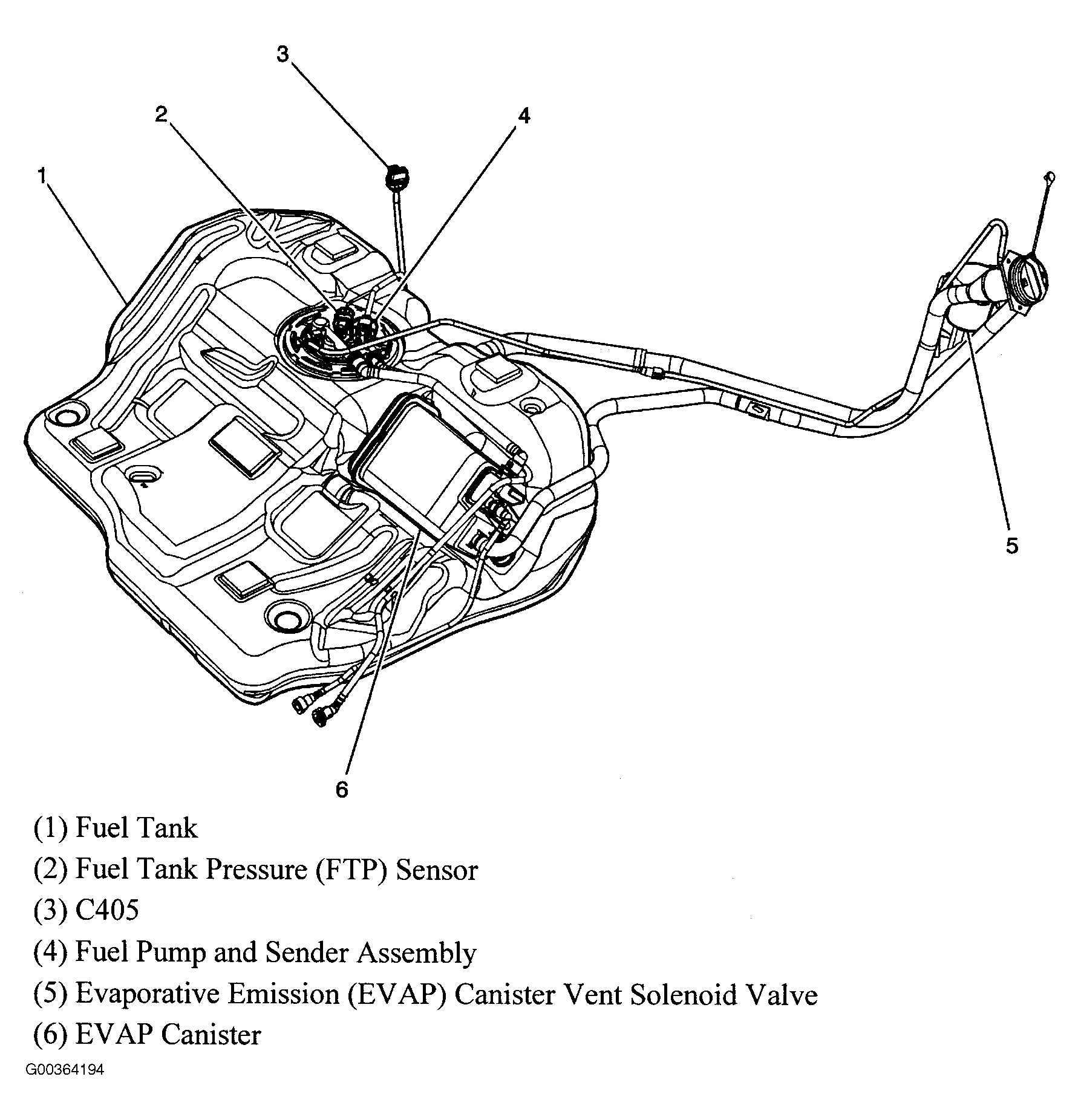

Fig 18: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

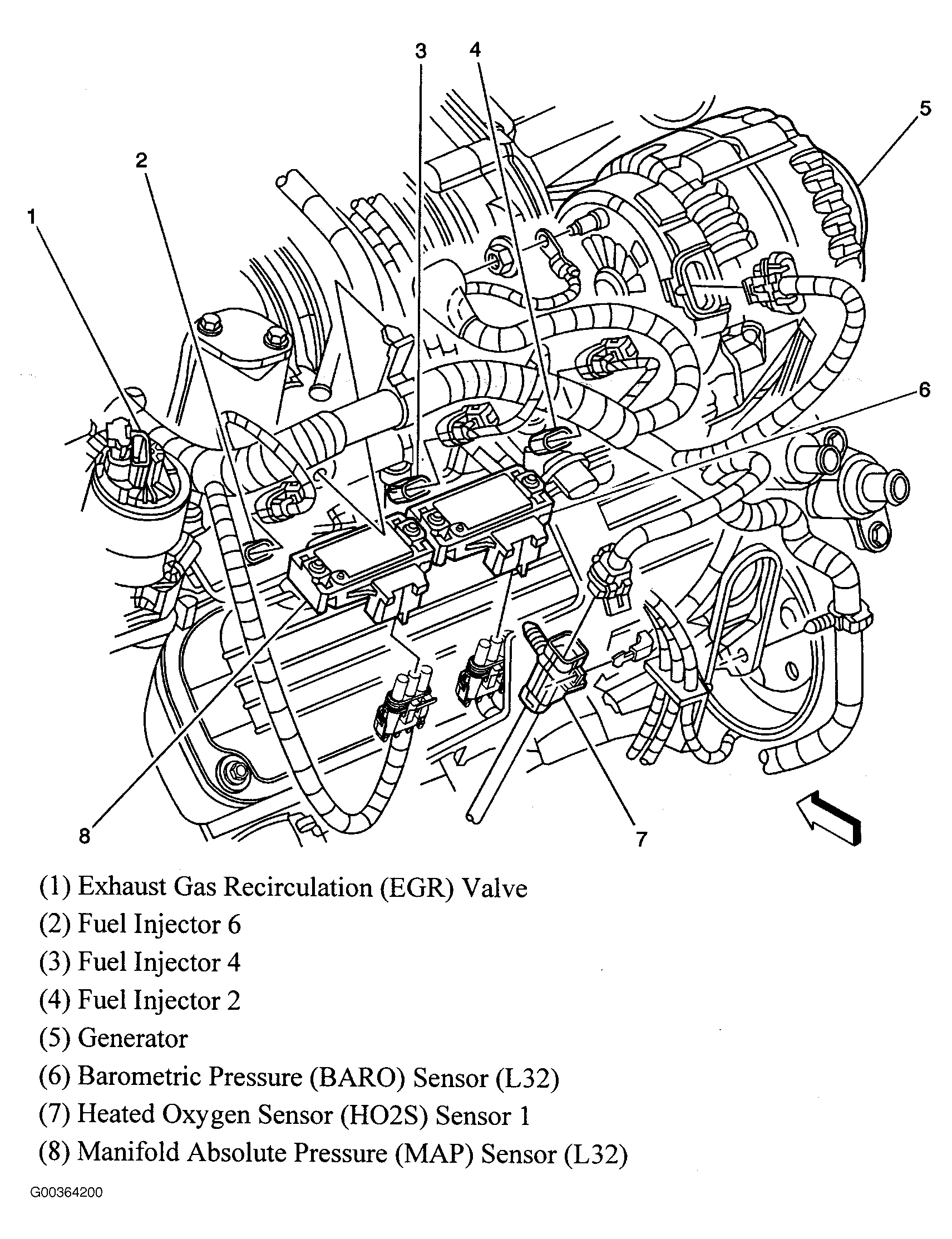

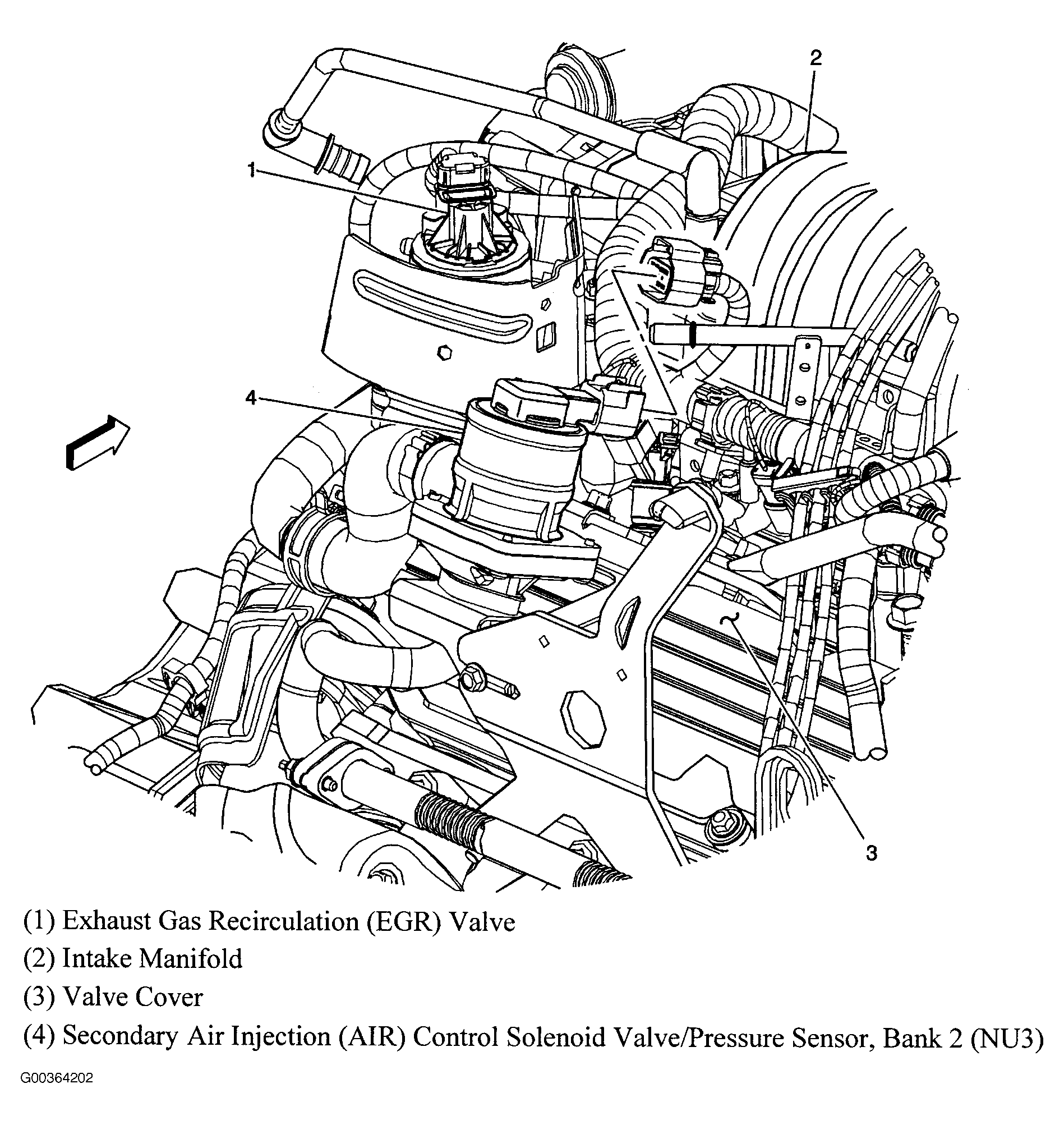

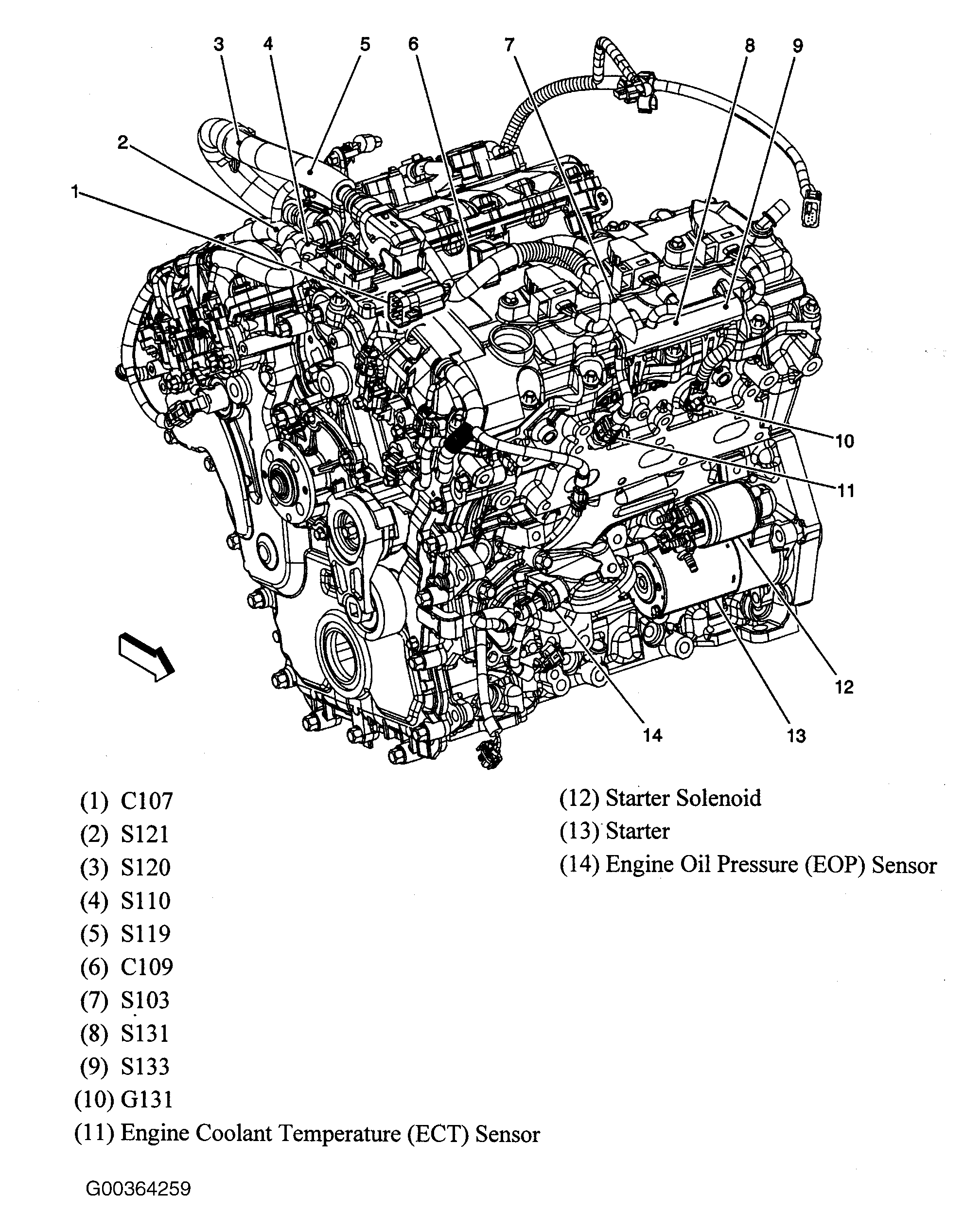

Fig 19: Upper Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

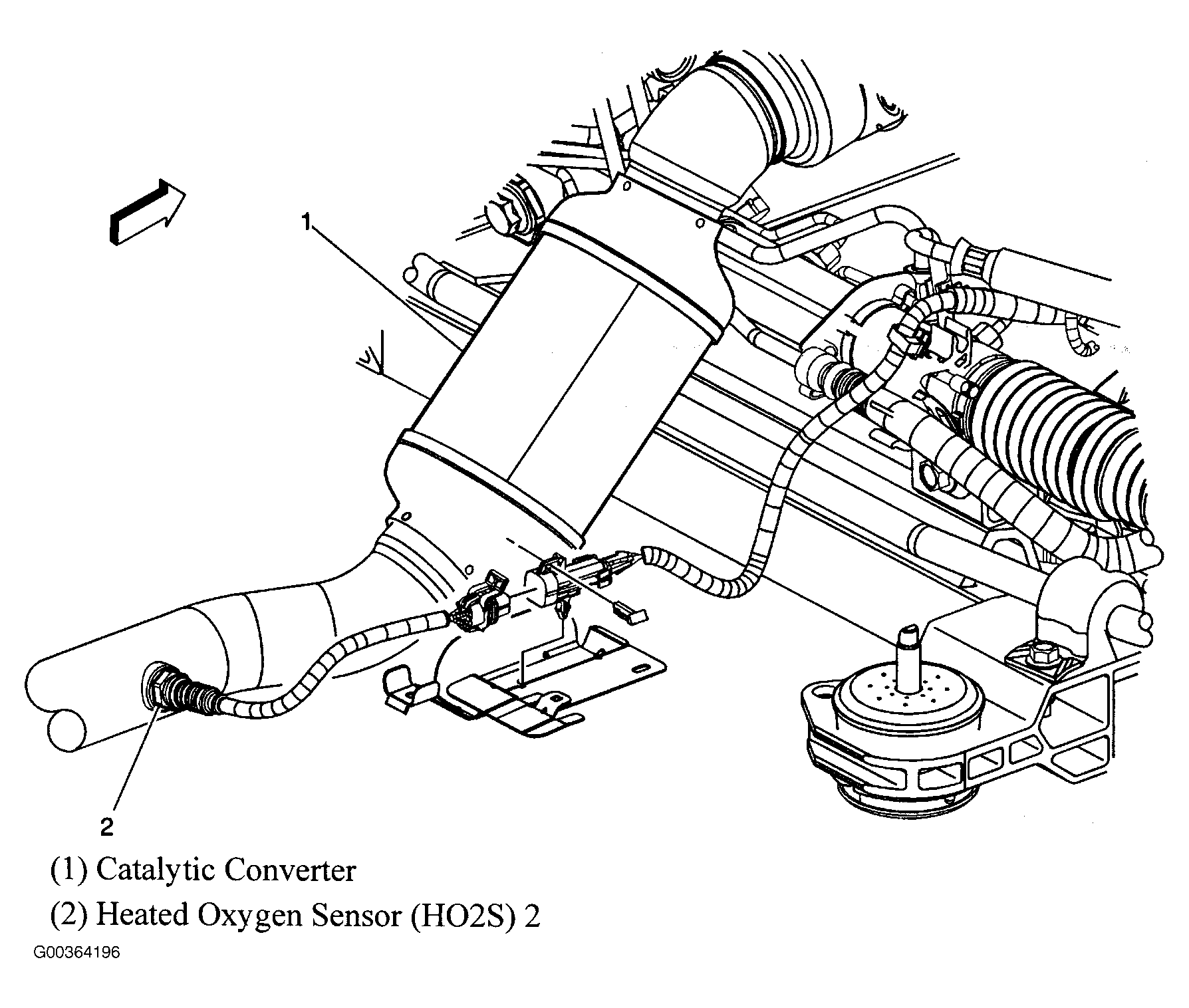

Fig 20: Catalytic Converter (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

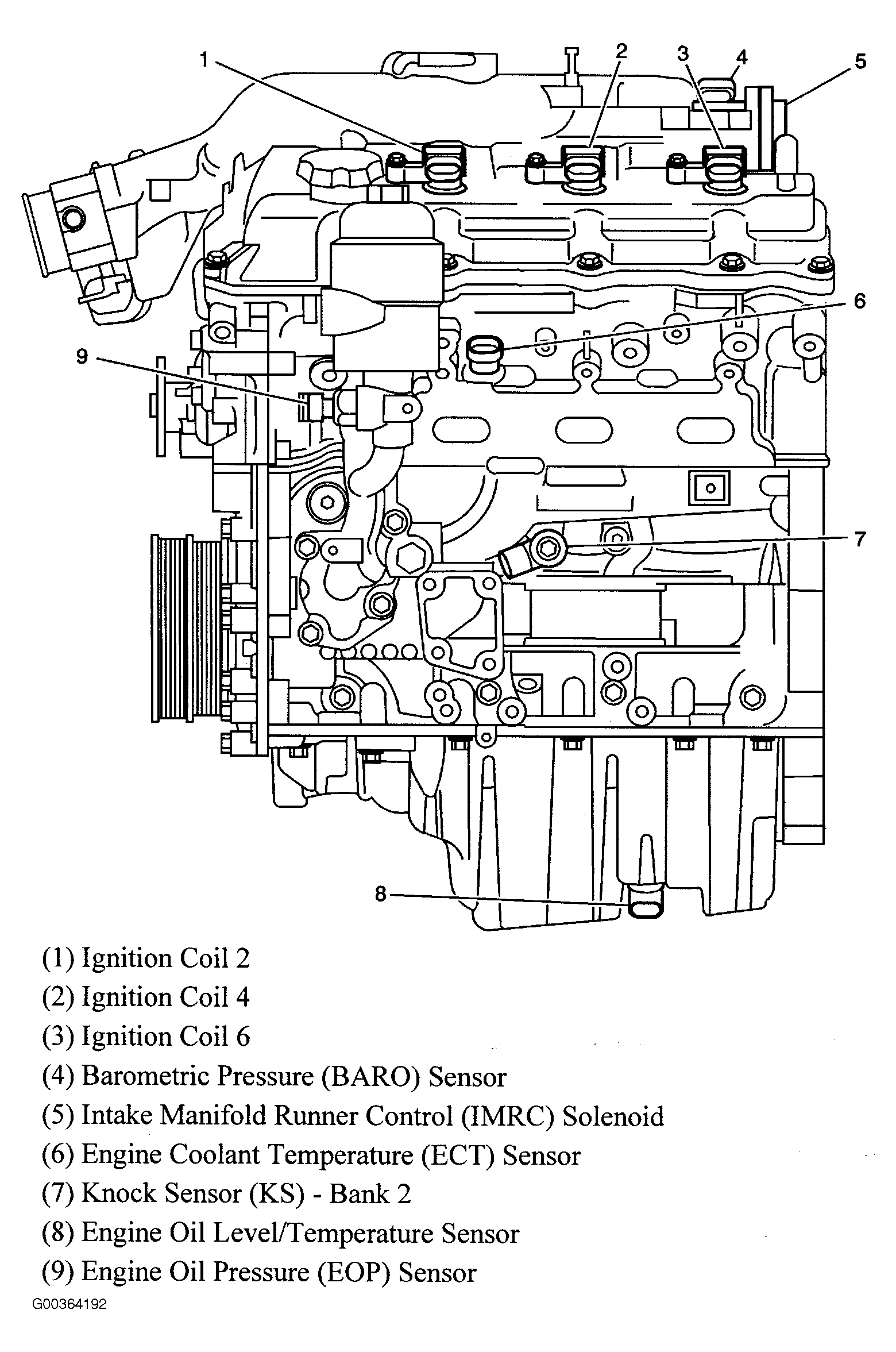

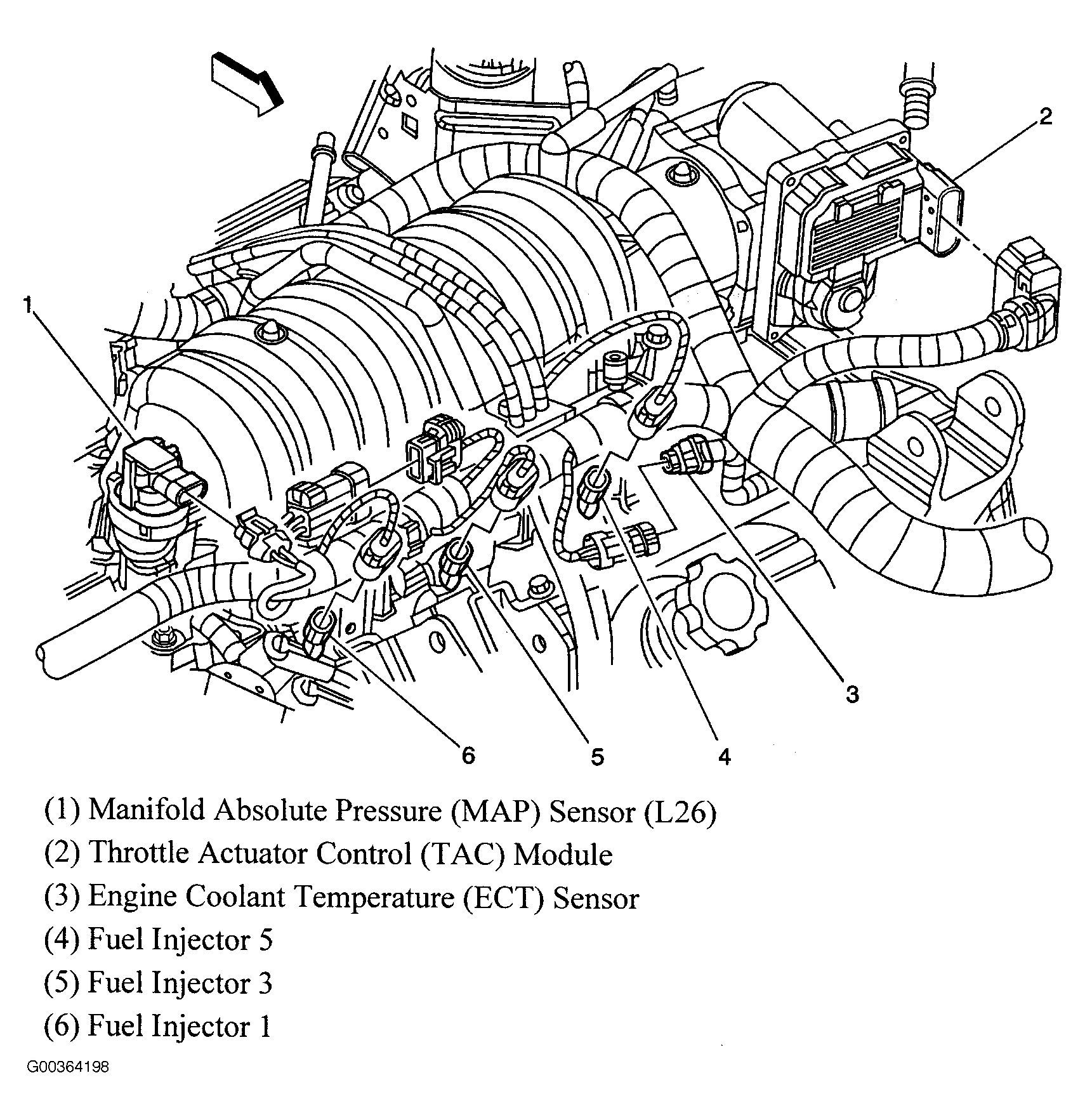

Fig 22: Top Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

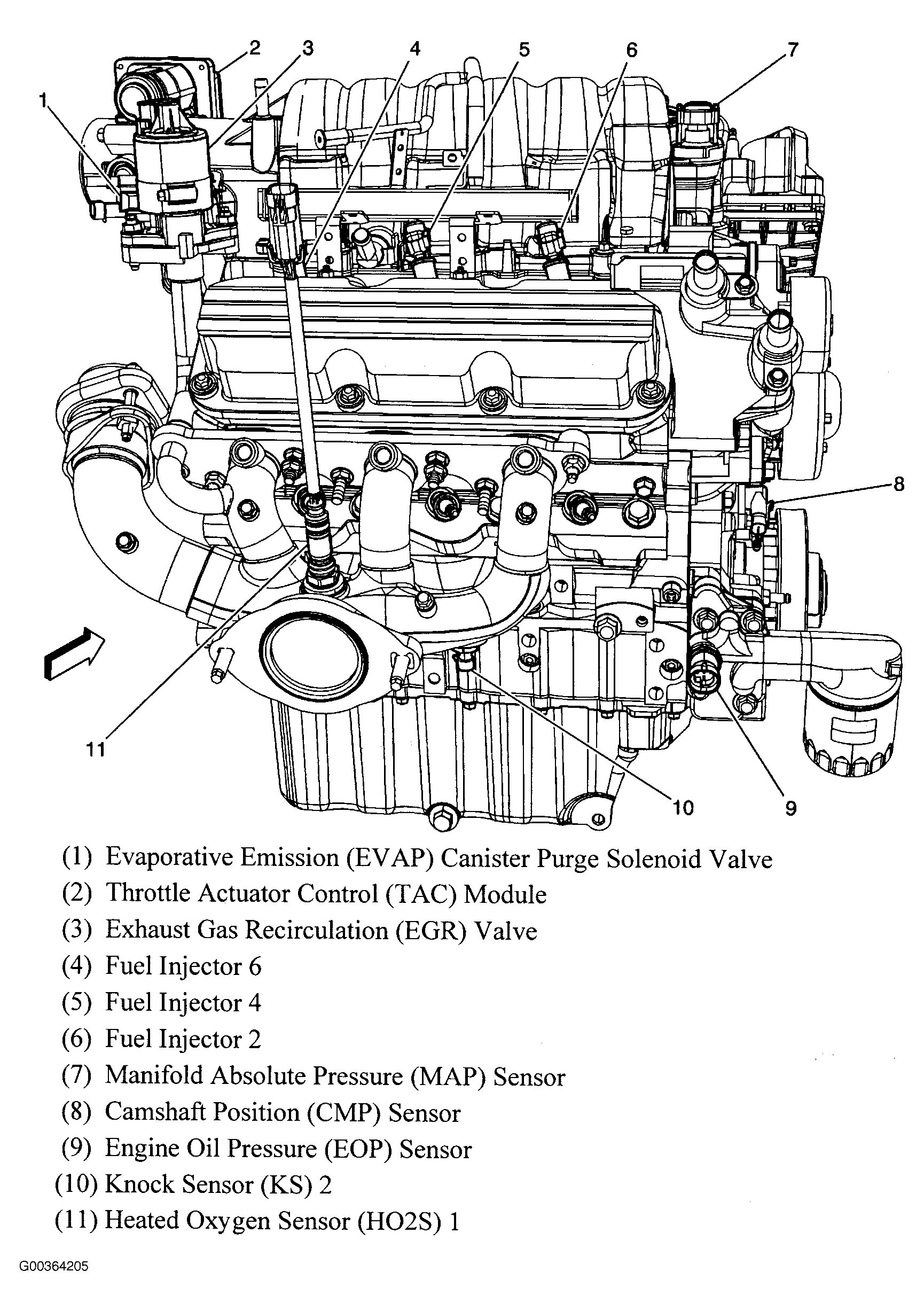

Fig 23: Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

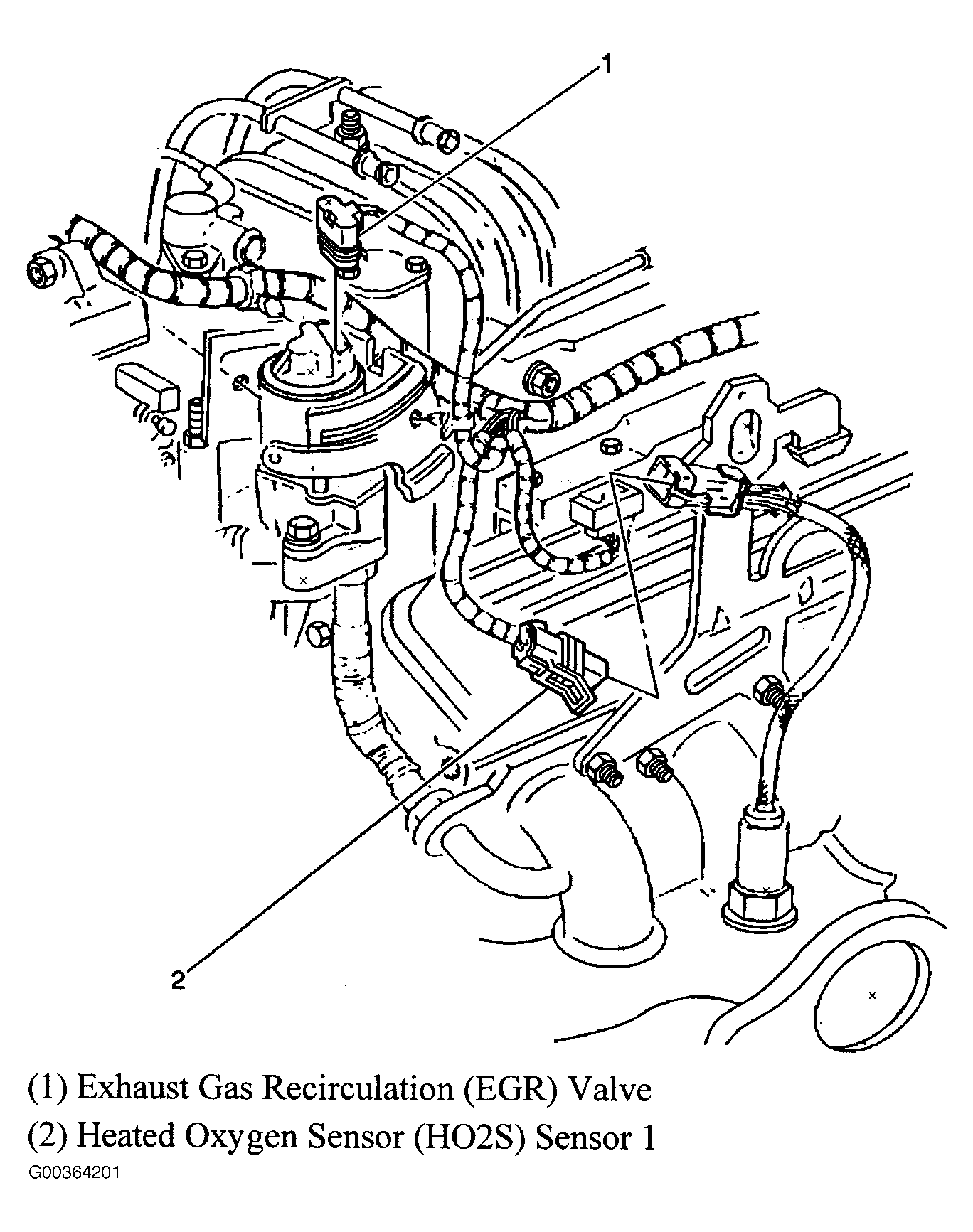

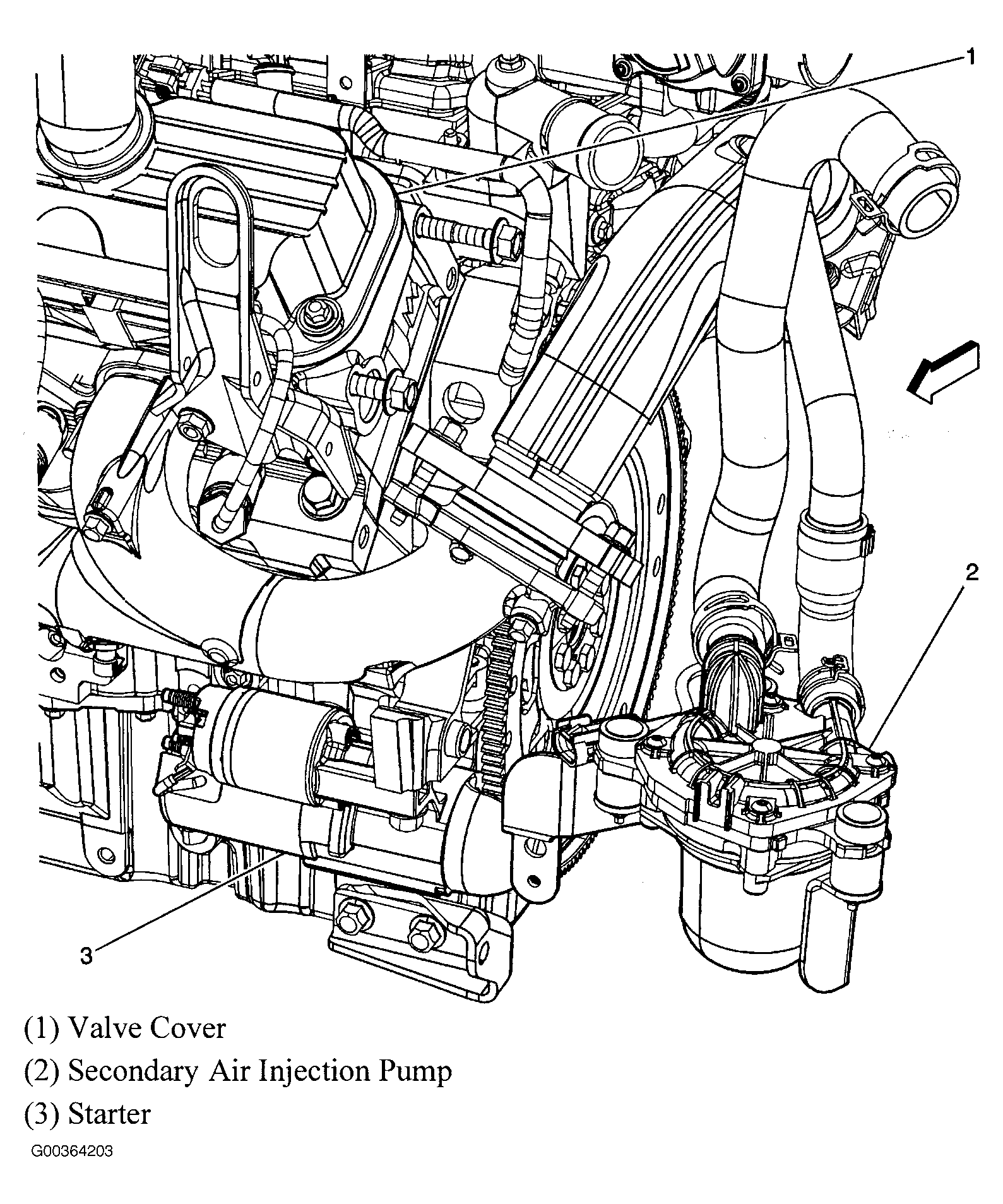

Fig 24: Left Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Upper Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Upper Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Left Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

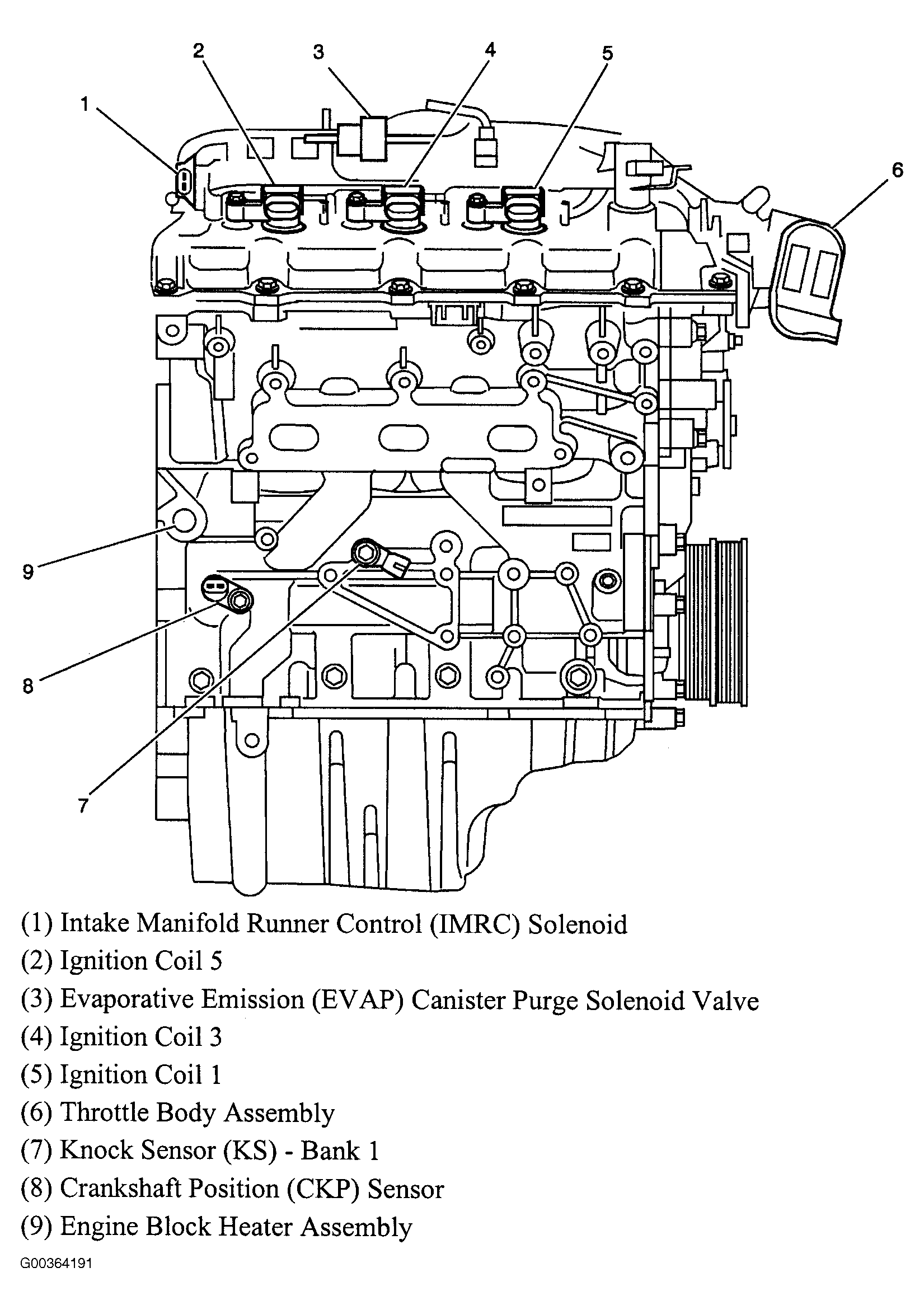

Fig 29: Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

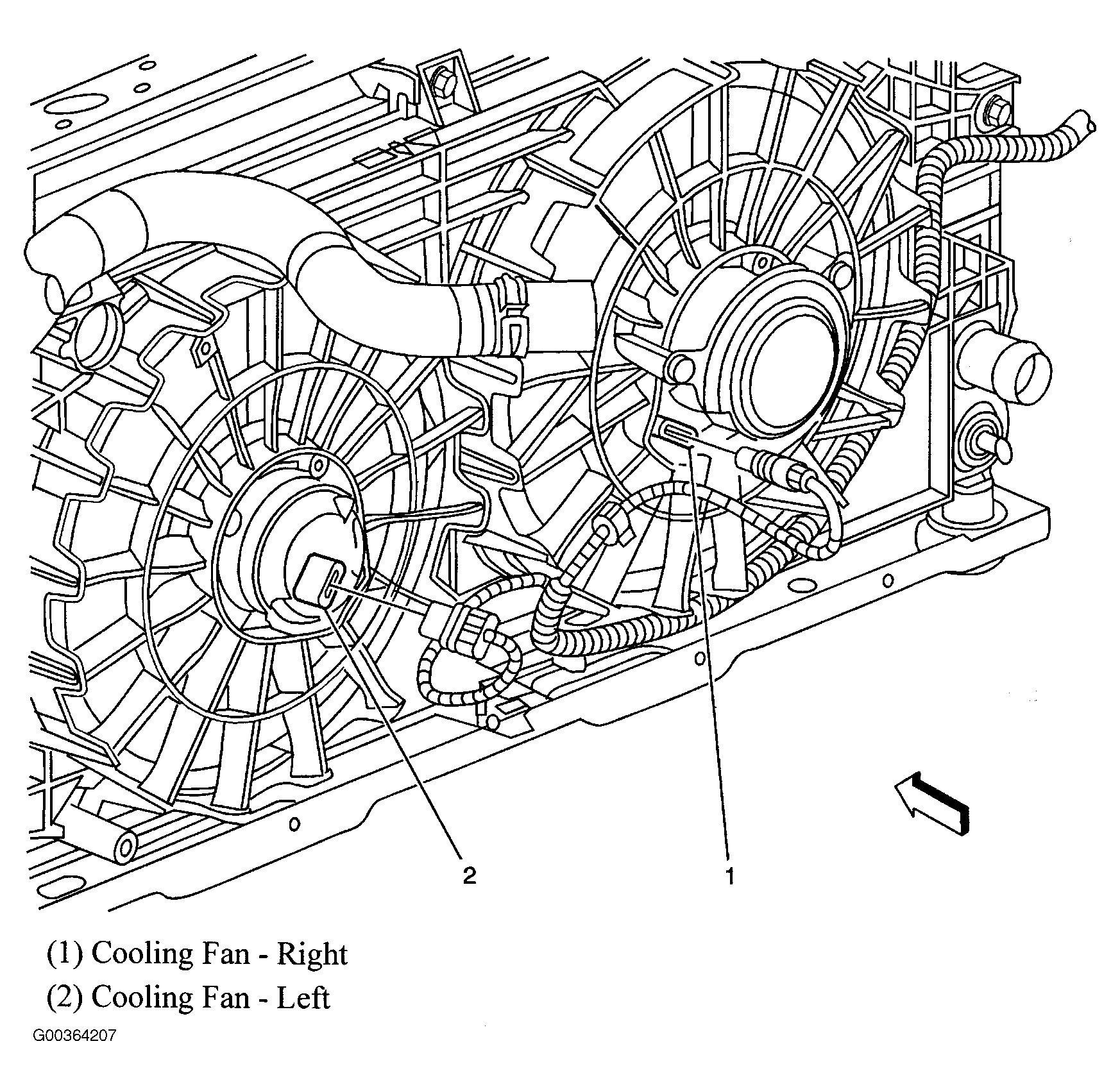

Fig 30: Radiator Assembly
Courtesy of GENERAL MOTORS CORP.

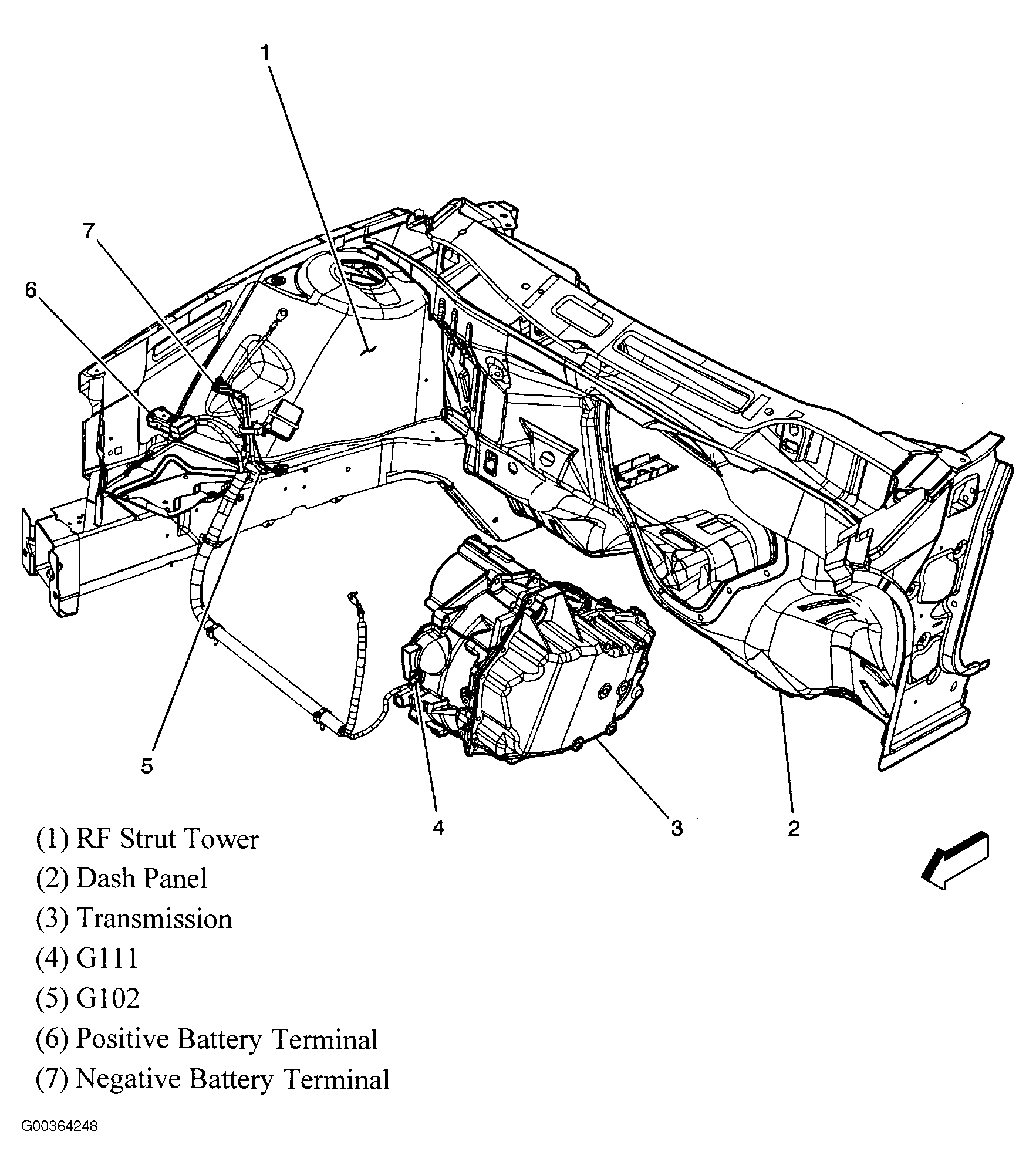

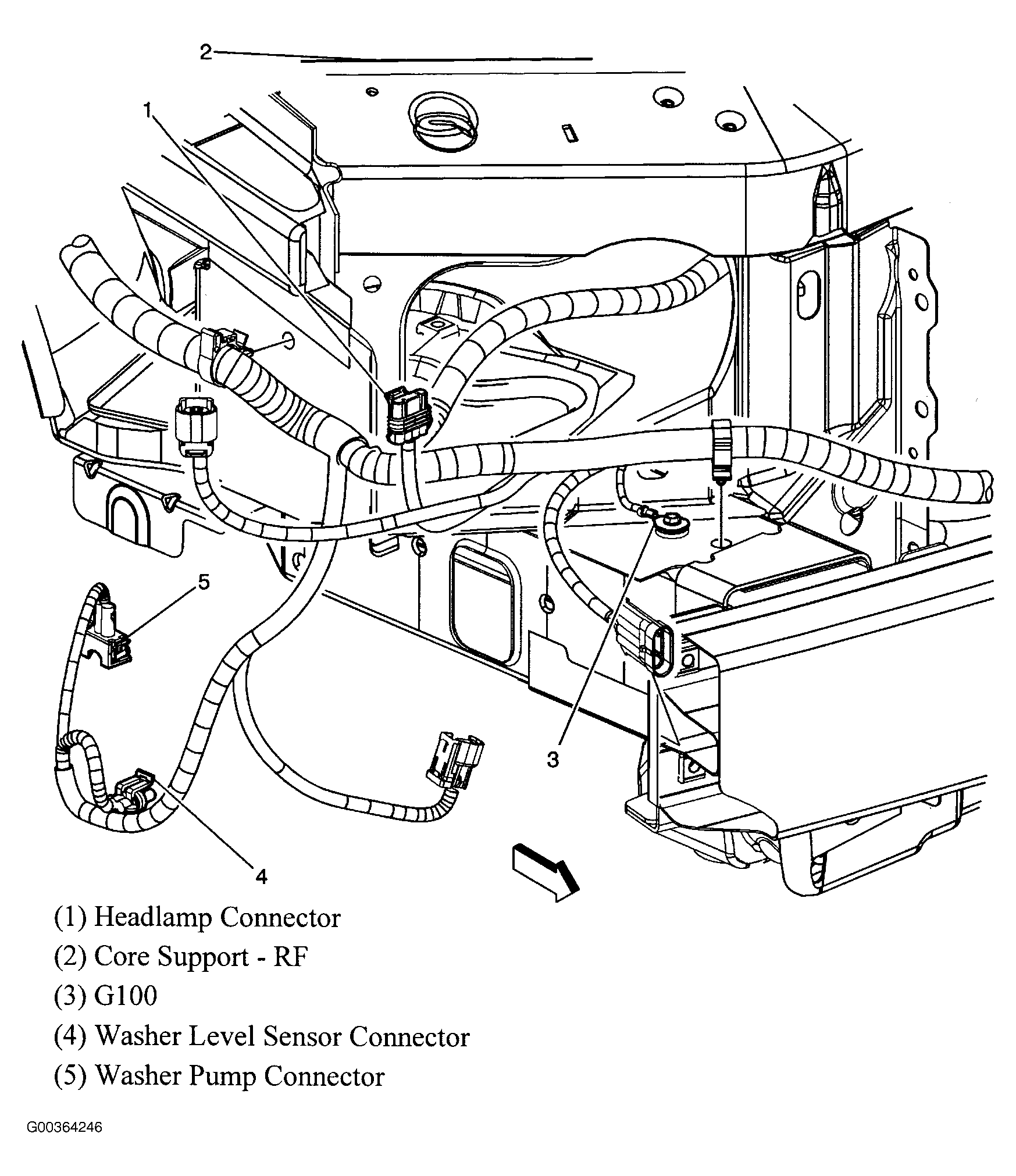

Fig 31: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

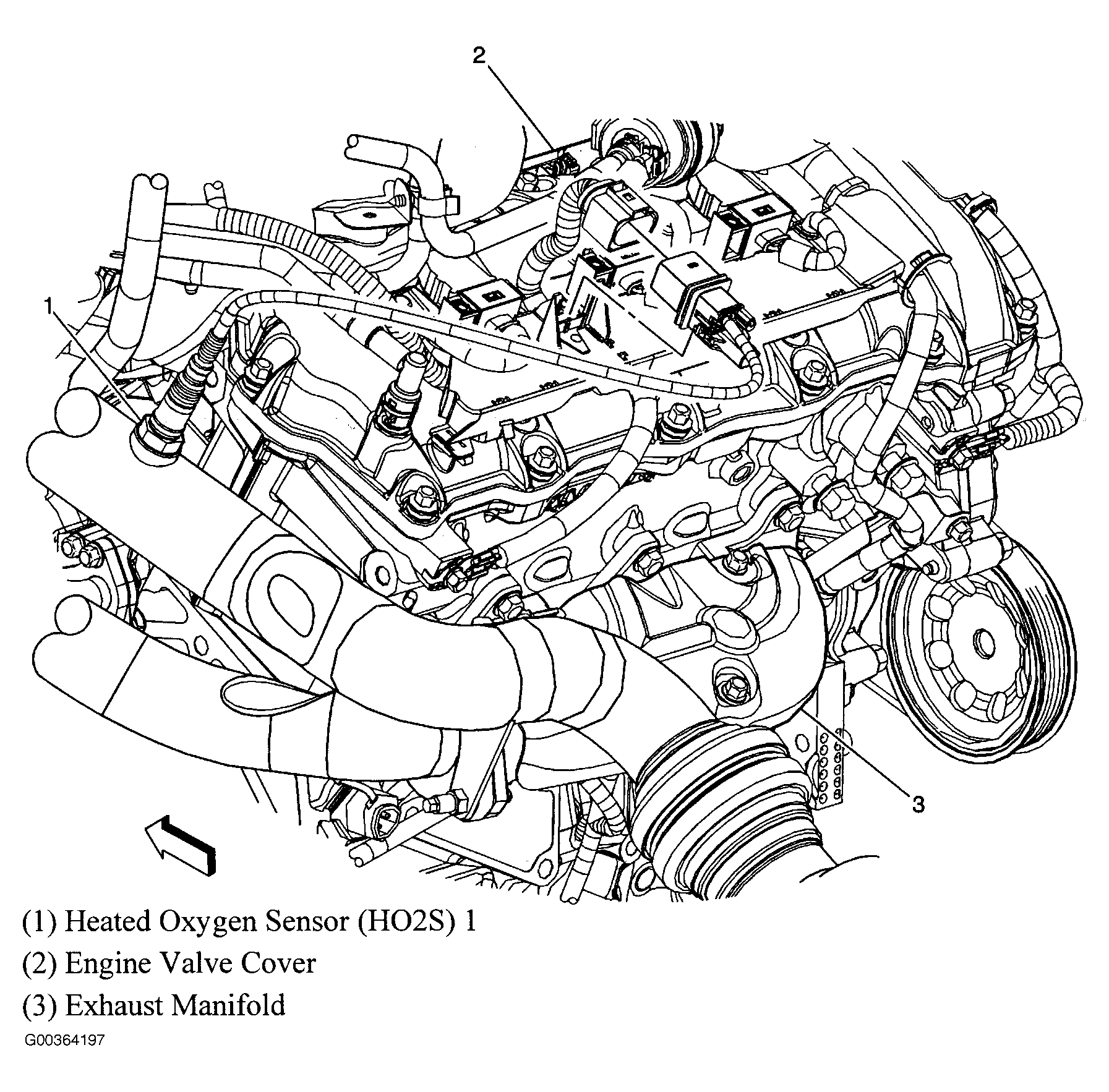

Fig 32: Left Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Interior Overview
Courtesy of GENERAL MOTORS CORP.

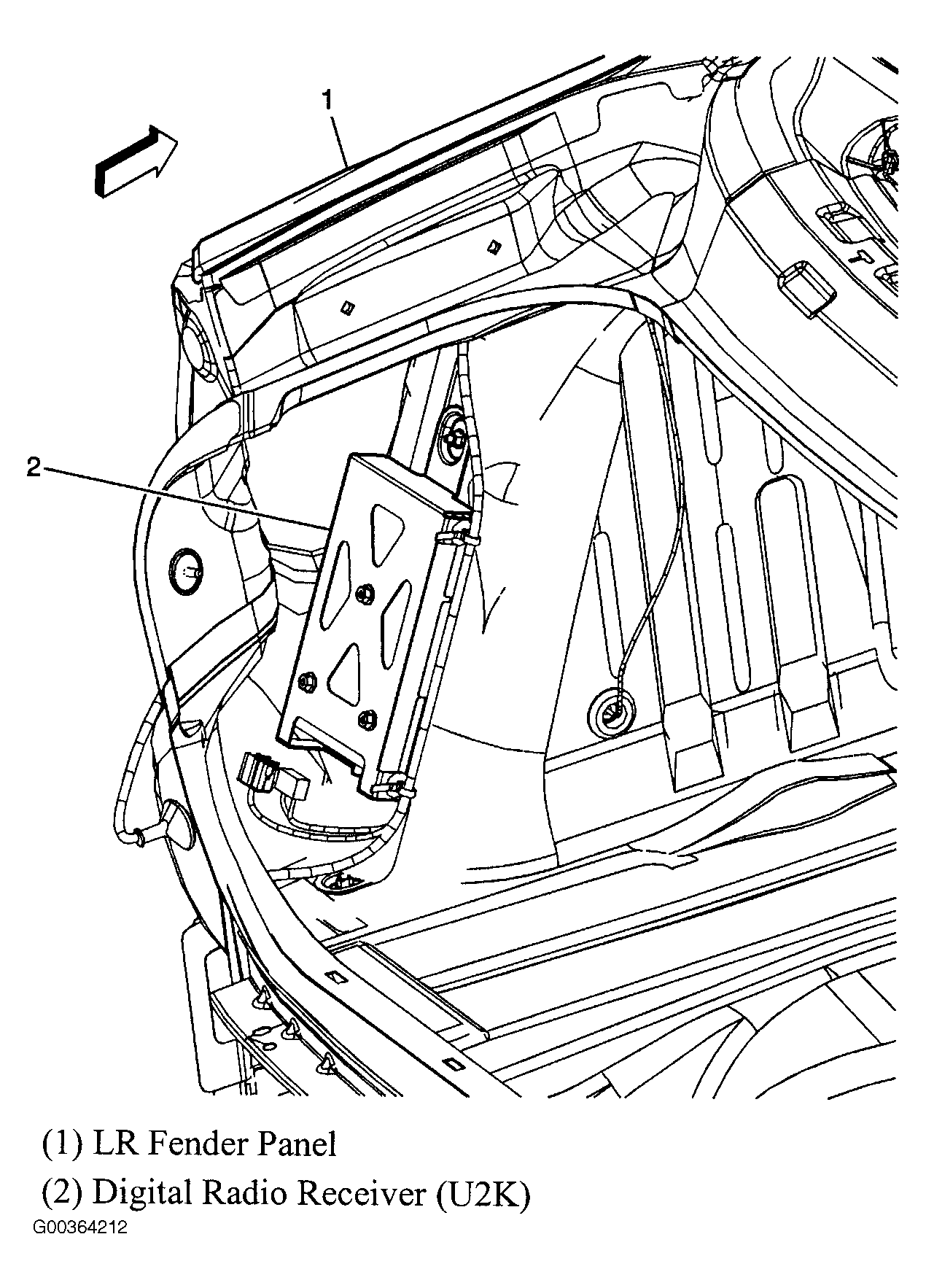

Fig 34: Left Side Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 35: Above Rear Window
Courtesy of GENERAL MOTORS CORP.

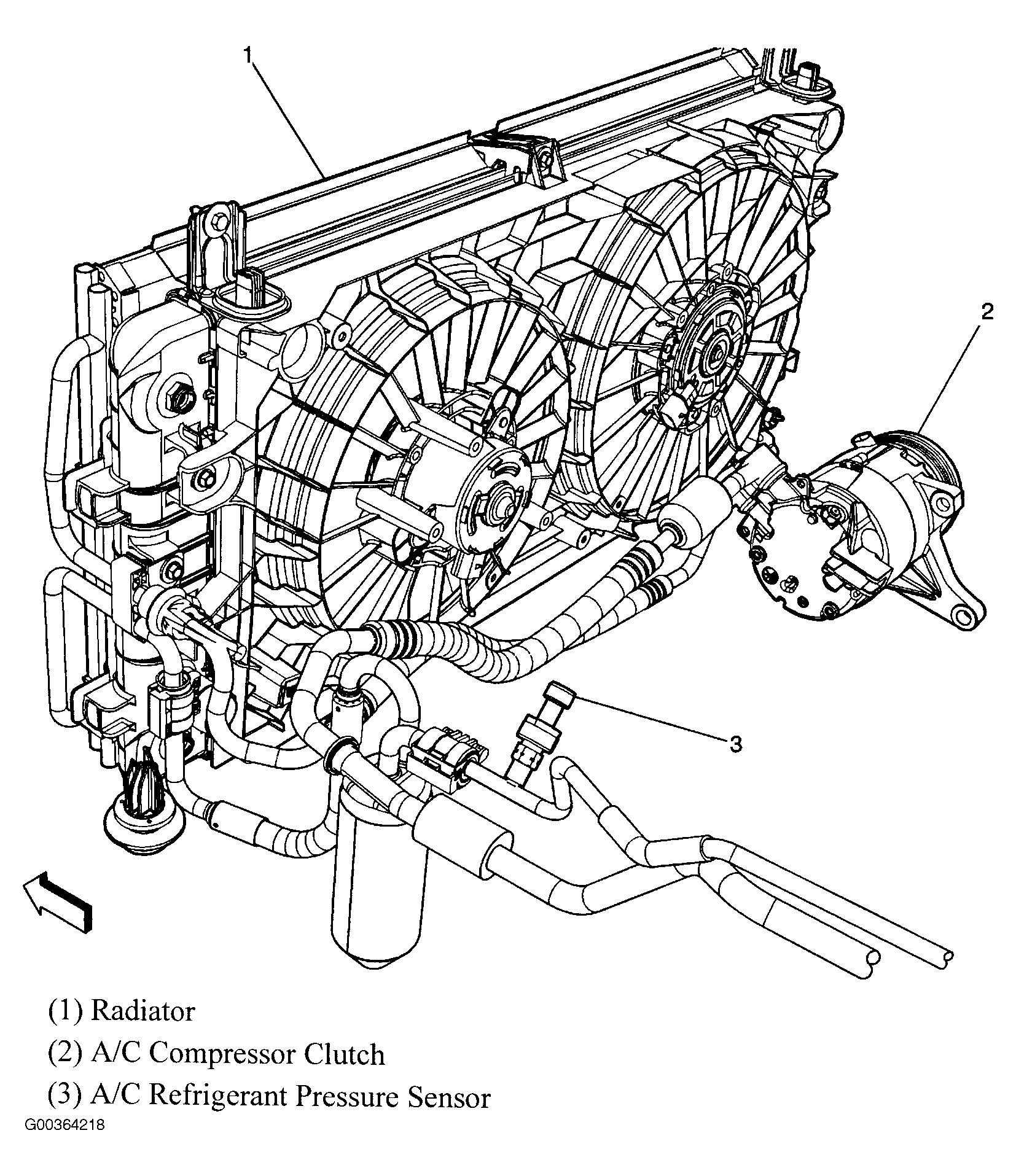

Fig 36: A/C Components
Courtesy of GENERAL MOTORS CORP.

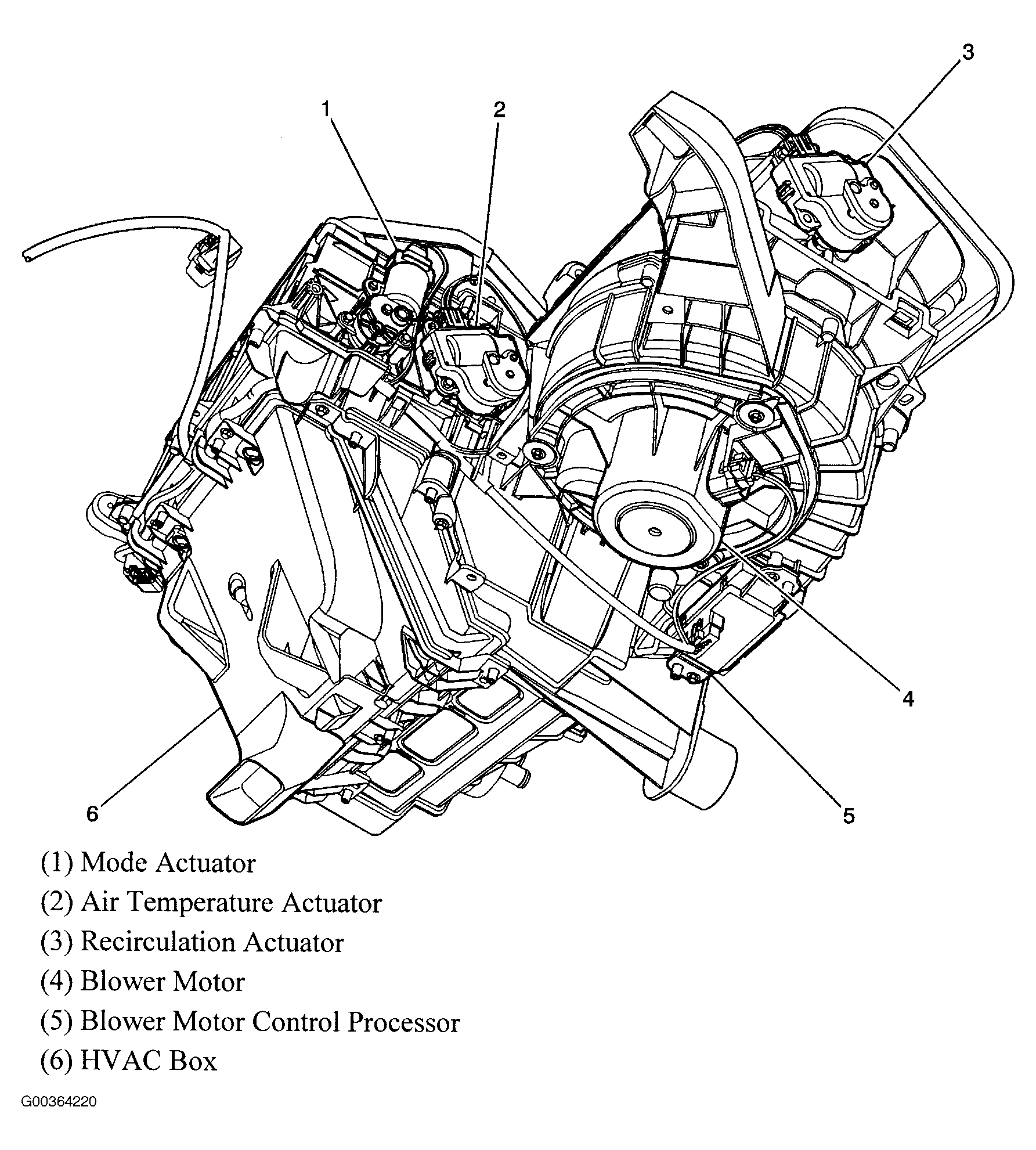

Fig 37: Interior HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 38: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 39: HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 40: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

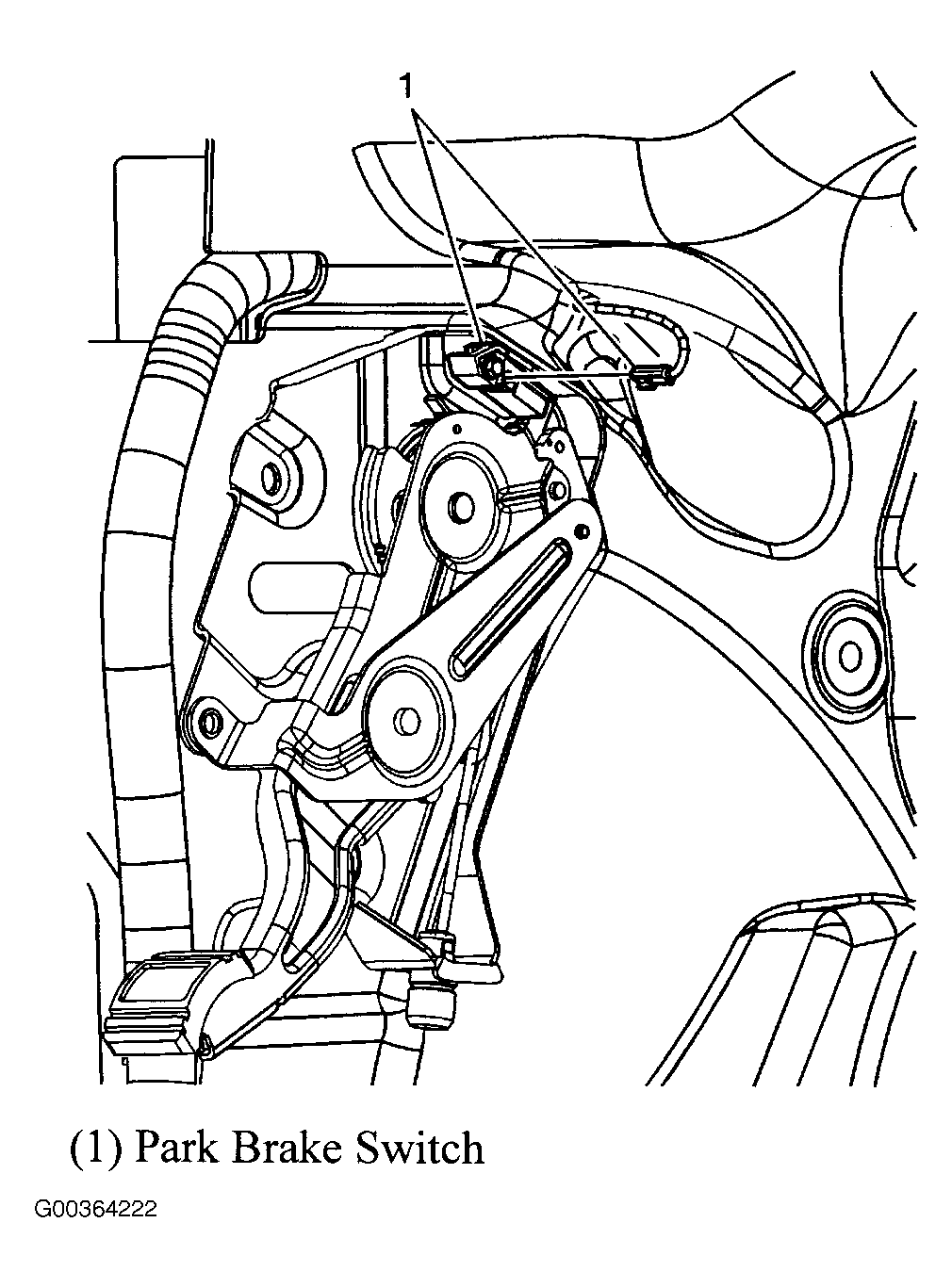

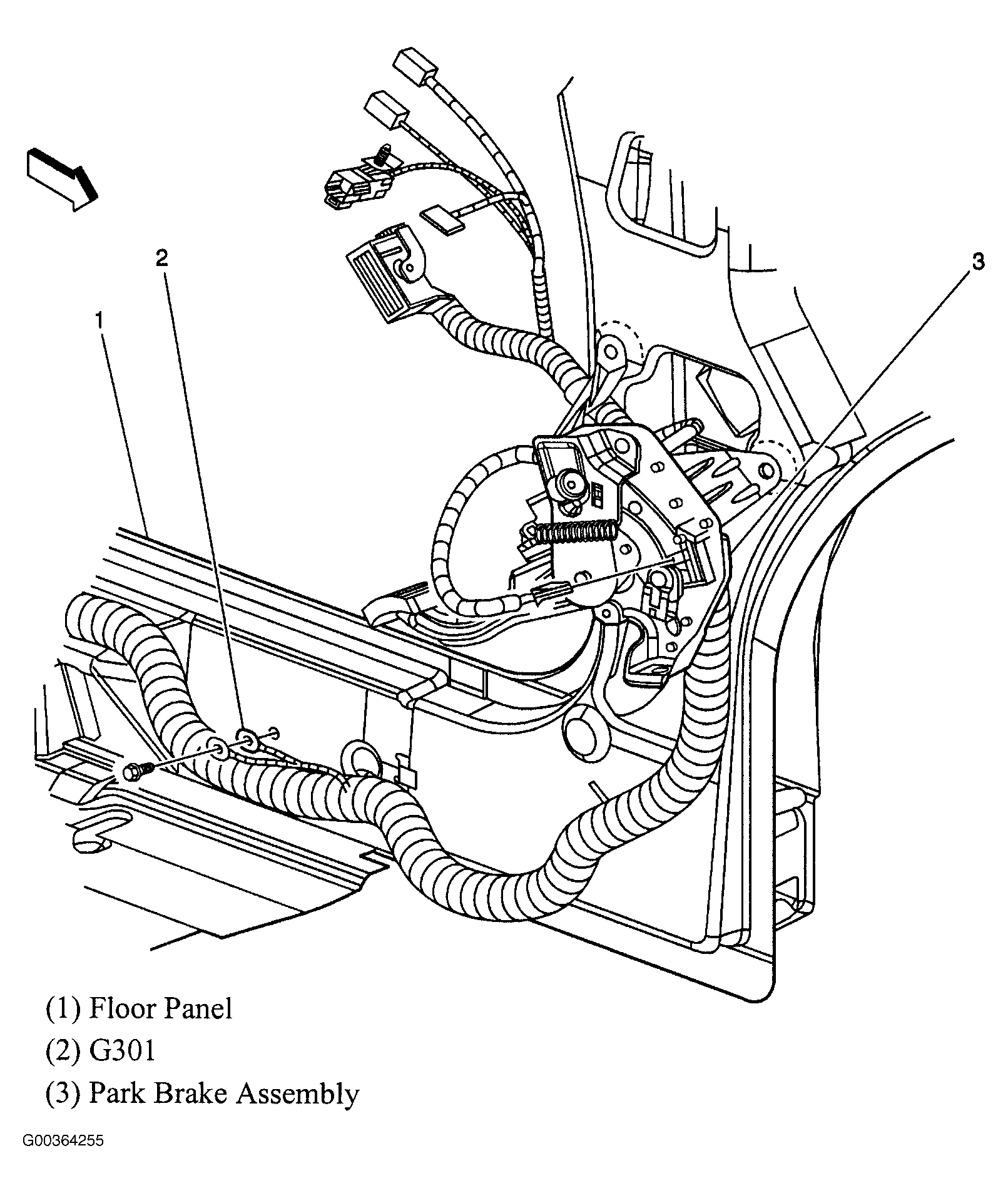

Fig 41: Park Brake Switch
Courtesy of GENERAL MOTORS CORP.

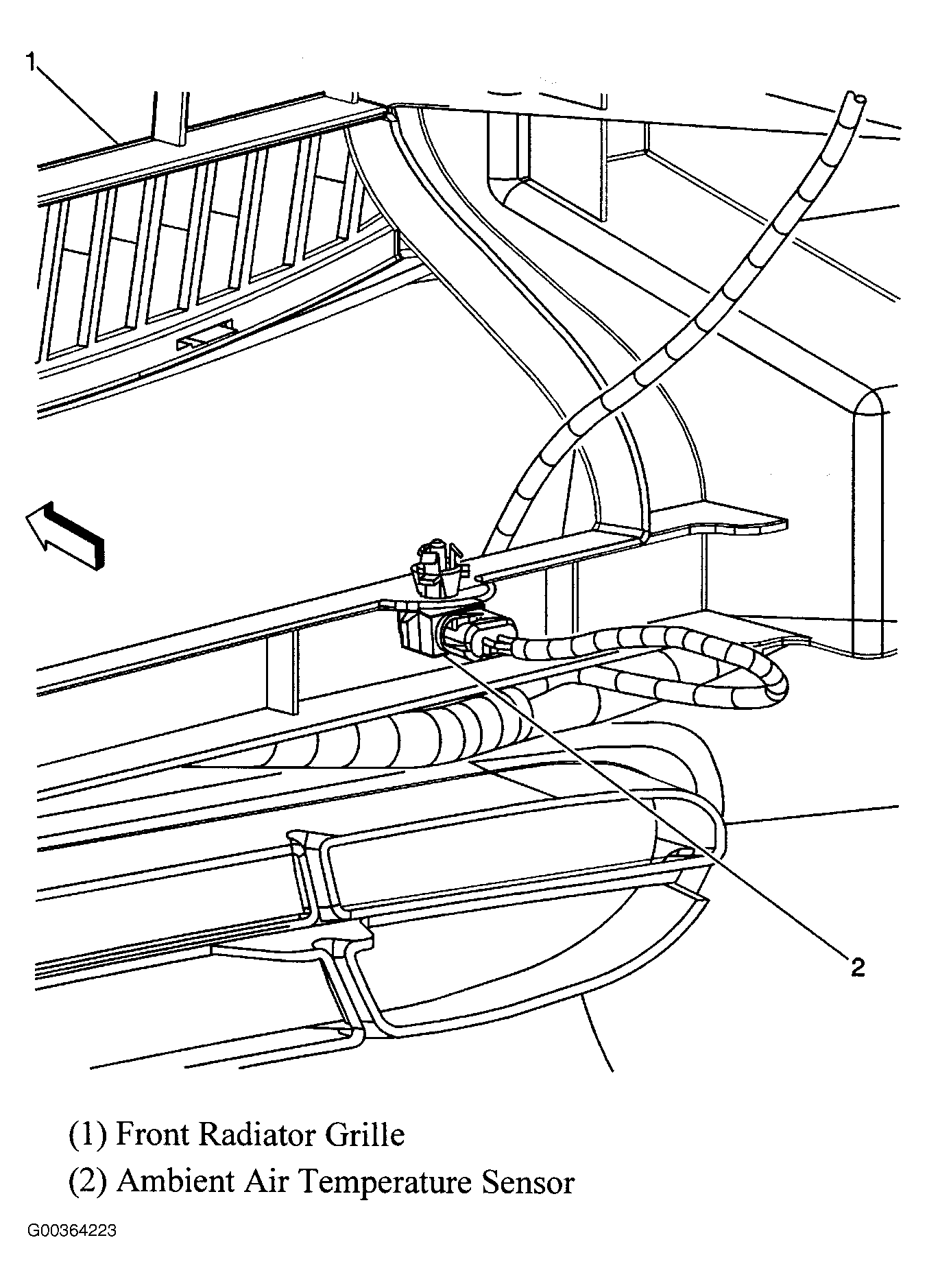

Fig 42: Front Radiator Grille
Courtesy of GENERAL MOTORS CORP.

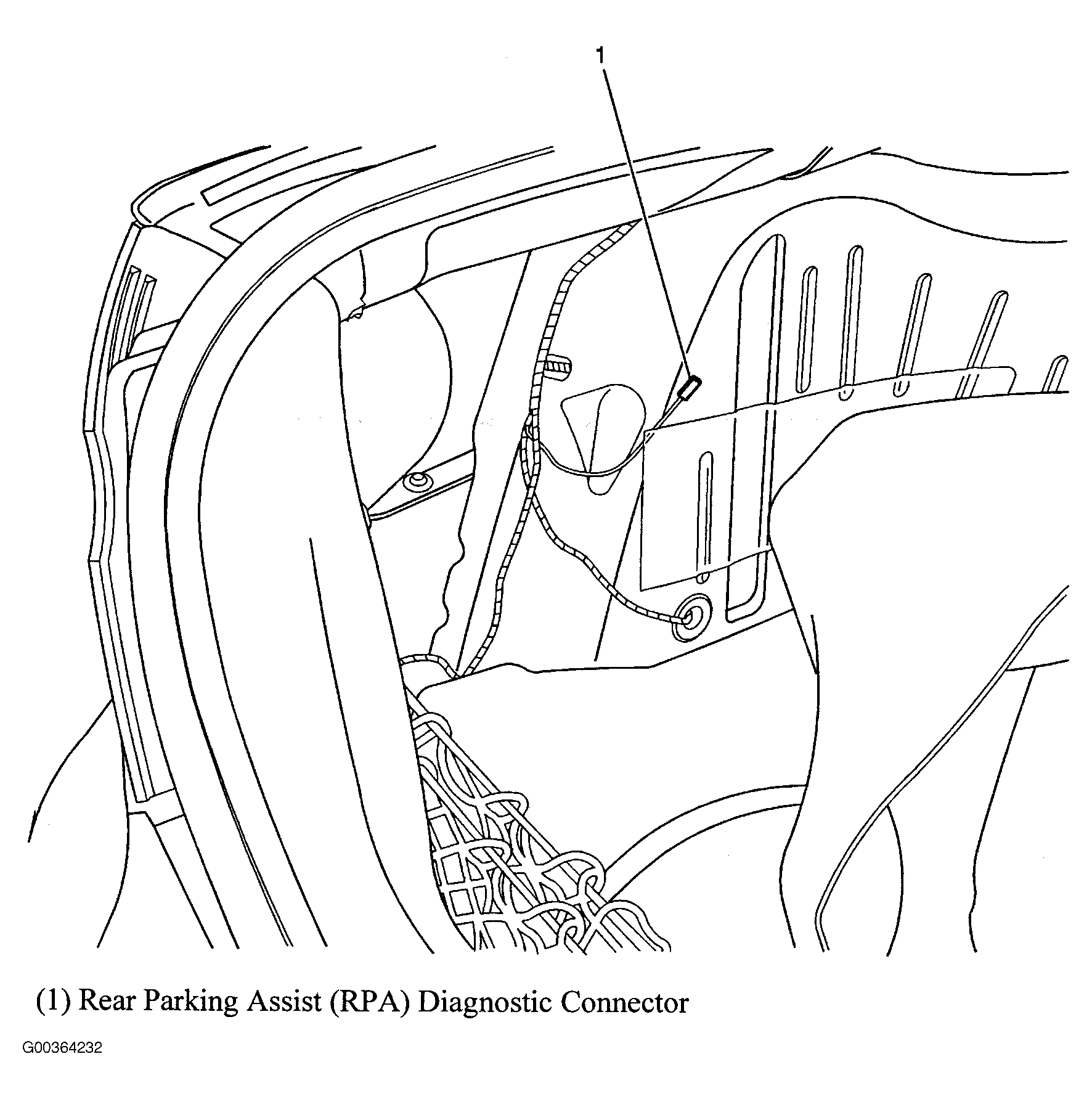

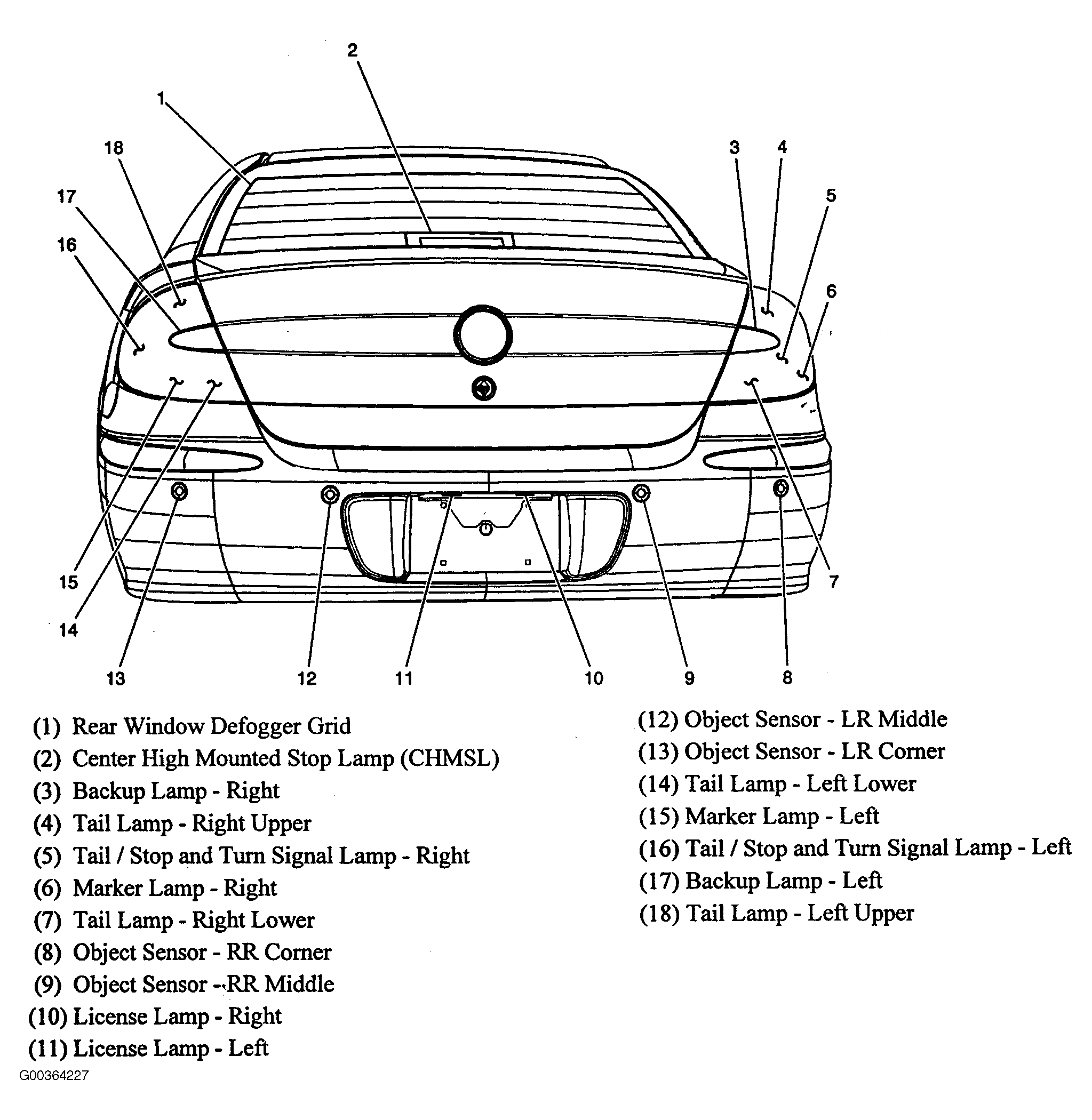

Fig 43: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 45: Left Side Of Trunk
Courtesy of GENERAL MOTORS CORP.

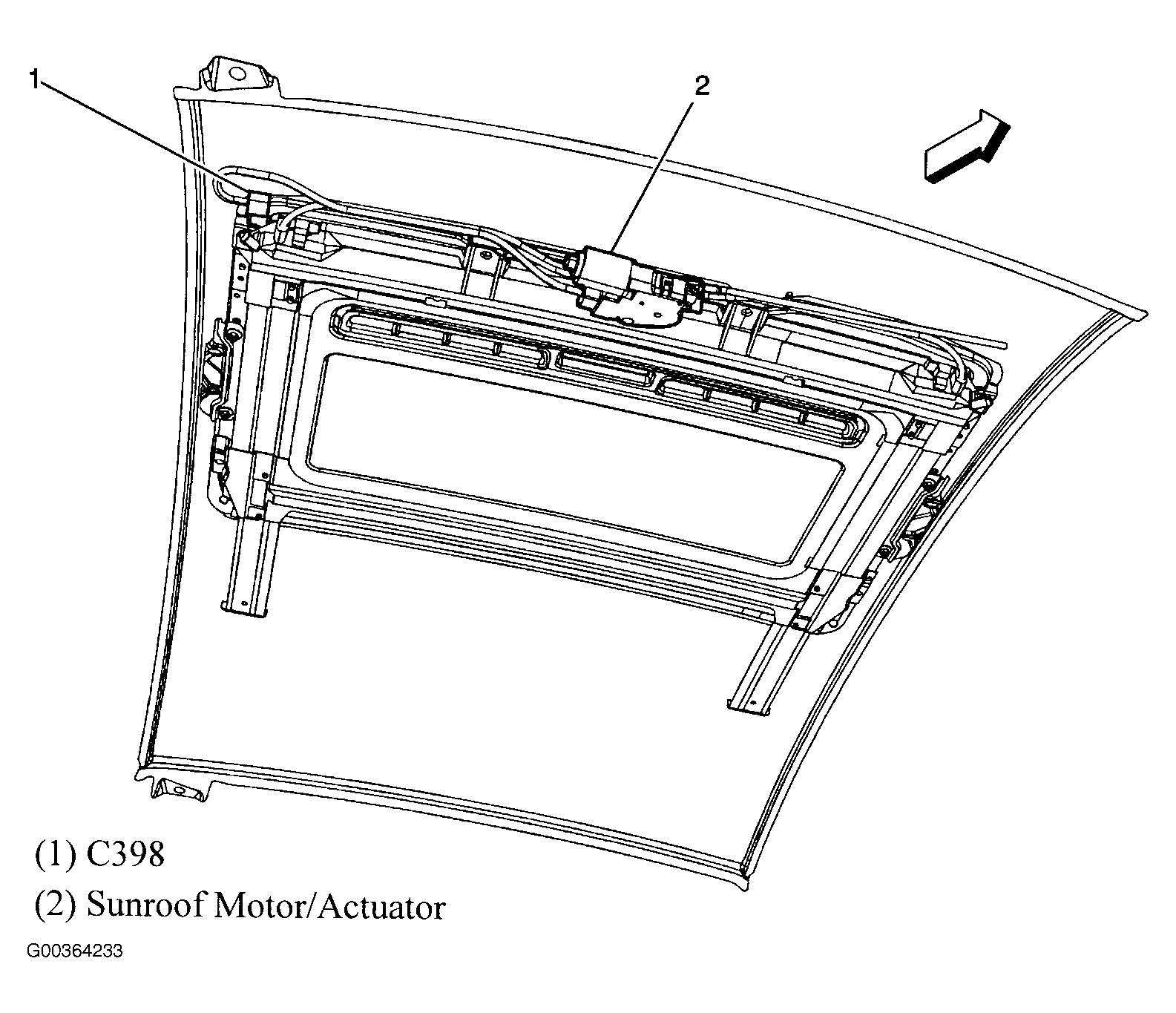

Fig 46: Power Roof Components
Courtesy of GENERAL MOTORS CORP.

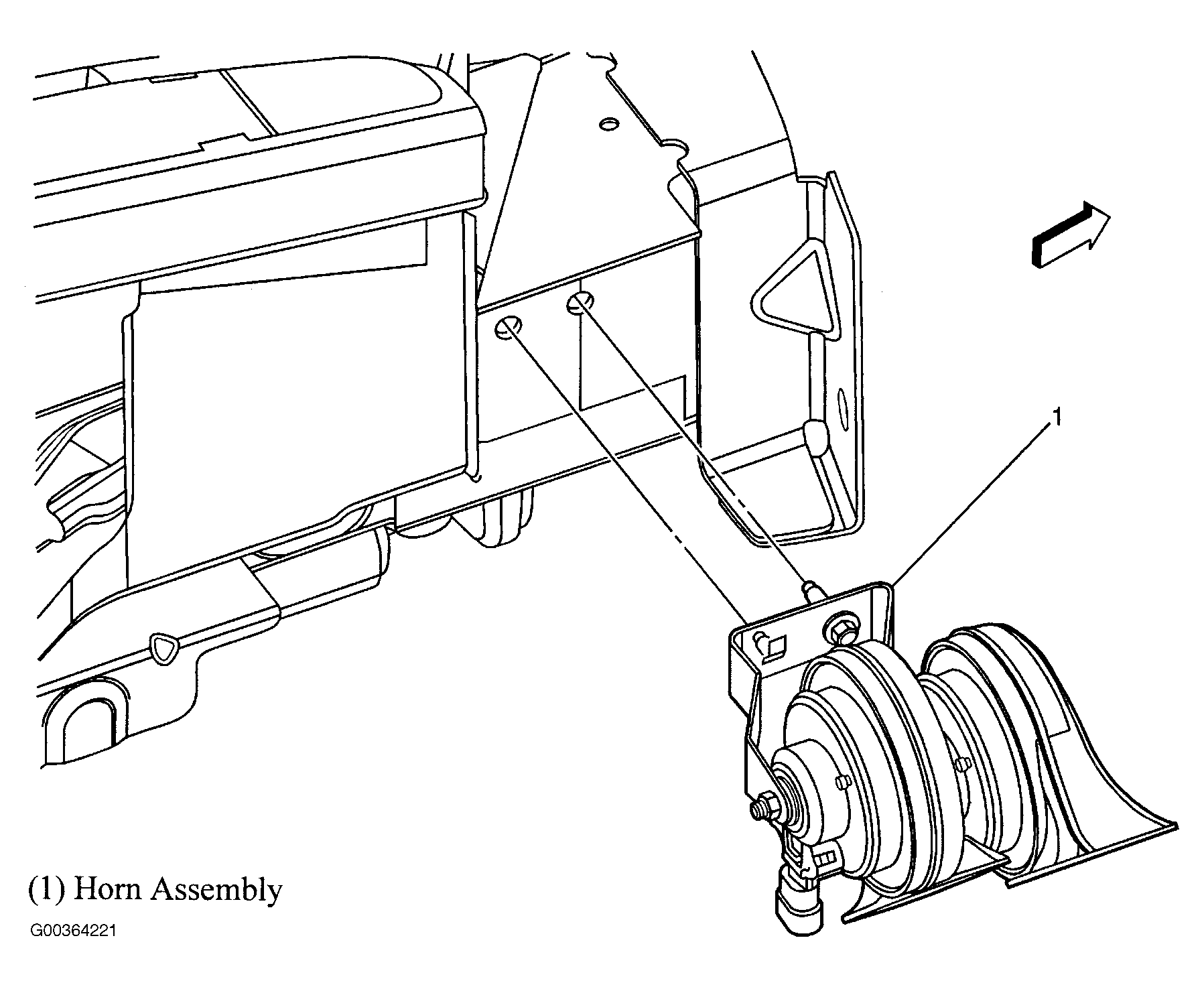

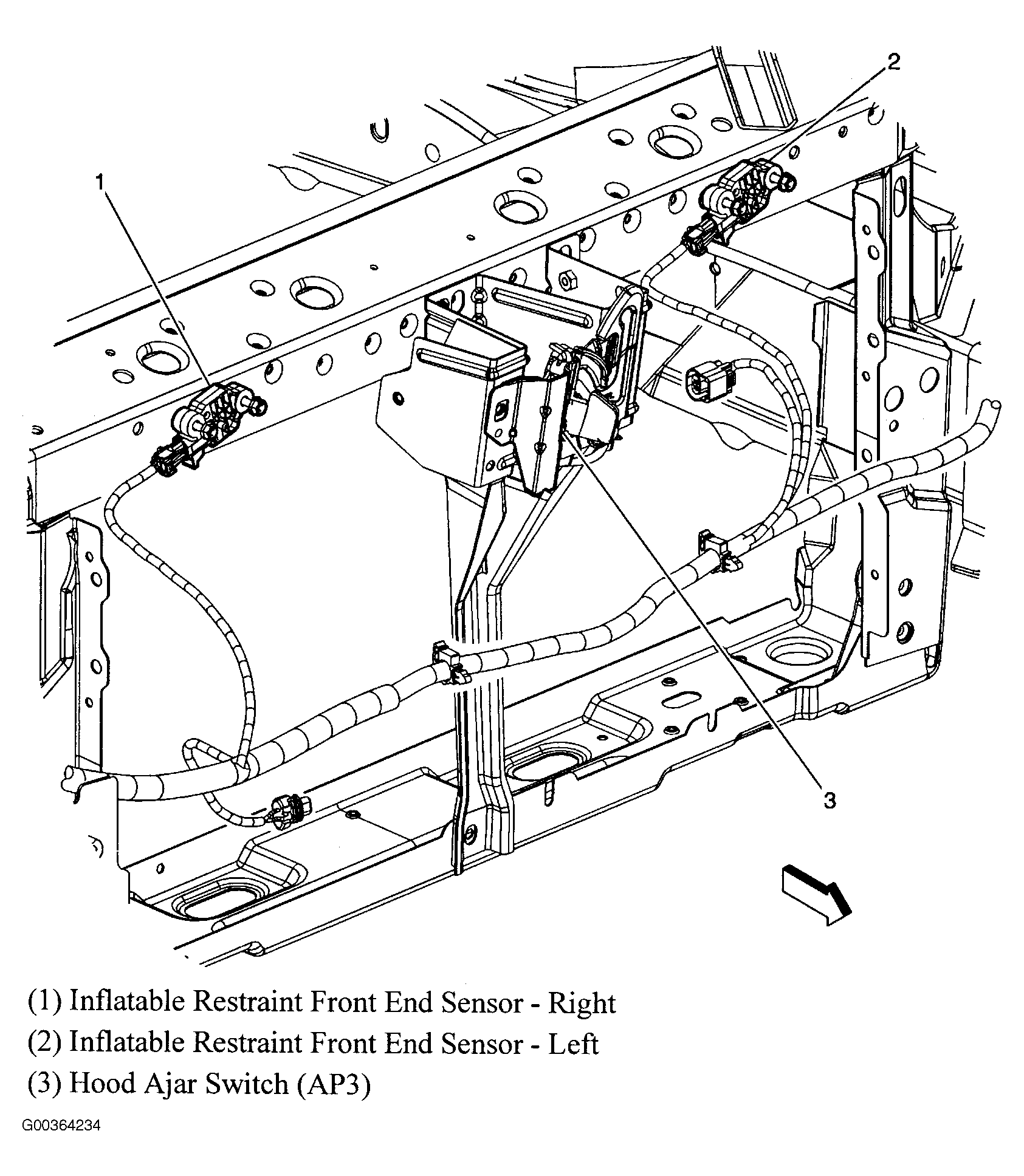

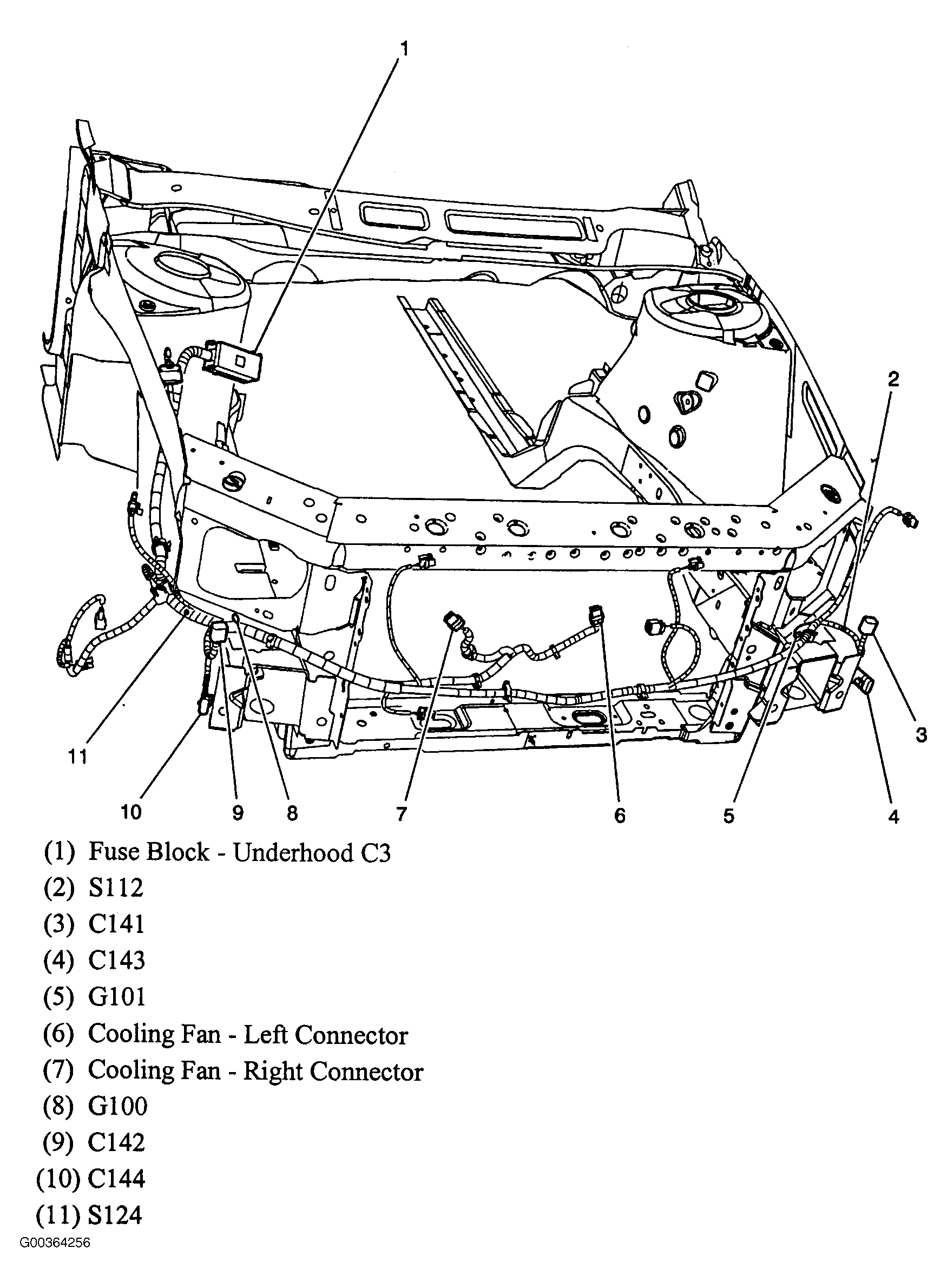

Fig 47: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

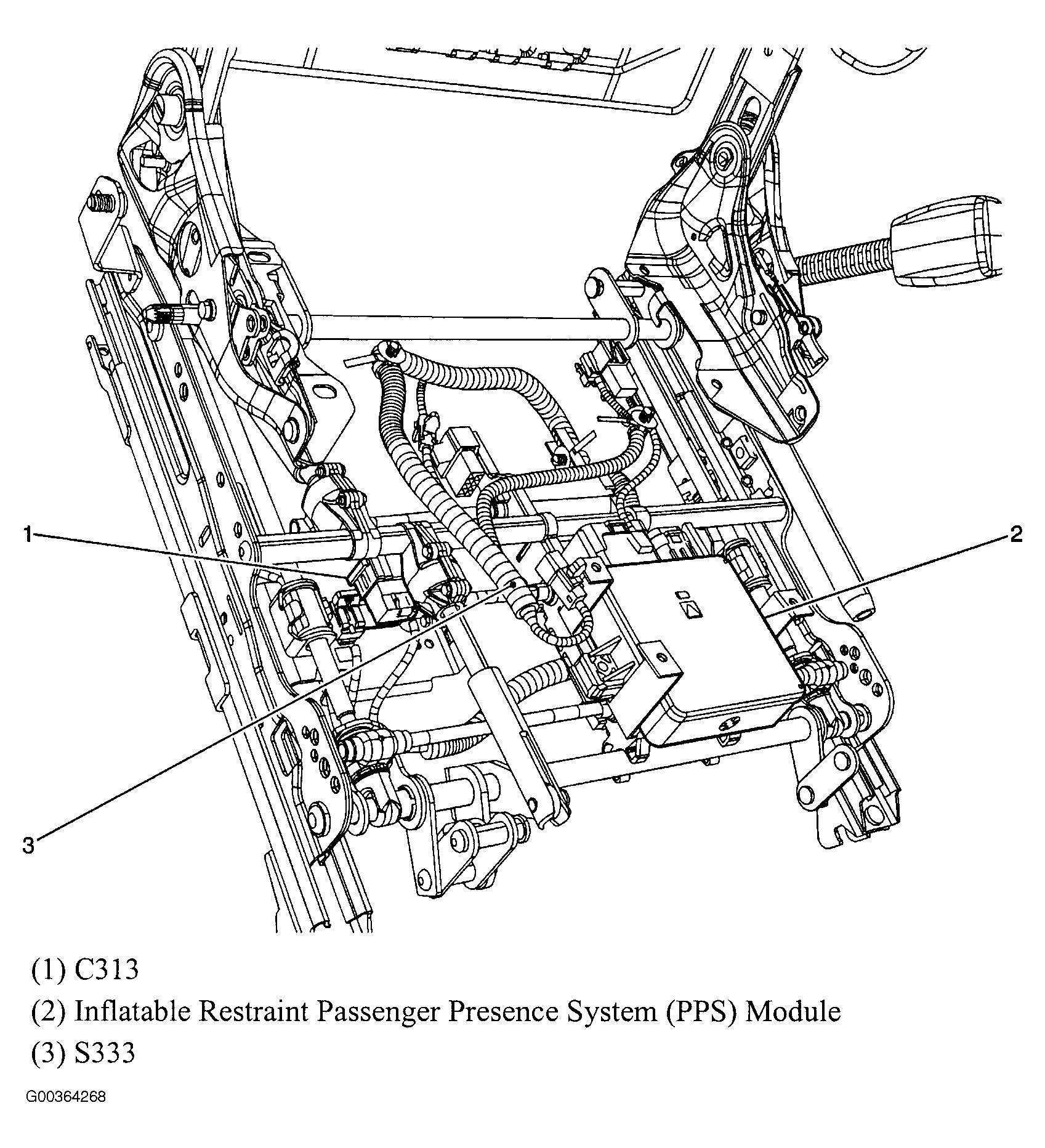

Fig 49: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

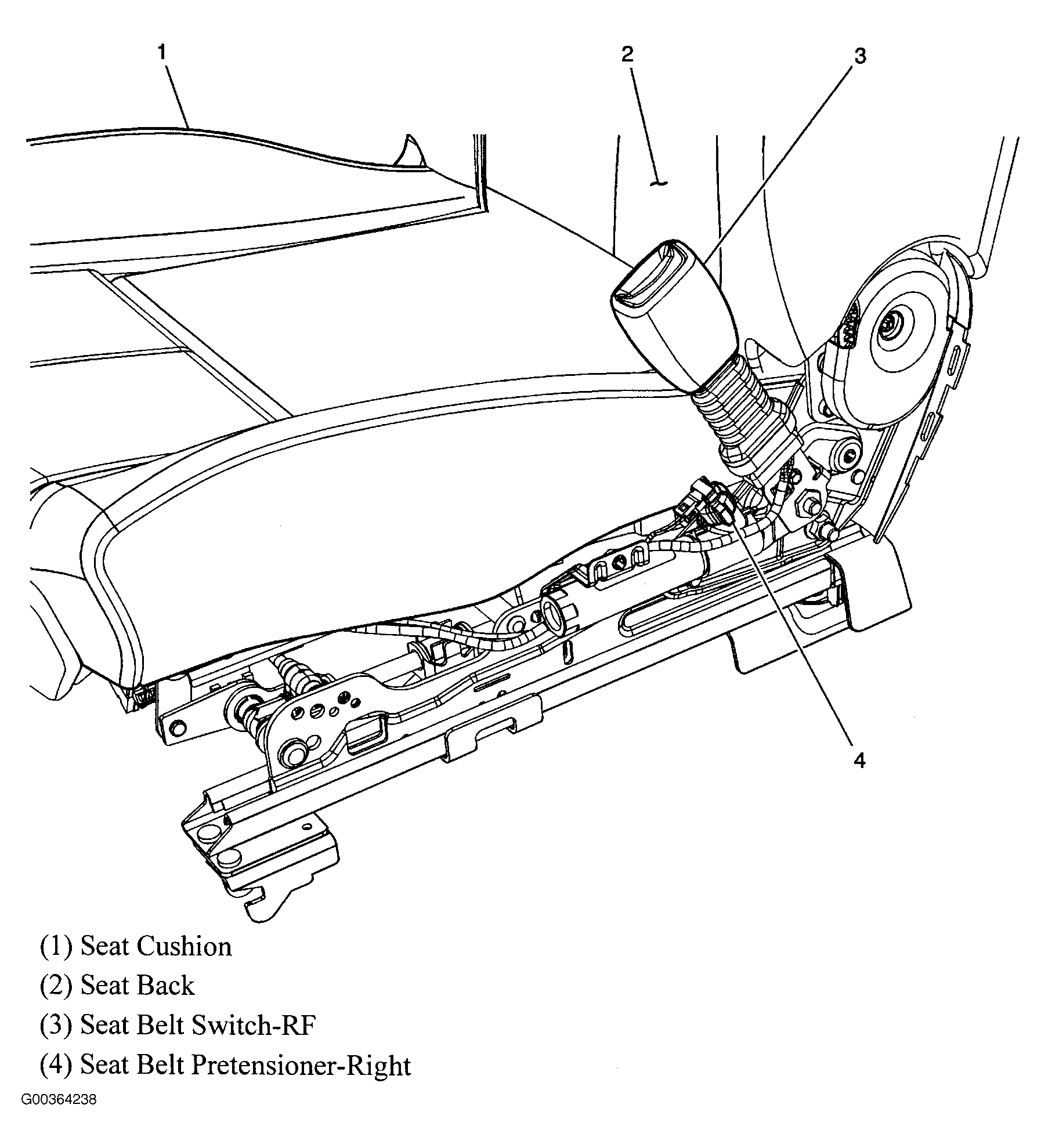

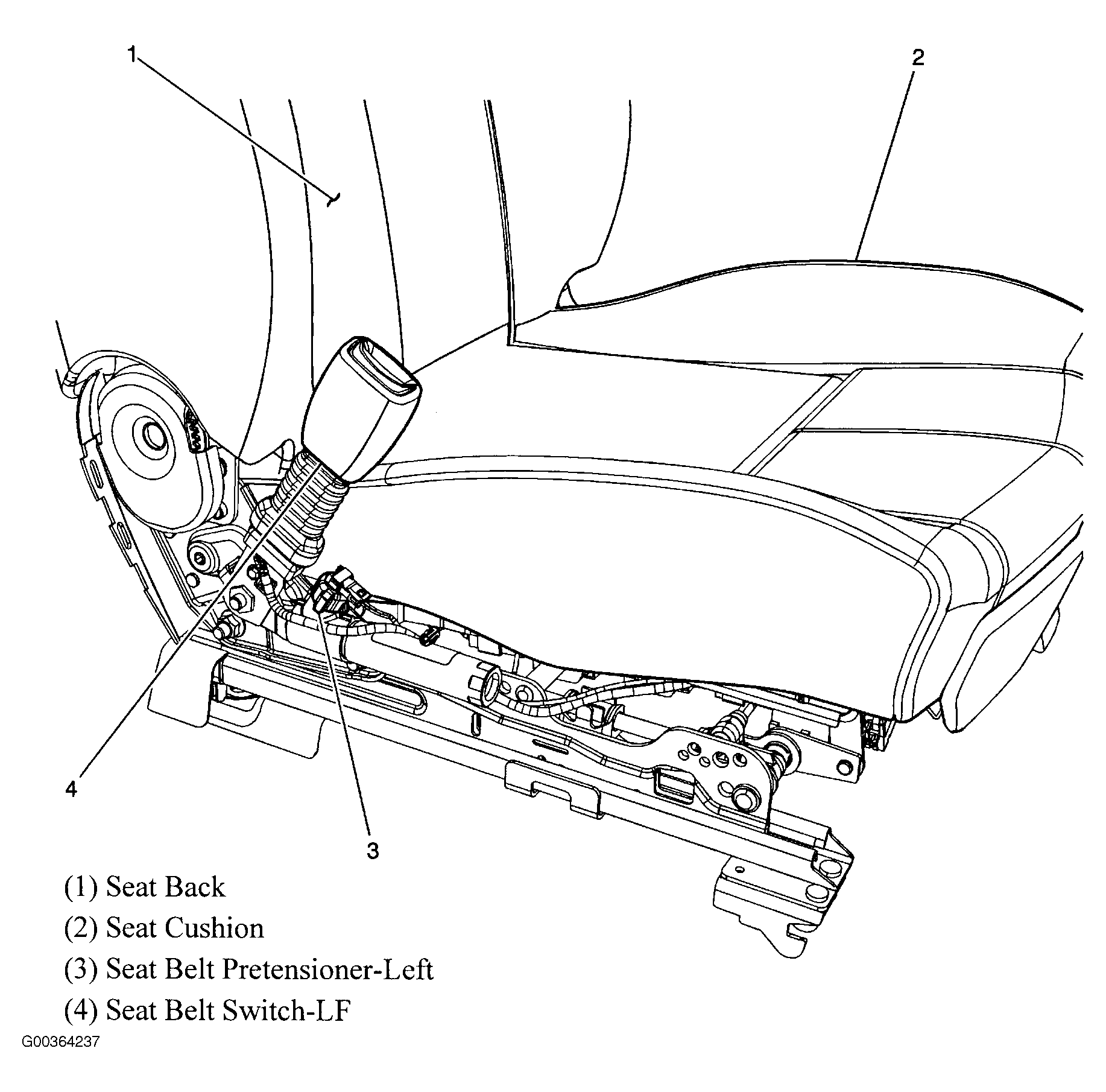

Fig 50: Left Front Seat Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Front Seat Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 52: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 53: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

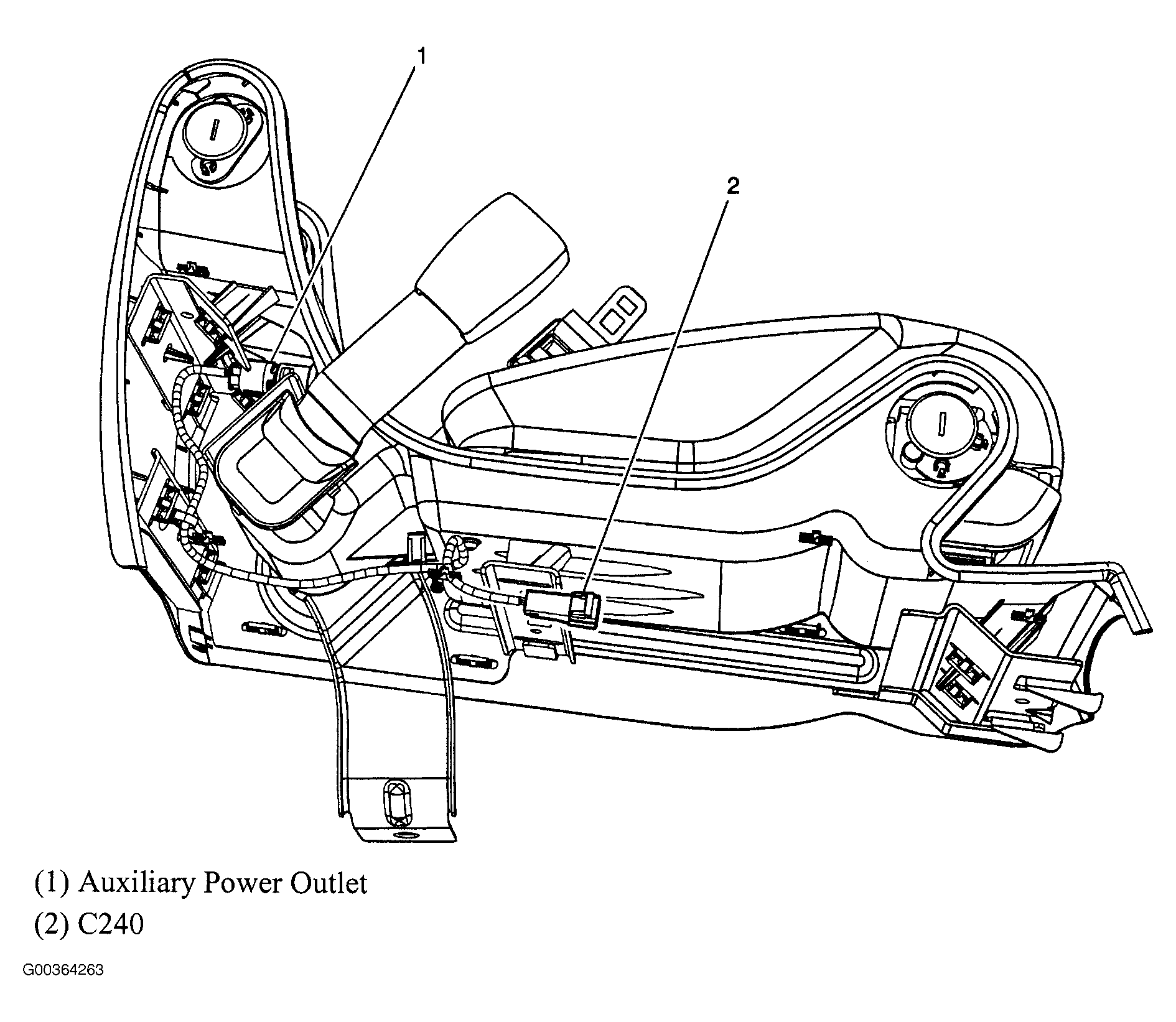

Fig 54: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 55: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

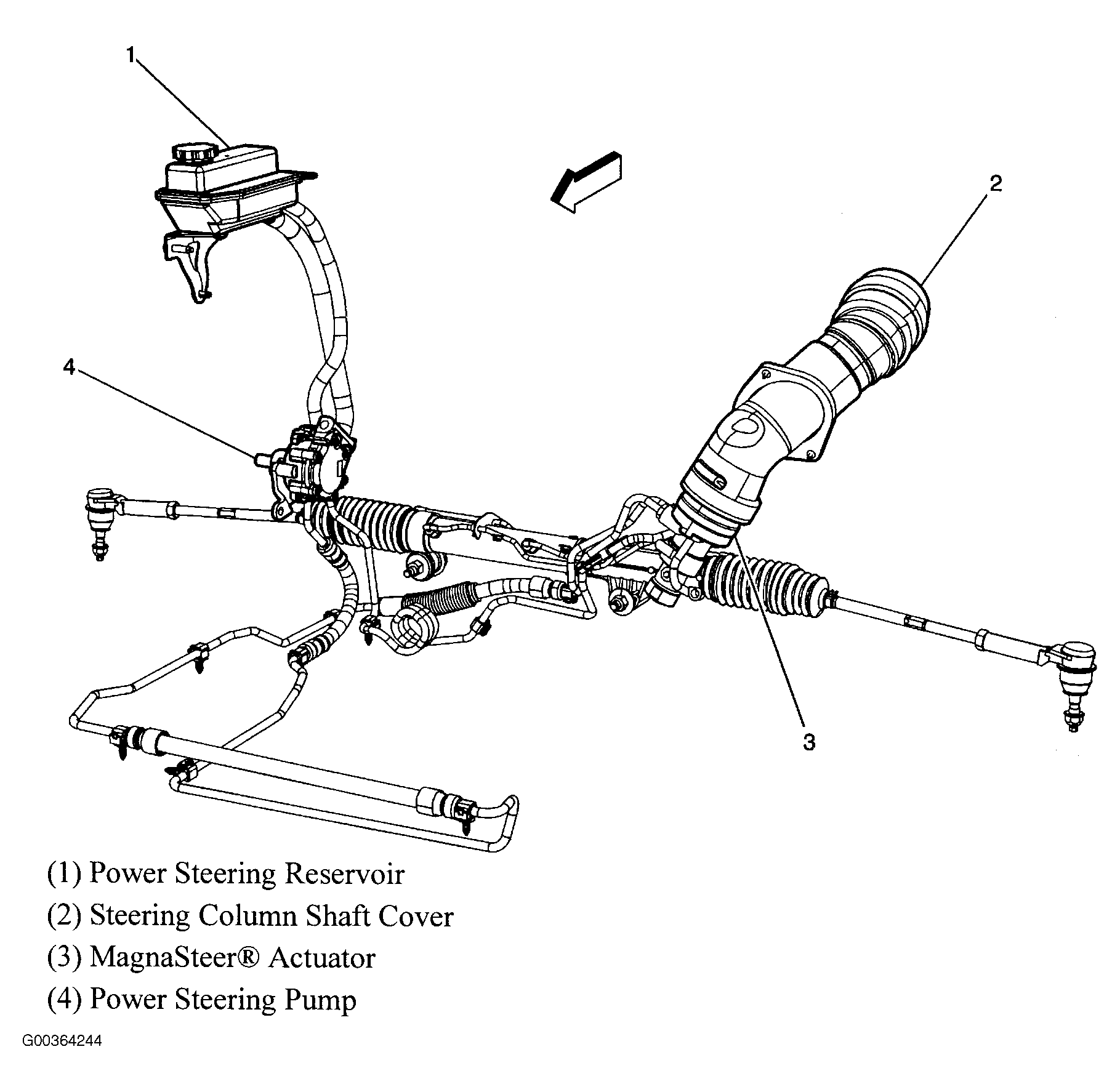

Fig 56: Power Steering Assembly
Courtesy of GENERAL MOTORS CORP.

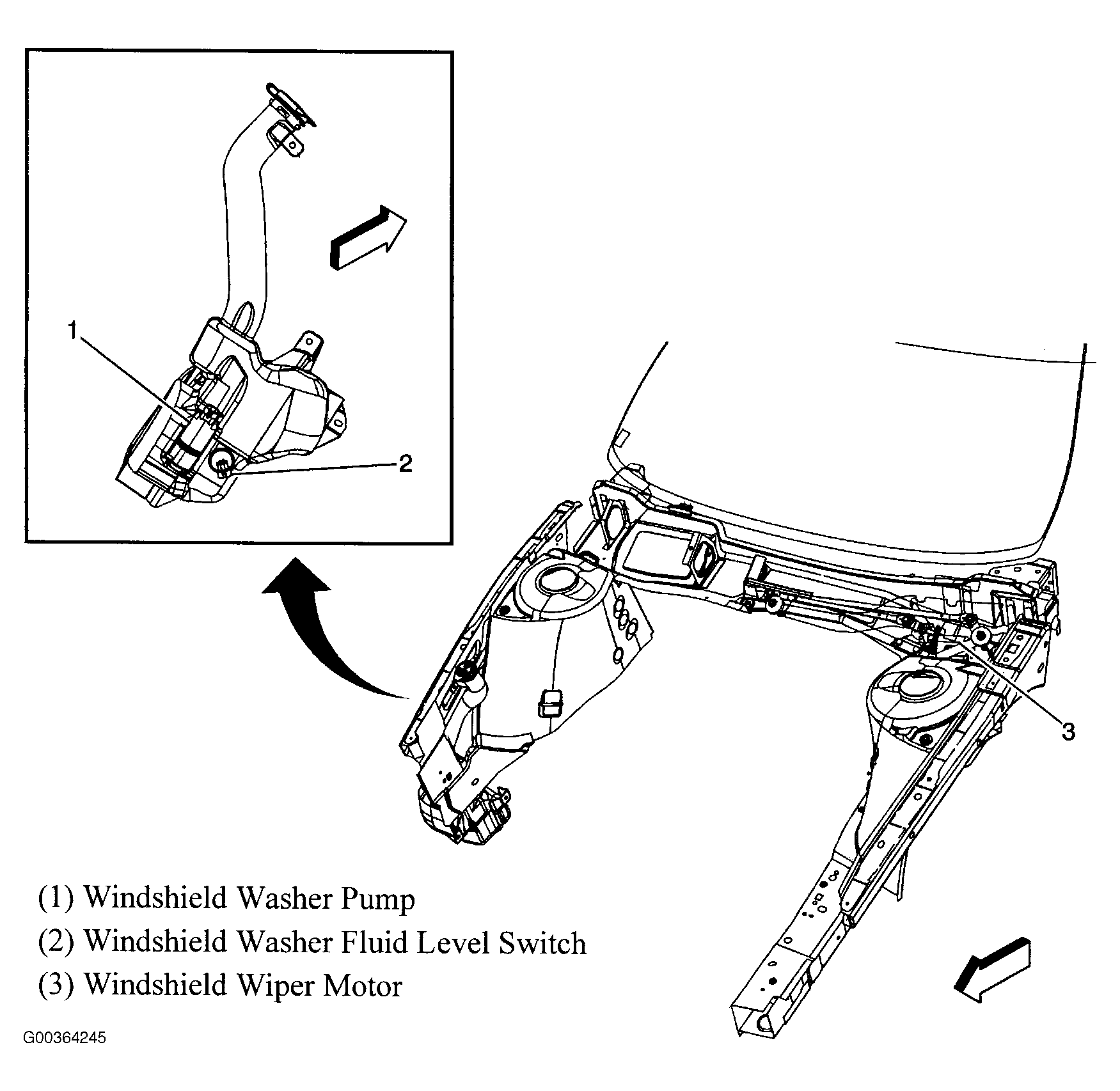

Fig 57: Wiper/Washer System Component Views
Courtesy of GENERAL MOTORS CORP.

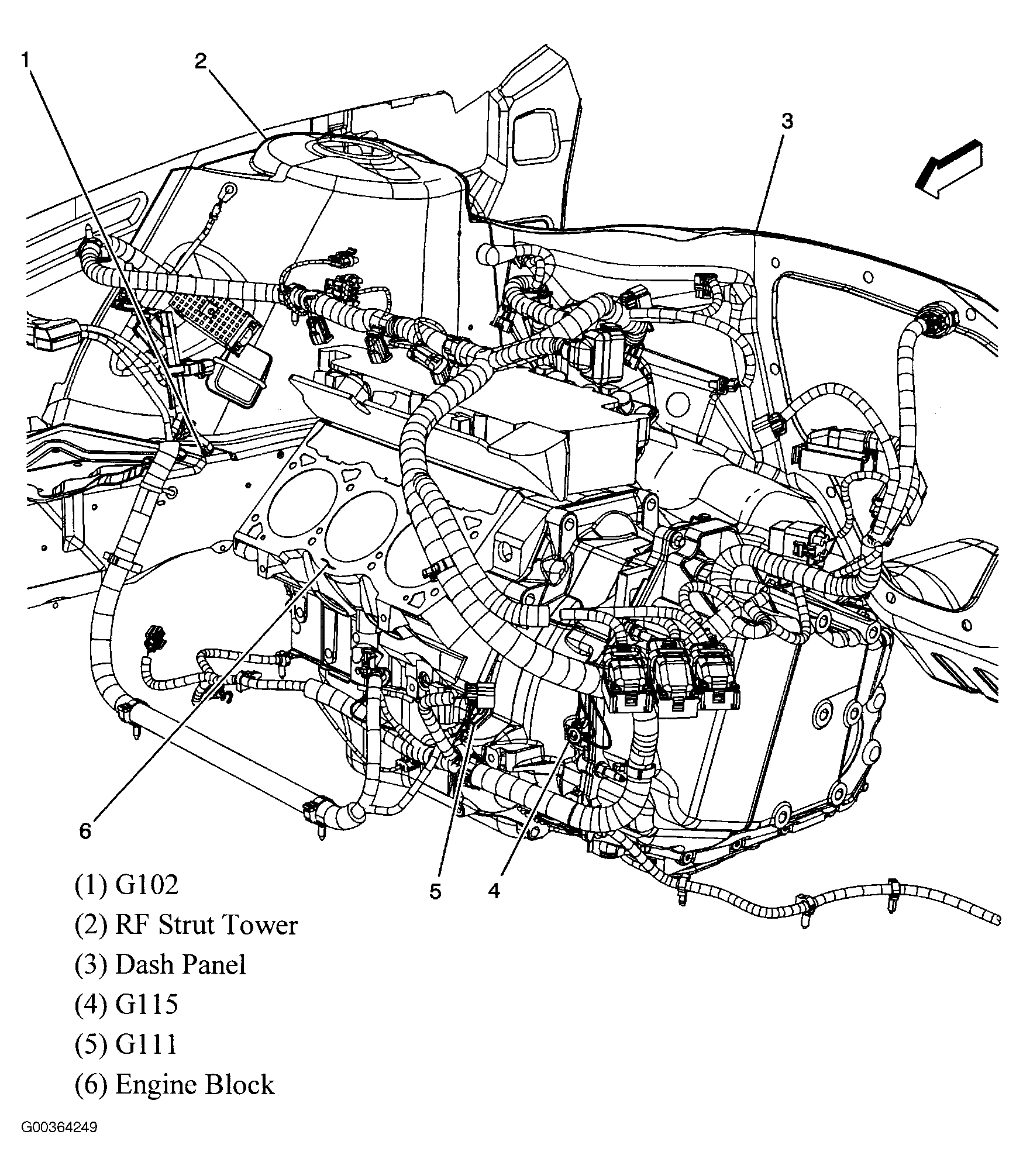

Fig 58: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

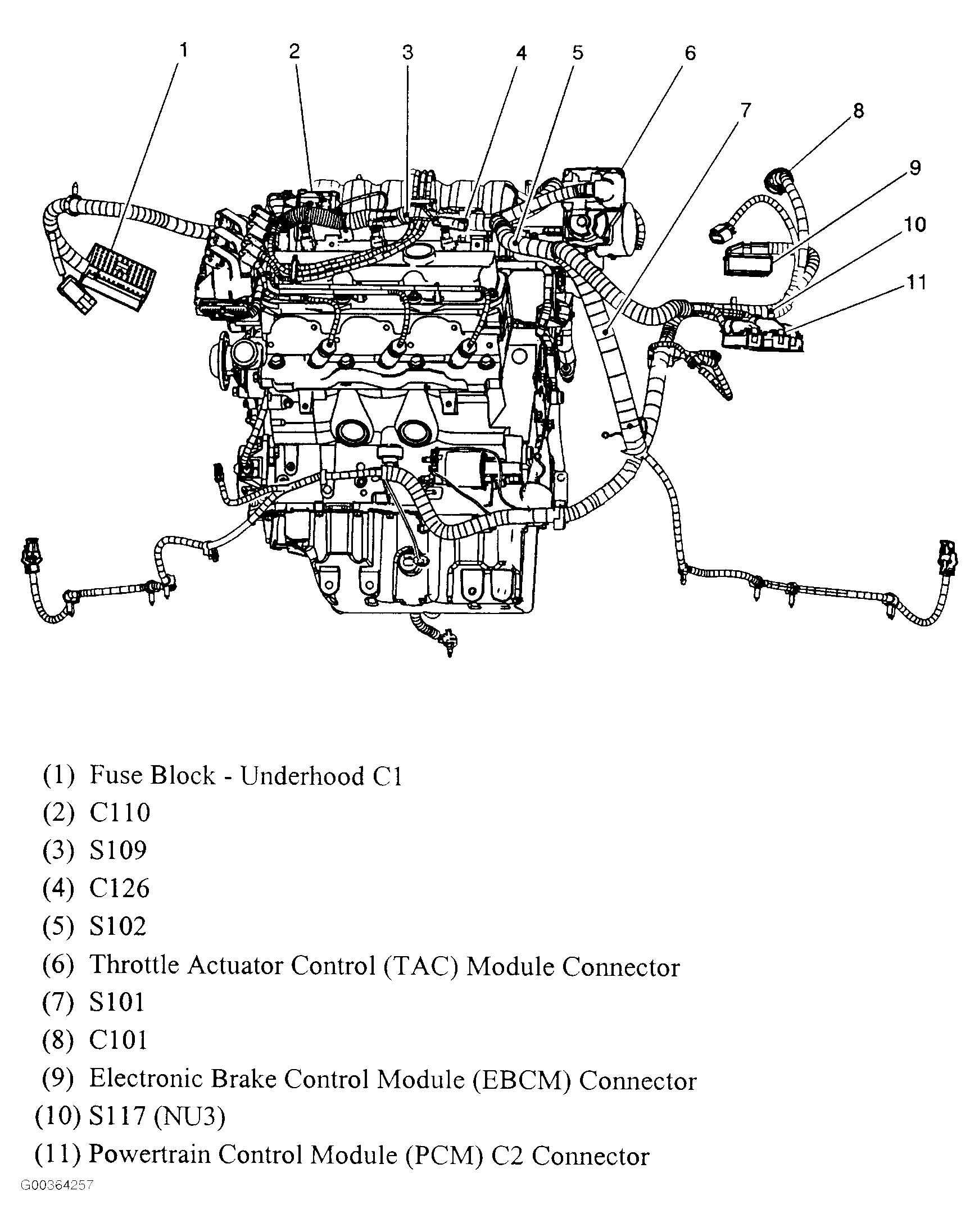

Fig 59: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 60: Engine/Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 61: Engine Assembly (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

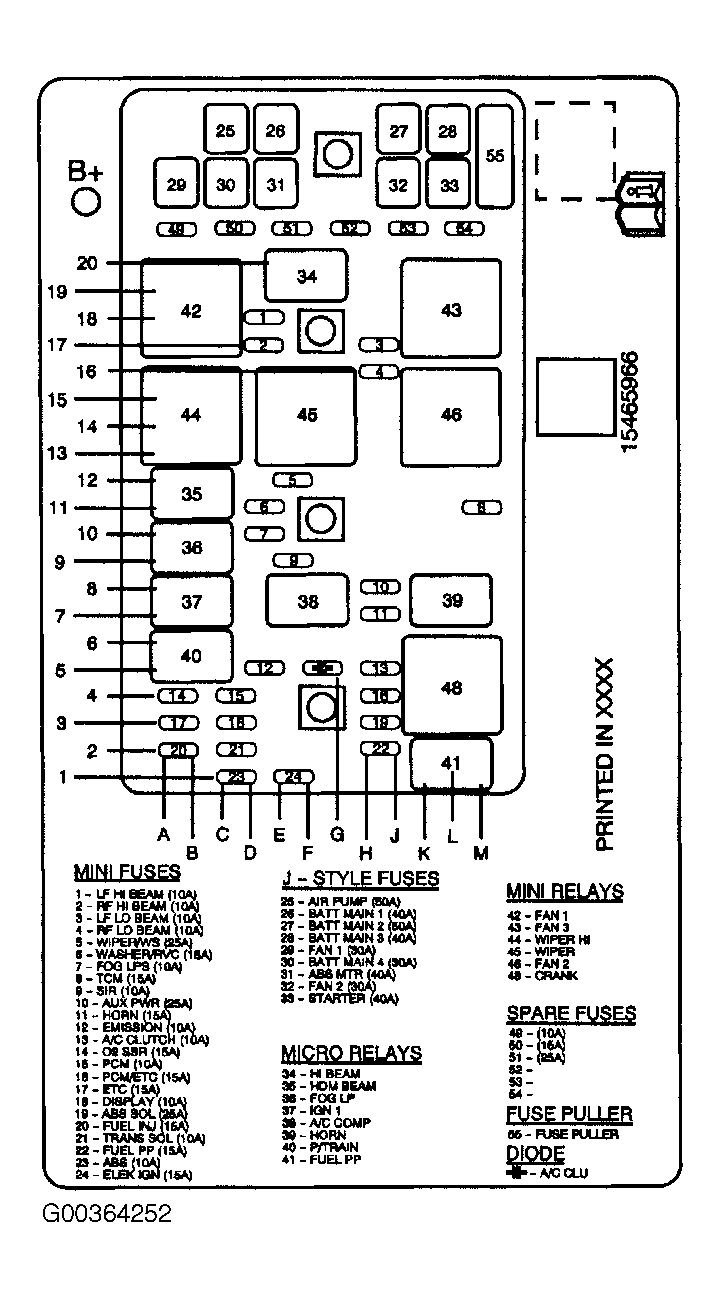

Fig 63: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

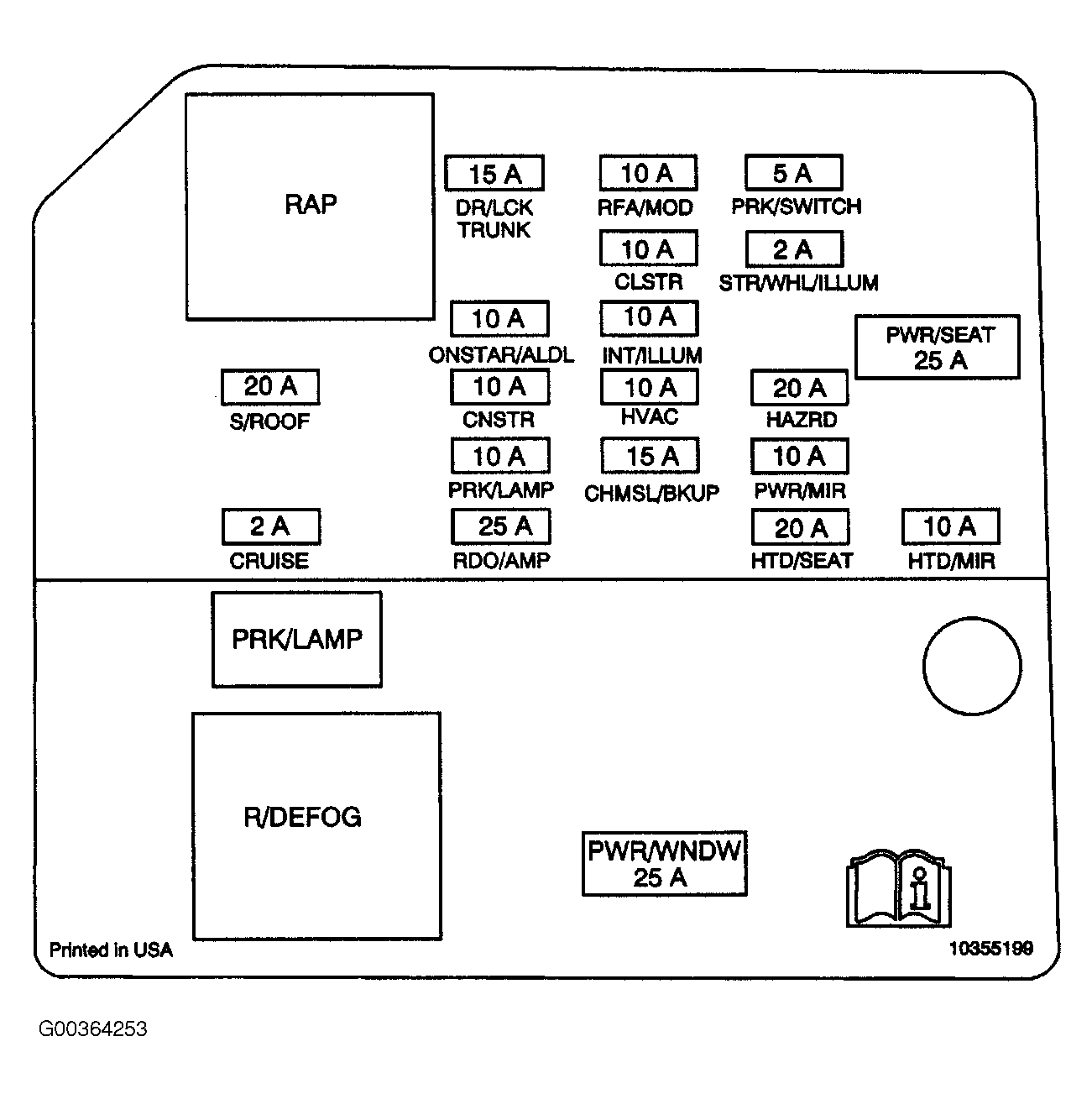

Fig 64: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 65: Cylinder Head (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 67: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 68: Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 71: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.

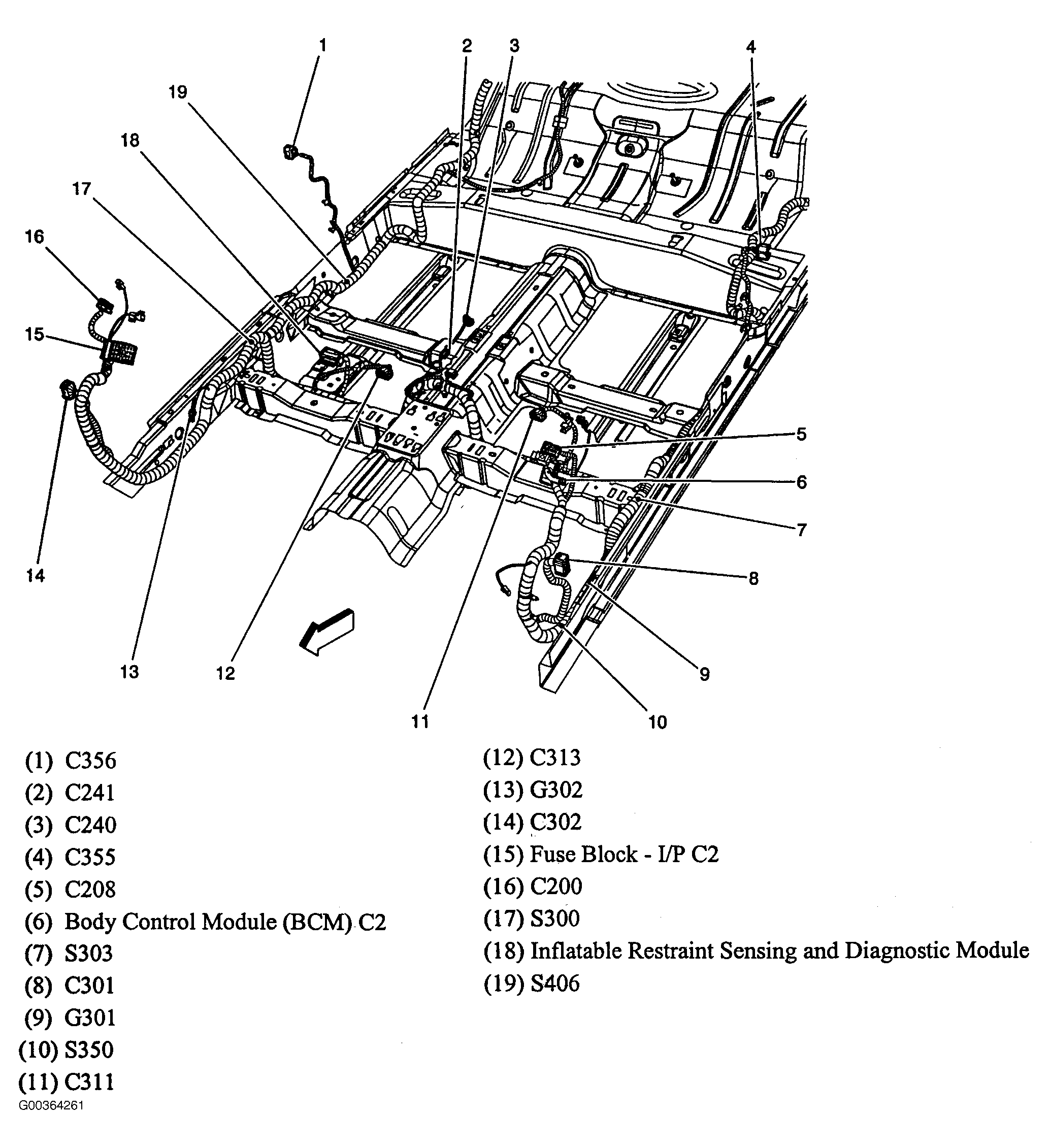

Fig 72: Interior Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 73: Trunk Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 74: Console Harness
Courtesy of GENERAL MOTORS CORP.
Fig 75: Steering Column
Courtesy of GENERAL MOTORS CORP.

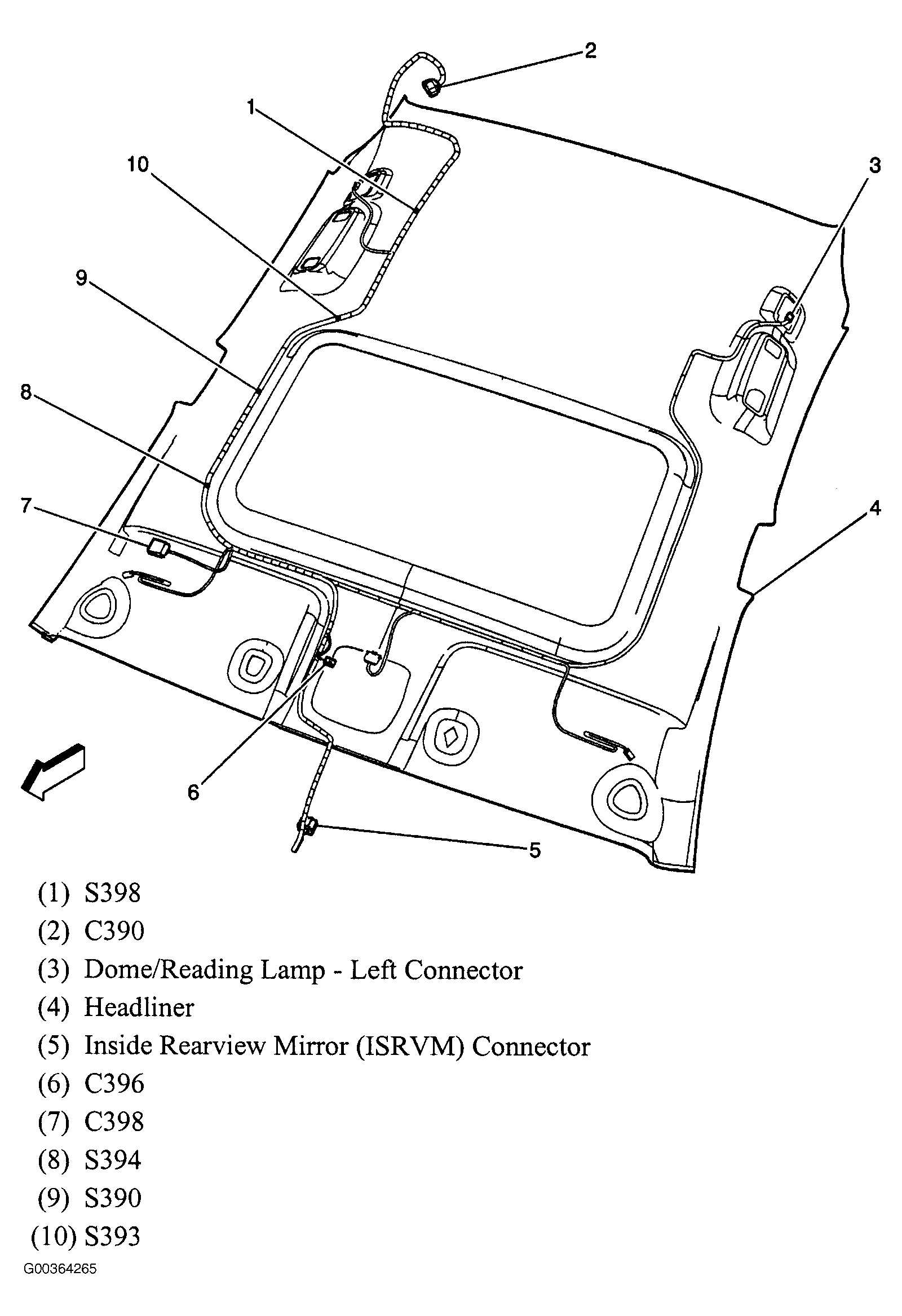

Fig 76: Headliner Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 77: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 78: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 79: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

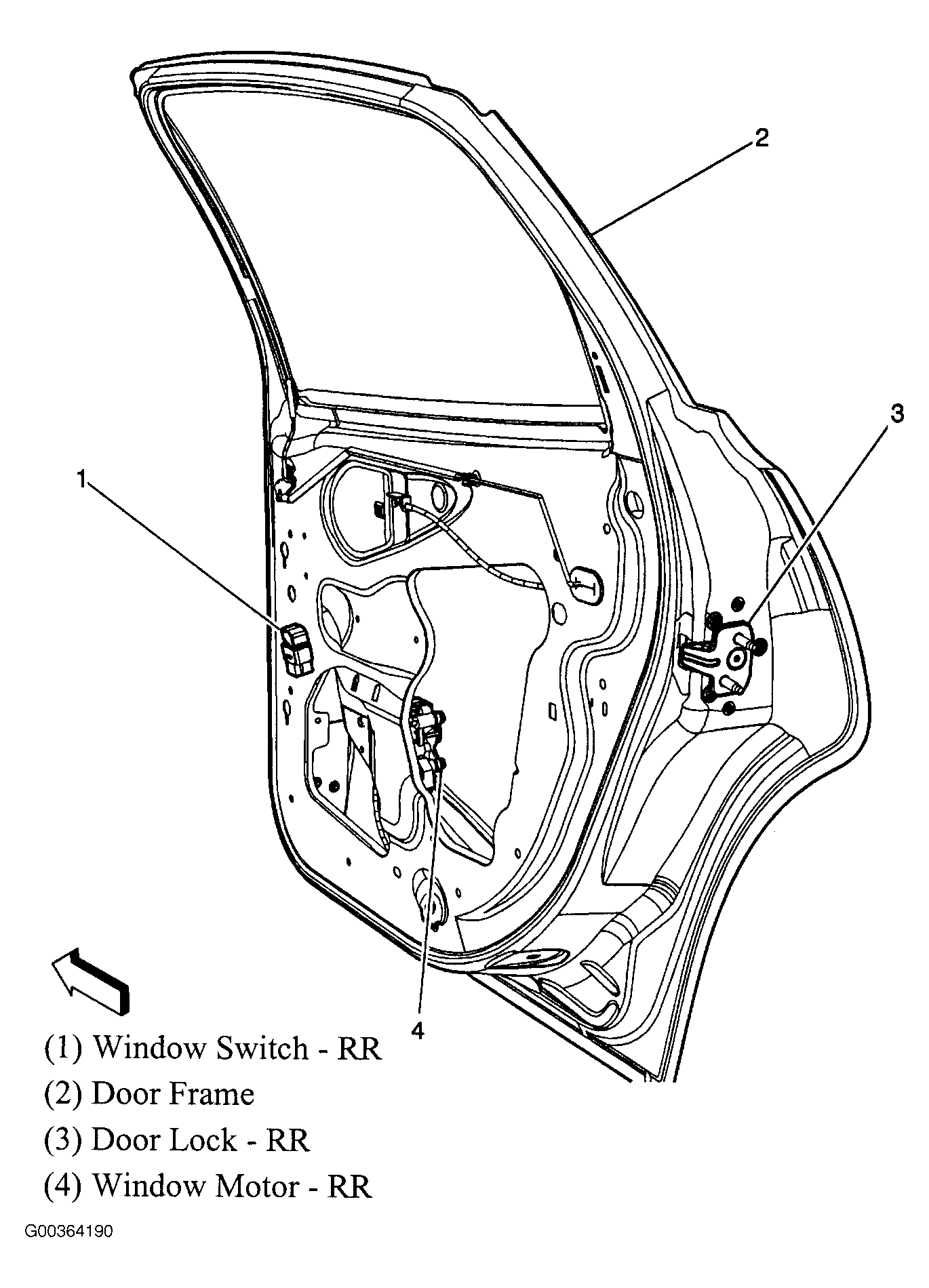

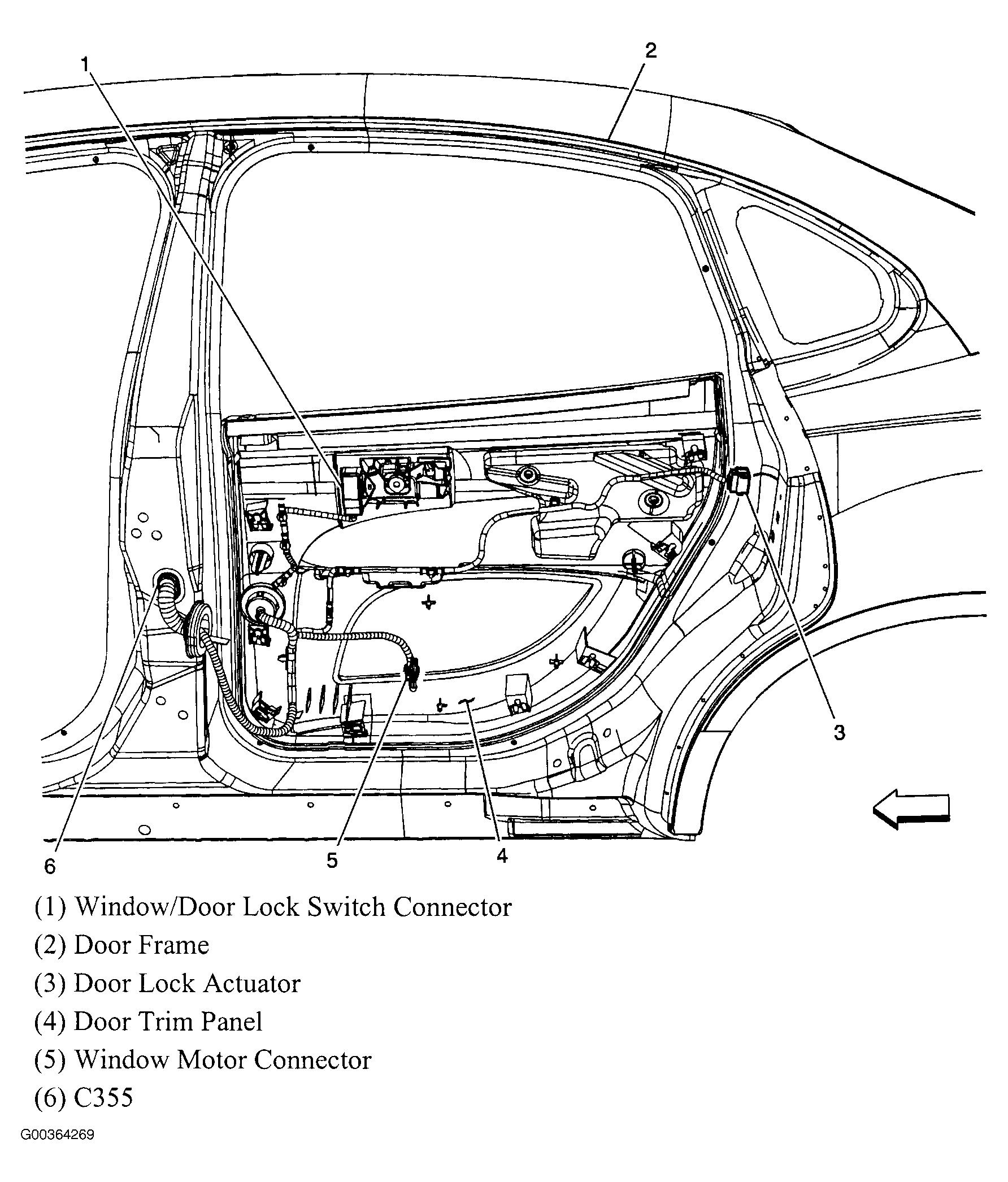

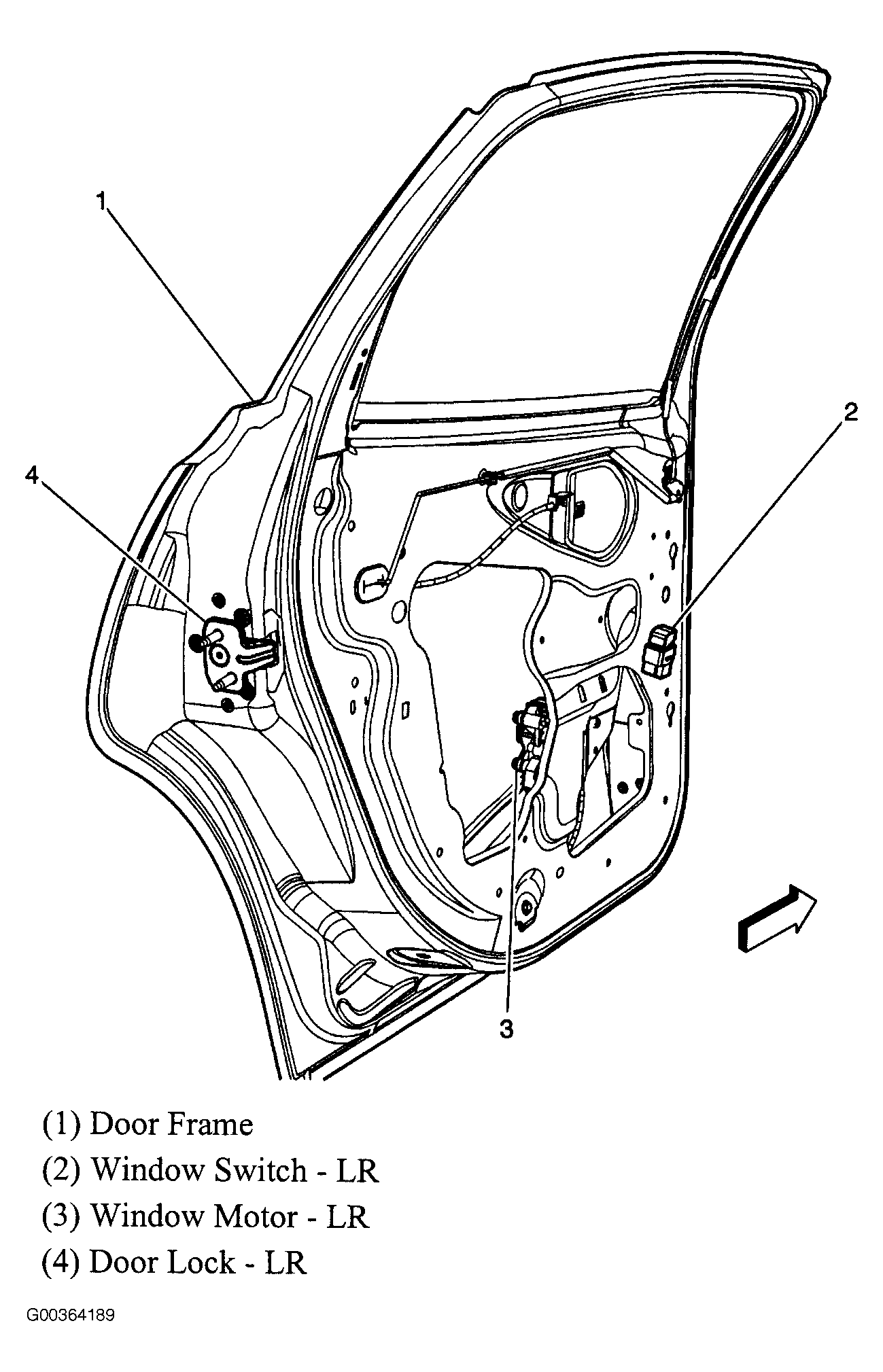

Fig 80: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

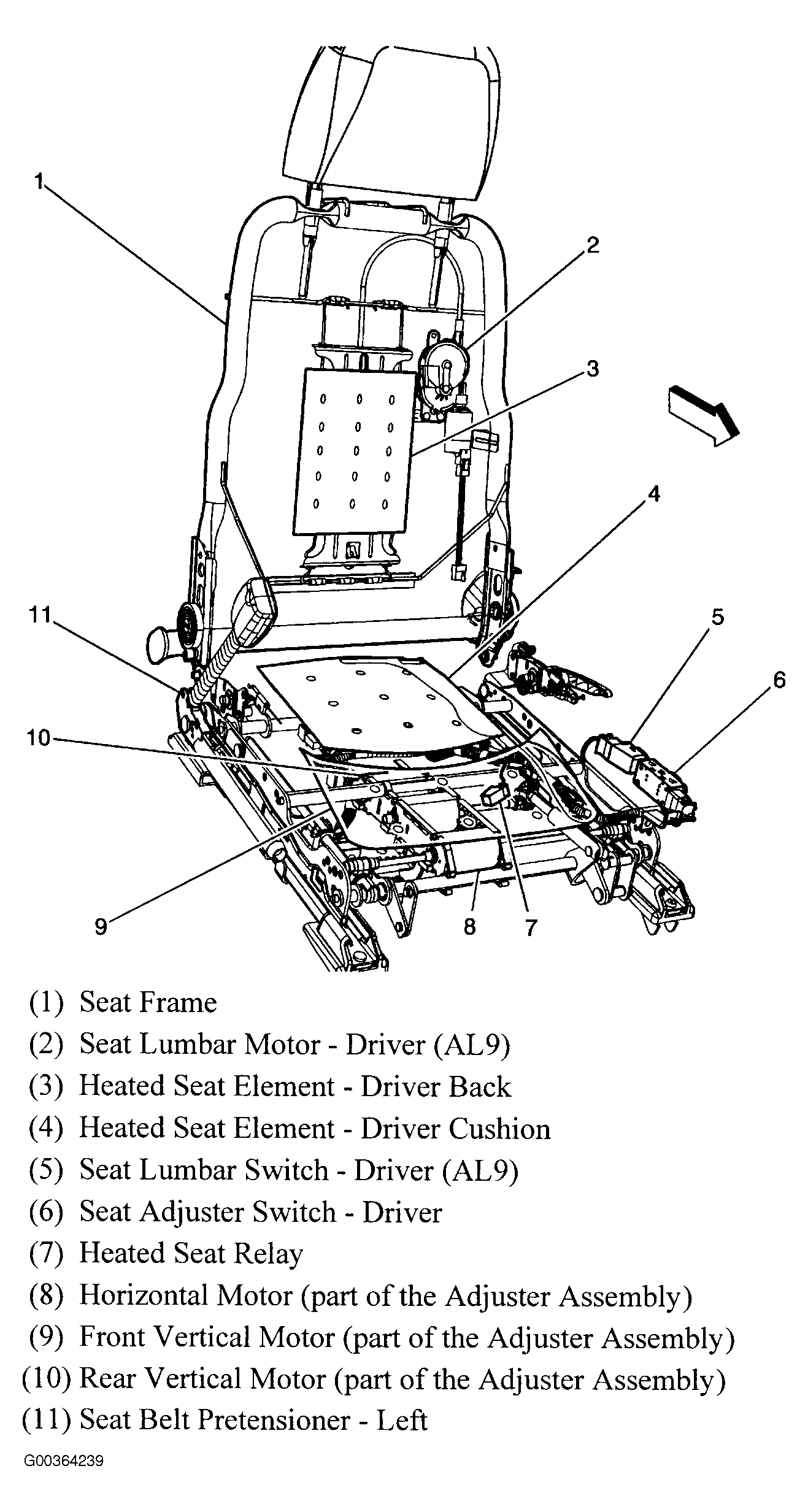

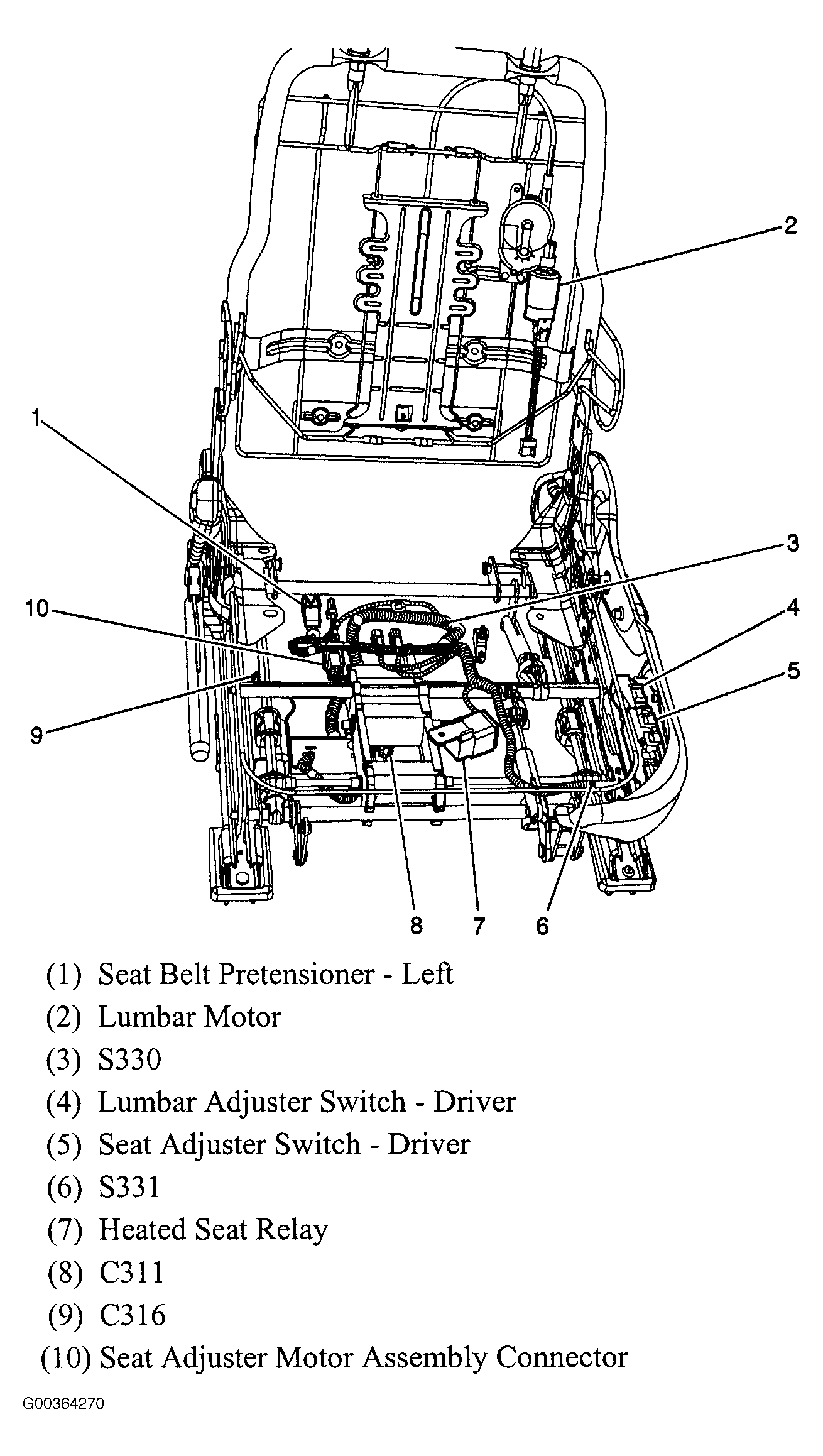

Fig 81: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 82: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

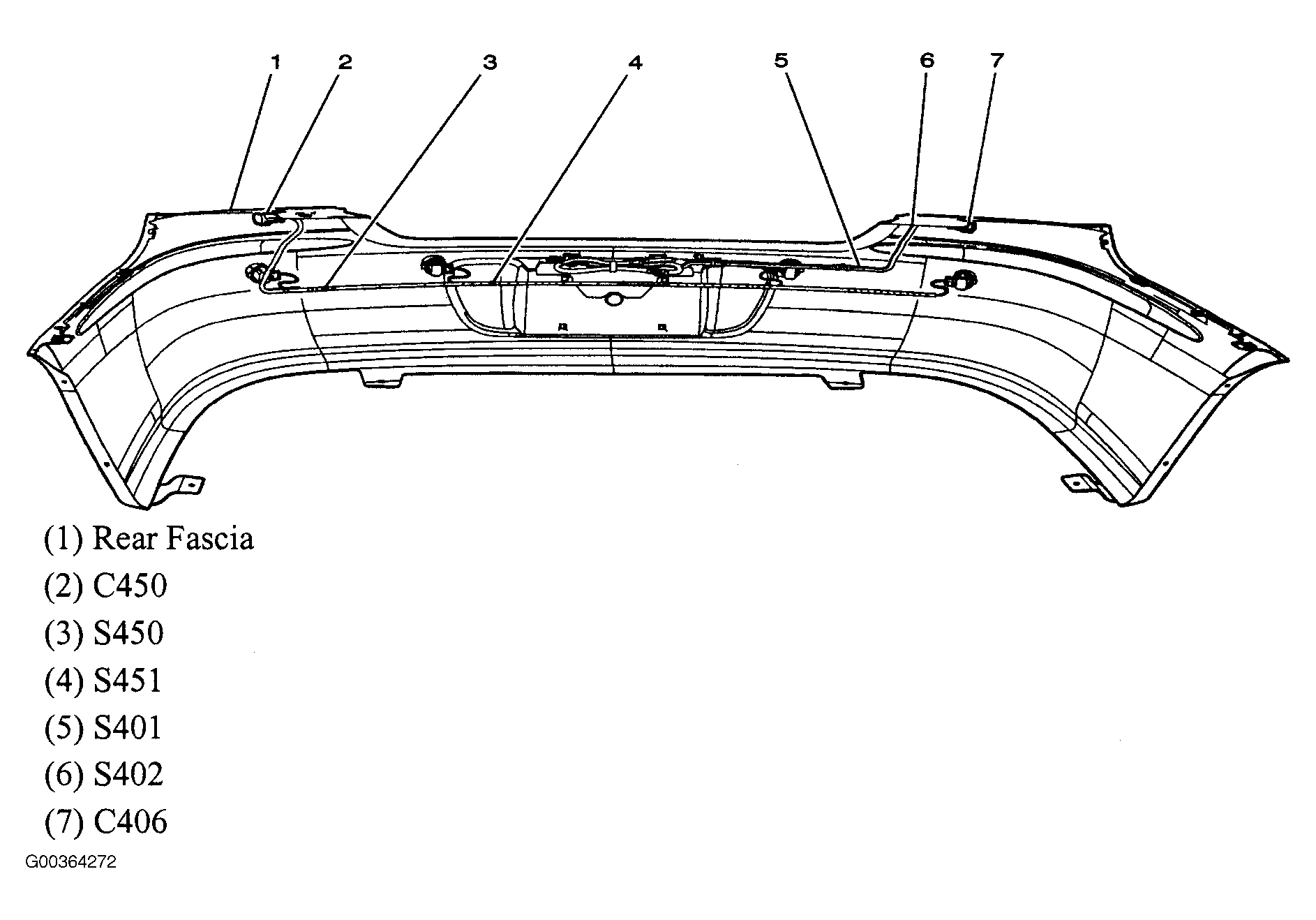

Fig 83: Rear Bumper
Courtesy of GENERAL MOTORS CORP.
