Home >> Buick >> 2005 >> LeSabre Custom, 4T65E/MN3 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Introduction >> Repair Instructions >> Air Cleaner Element Replacement >> Installation Procedure

Installation Procedure

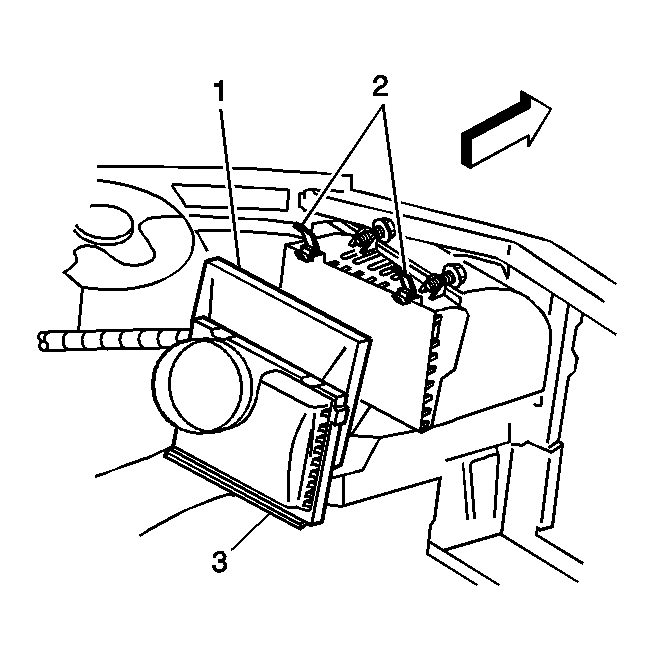

    Fig 1: View of Air Cleaner Element Cover, Air Filter Element and Retaining Clips
    GM869309Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter element (1) into the air cleaner assembly.
  2. Install the air cleaner element cover (3).
  3. Secure the air cleaner element cover by pressing down on the retaining clips (2).
  4. Install the intake duct. Refer to Air Cleaner Intake Duct Replacement .
