Installation Procedure

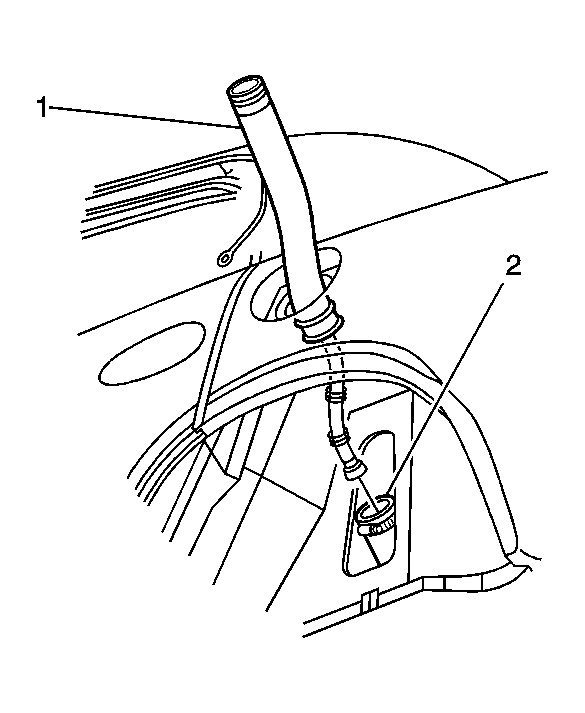

    Fig 1: Removing/Installing Fuel Filler Tube
    GM891297Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank if previously removed. Refer to Fuel Tank Replacement .
  2. Install the fuel filler tube (1) into the fuel filler hose (2).

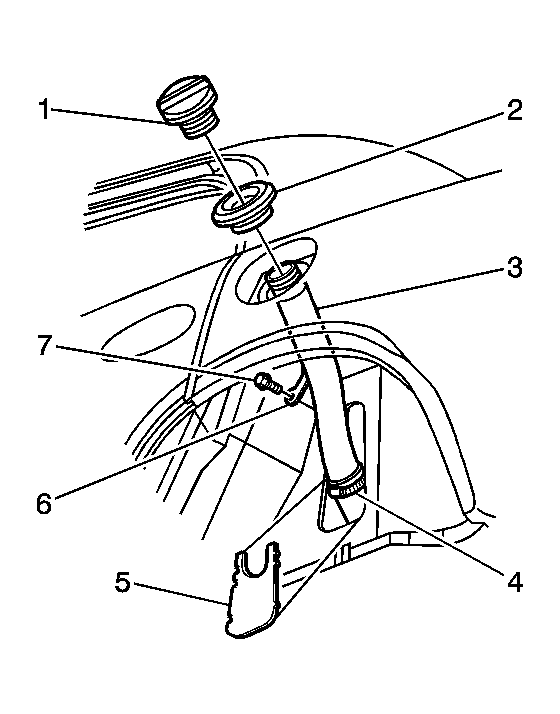

    3. Fig 2: Removing/Installing Fuel Cap & Fuel Filler Tube Sealing Ring
    GM891295Courtesy of GENERAL MOTORS CORP.
  3. Position the fuel filler tube (3) for best fit and alignment then secure the fuel filler tube hose clamp (4).

    Tighten:  Tighten the clamp to 3.5 N.m (31 lb in).

  4. Install the bolt (7) to the fuel filler tube ground wire (6).

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  5. Install the wheel house opening fuel filler tube cover (5).
  6. Lower the vehicle.
  7. Install the sealing ring (2) around the fuel filler tube (3).
  8. Add fuel to the fuel tank.
  9. Inspect for fuel leaks.
  10. Install the fuel filler cap (1) and close the fuel filler door.
