Installation Procedure

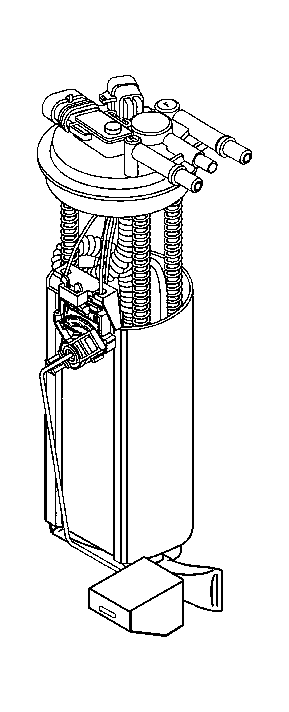

    Fig 1: Removing/Installing Fuel Pump Strainer
    GM191412Courtesy of GENERAL MOTORS CORP.
  1. Position the new fuel pump strainer on the modular fuel sender and push on the outer edge of the fuel pump strainer until the fuel pump strainer is fully seated.
  2. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
