Home >> Buick >> 2005 >> LeSabre Custom, 4T65E/MN3 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Introduction >> Repair Instructions >> Throttle Position (TP) Sensor Replacement >> Removal Procedure

Removal Procedure

  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36) in Engine Mechanical.

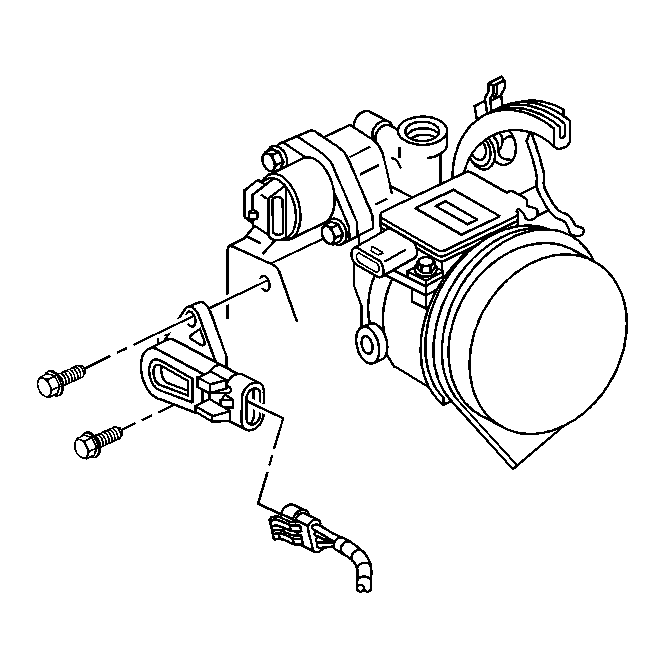

    2. Fig 1: Removing/Installing Throttle Position (TP) Sensor
    GM894505Courtesy of GENERAL MOTORS CORP.
  2. Remove the throttle position (TP) sensor electrical connector from the TP sensor.
  3. Remove the two TP sensor attaching screws from the TP sensor from the throttle body.
  4. Remove the TP sensor from the throttle body.
