Automatic Transmission Shift Lock Control Component Views

Fig 1: Brake Switches Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop lamp/Automatic Trans Shift Lock Control Switch, C1
2	Stop lamp/Automatic Trans Shift Lock Control Switch, C2
3	Stop lamp/Automatic Trans Shift Lock Control Switch
4	Stop lamp Switch
5	Stop lamp Switch Connector

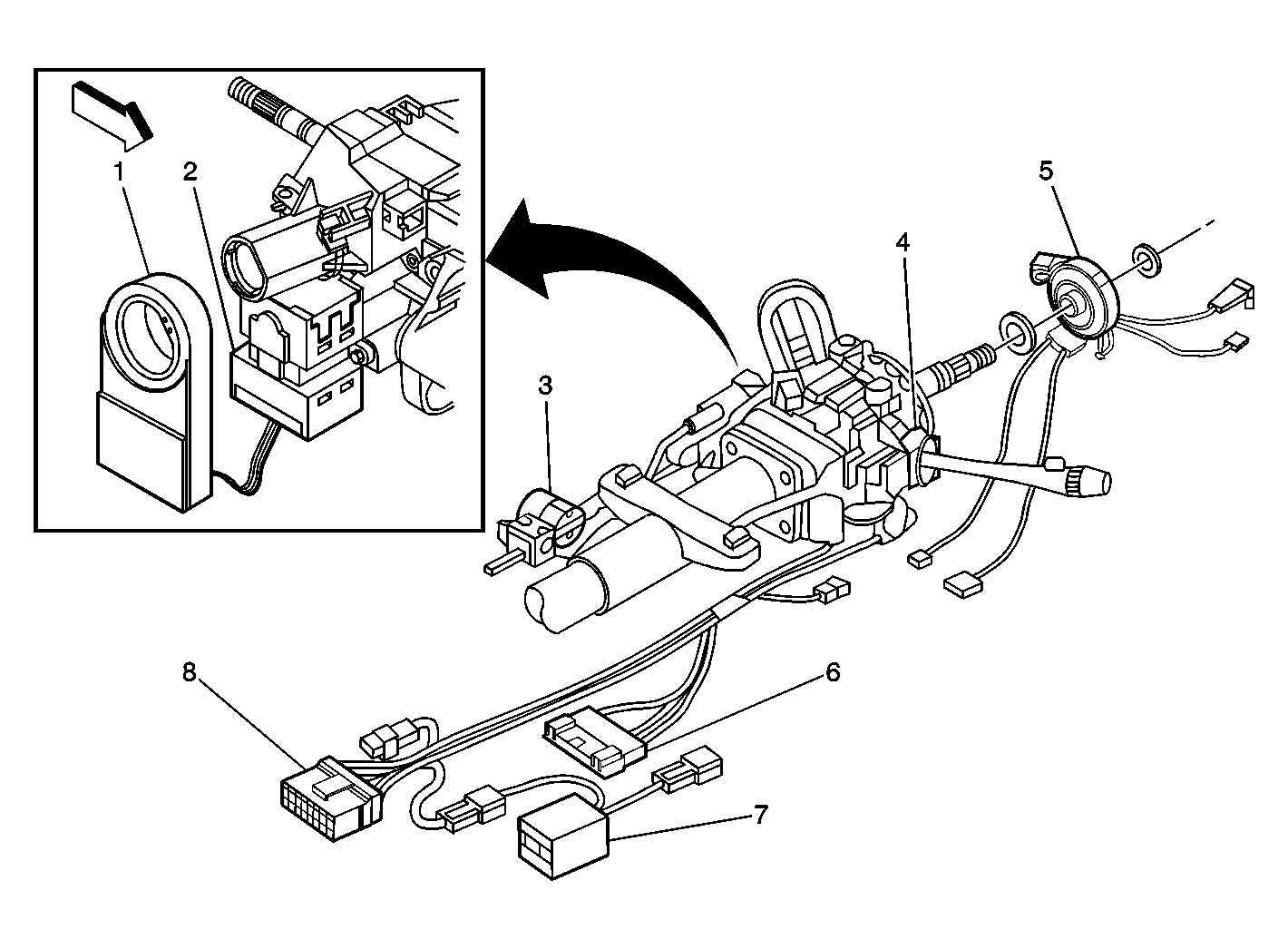

Fig 2: Identifying Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Control Module
2	Ignition Switch
3	A/T Shift Lock Control Solenoid
4	Turn Signal/Multifunction Switch
5	Inflatable Restraint Steering Wheel Module Coil
6	C201
7	Fuse Holder - Steering Column
8	C202
