Fuel Tank Draining Procedure

CAUTION: Do not drain the fuel into an open container. Never store the fuel in an open container due to the possibility of a fire or an explosion.

CAUTION: Drain the fuel tank to at least 3/4 of a tank before removing the fuel sender retaining ring or fuel sender access panel in order to avoid possible fuel spillage. Failing to follow this procedure could result in personal injury.

NOTE: Drain the fuel tank with a hose which has a 13 mm (0.5 in) or smaller diameter in order to prevent the drain hose from getting stuck inside the fuel tank filler neck pipe check valve. Damage to the check valve may result.

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Top Post) in Engine Electrical.

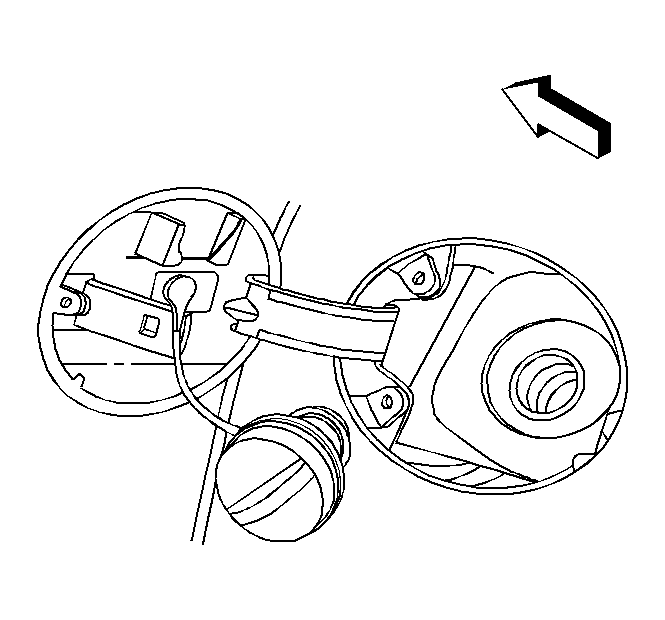

Fig 1: Removing/Installing Fuel Tank Filler Pipe Cap

Courtesy of GENERAL MOTORS CORP.

Remove the fuel tank filler pipe cap.

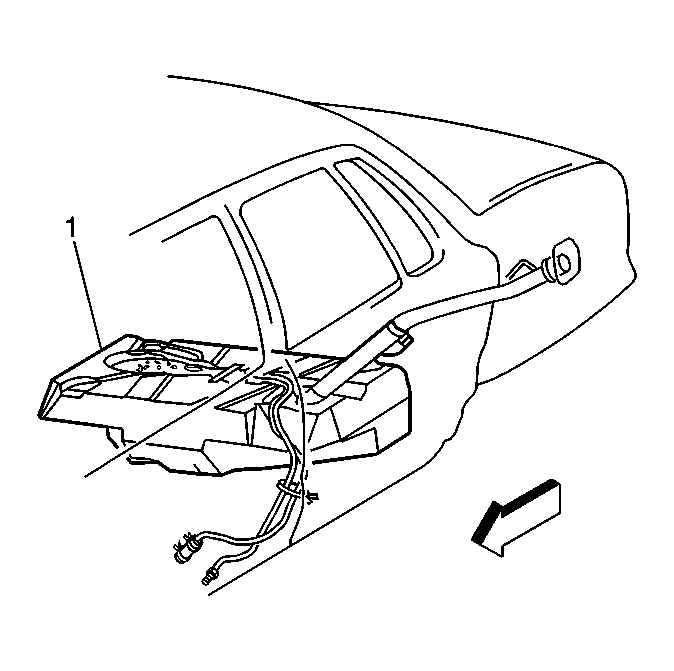

Fig 2: Identifying Fuel Tank Assembly Components

Courtesy of GENERAL MOTORS CORP.

Use a hand operated fuel pump device in order to drain the fuel through the fuel tank filler pipe from the fuel tank (1).

Fig 3: Removing/Installing Fuel Tank Filler Pipe Cap

Courtesy of GENERAL MOTORS CORP.

Install the fuel tank filler pipe cap.
Connect the negative battery cable after service. Refer to Battery Negative Cable Disconnect/Connect Procedure (Top Post) in Engine Electrical.
