Engine Control System - Introduction
>>
Schematic and Routing Diagrams
>>
Engine Controls Schematics
Engine Controls Schematics

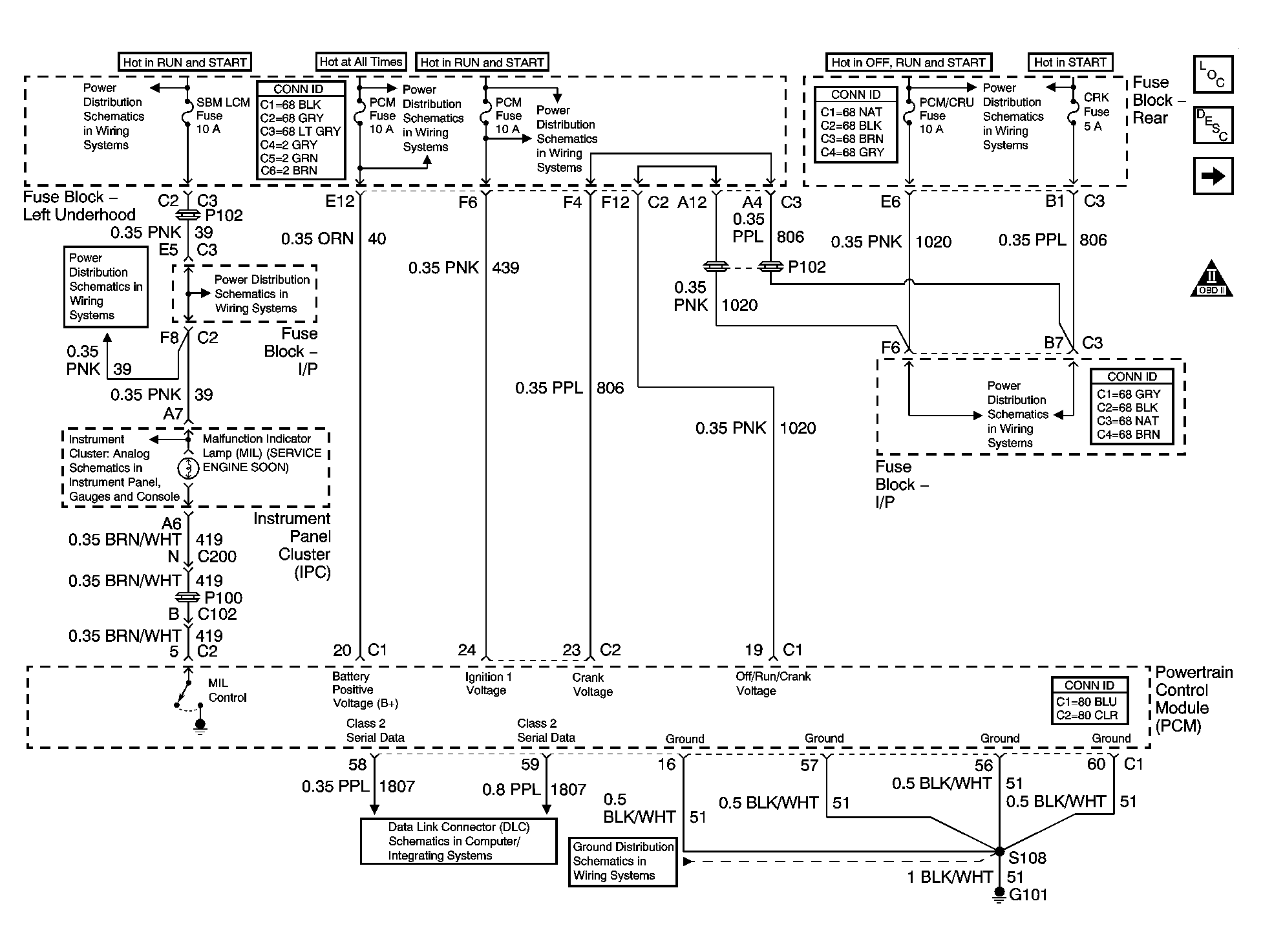

Fig 1: Module Power, Ground, Serial Data, and MIL Schematics
Courtesy of GENERAL MOTORS CORP.

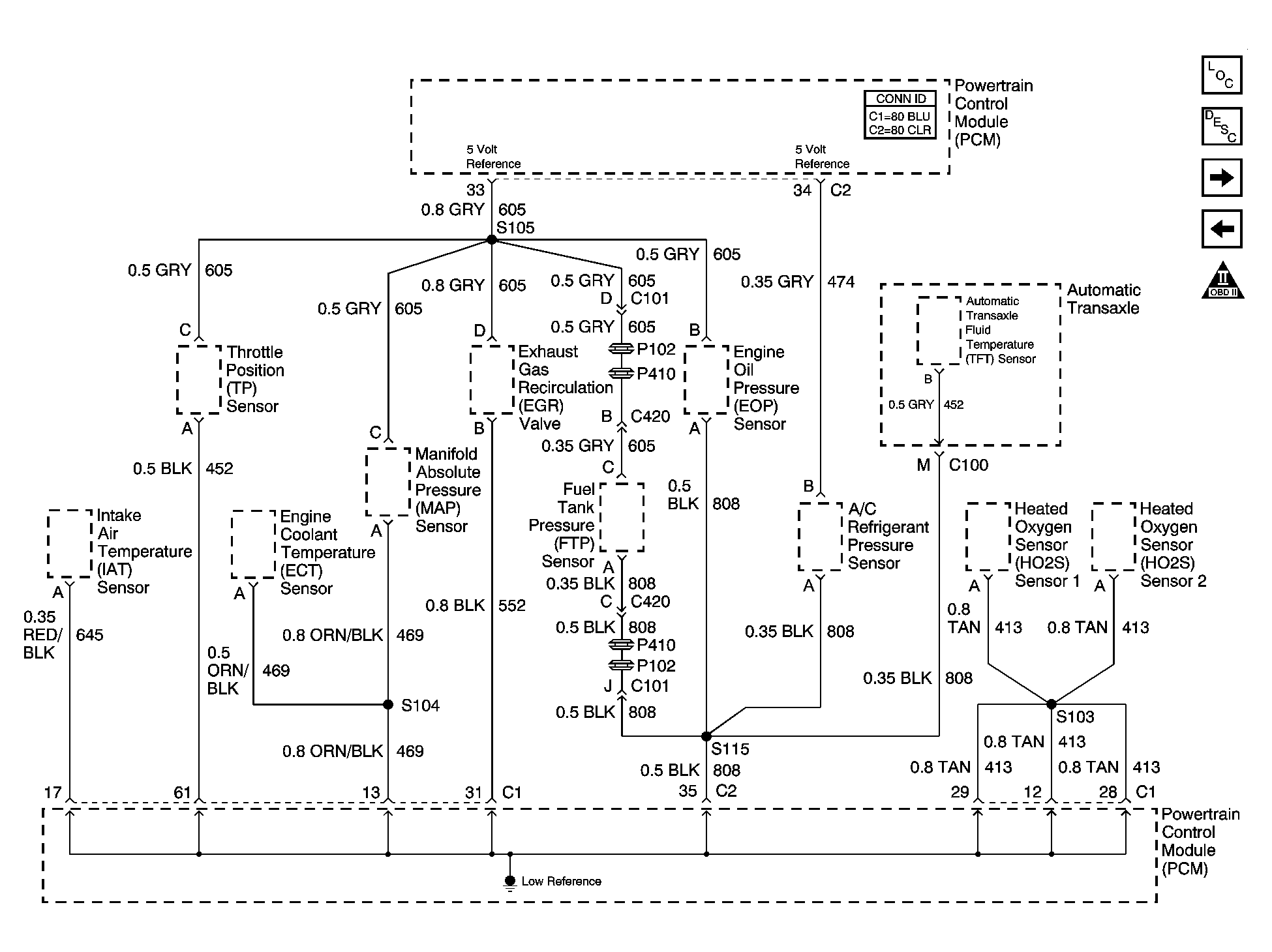

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematics
Courtesy of GENERAL MOTORS CORP.

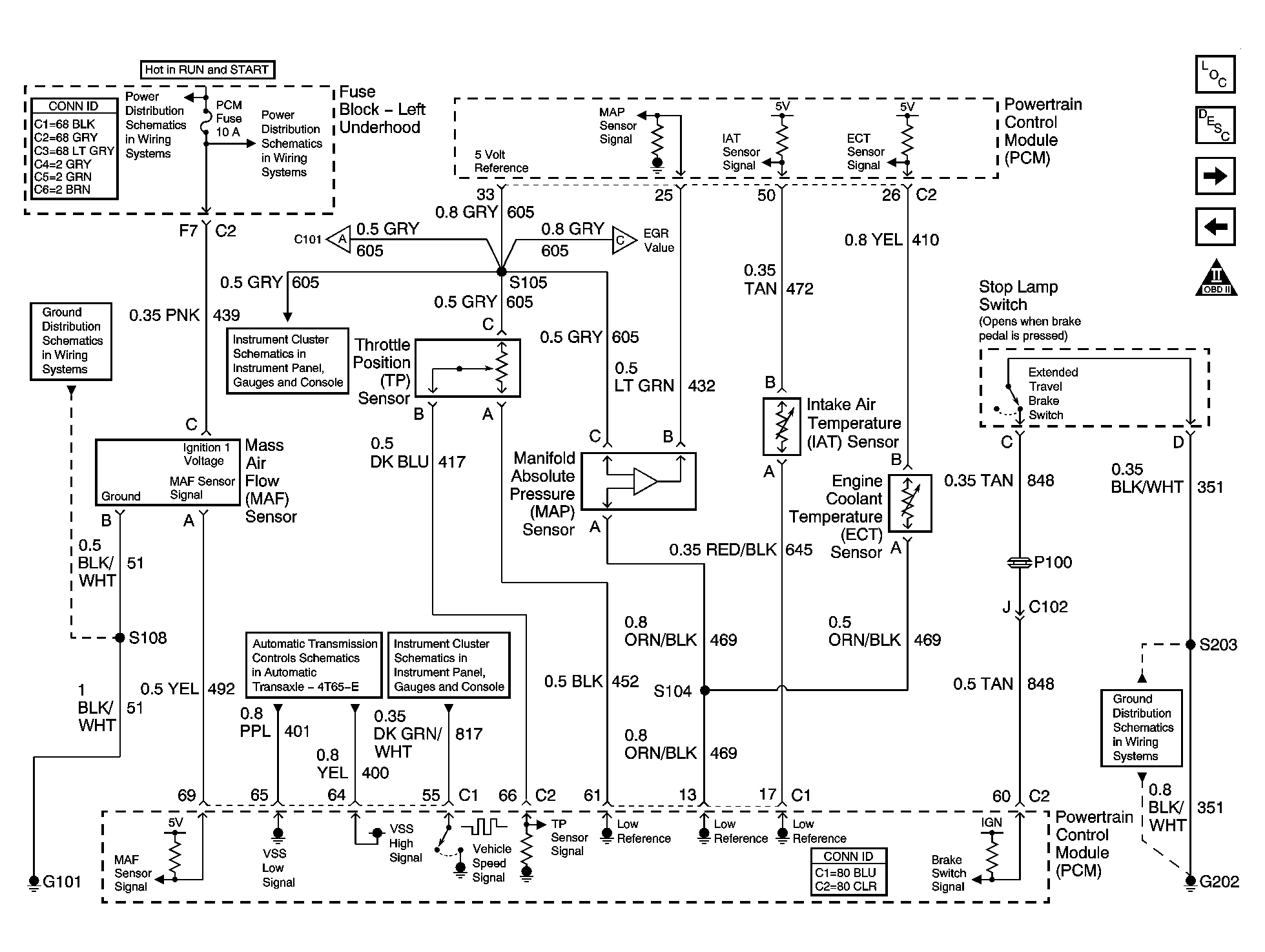

Fig 3: Engine Data Sensors - Pressure, Temperature, MAF and Extended Brake Travel Switch Schematics
Courtesy of GENERAL MOTORS CORP.

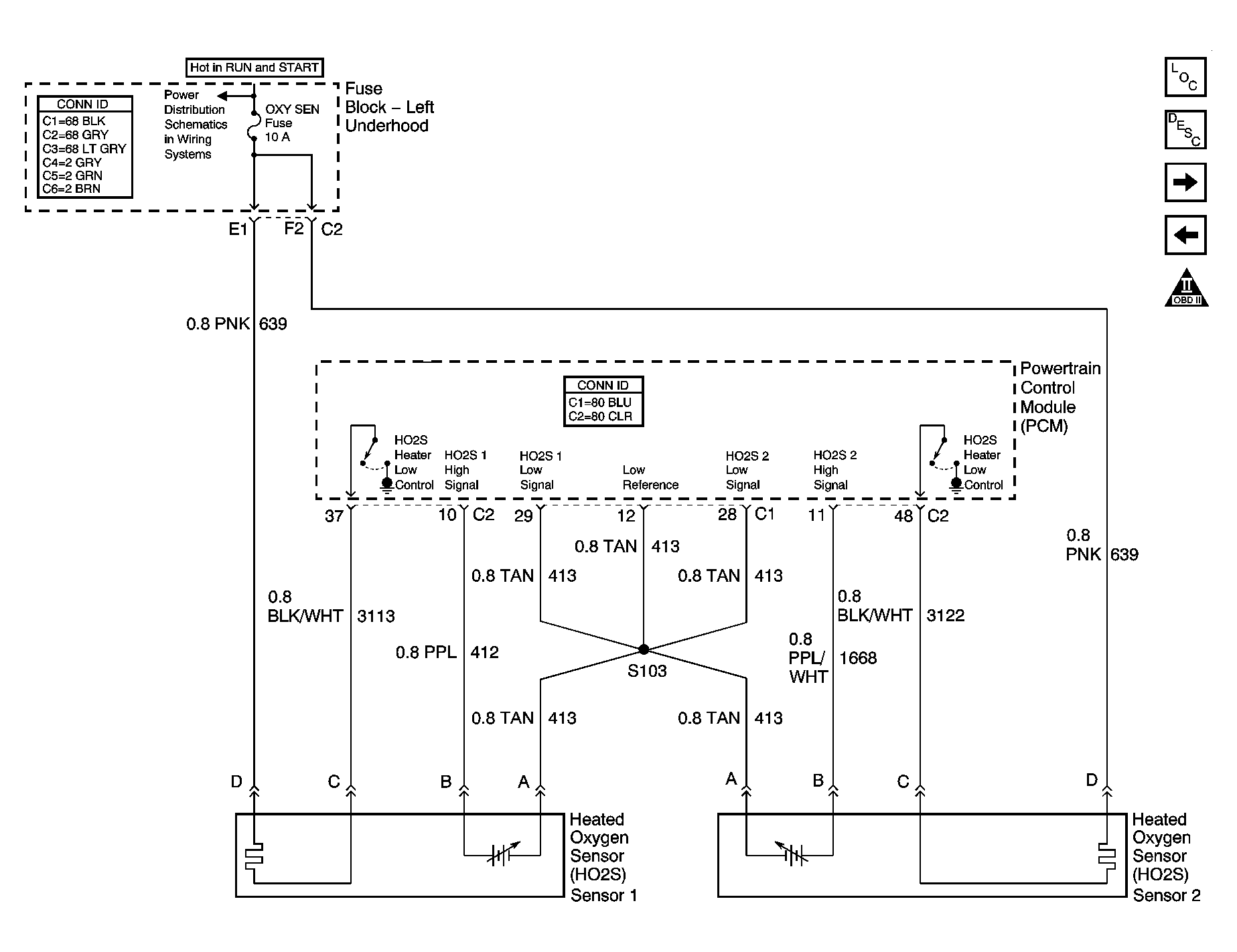

Fig 4: Engine Data Sensors - Oxygen Sensors Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 5: Ignition Controls - Ignition System Schematics
Courtesy of GENERAL MOTORS CORP.

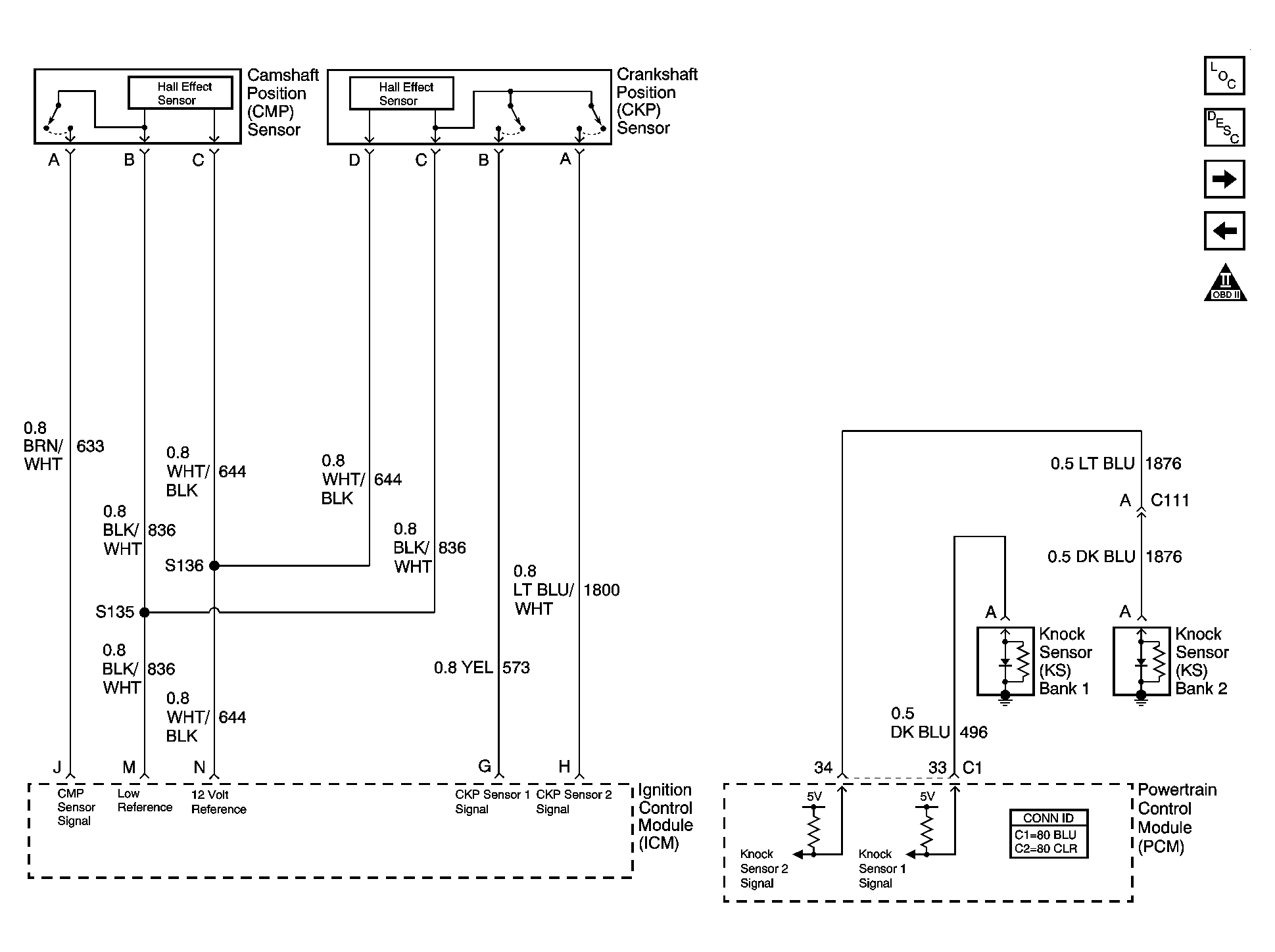

Fig 6: Ignition Controls - Sensors Schematics
Courtesy of GENERAL MOTORS CORP.

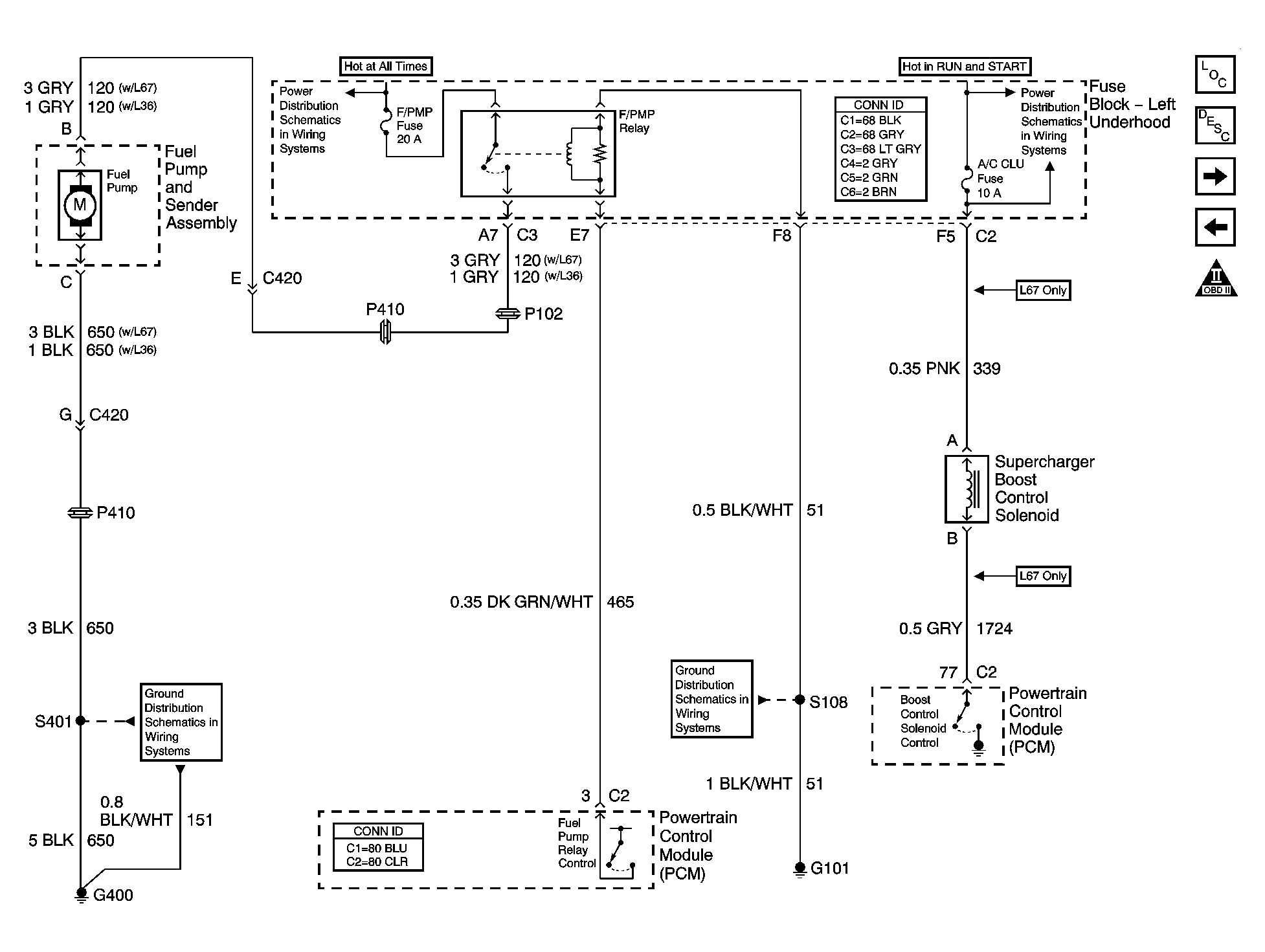

Fig 7: Fuel Controls - Fuel Pump and Supercharger Controls Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 8: Fuel Controls - Fuel Injectors Schematics
Courtesy of GENERAL MOTORS CORP.

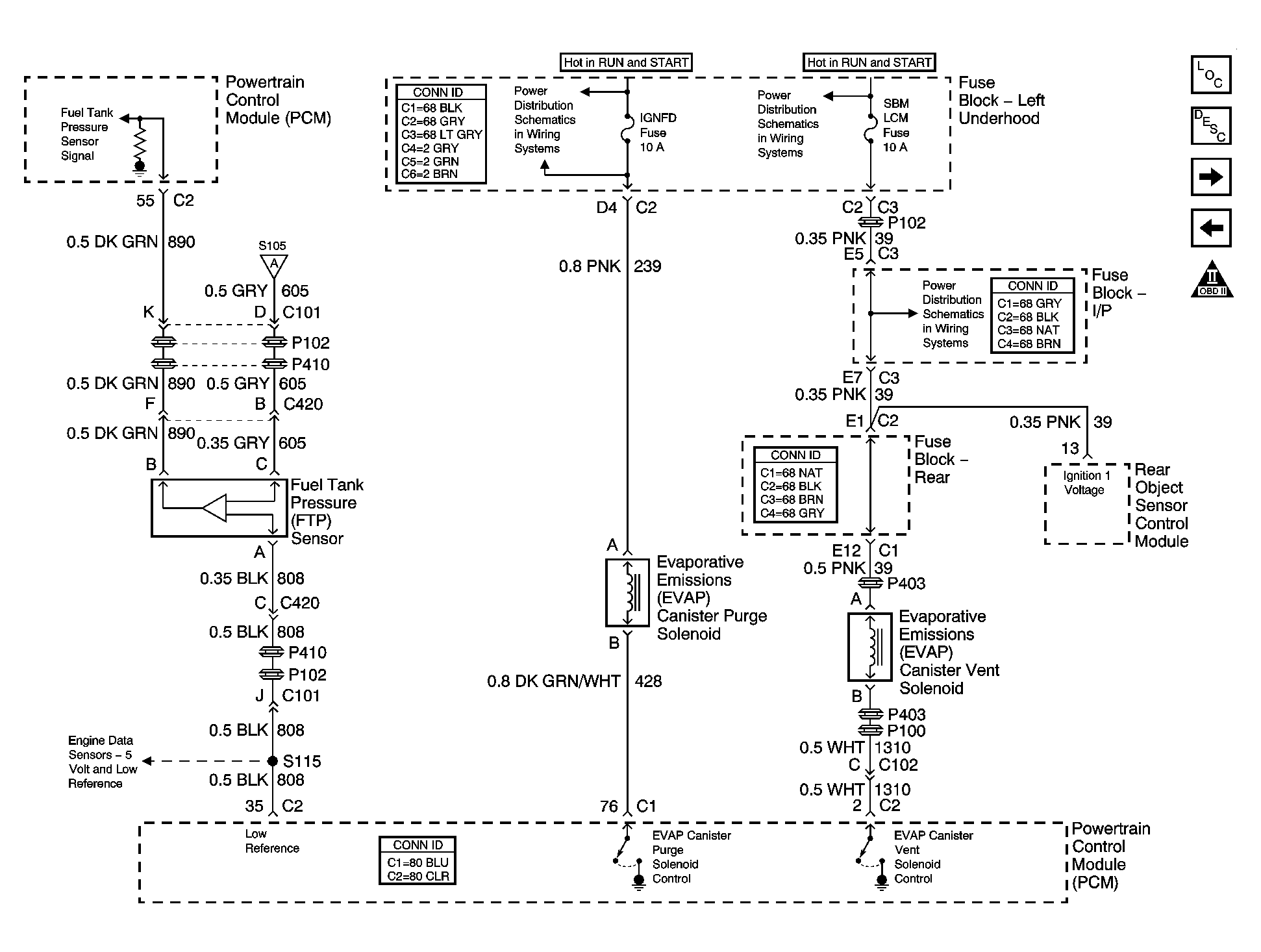

Fig 9: Fuel Controls - EVAP Controls Schematics
Courtesy of GENERAL MOTORS CORP.

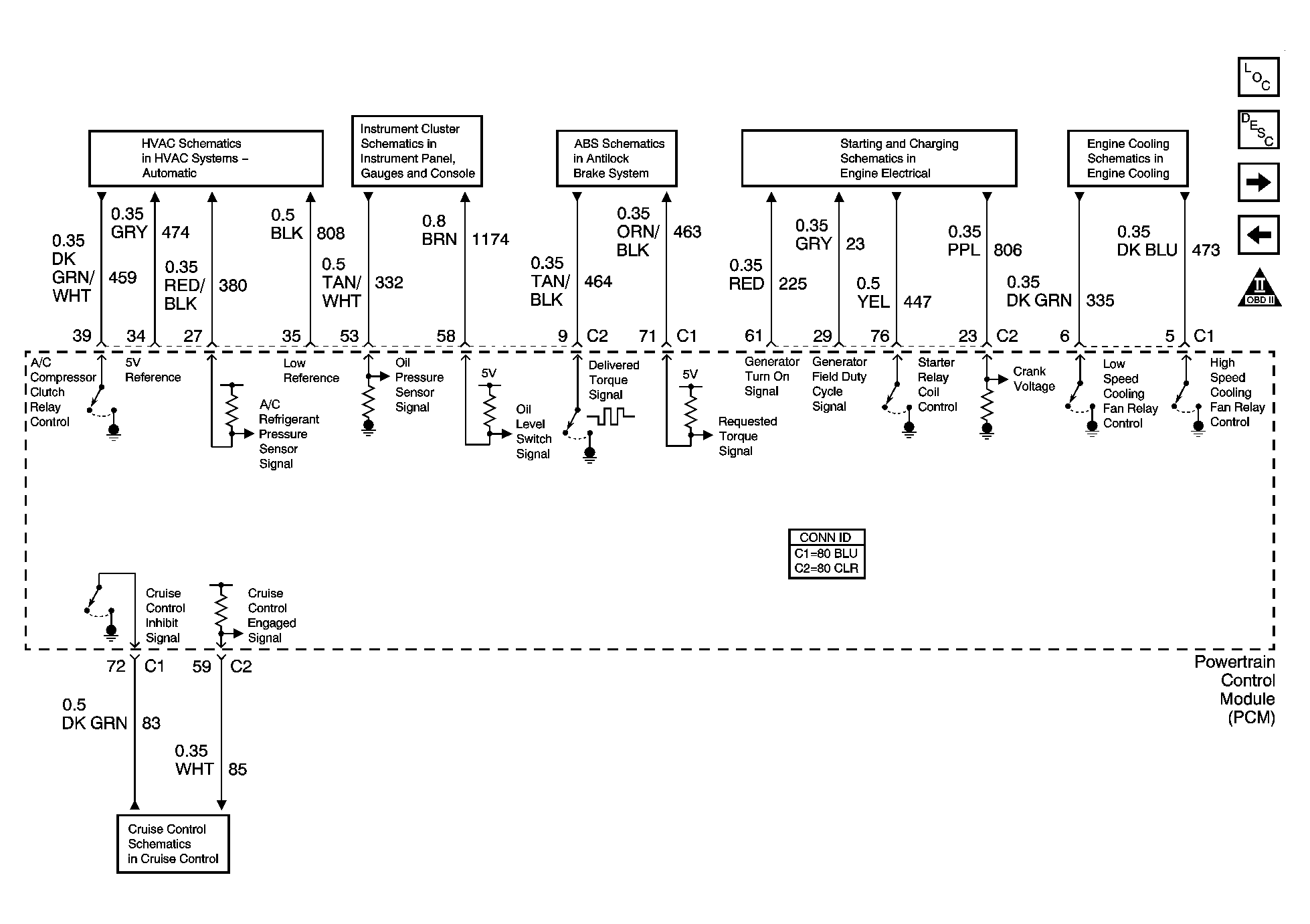

Fig 10: Device Controls Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 11: Controlled/Monitored Subsystem References Schematics
Courtesy of GENERAL MOTORS CORP.

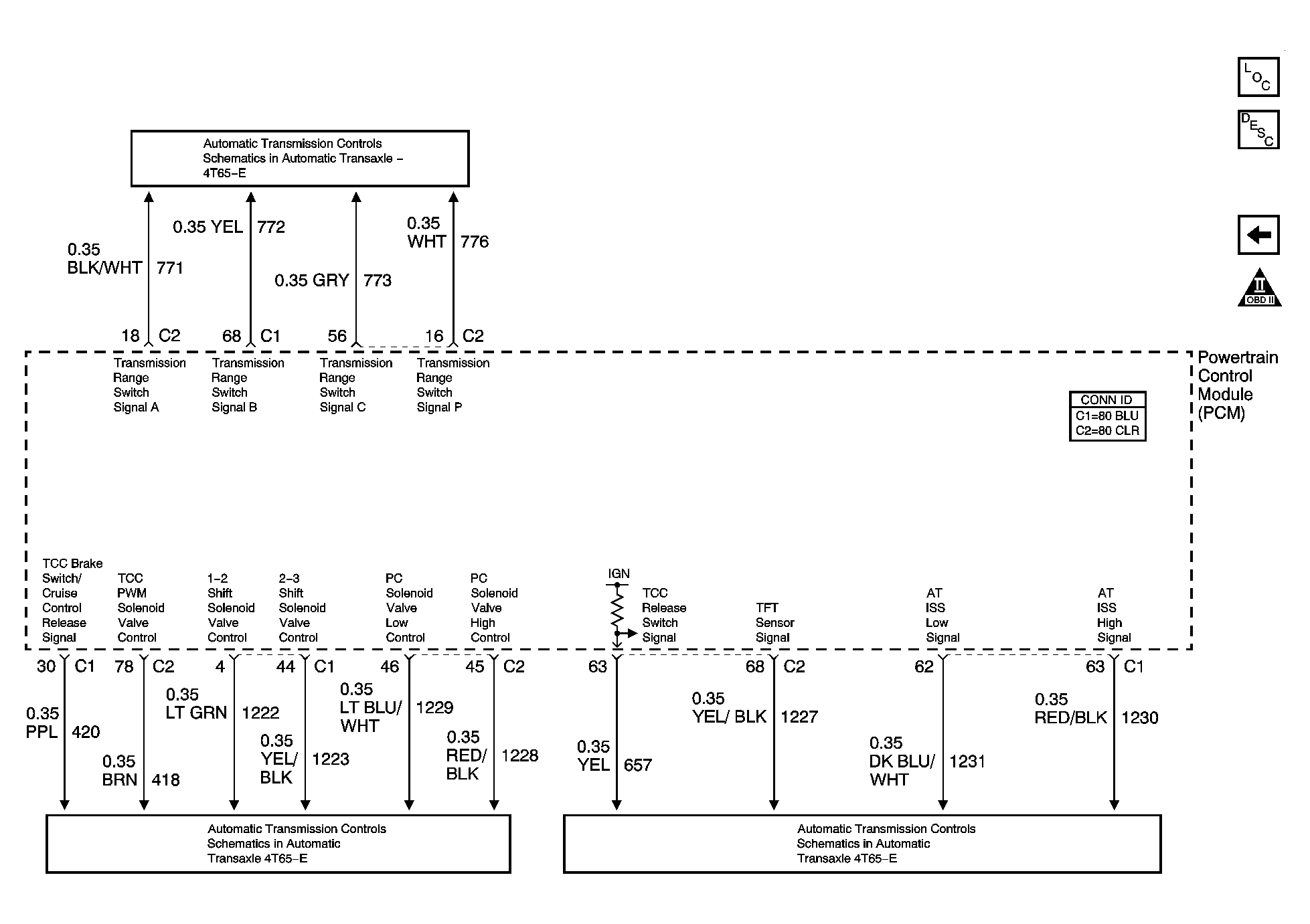

Fig 12: Transmission Control References Schematics - A/T
Courtesy of GENERAL MOTORS CORP.
