Removal Procedure

Remove the fuel tank. Refer to Fuel Tank Replacement .

Fig 1: View Of Fuel Sender Module Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel sender module electrical connectors.

Fig 2: Identifying Fuel Pipes At Fuel Sender

Courtesy of GENERAL MOTORS CORP.

NOTE: Do Not handle the fuel sender assembly by the fuel pipes. The amount of leverage generated by handling the fuel pipes could damage the joints.

Disconnect the fuel pipes from the fuel sender. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .

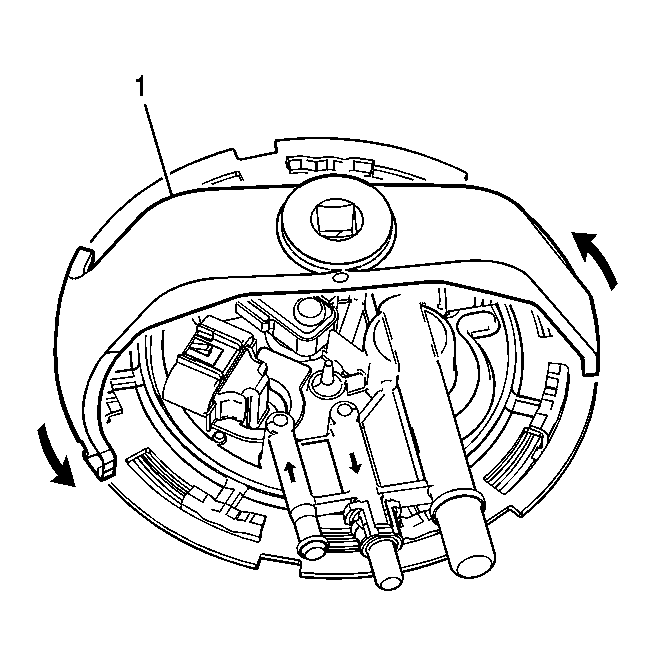

Fig 3: View Of J 45722

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do NOT use impact tools. Significant force will be required to release the lock ring. Secure the fuel tank in order to prevent fuel tank rotation.

Use the J 45722 (1) and a long breaker-bar in order to unlock the fuel sender lock ring. See Special Tools .

Fig 4: Identifying Fuel Sender Lock Ring

Courtesy of GENERAL MOTORS CORP.

Remove the fuel sender lock ring (1) and the fuel sender (2) from the fuel tank.
Remove and discard the fuel sender seal (3).
Remove the fuel level sensor from the fuel sender module. Refer to Fuel Tank Pressure Sensor Replacement .
