Mirror Component Views

Fig 1: Roof/Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror

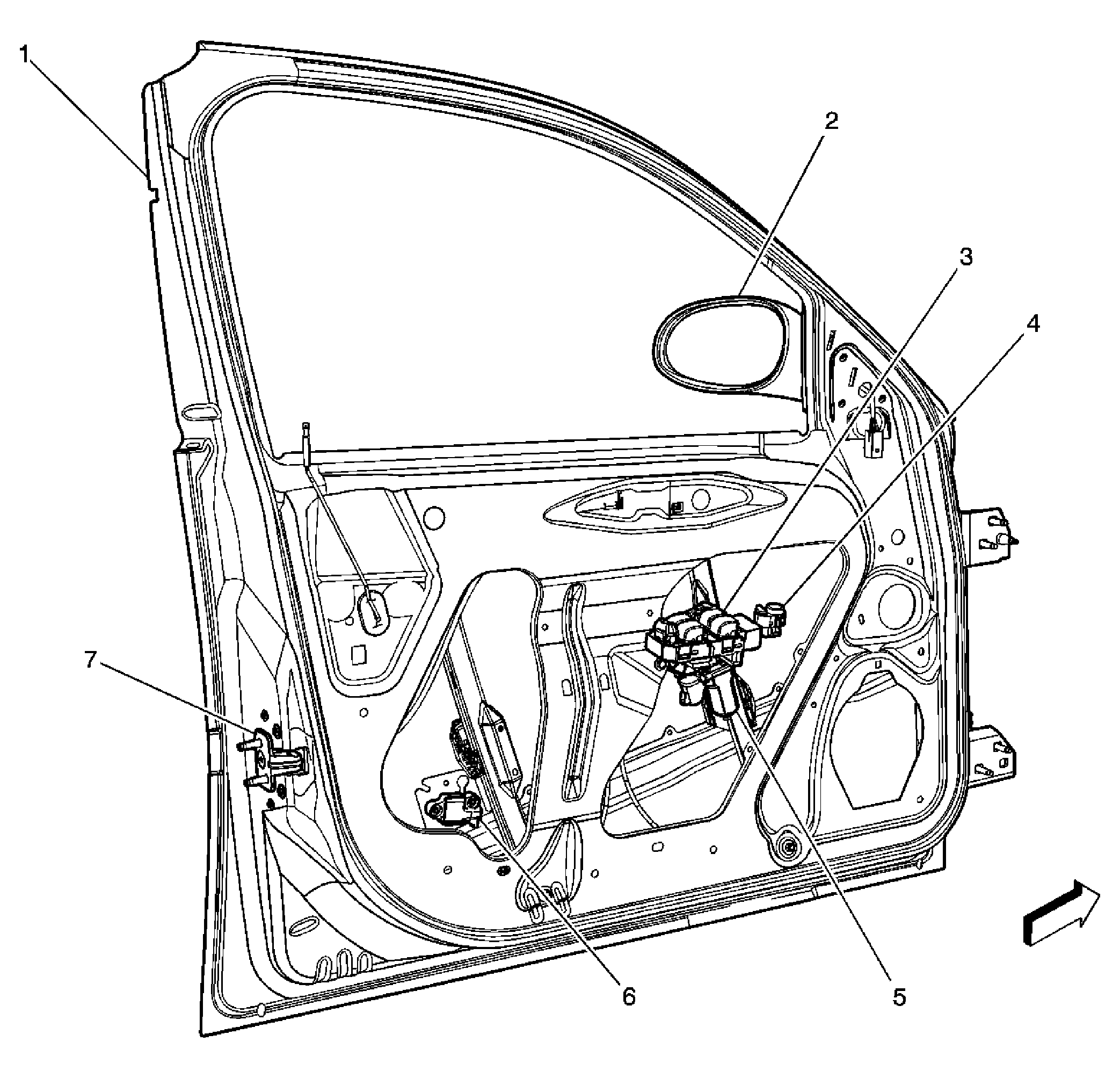

Fig 2: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Door Lock / Window Switch - Driver
4	Outside Rearview Mirror Switch
5	Window Motor - Driver
6	Inflatable Restraint Side Impact Sensor - Left (AY1)
7	Door Lock - Driver

Fig 3: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Front Passenger
2	Door Frame
3	Door Lock - Front Passenger
4	Inflatable Restraint Side Impact Sensor - Right (AY1)
5	Door Lock Switch - Front Passenger
6	Window Switch - Front Passenger
7	Window Motor - Front Passenger
