Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

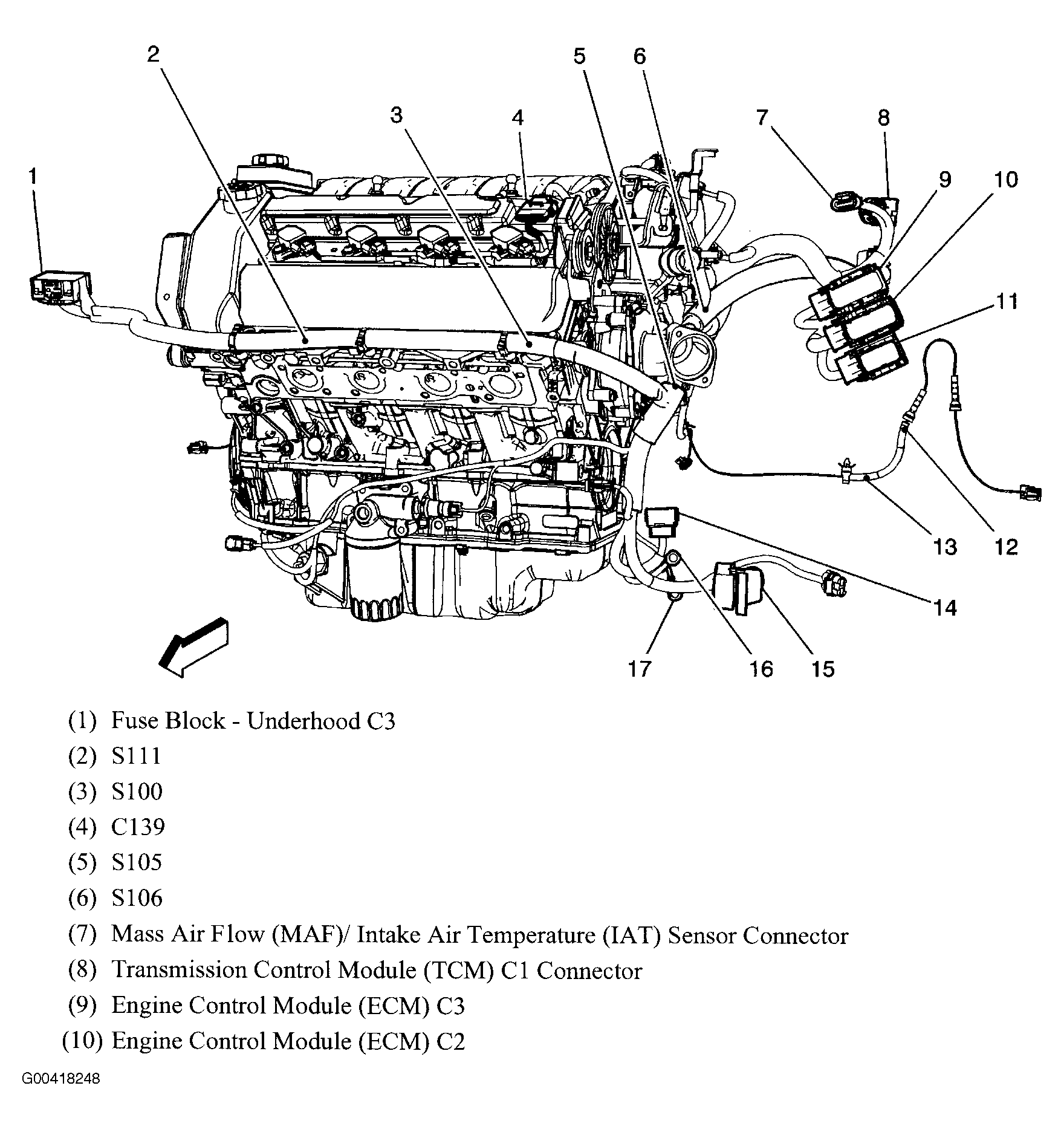

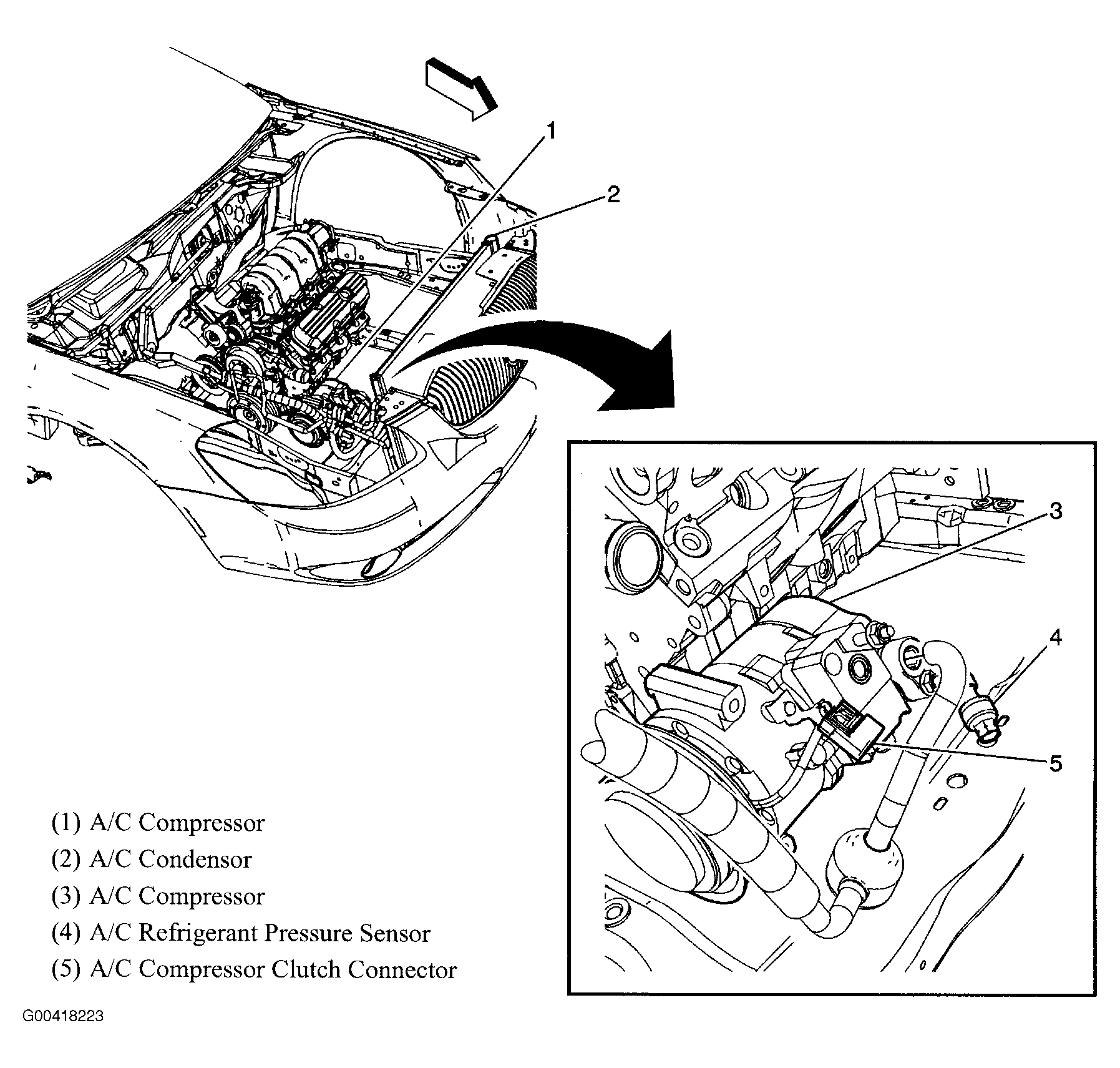

Fig 1: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

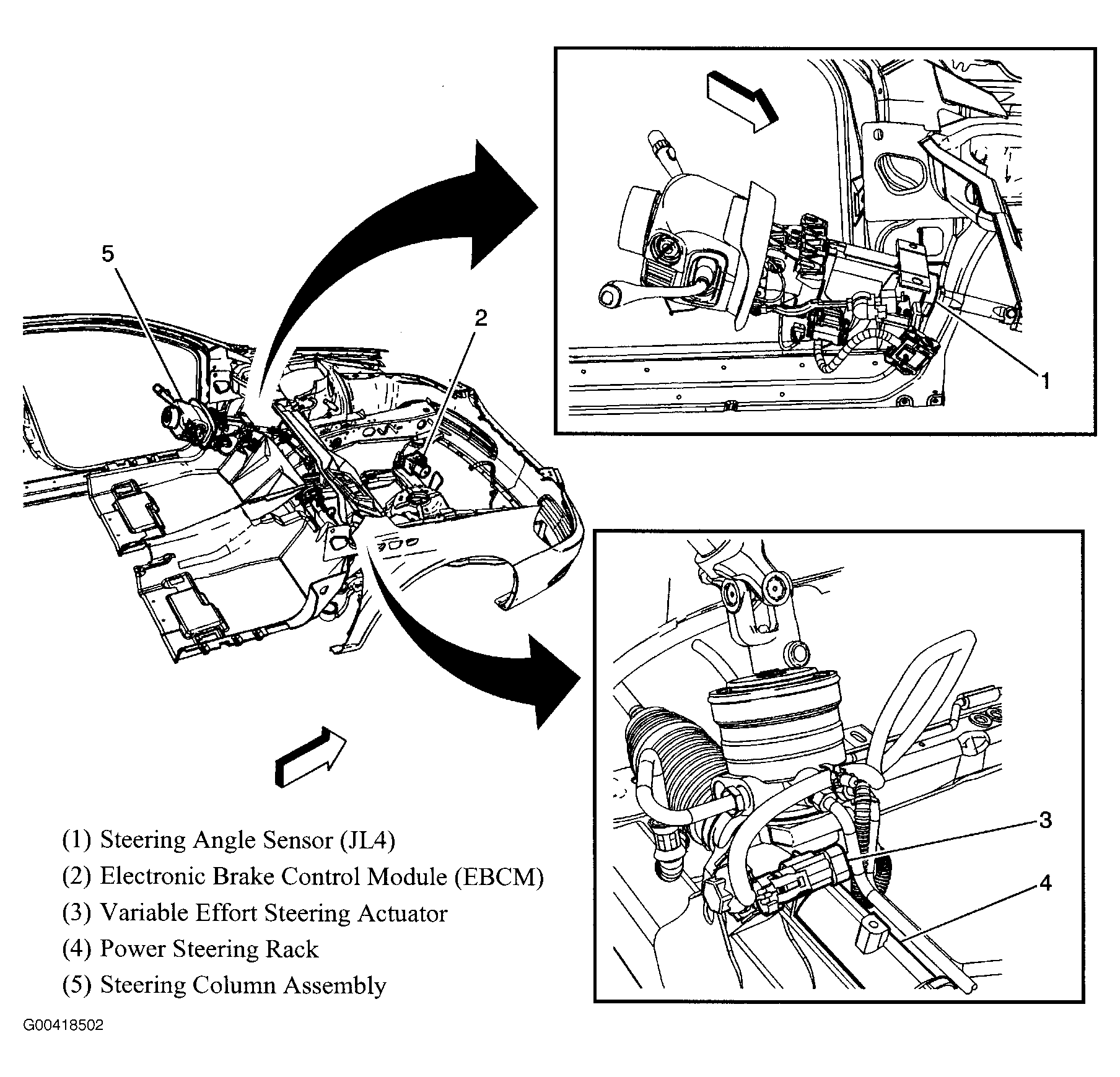

Fig 2: Power Steering Components
Courtesy of GENERAL MOTORS CORP.

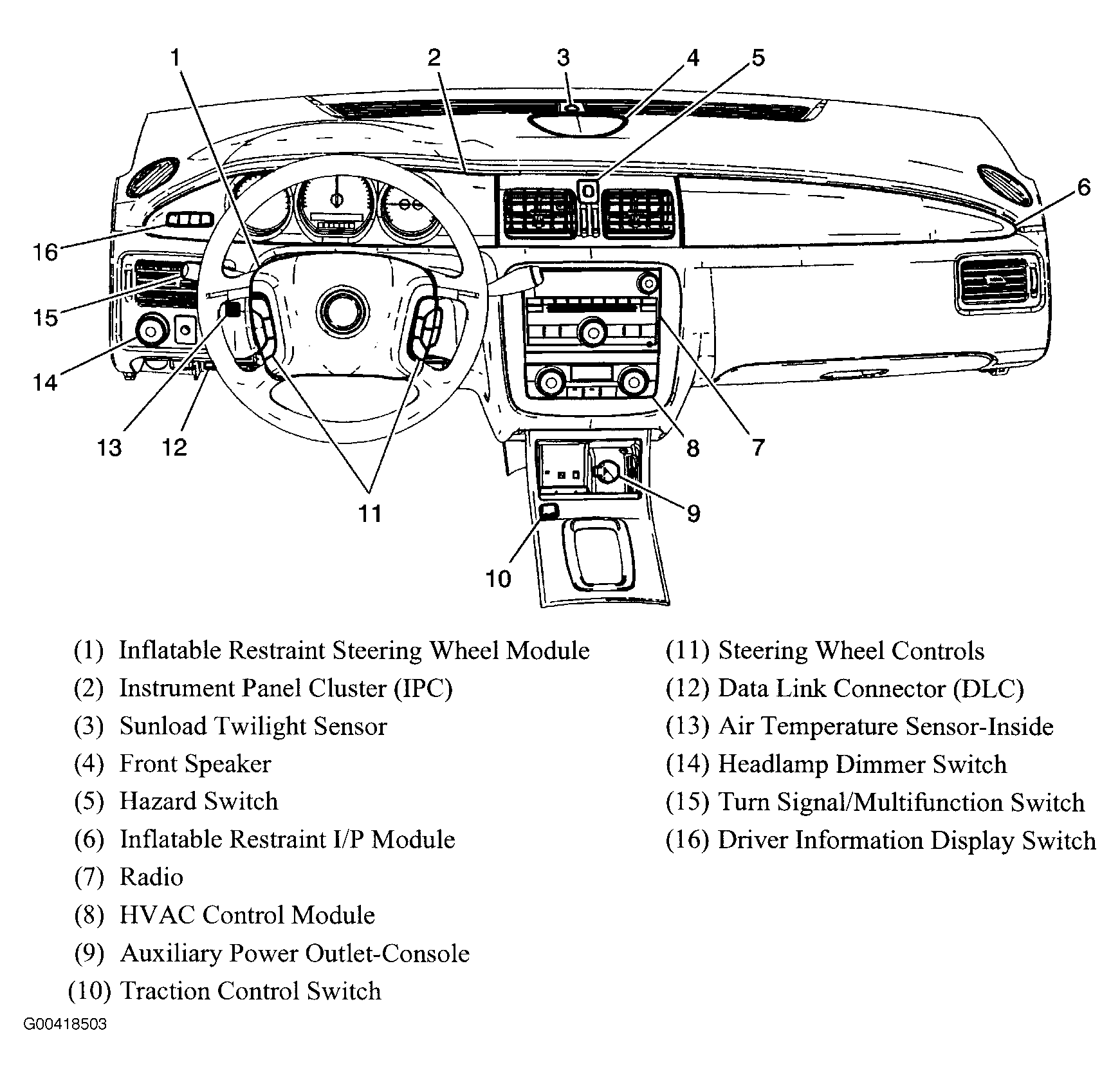

Fig 3: Front Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 4: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

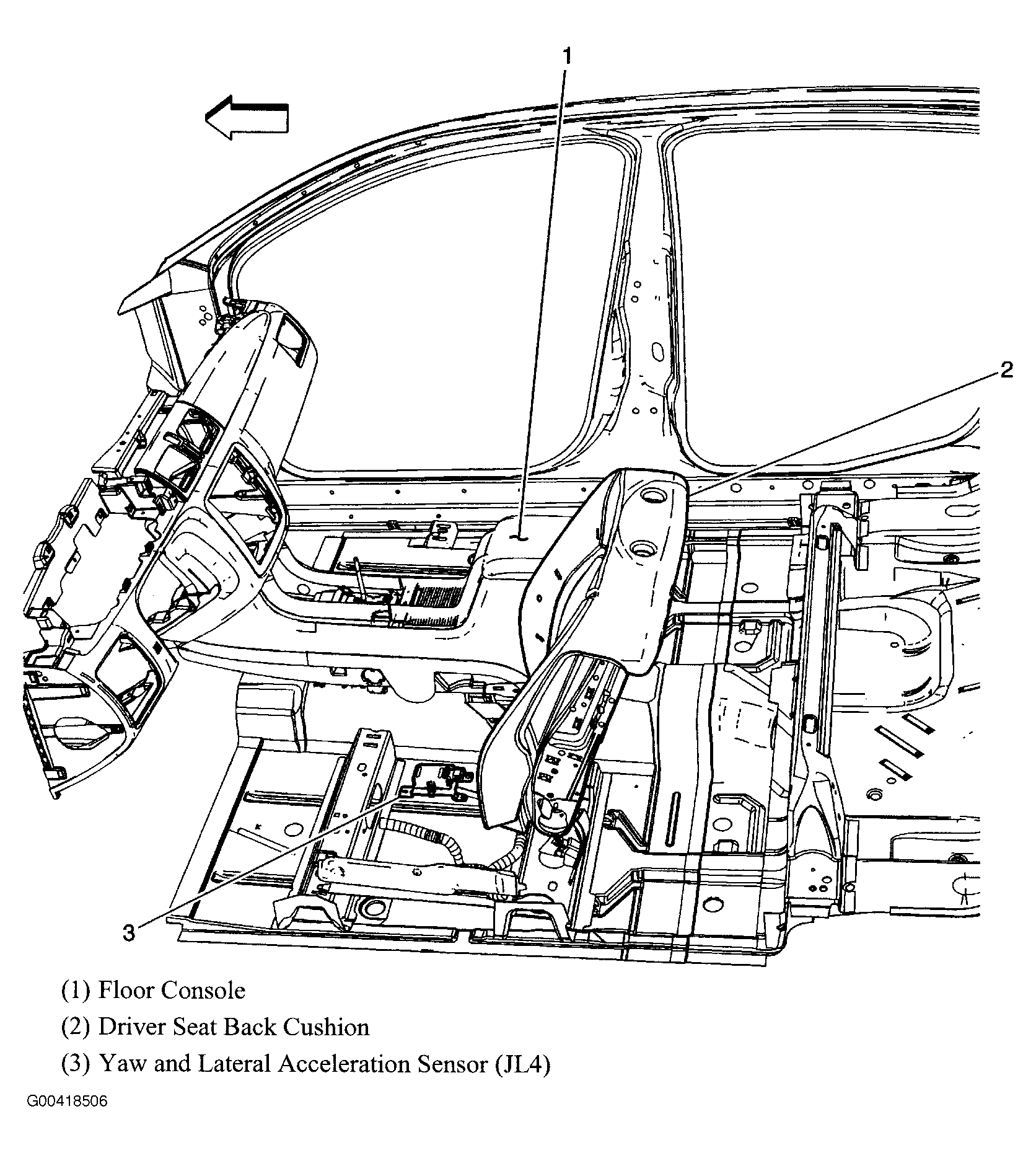

Fig 5: Floor Pan, Left Of Center Console
Courtesy of GENERAL MOTORS CORP.

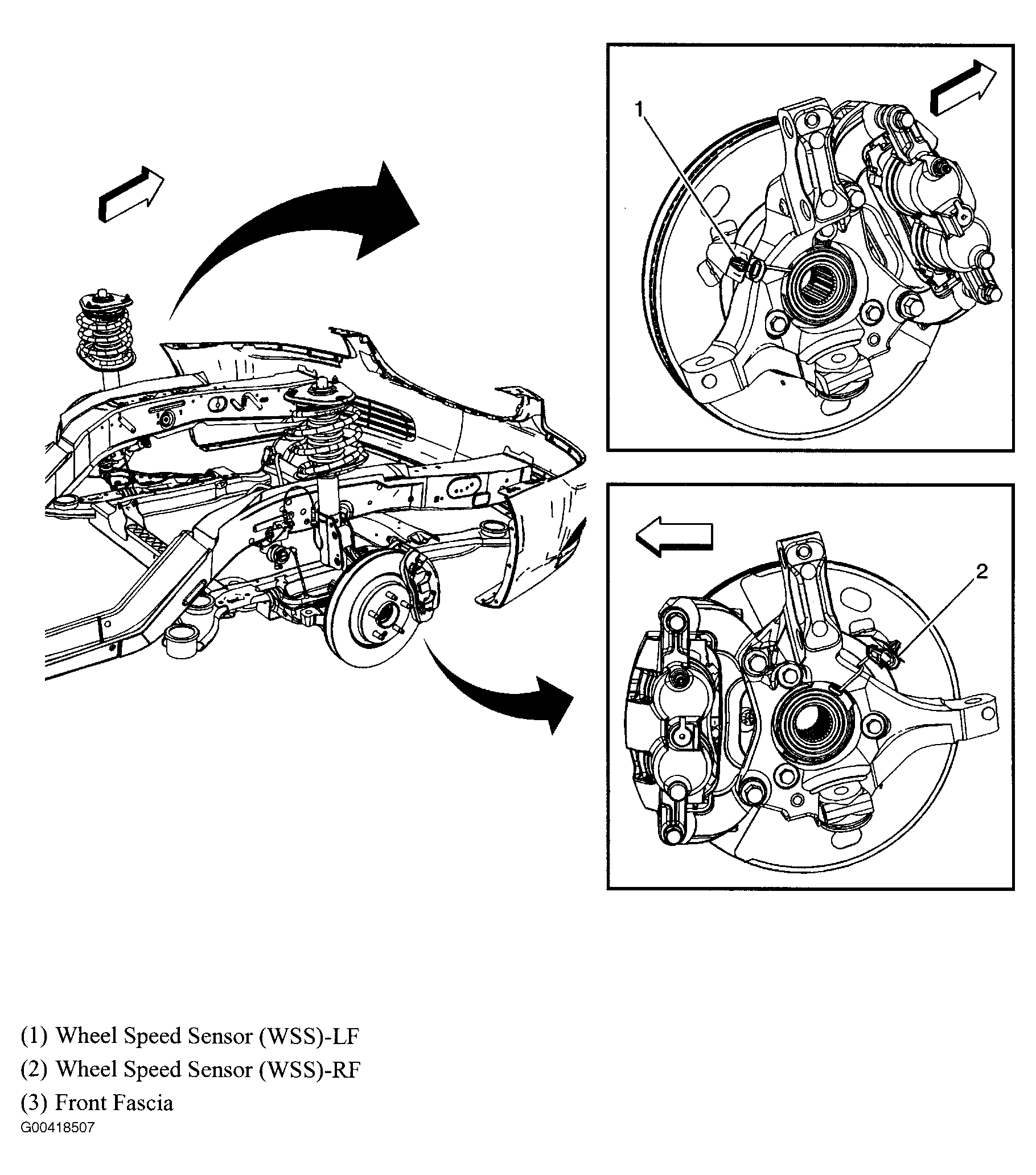

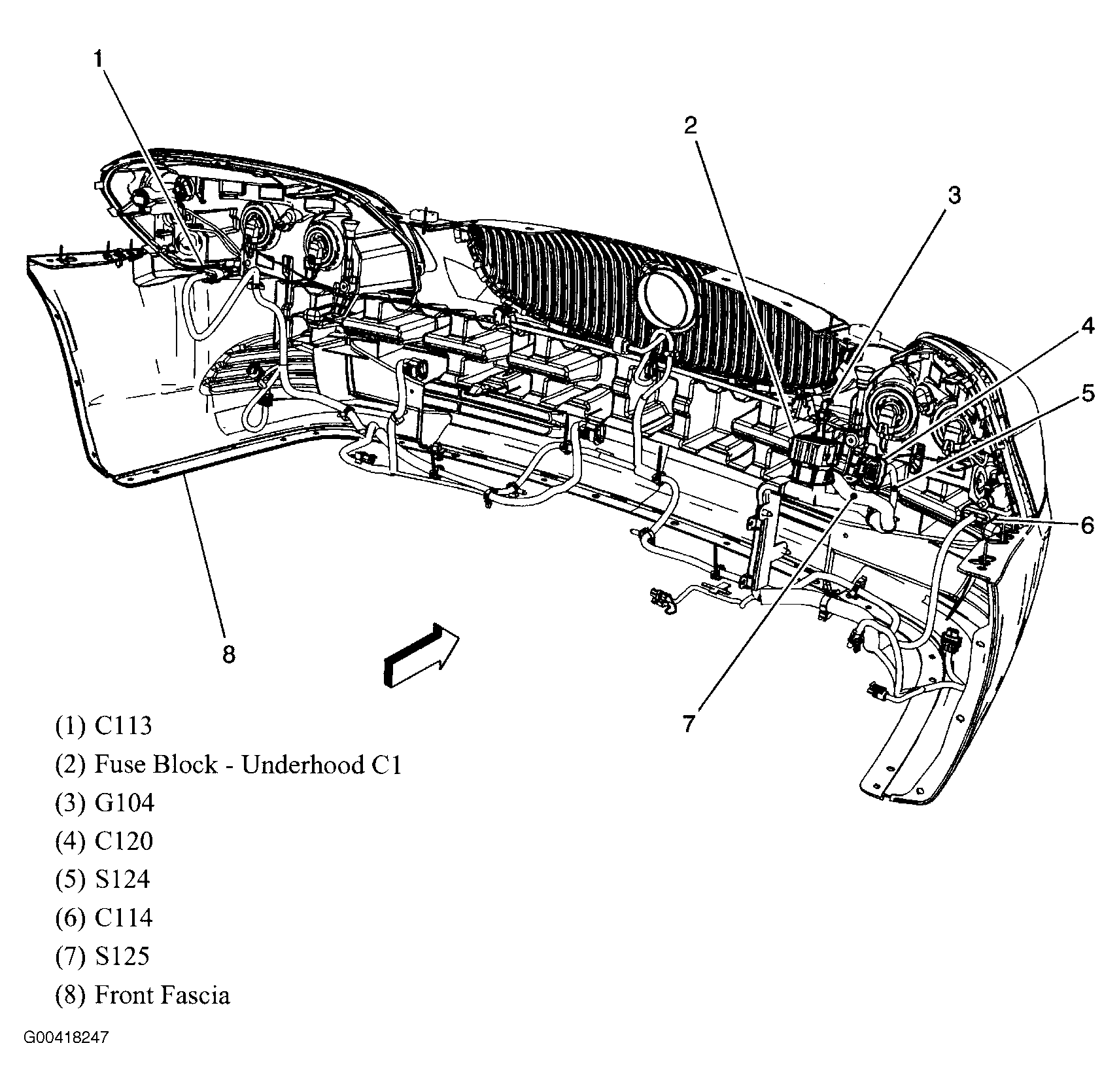

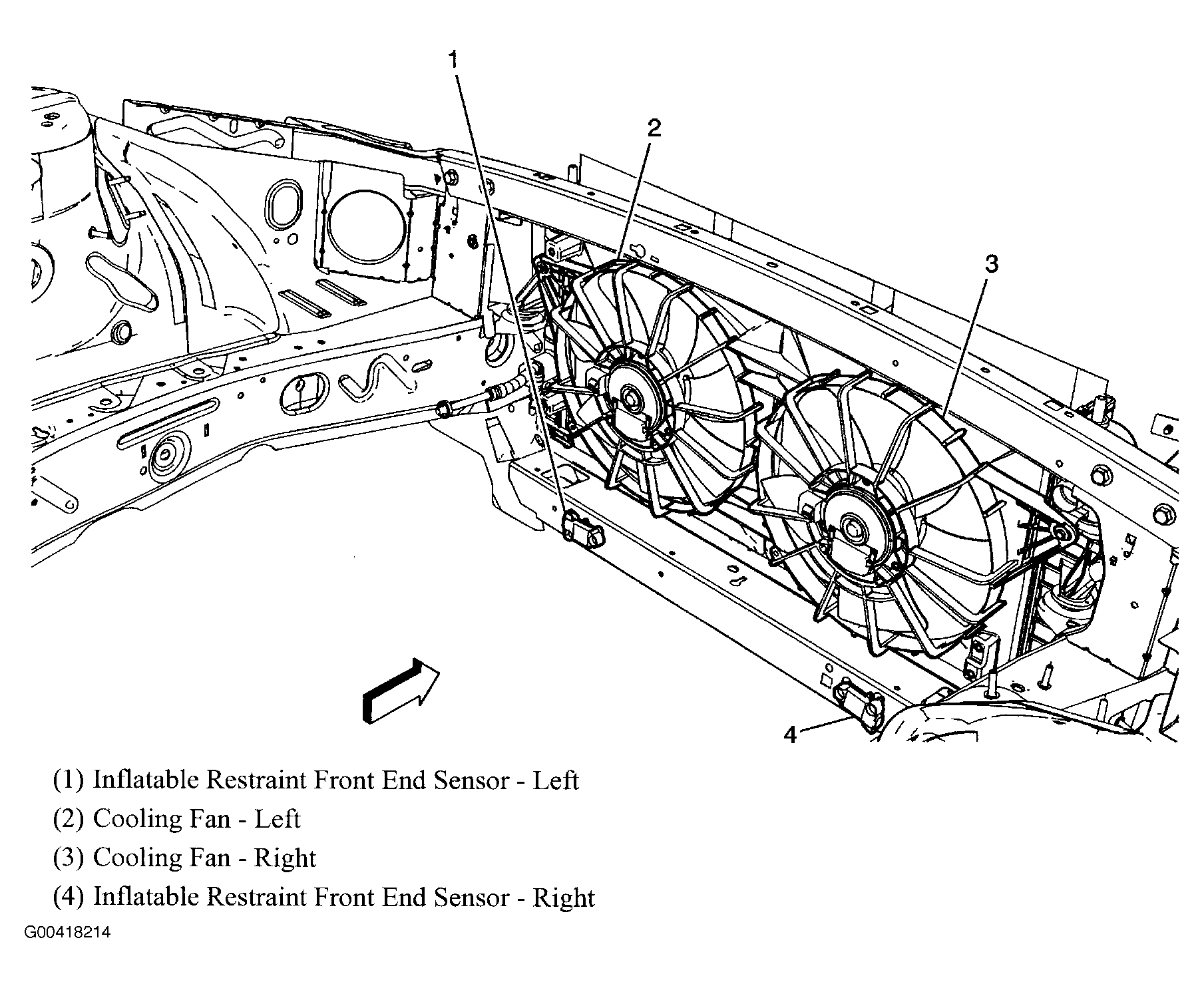

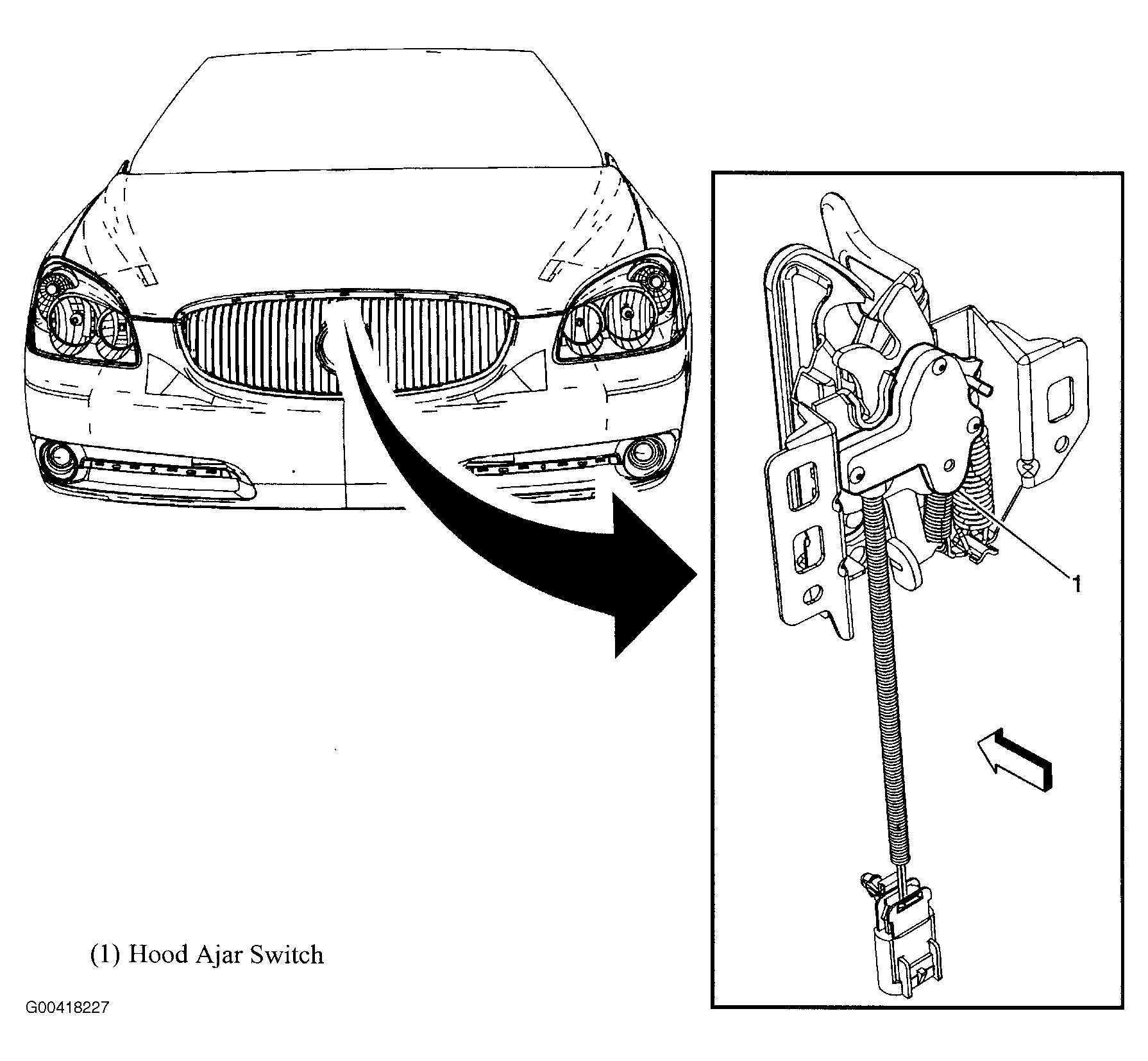

Fig 6: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

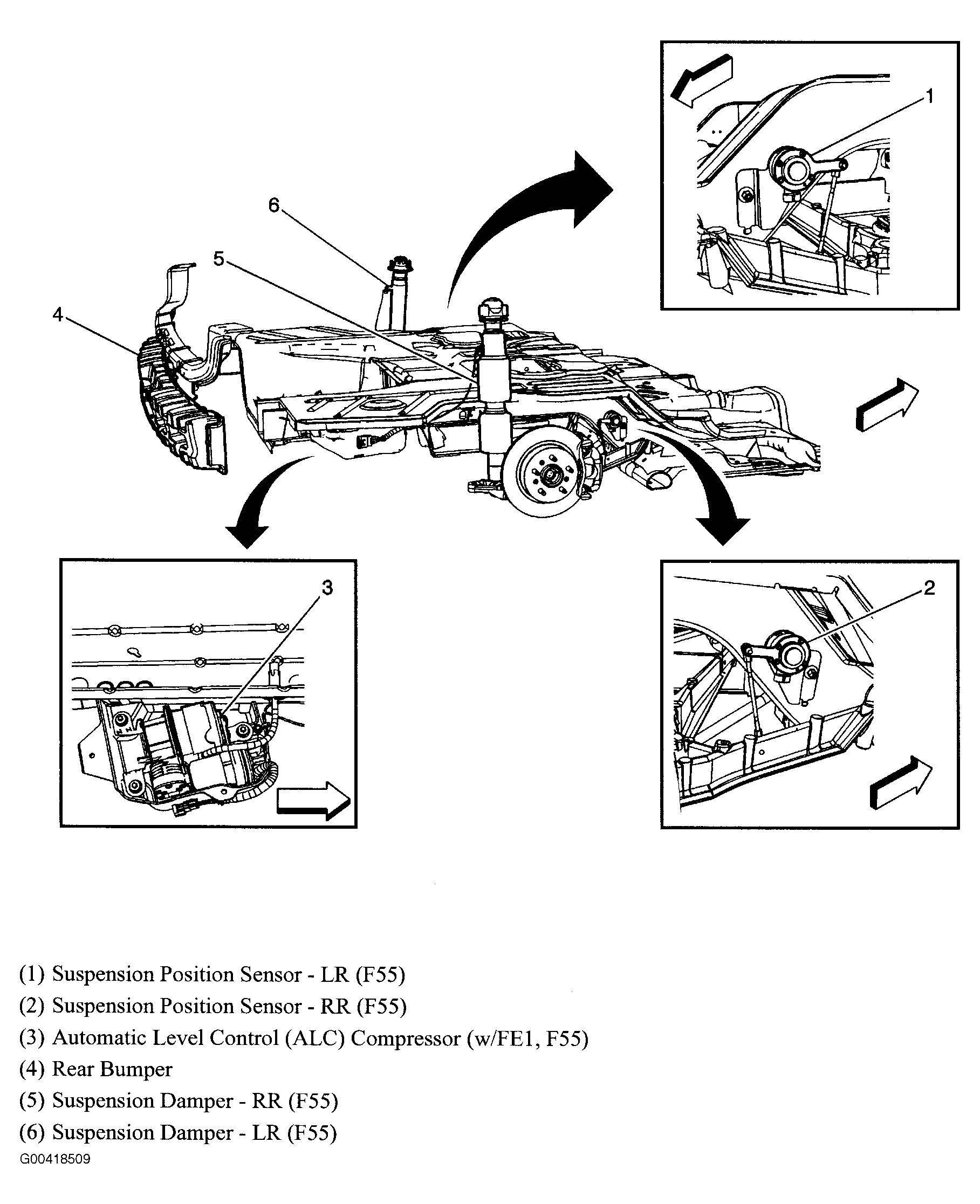

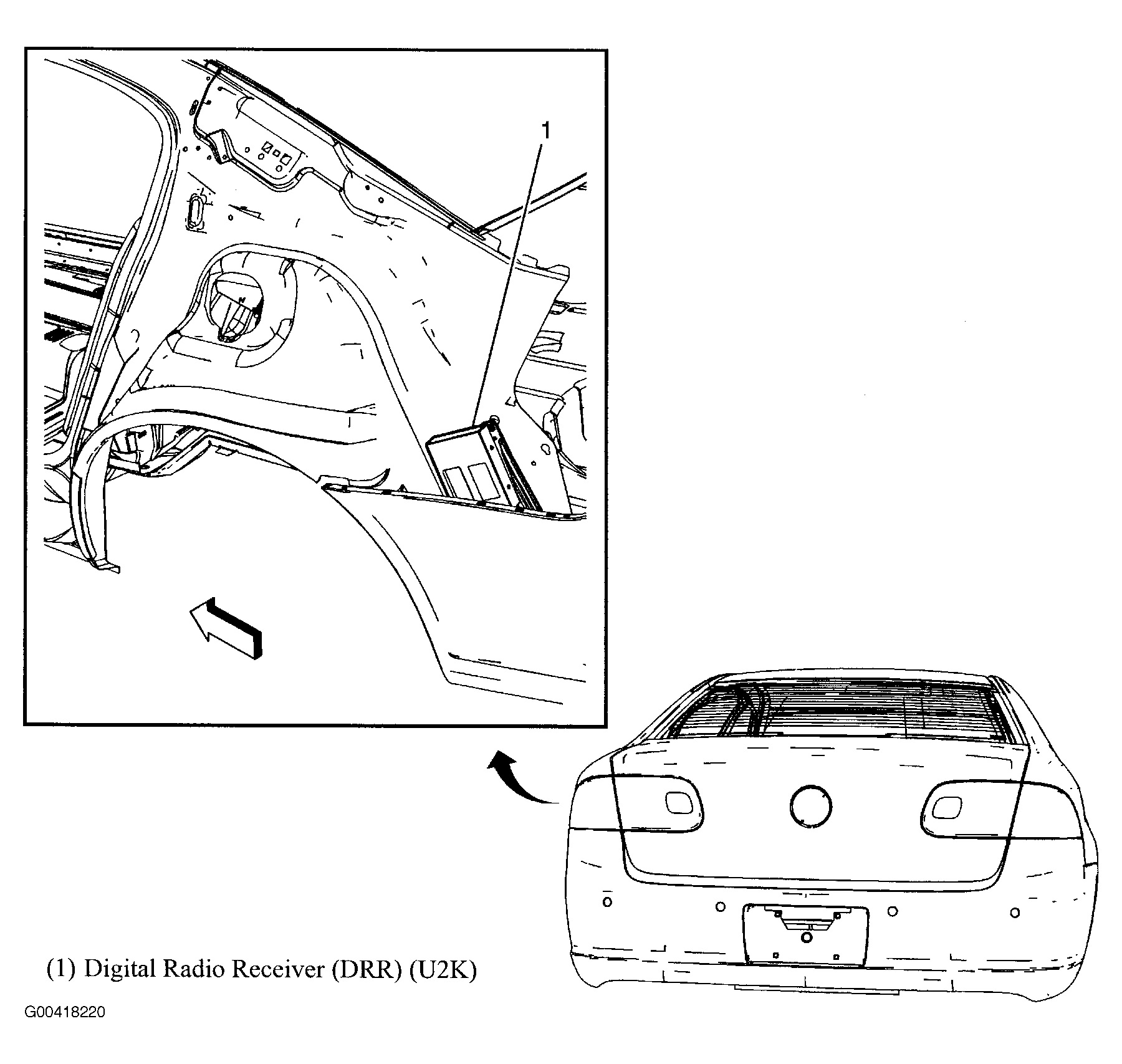

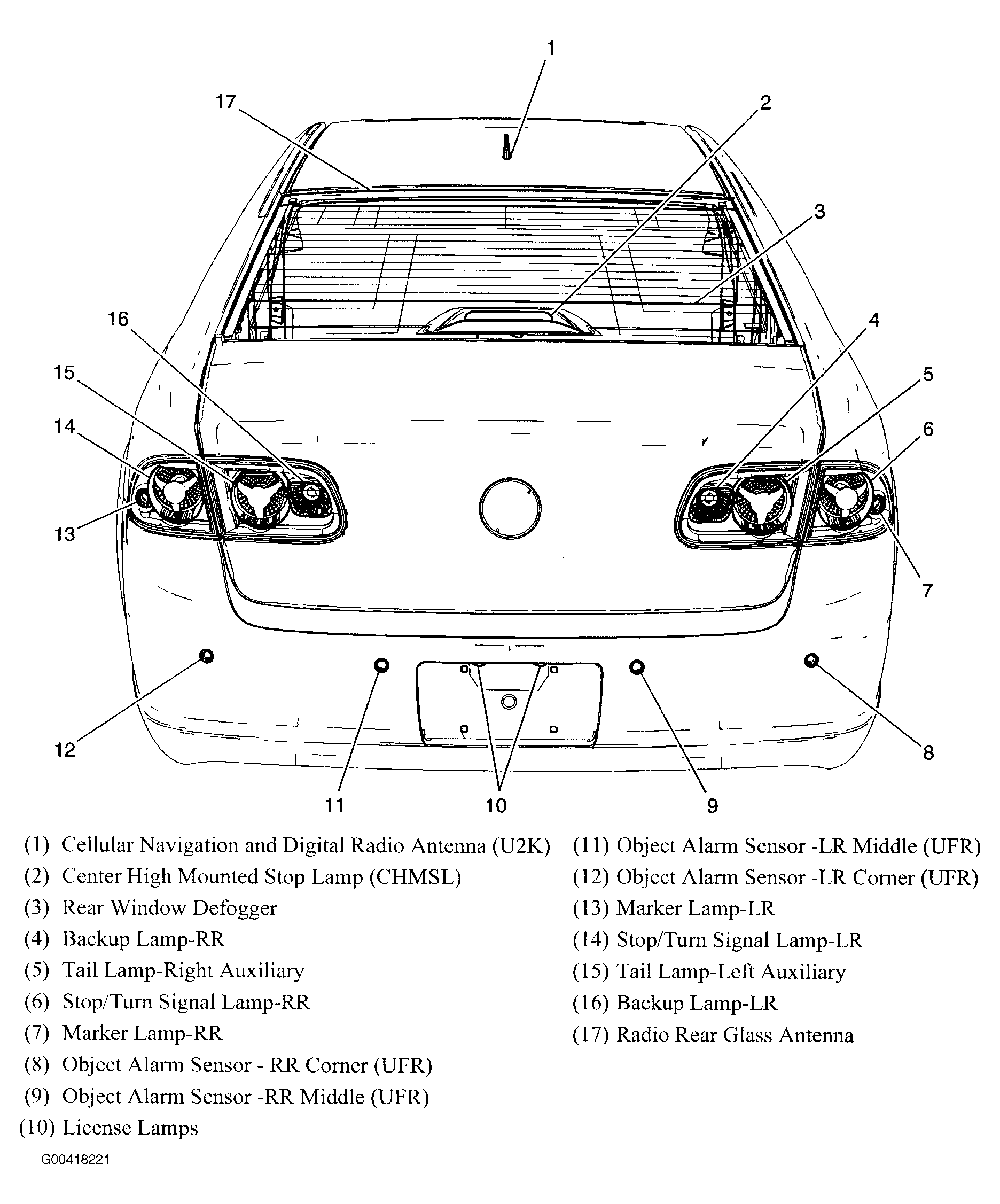

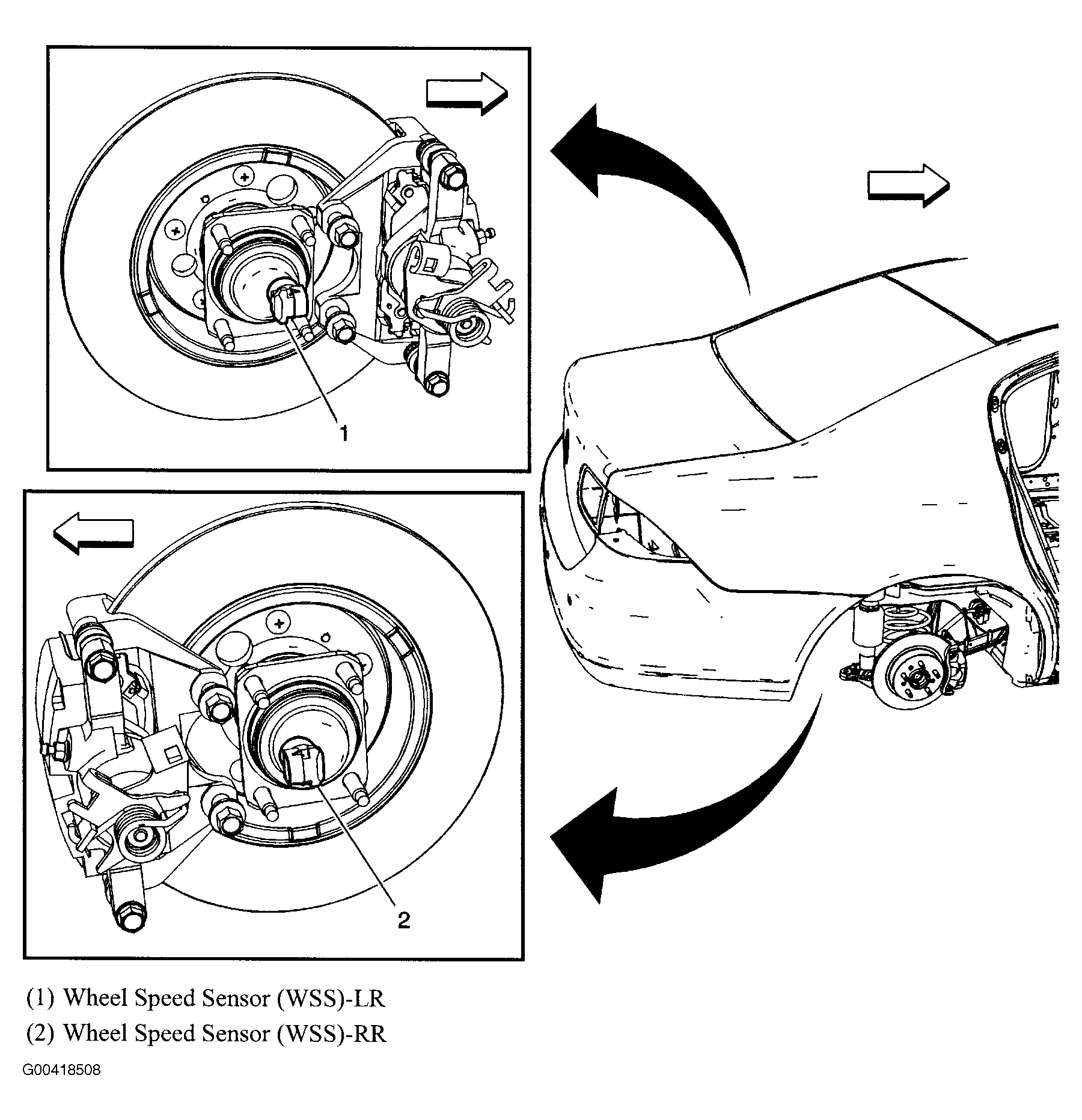

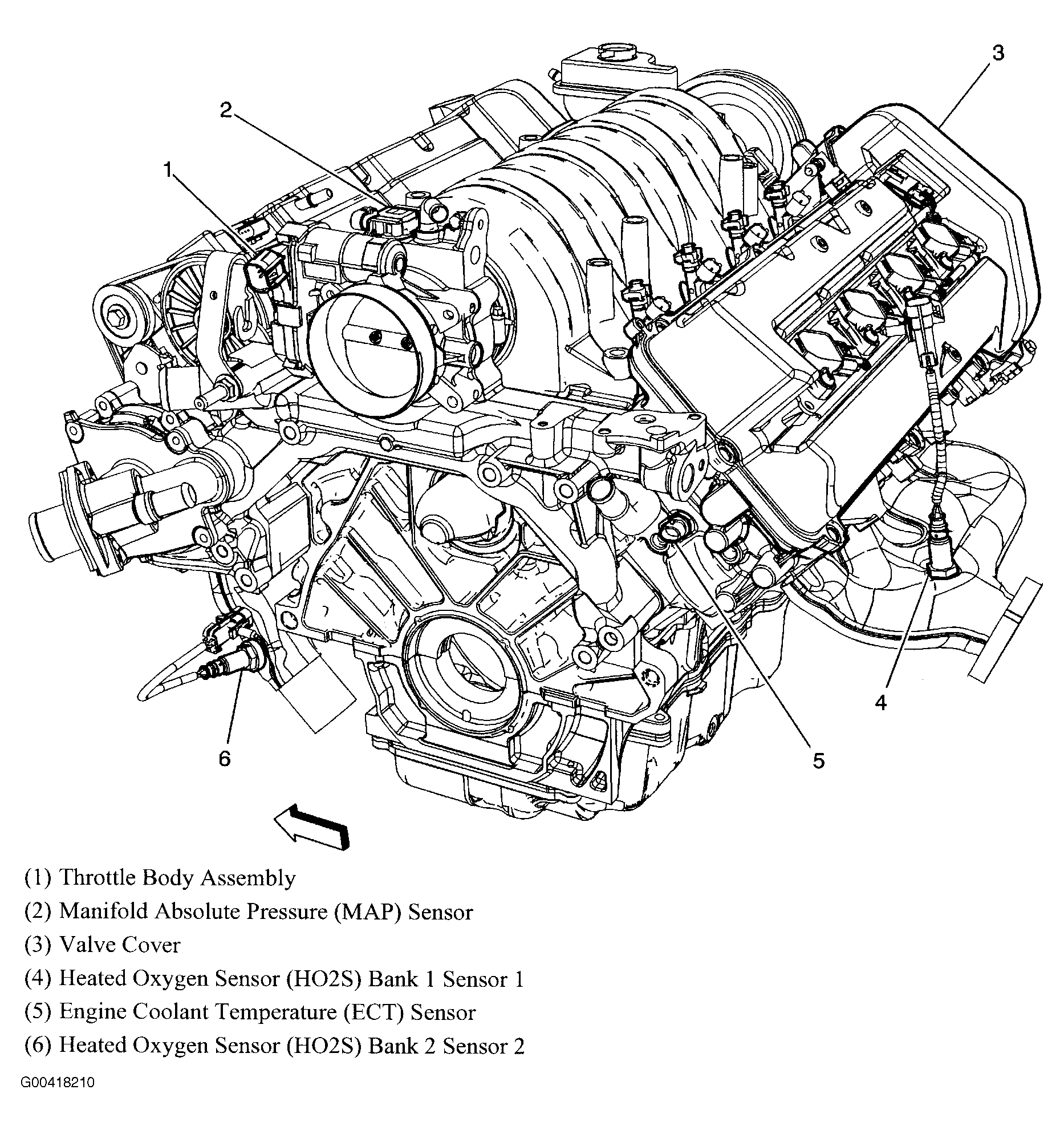

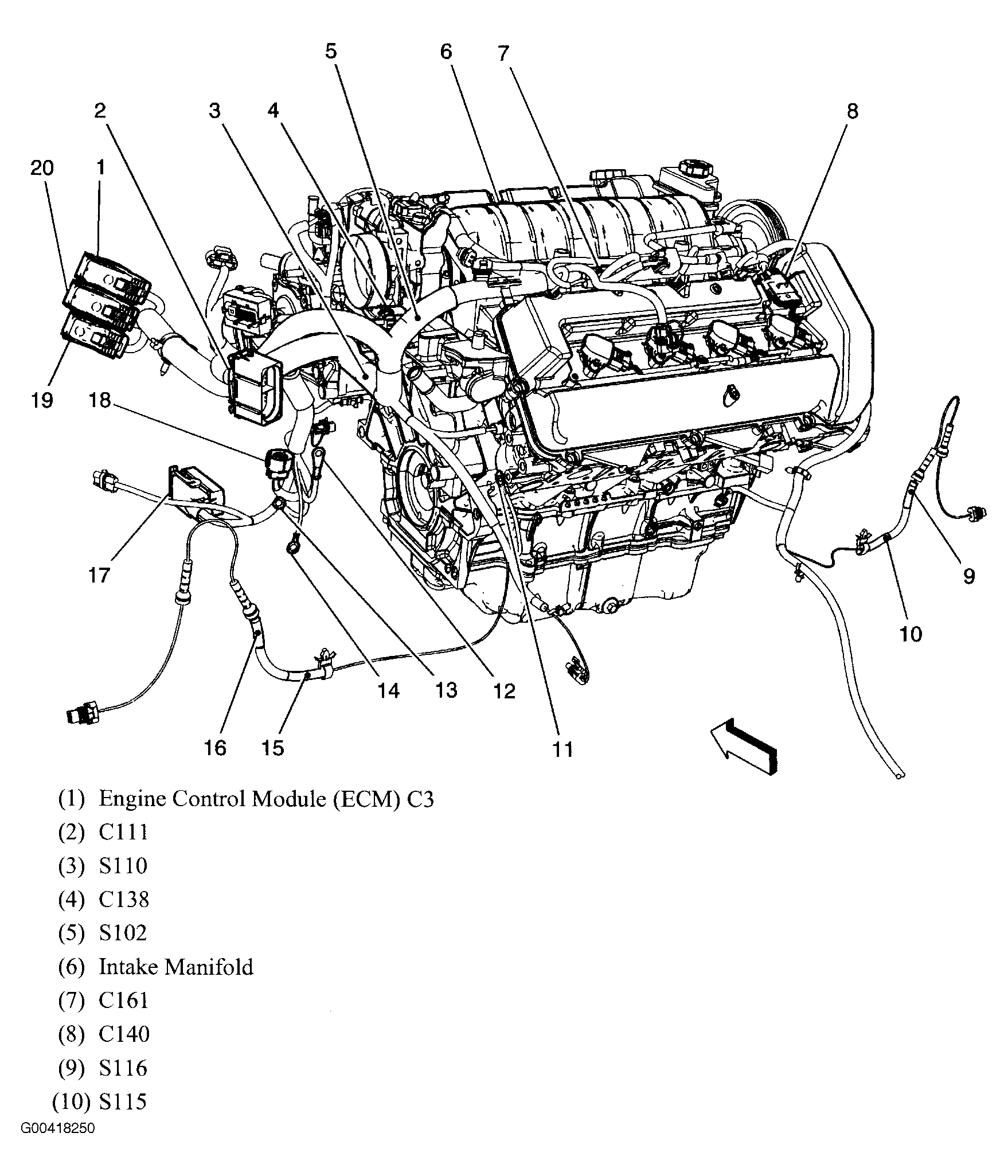

Fig 7: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 8: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

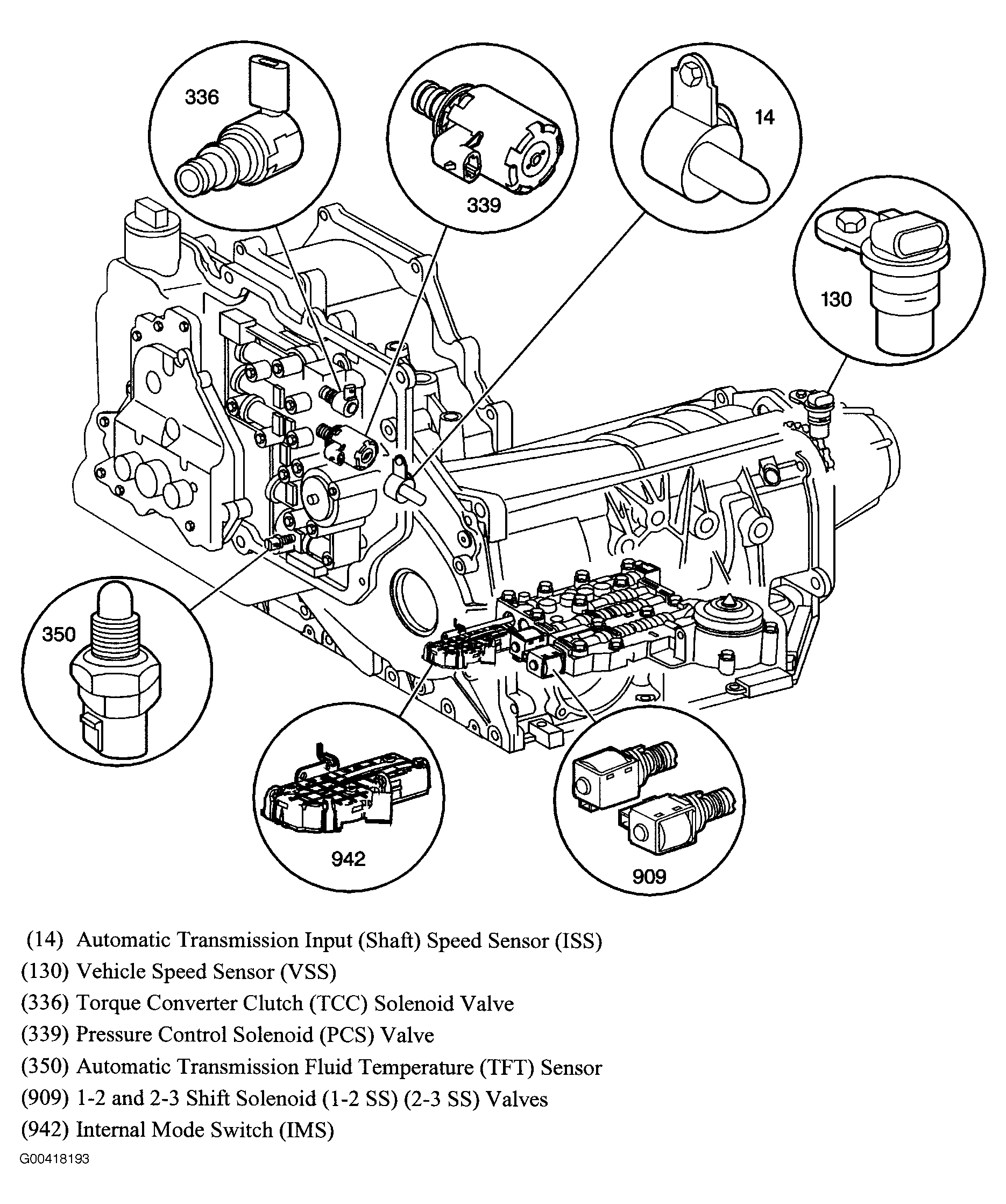

Fig 10: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 11: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

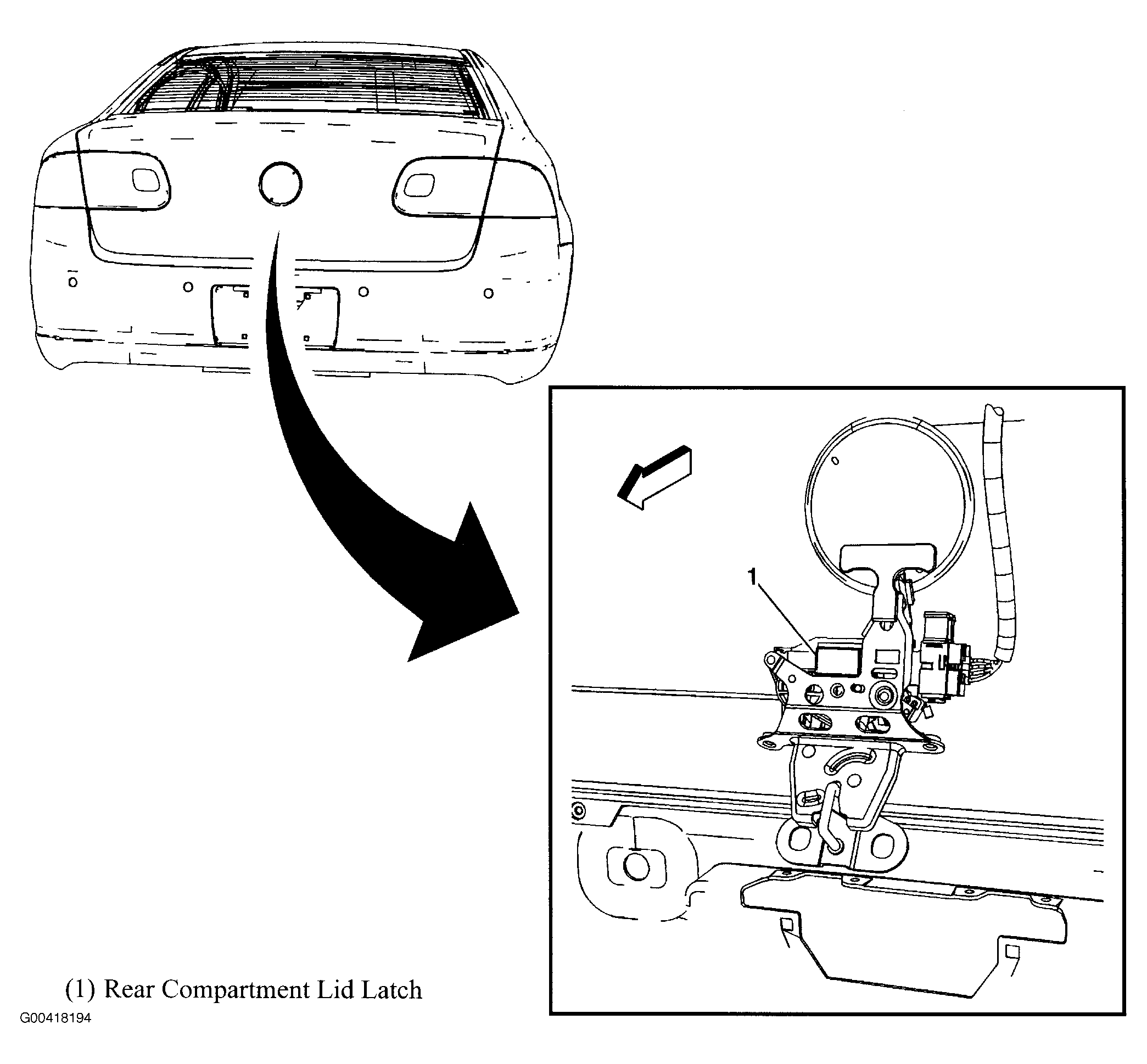

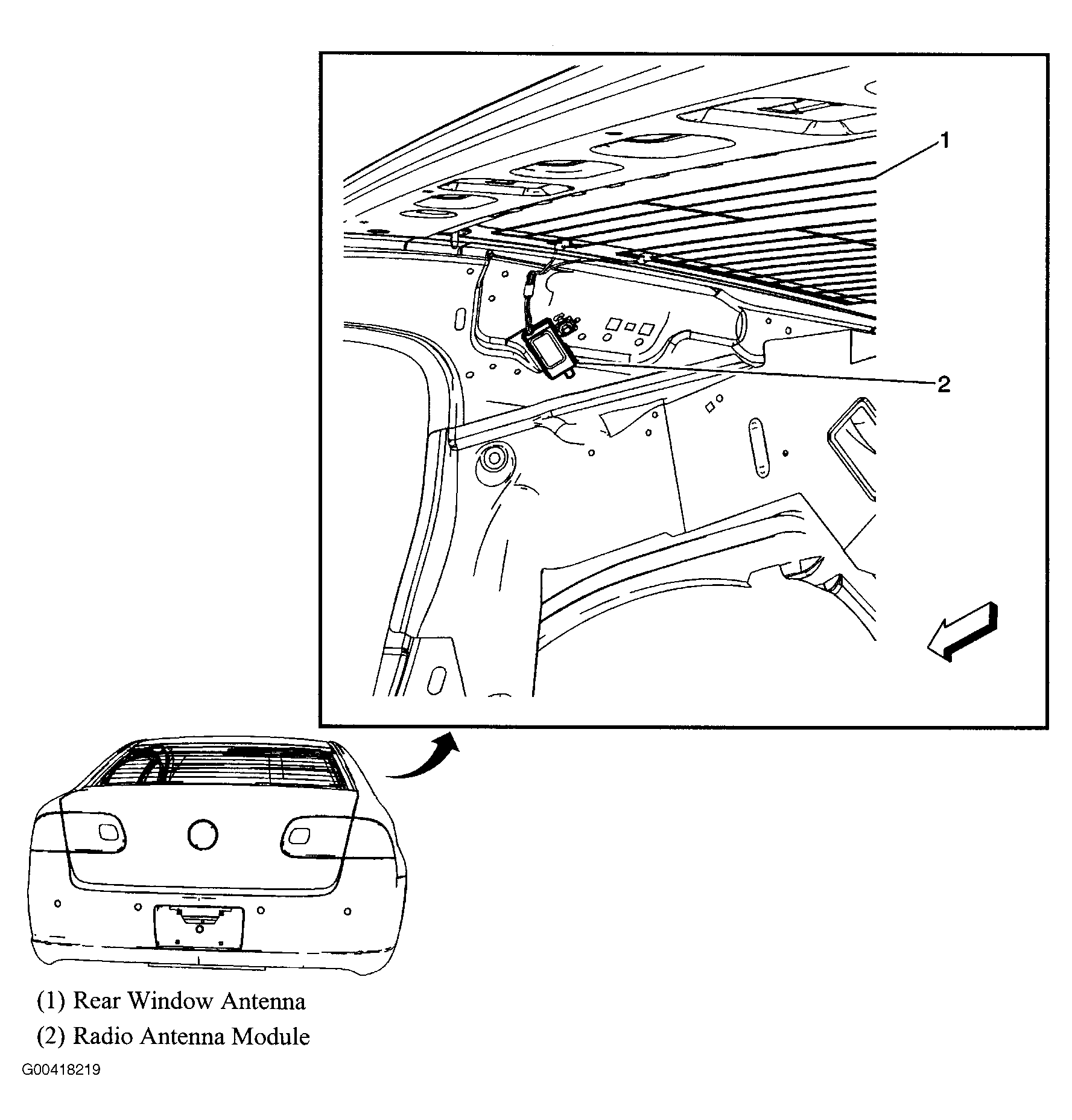

Fig 12: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

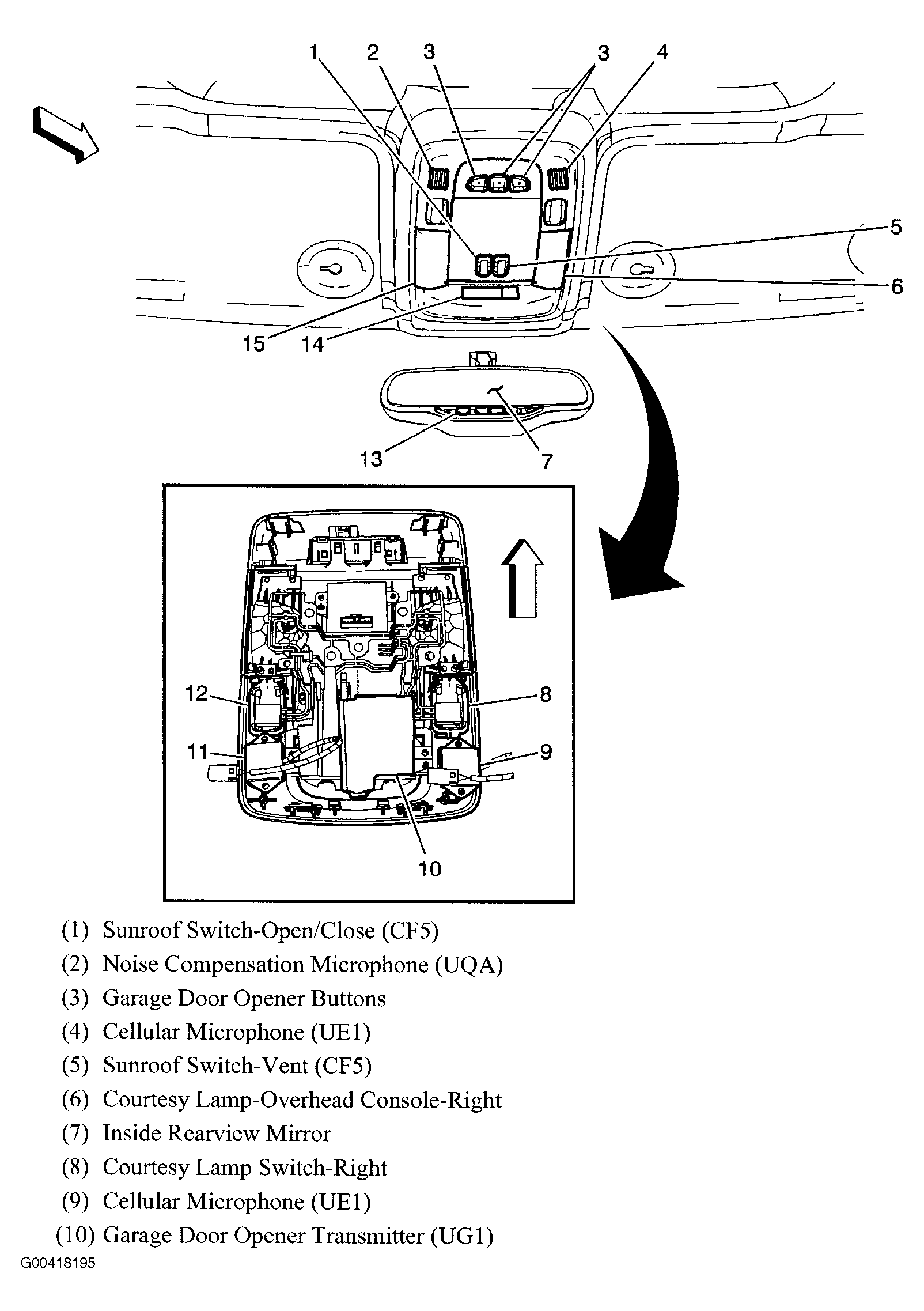

Fig 13: Inside Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 14: Behind Rear Seat
Courtesy of GENERAL MOTORS CORP.

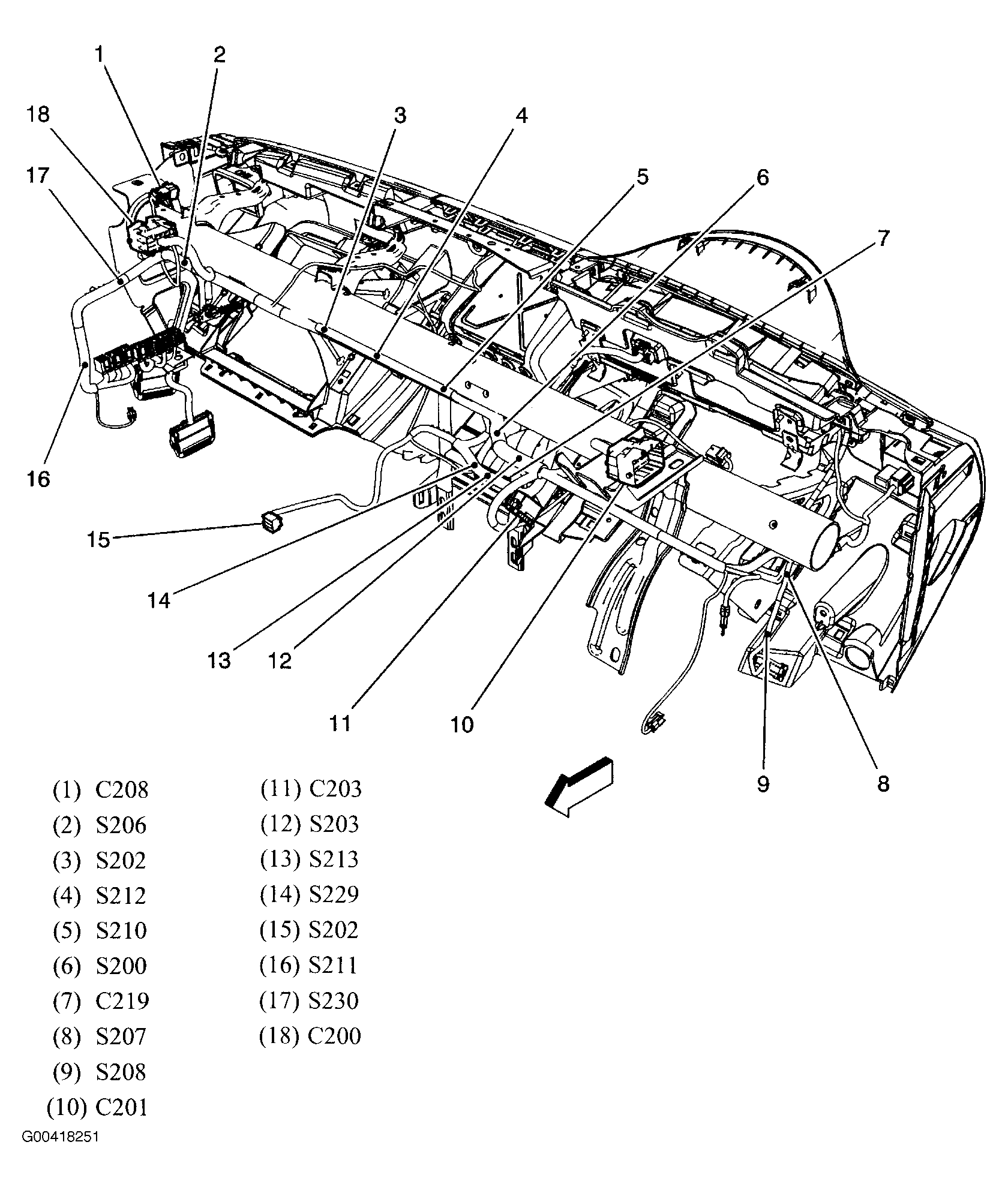

Fig 15: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

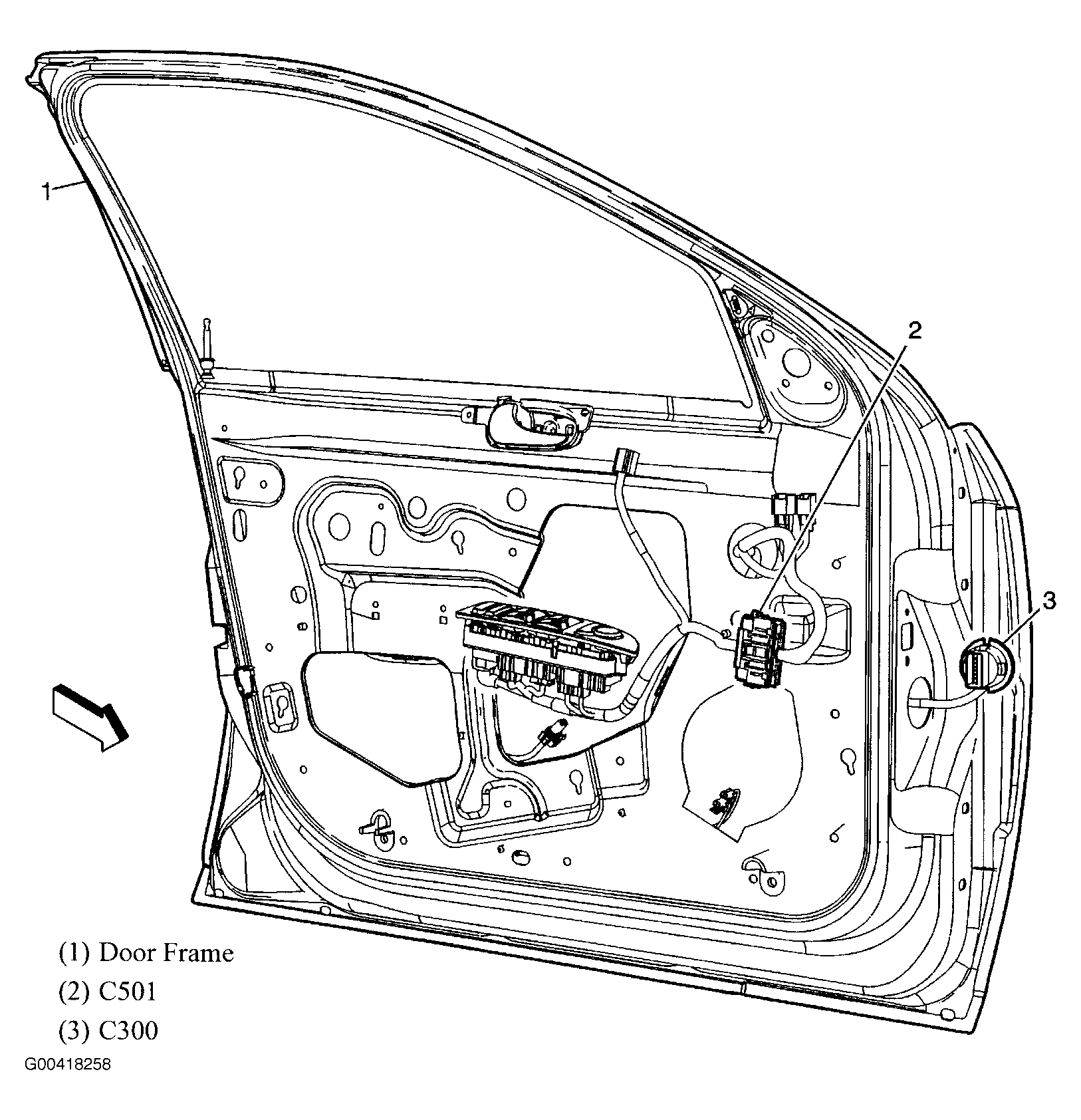

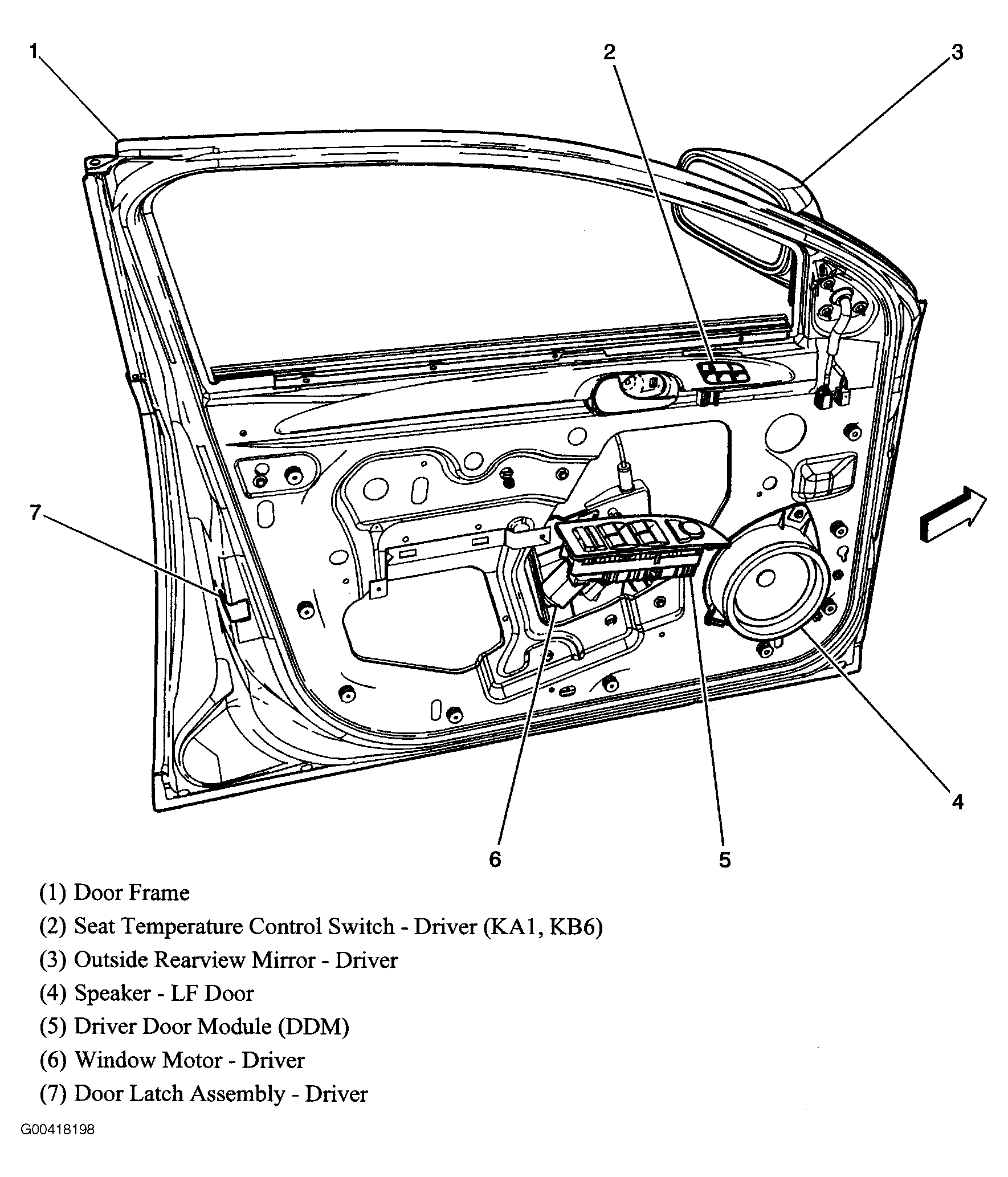

Fig 16: Driver's Door
Courtesy of GENERAL MOTORS CORP.

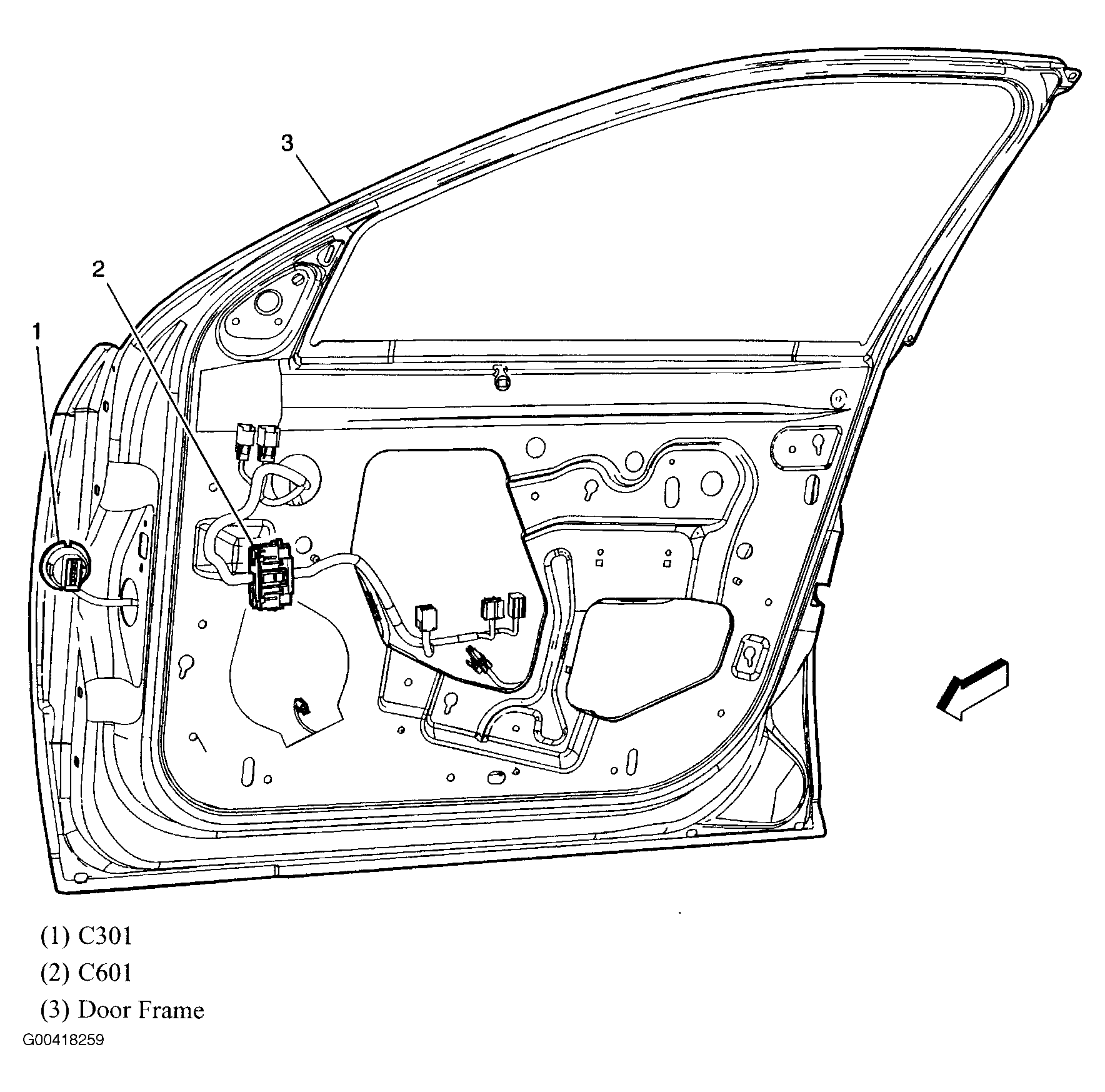

Fig 17: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

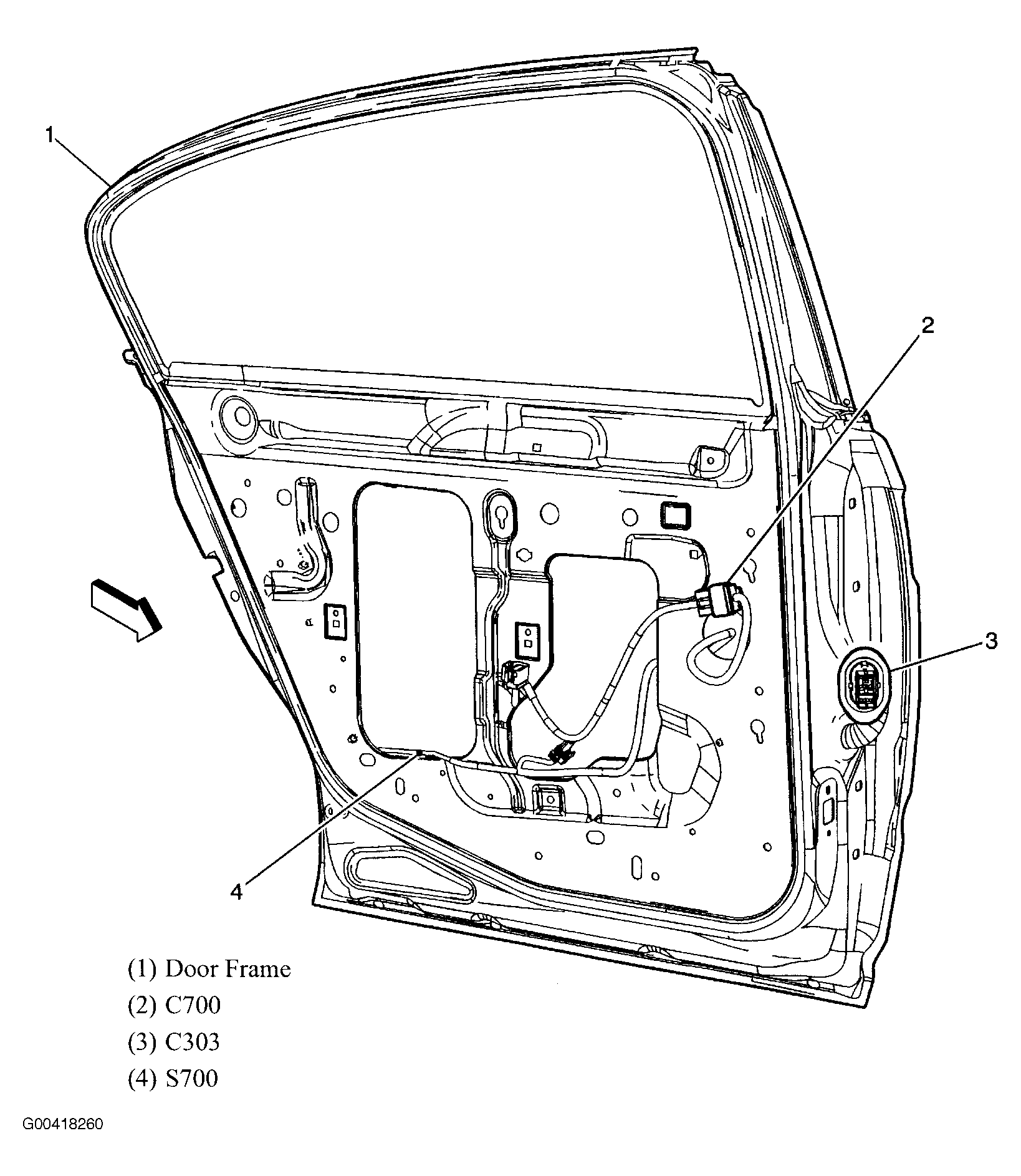

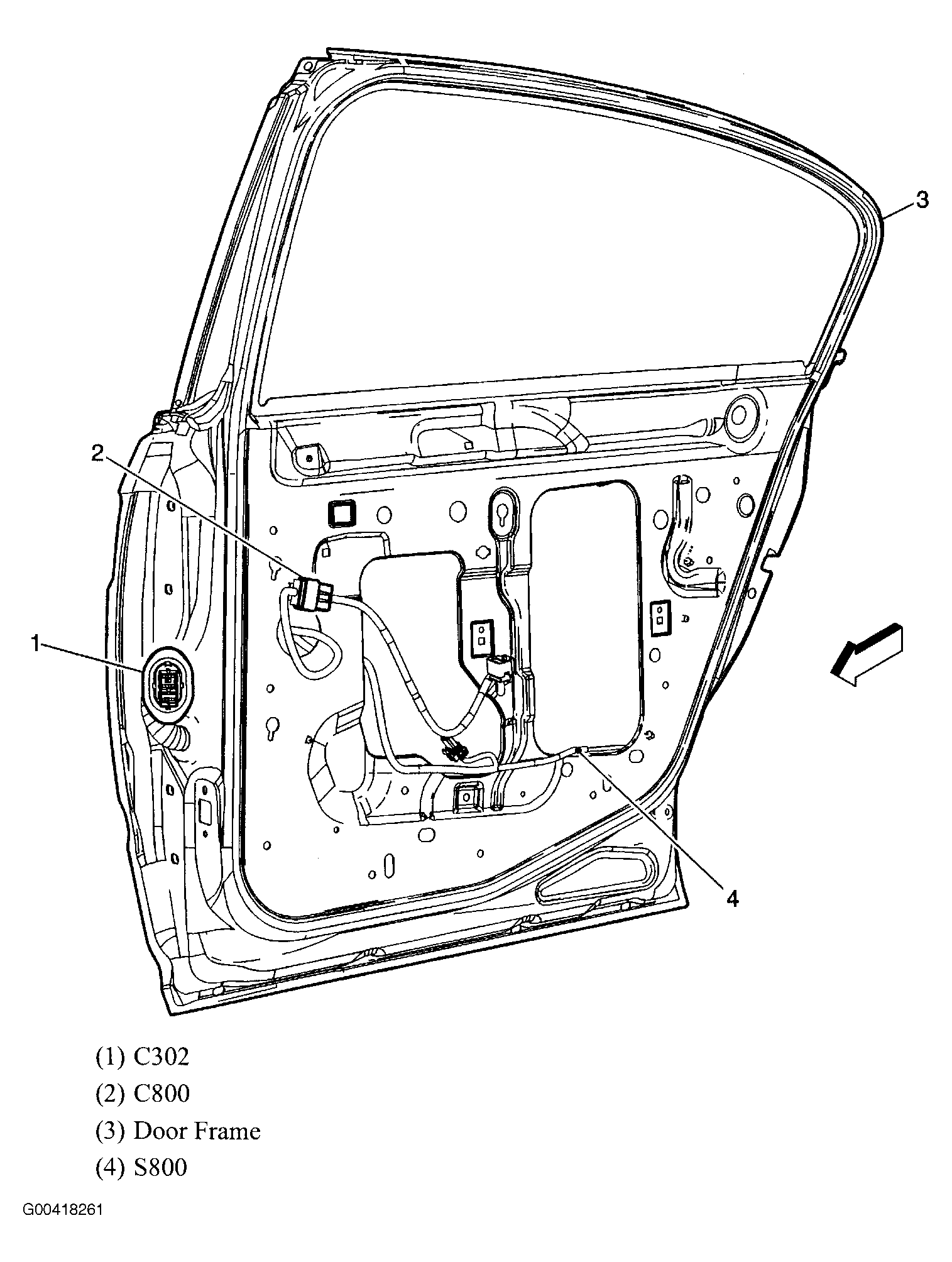

Fig 18: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

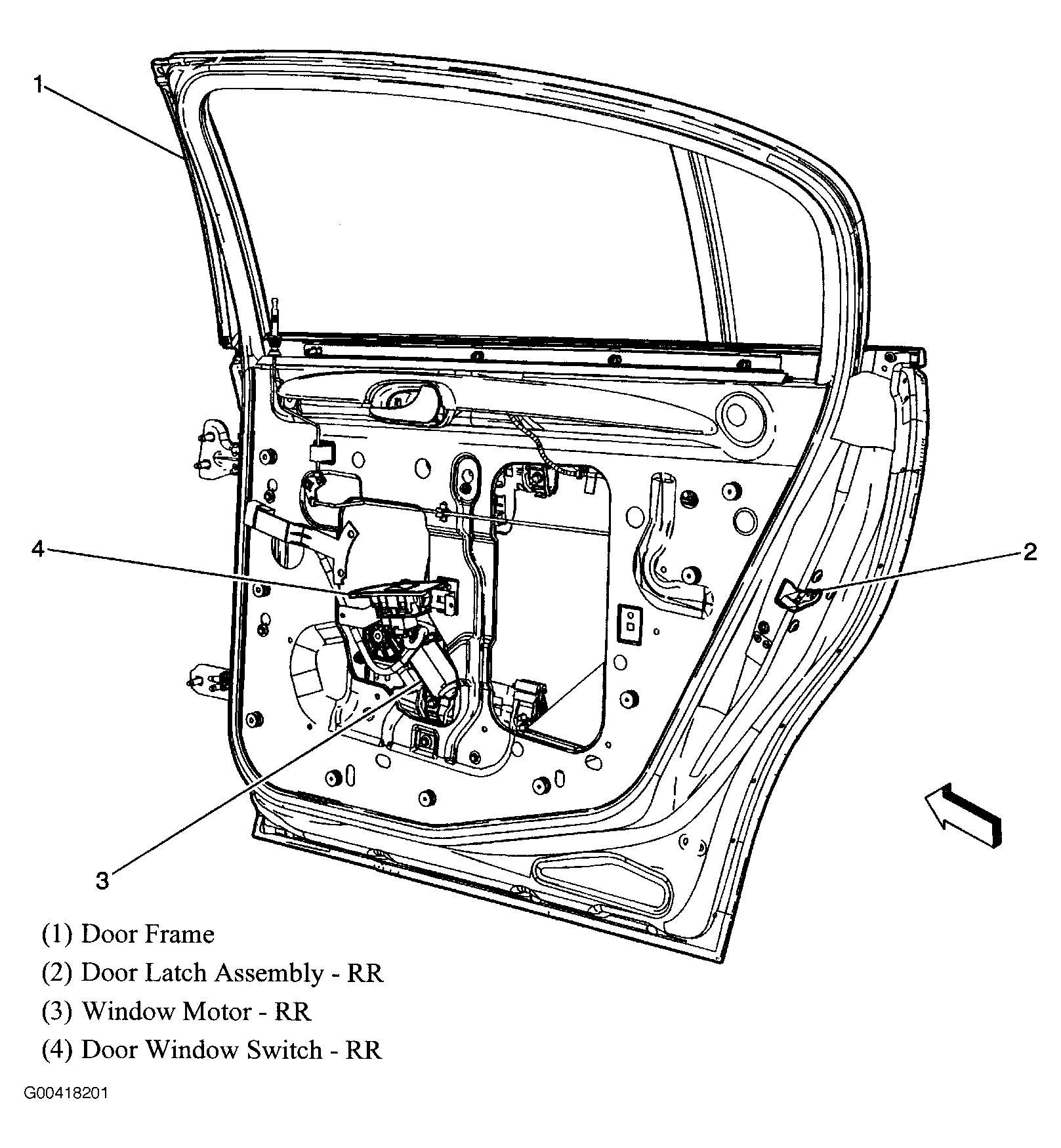

Fig 19: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

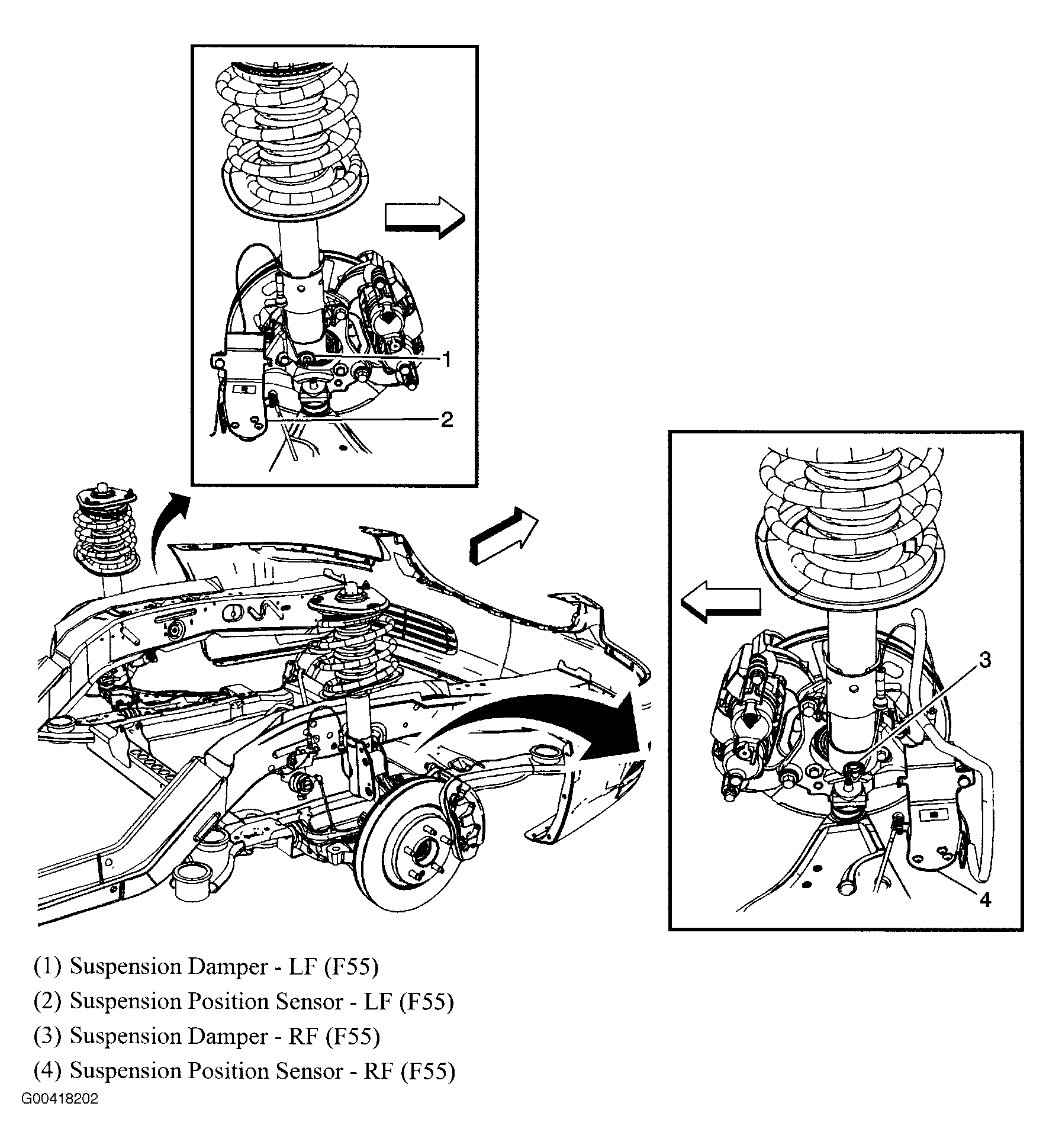

Fig 20: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

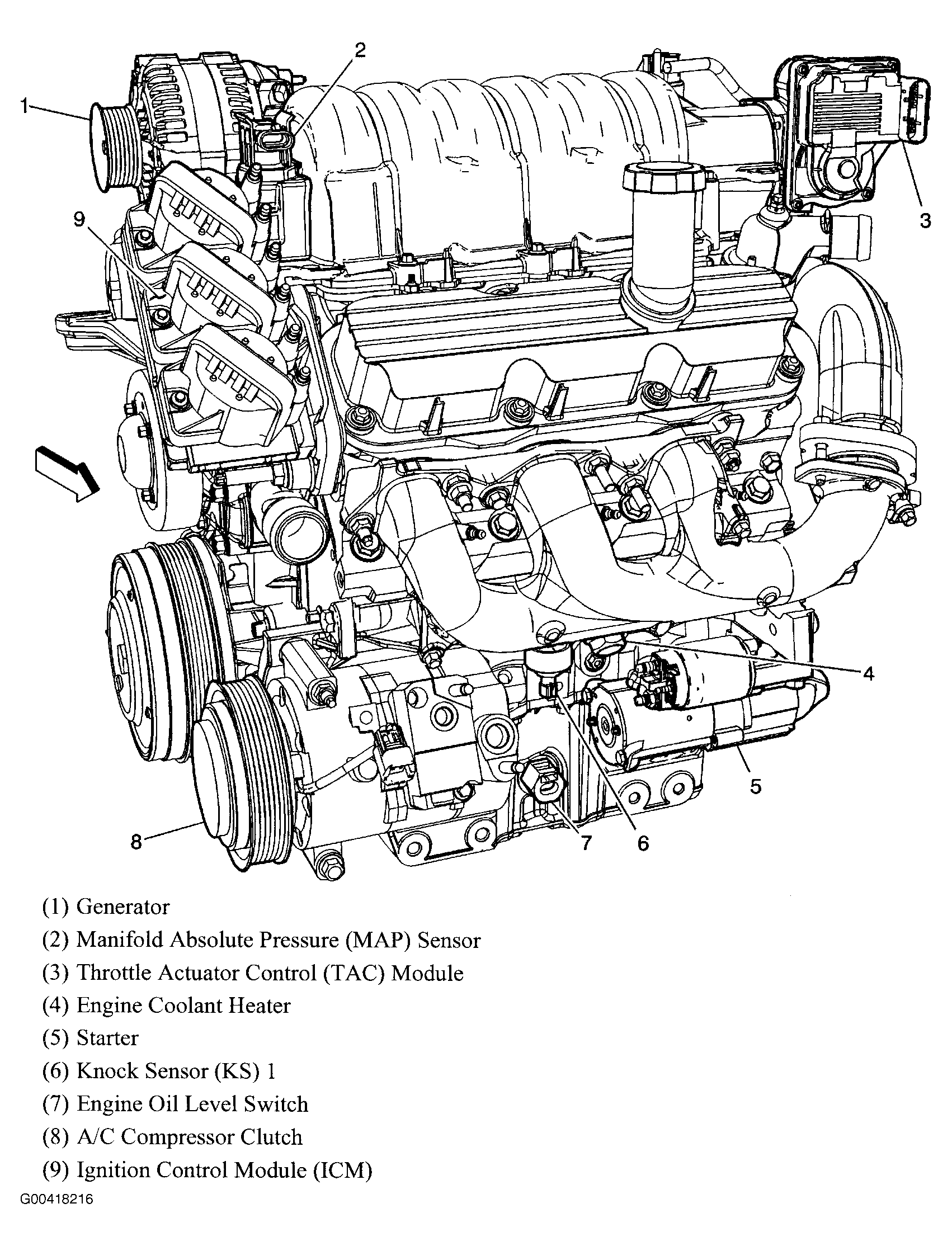

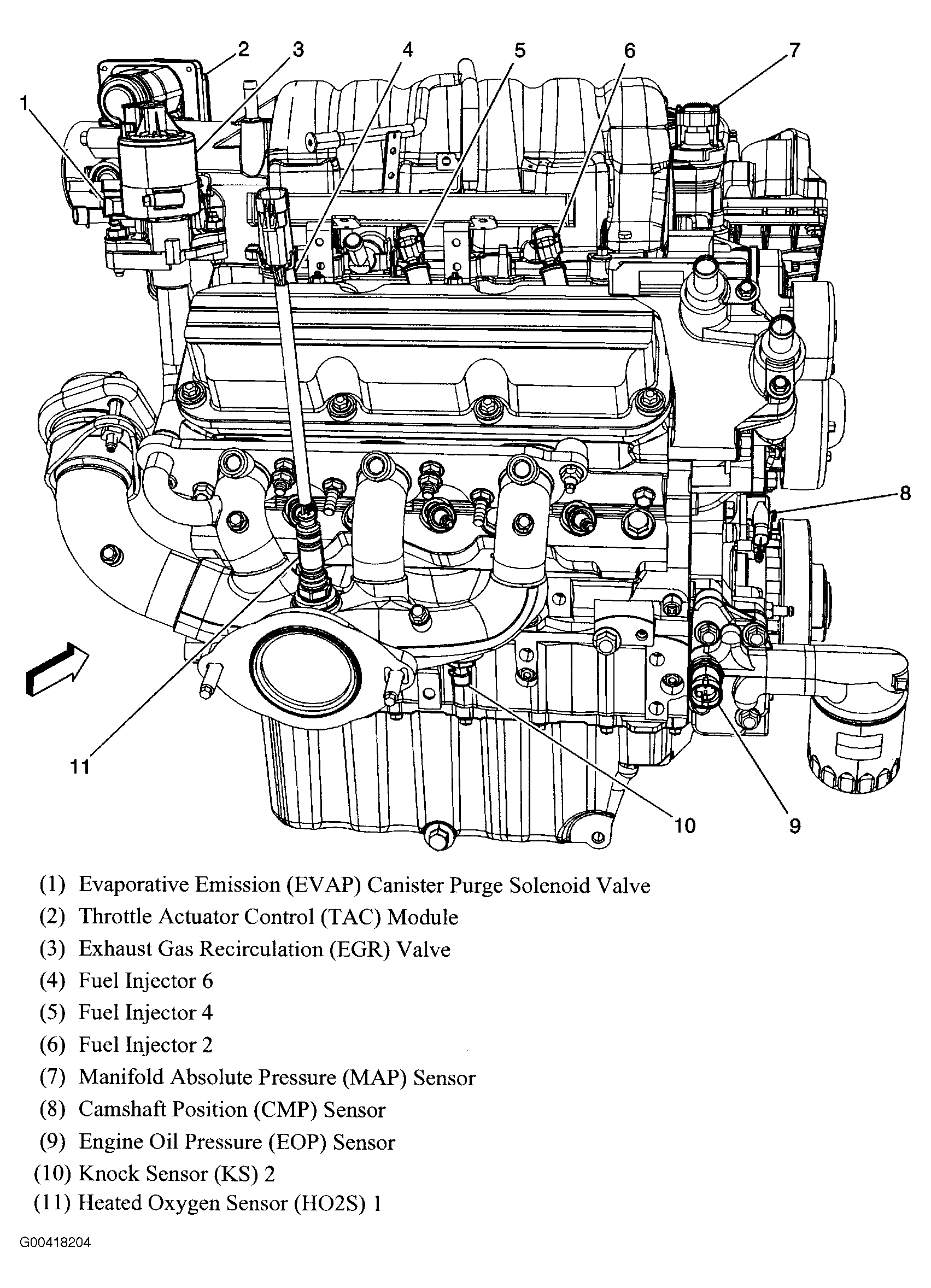

Fig 21: Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Right Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

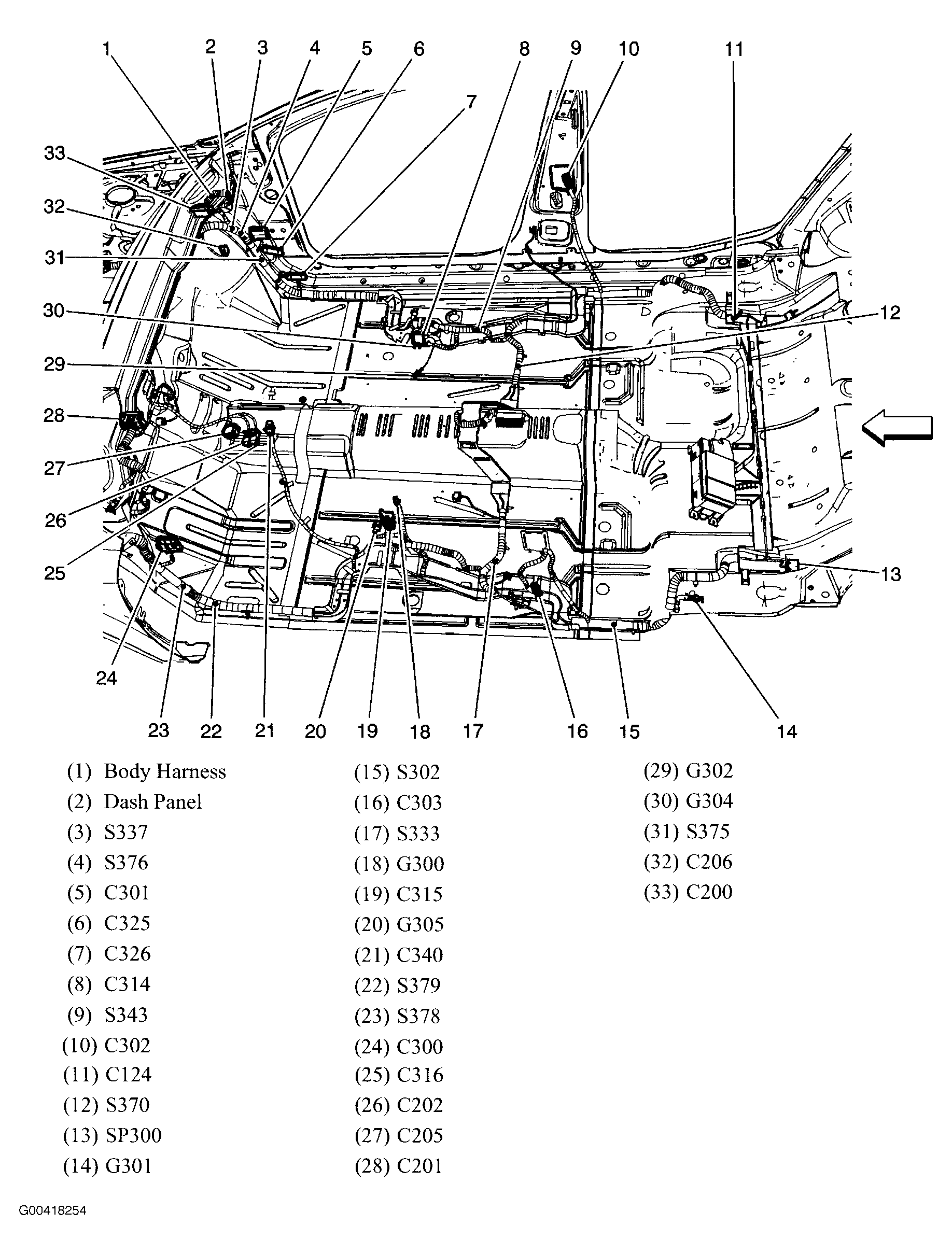

Fig 24: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

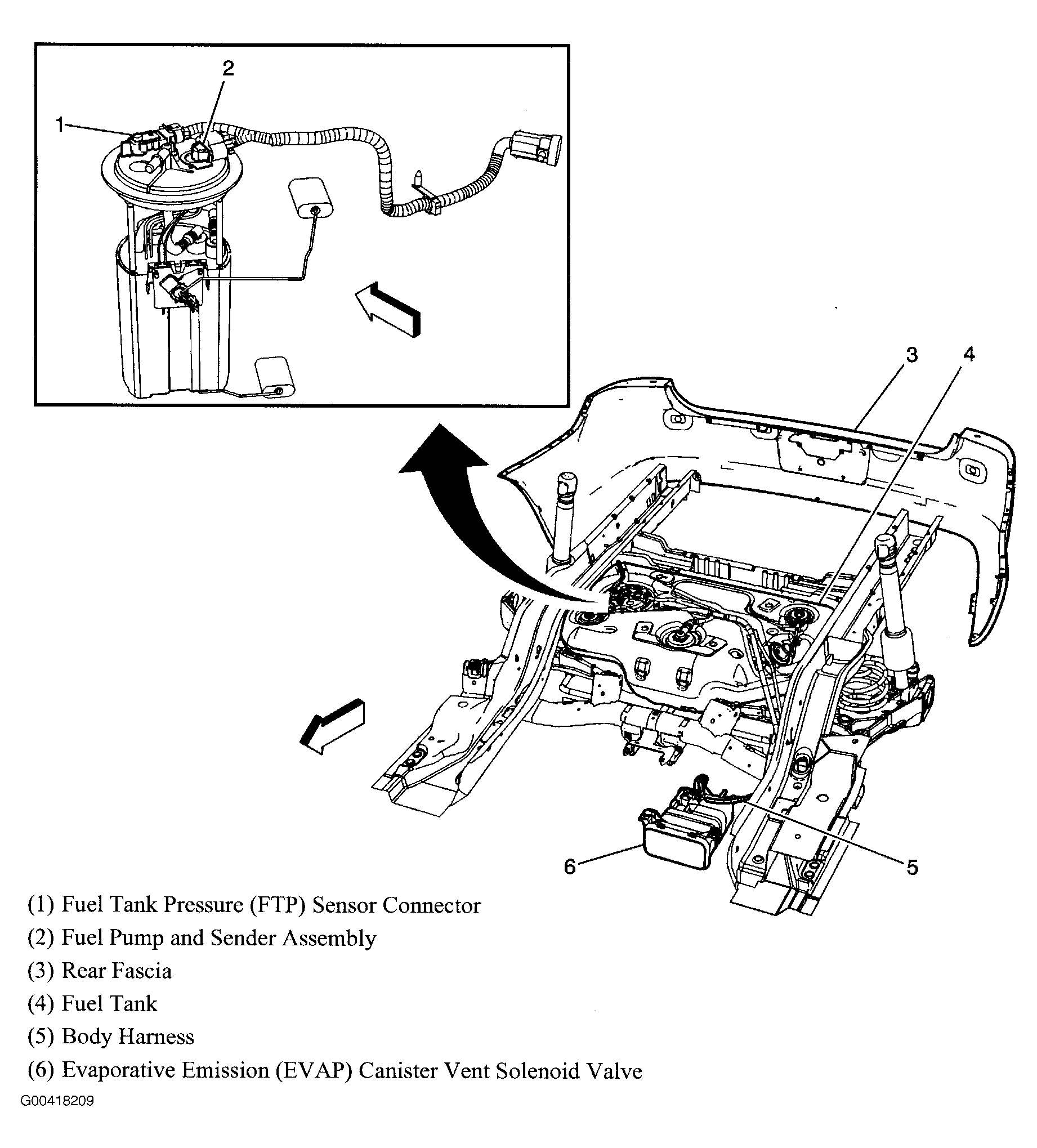

Fig 25: Rear Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 26: Rear Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.

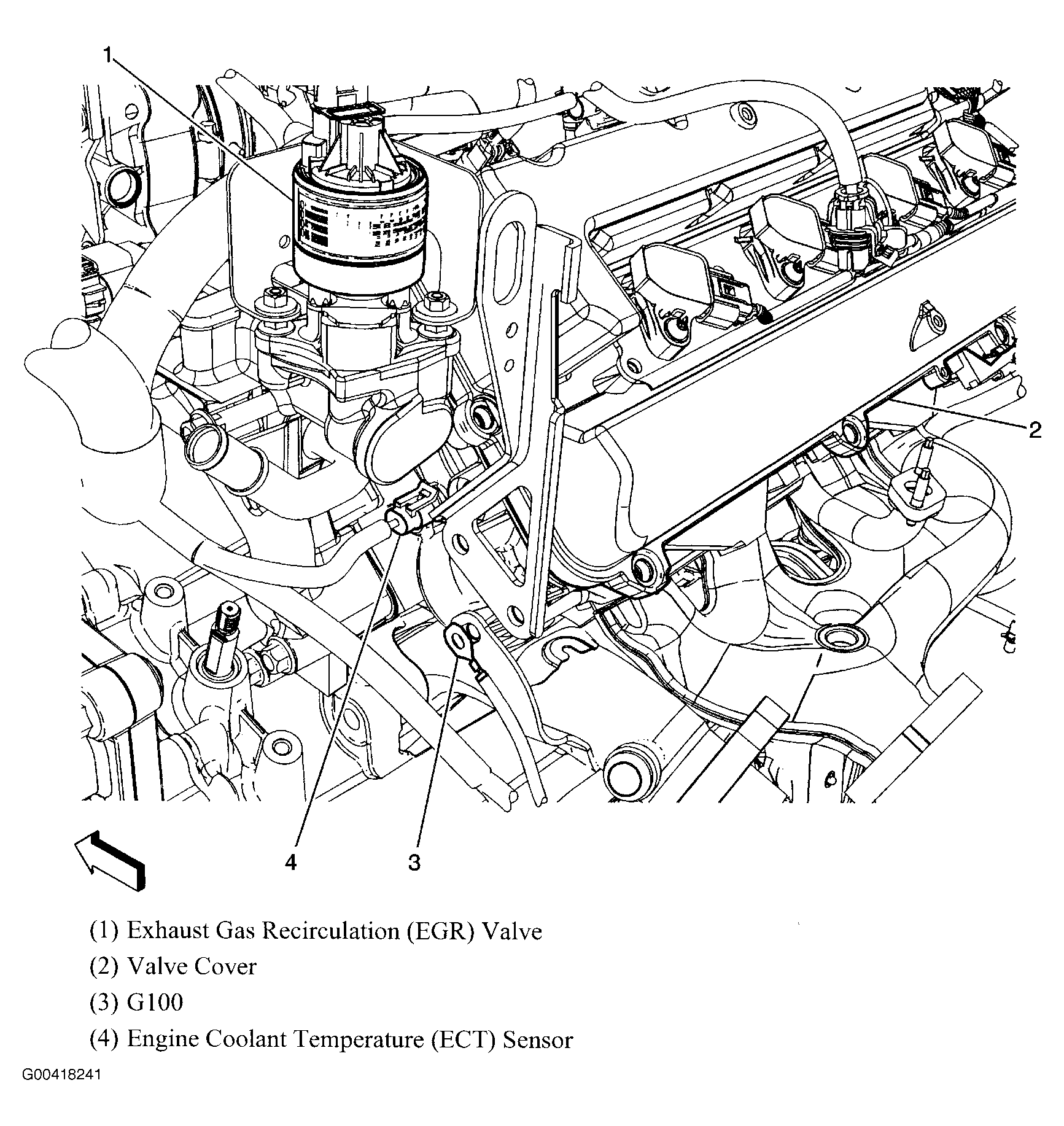

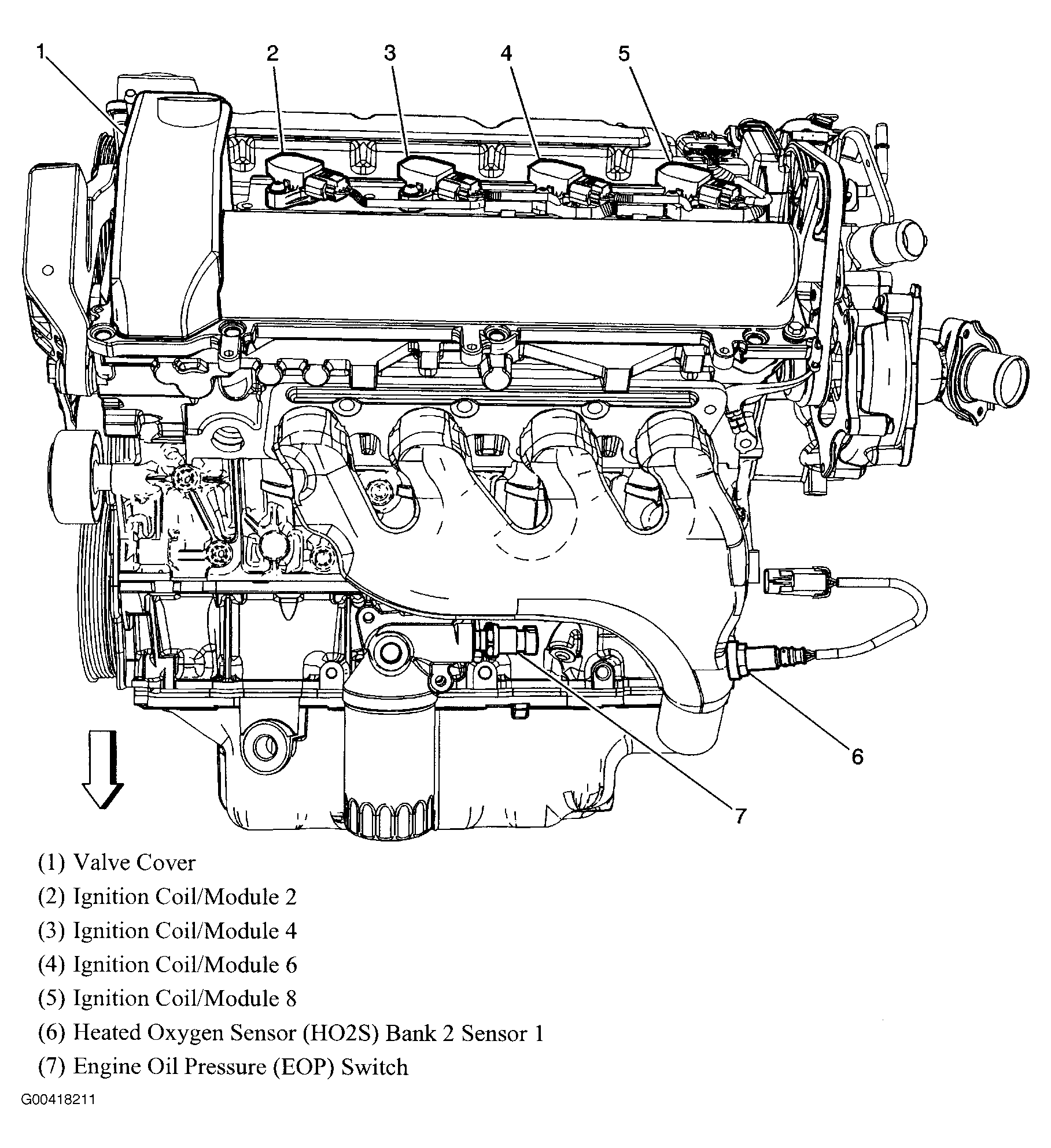

Fig 27: Left Side Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Top Of Engine (4.6L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Top Of Engine (4.6L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 31: Steering Column
Courtesy of GENERAL MOTORS CORP.

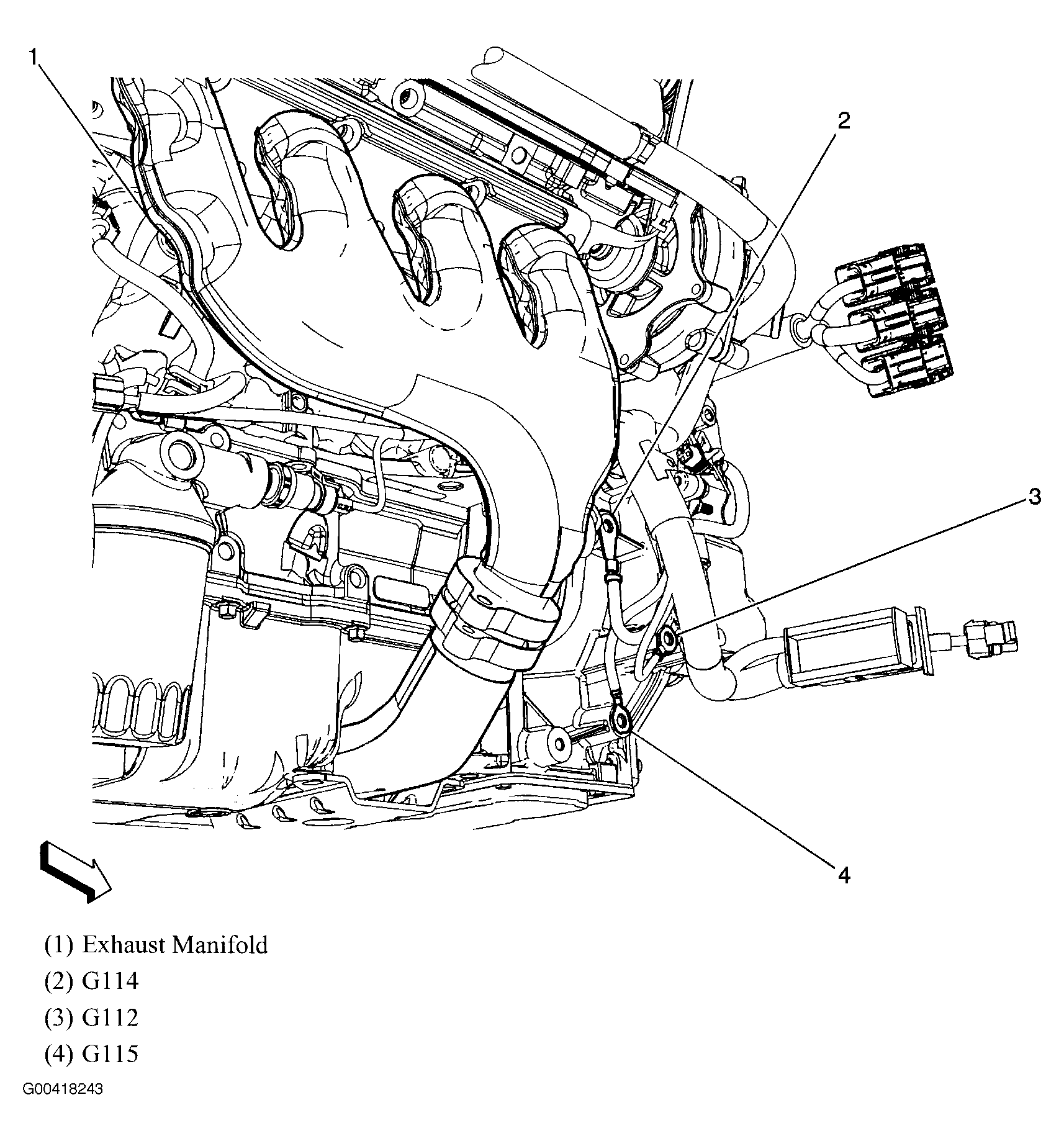

Fig 32: Left Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

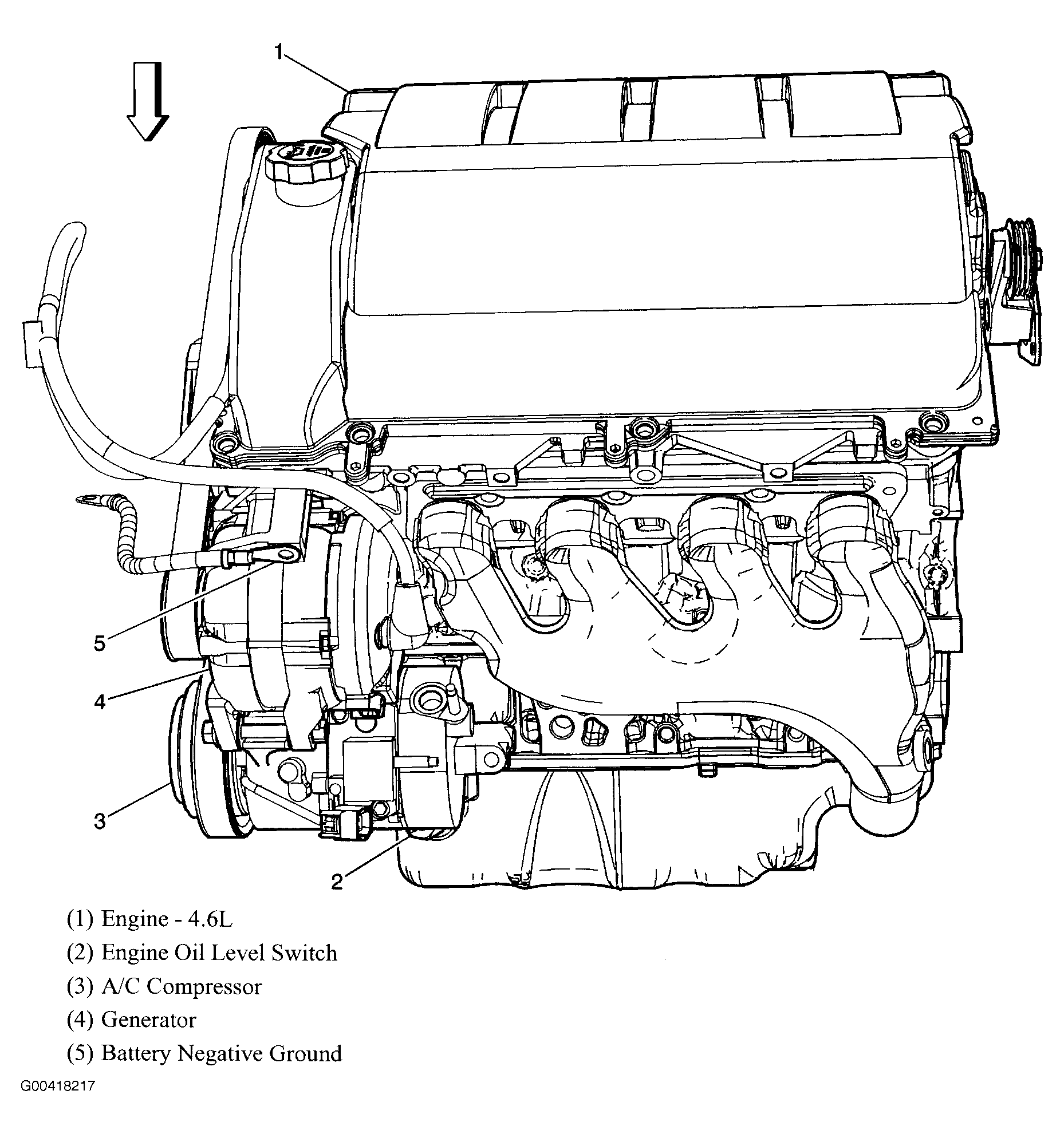

Fig 33: Left Side Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.

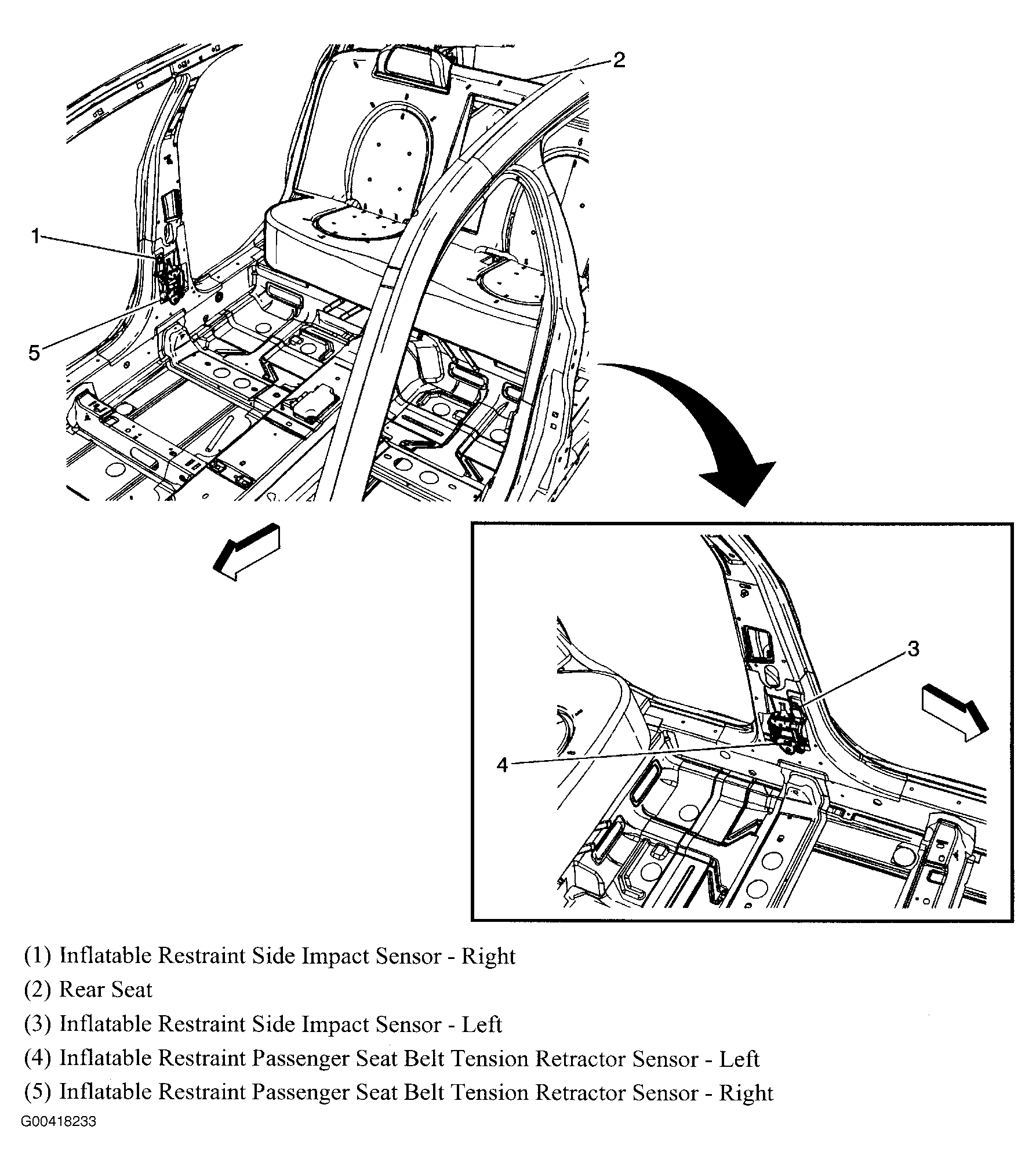

Fig 34: Under Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 35: Right "D" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 36: Left "D" Pillar
Courtesy of GENERAL MOTORS CORP.

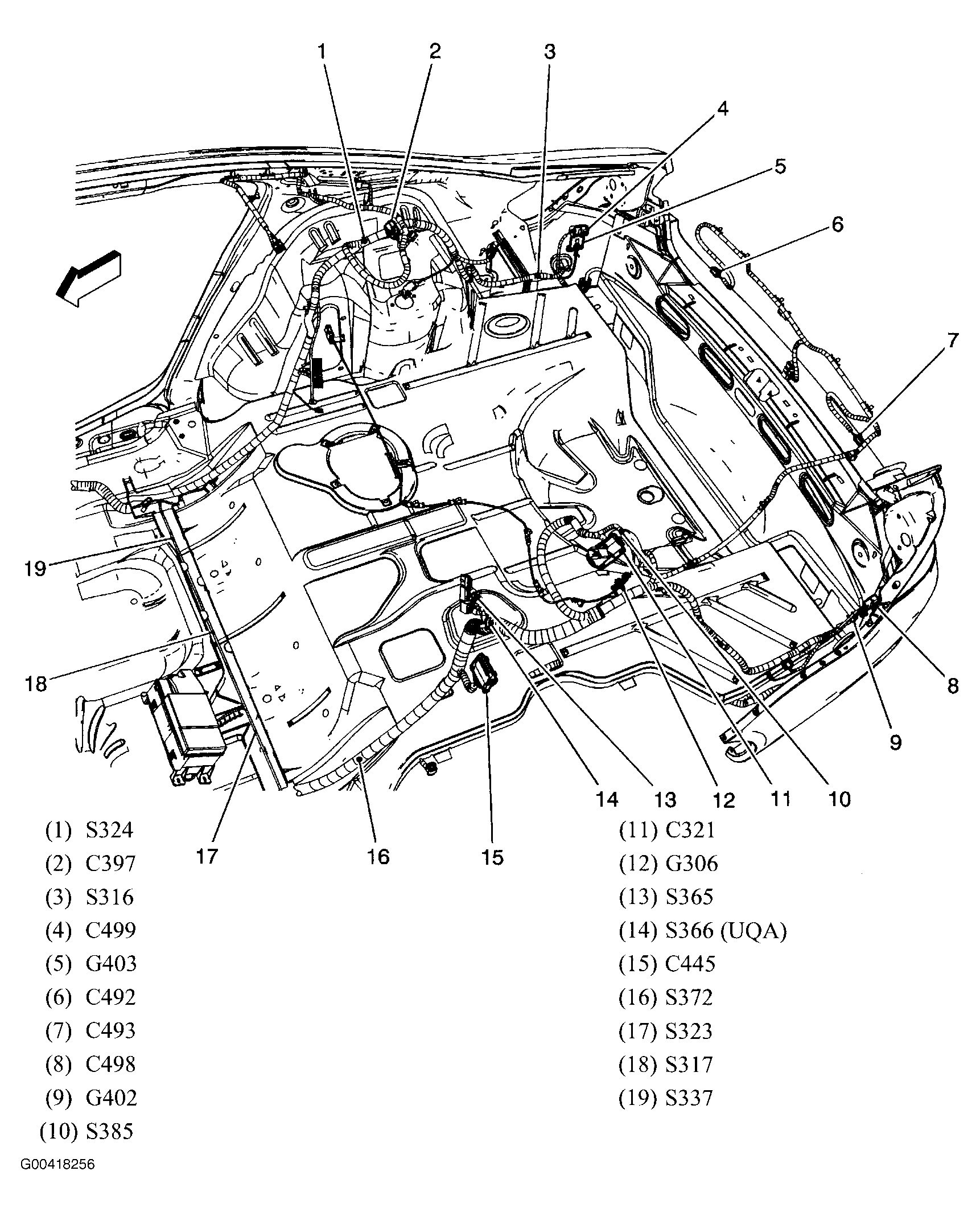

Fig 37: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 38: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 39: HVAC Module (Front - Electronic Controls)
Courtesy of GENERAL MOTORS CORP.

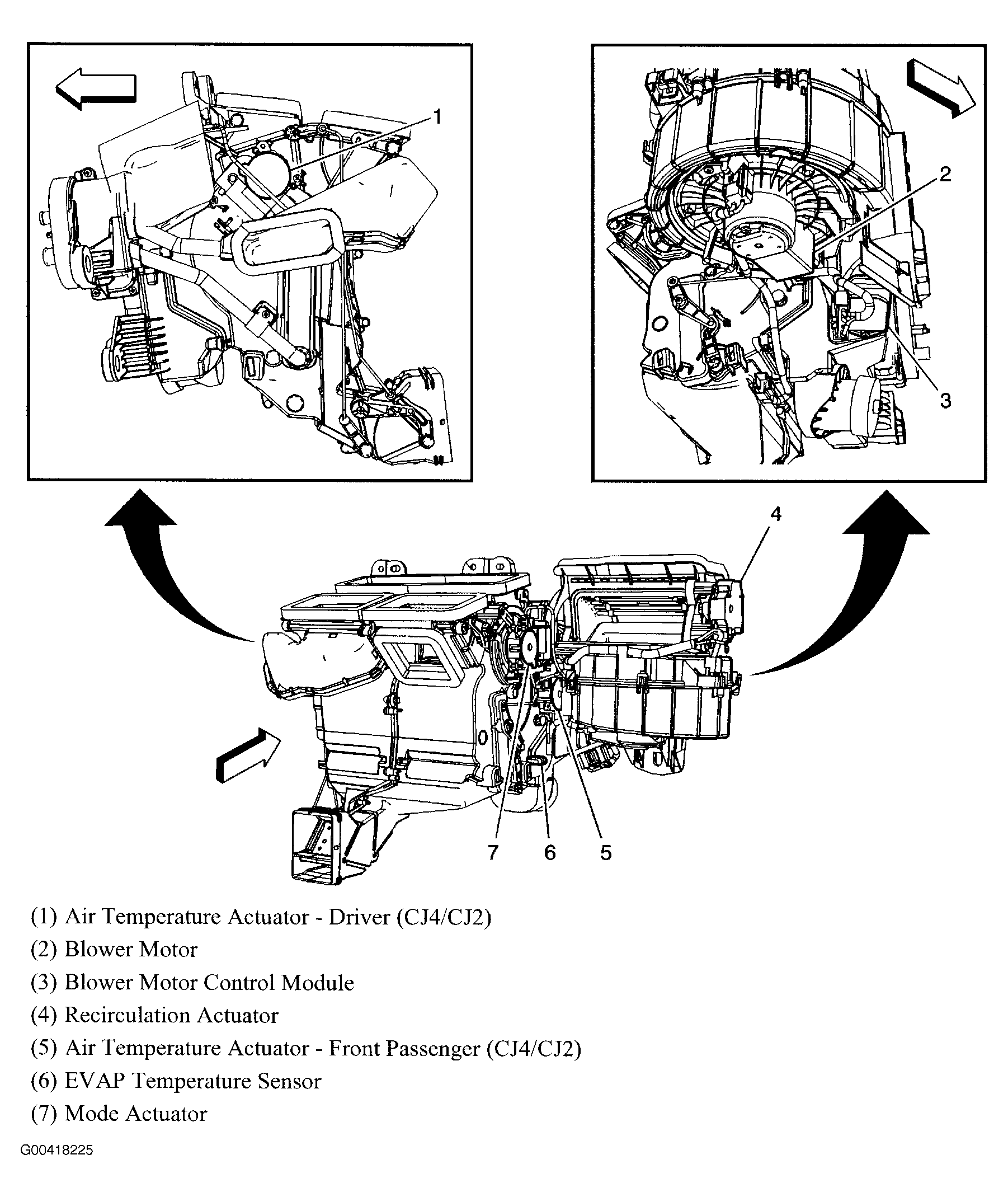

Fig 40: HVAC Module (Front - Auto Temperature Controls)
Courtesy of GENERAL MOTORS CORP.

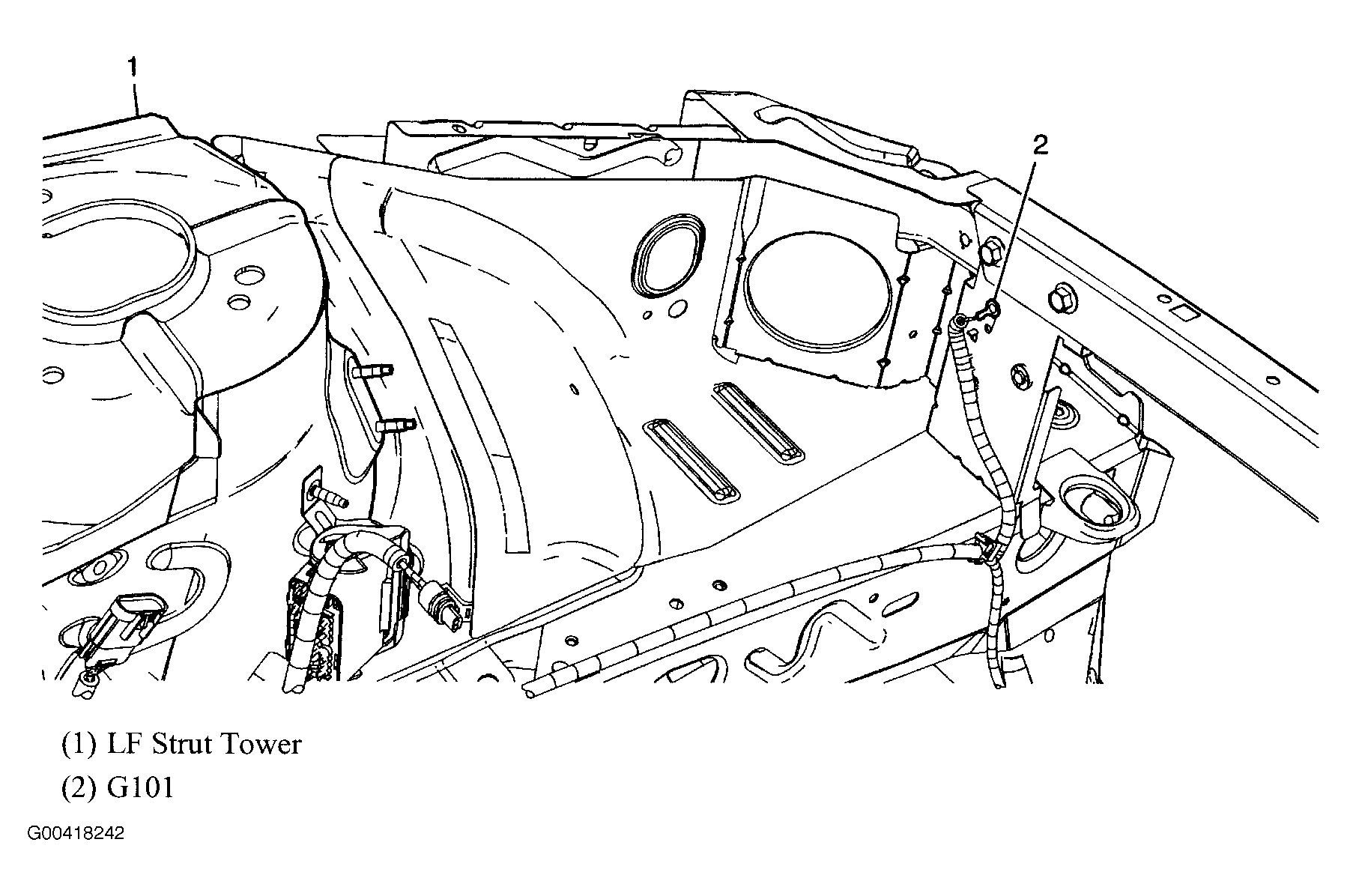

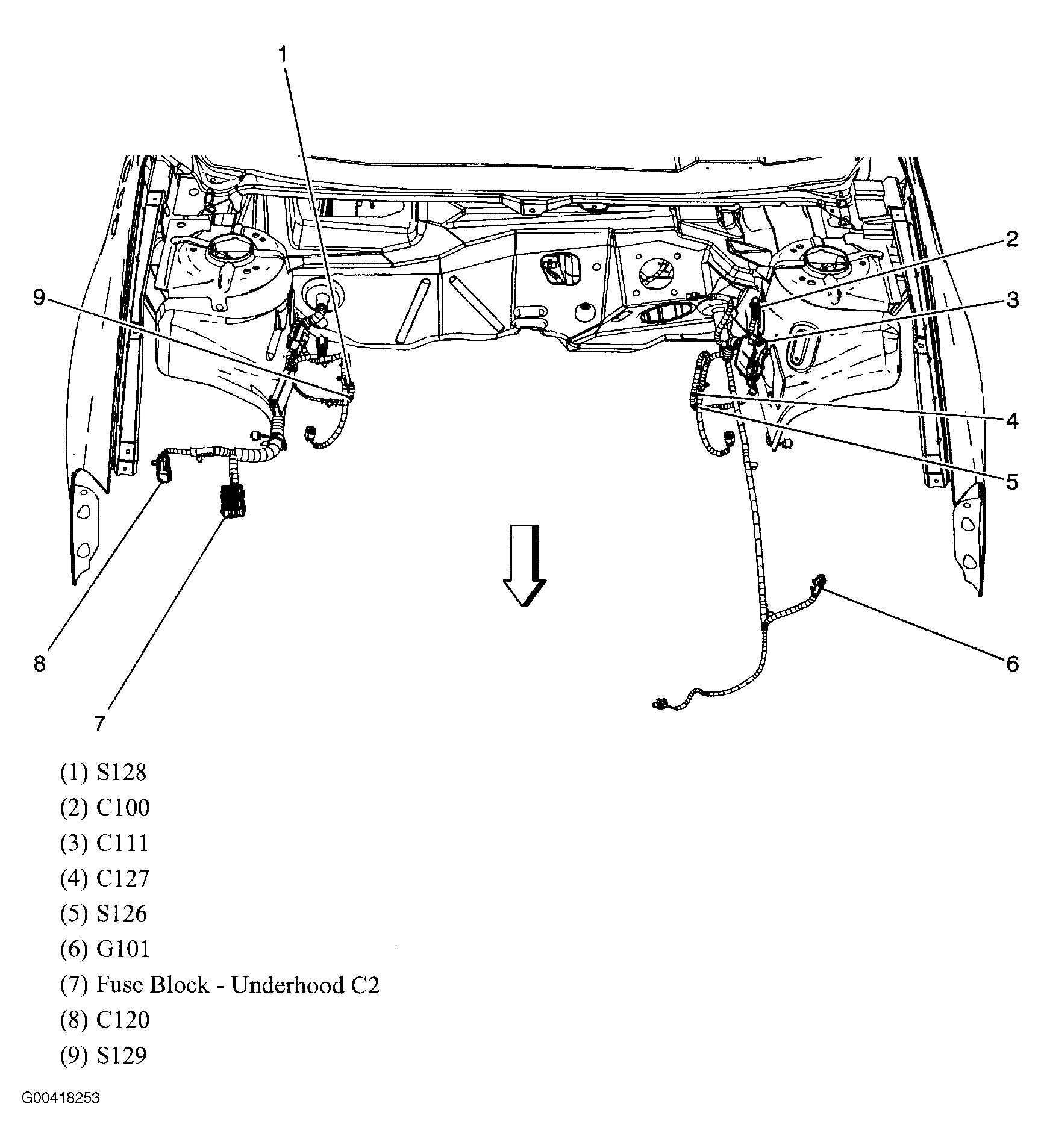

Fig 41: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

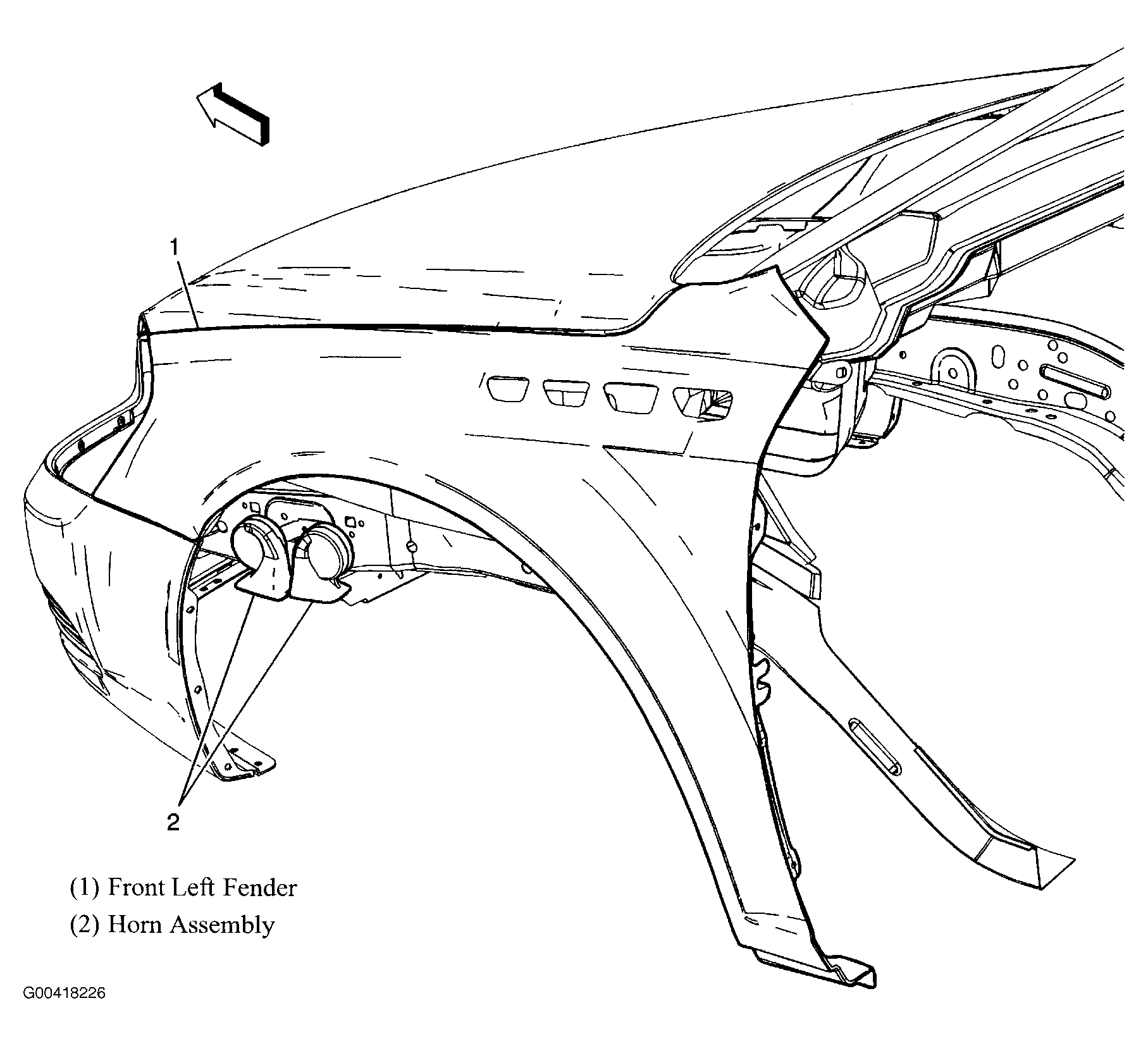

Fig 42: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 43: Top Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 44: Behind Rear Seat
Courtesy of GENERAL MOTORS CORP.

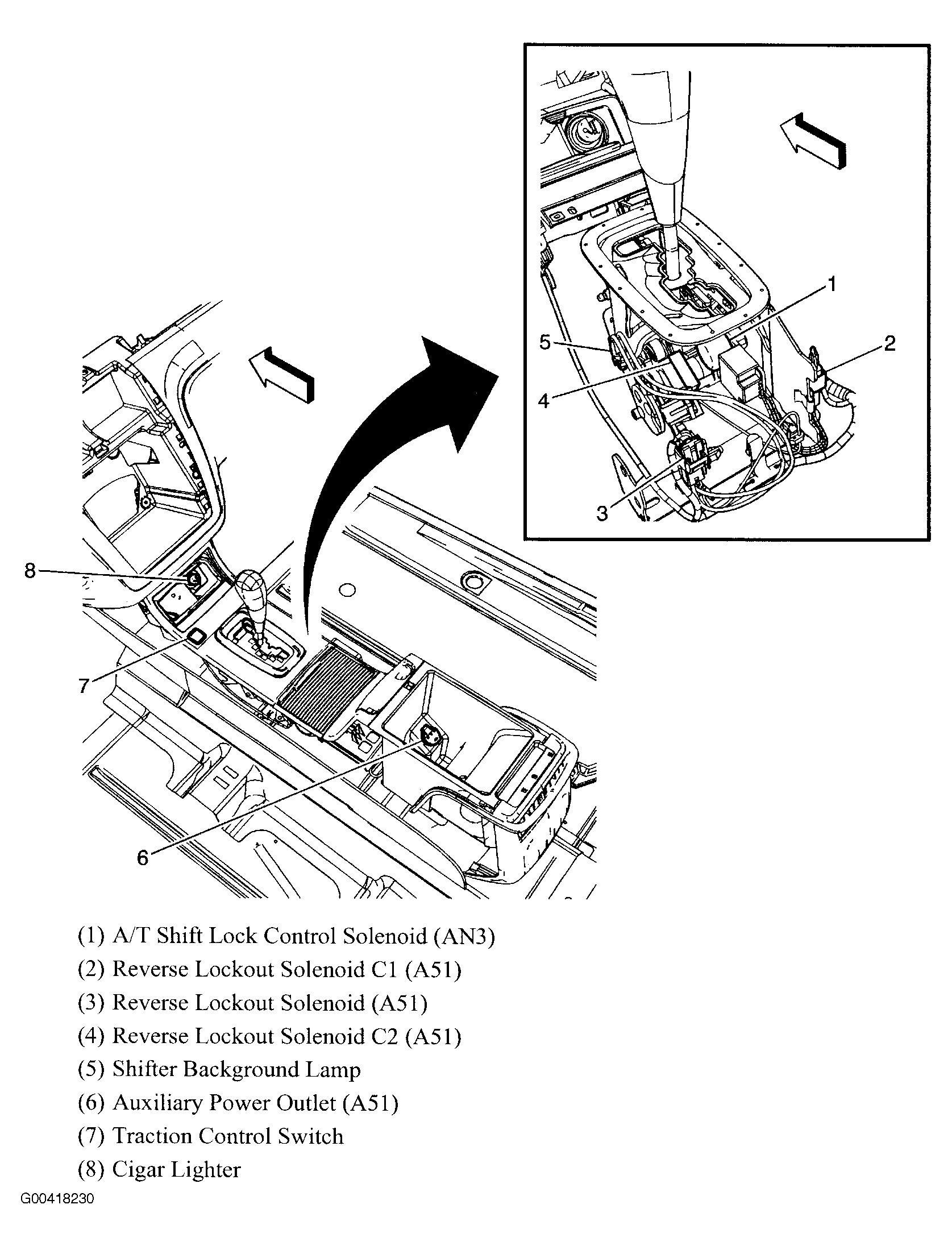

Fig 45: Floor Console
Courtesy of GENERAL MOTORS CORP.

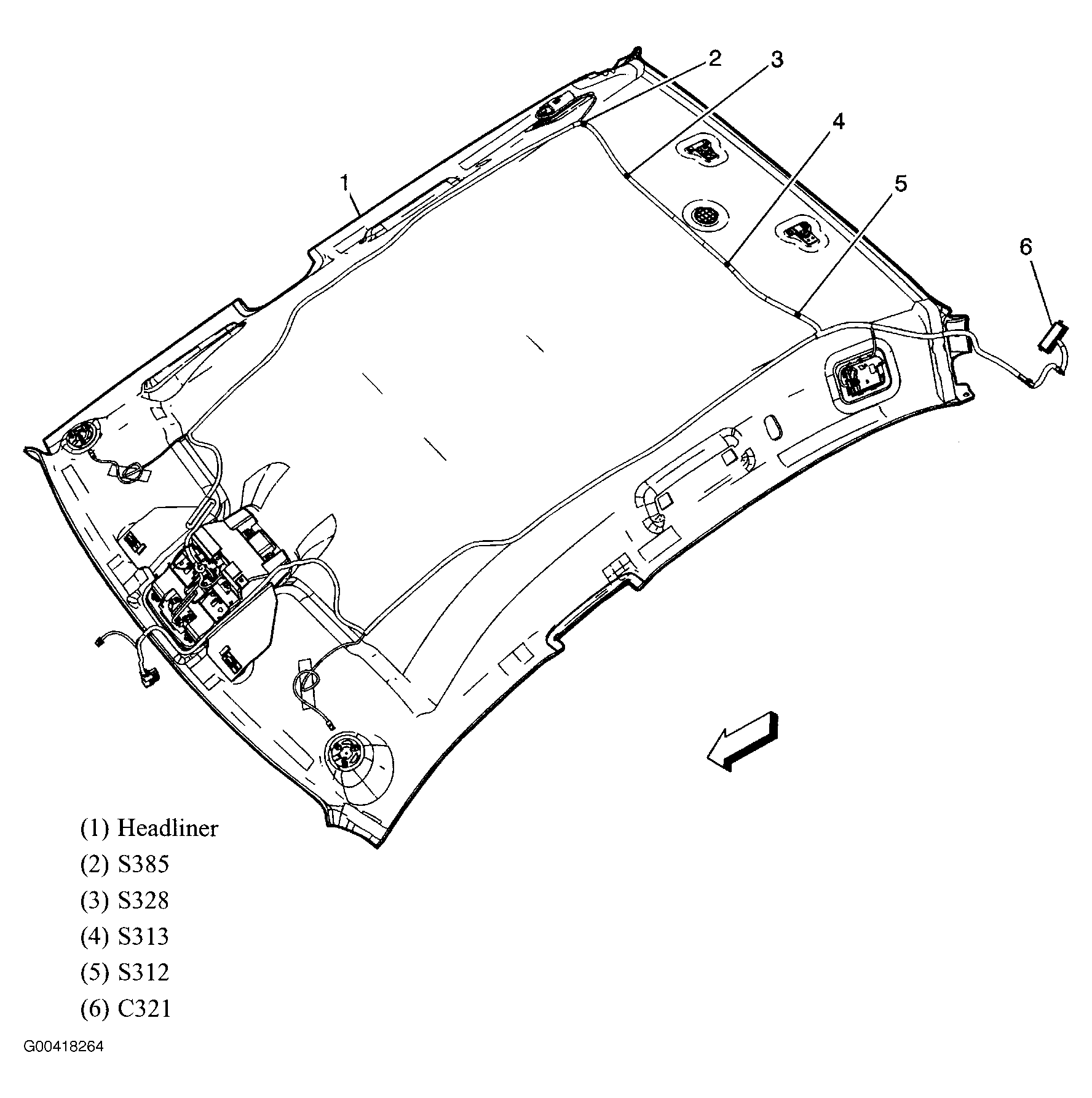

Fig 46: Roof
Courtesy of GENERAL MOTORS CORP.
Fig 47: Vehicle Interior Overview
Courtesy of GENERAL MOTORS CORP.
Fig 48: "B" Pillars
Courtesy of GENERAL MOTORS CORP.

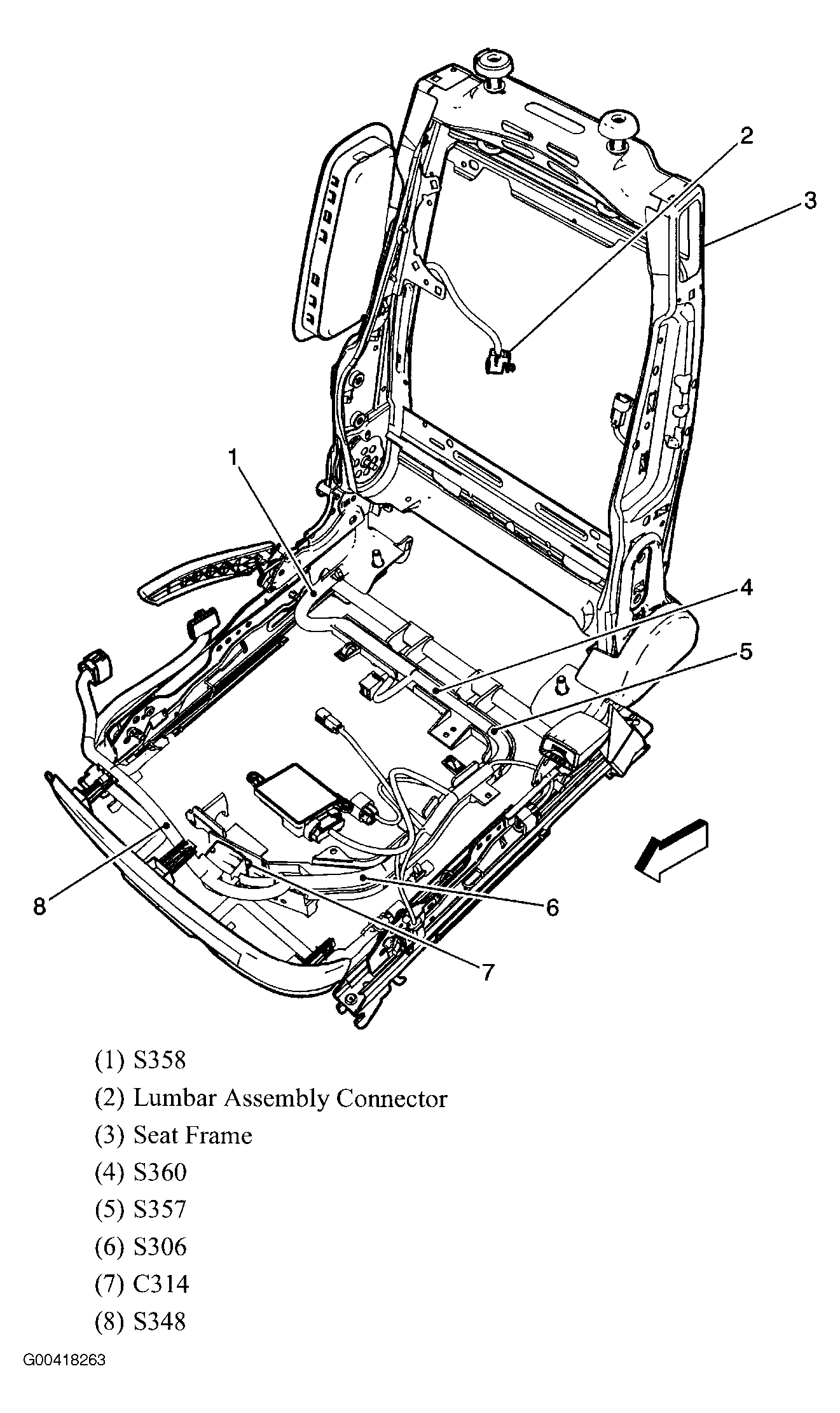

Fig 49: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 50: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Side Of Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 52: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

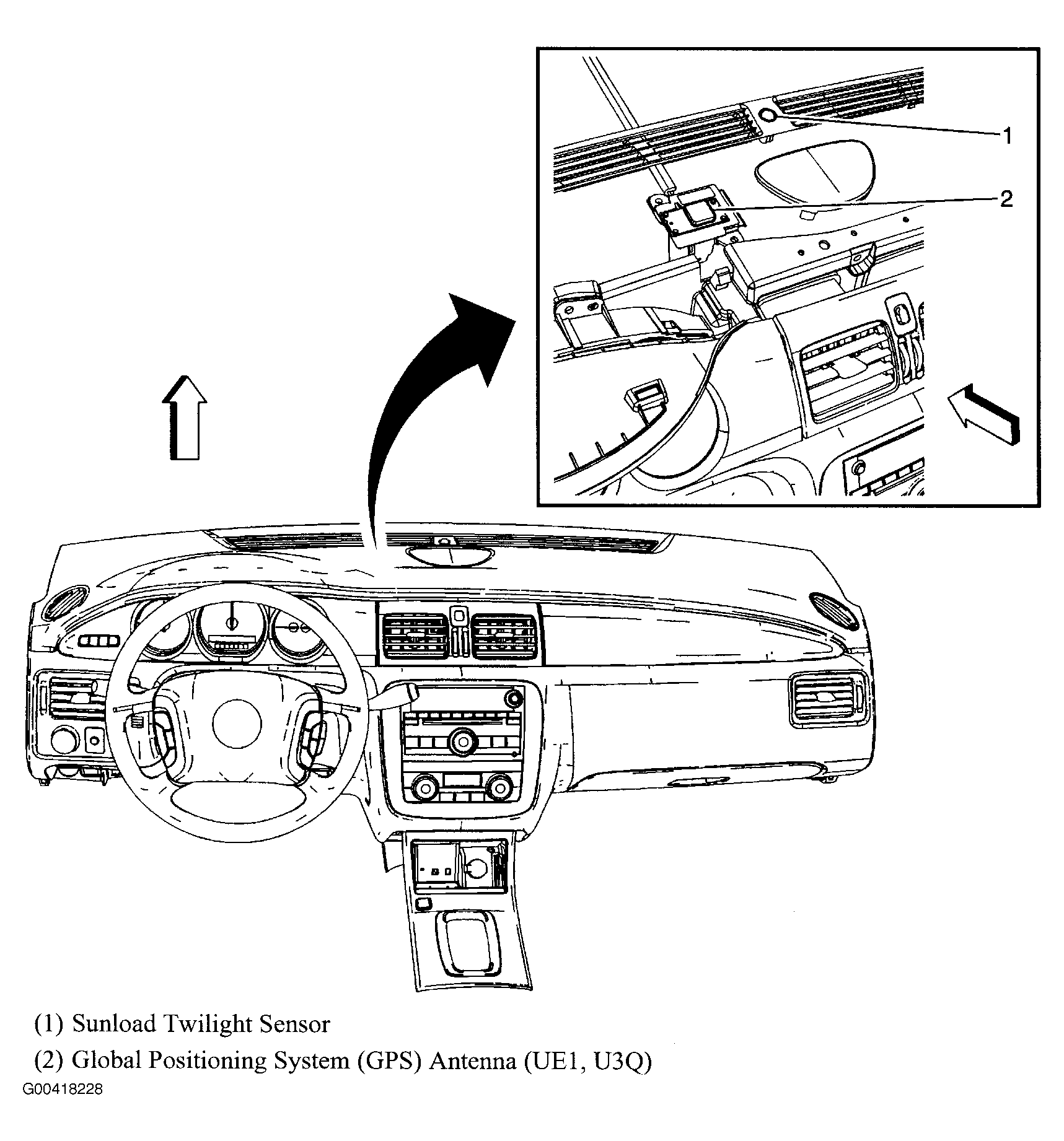

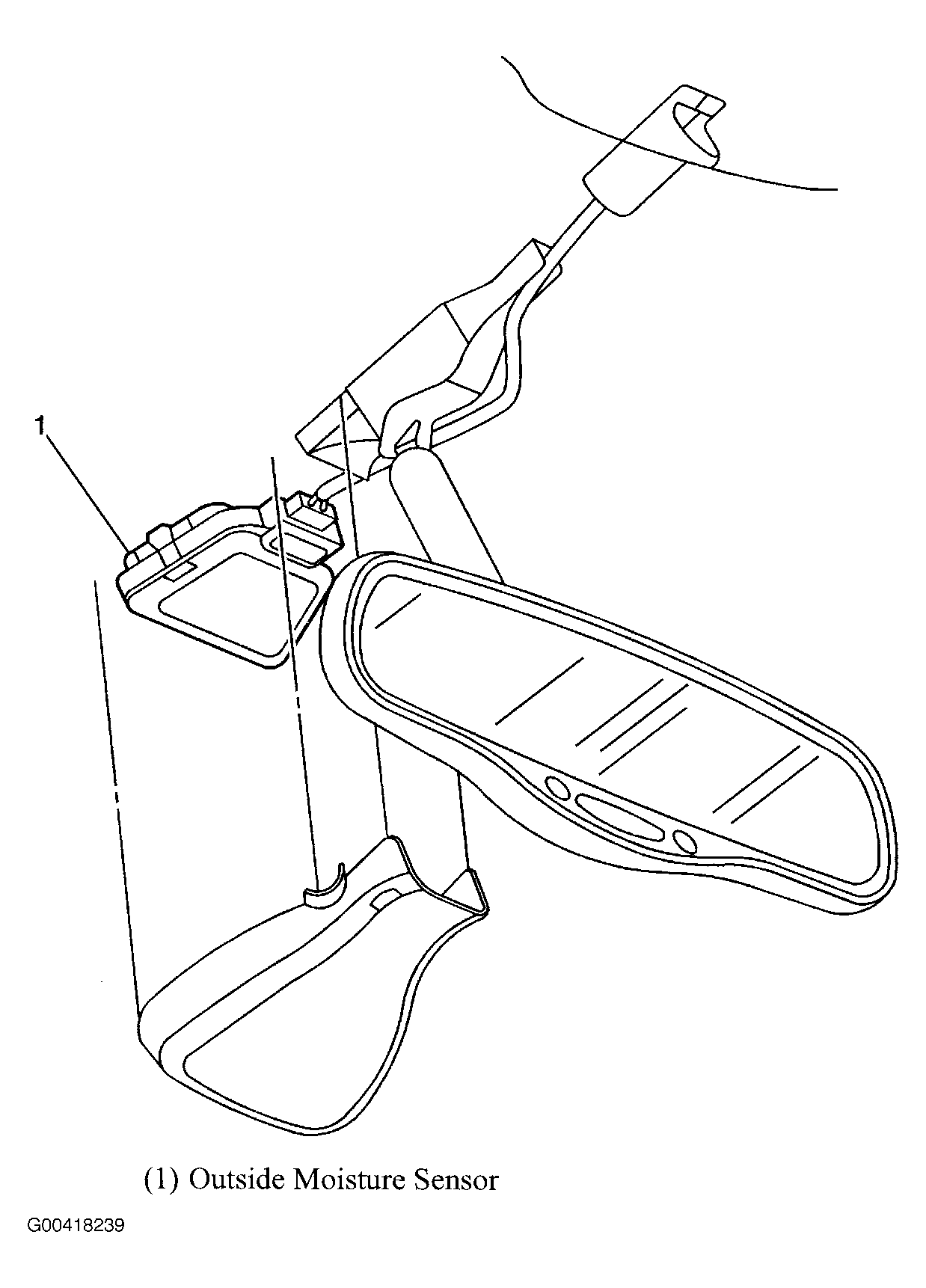

Fig 53: Upper Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Rear Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Bottom Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

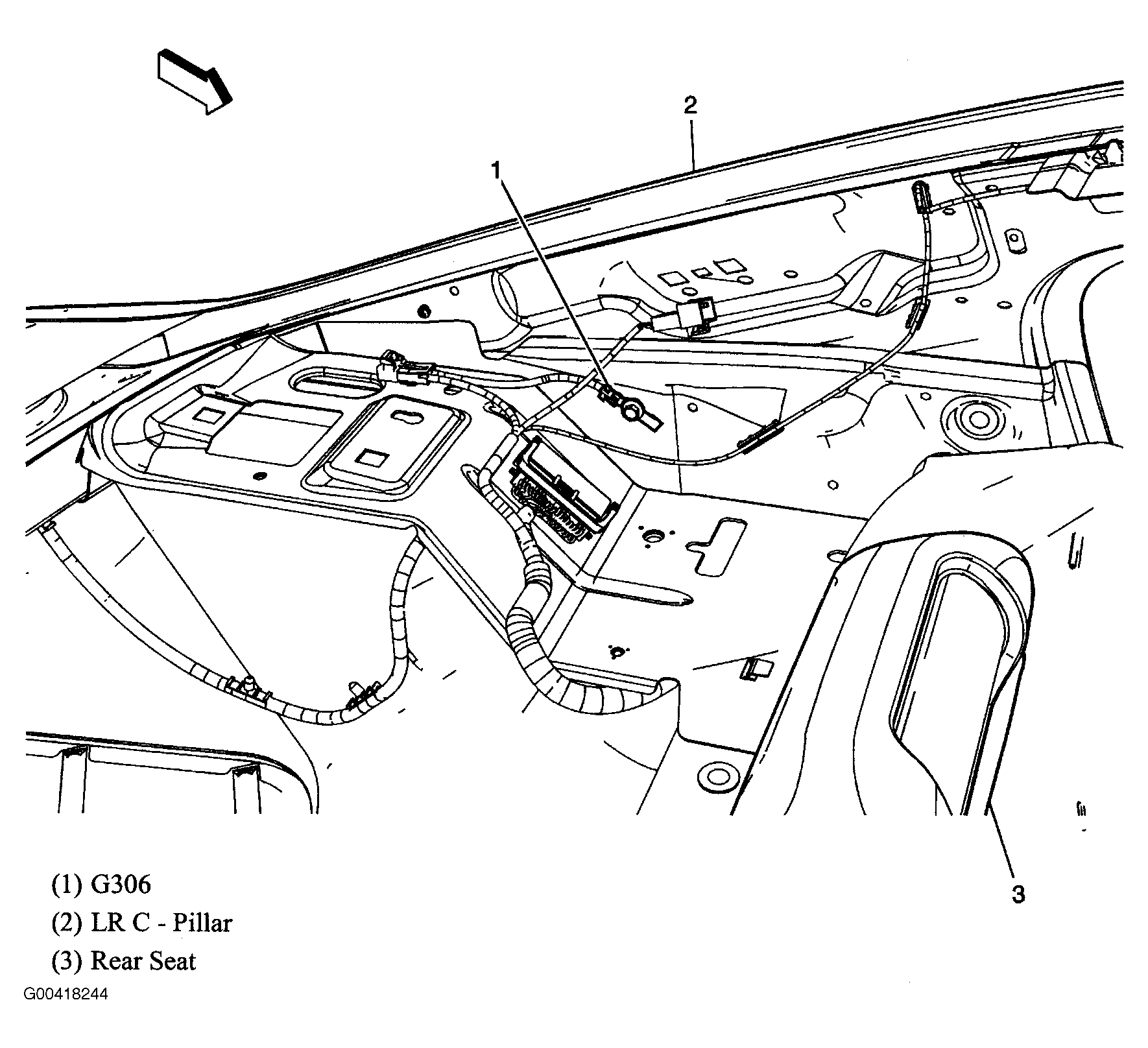

Fig 58: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

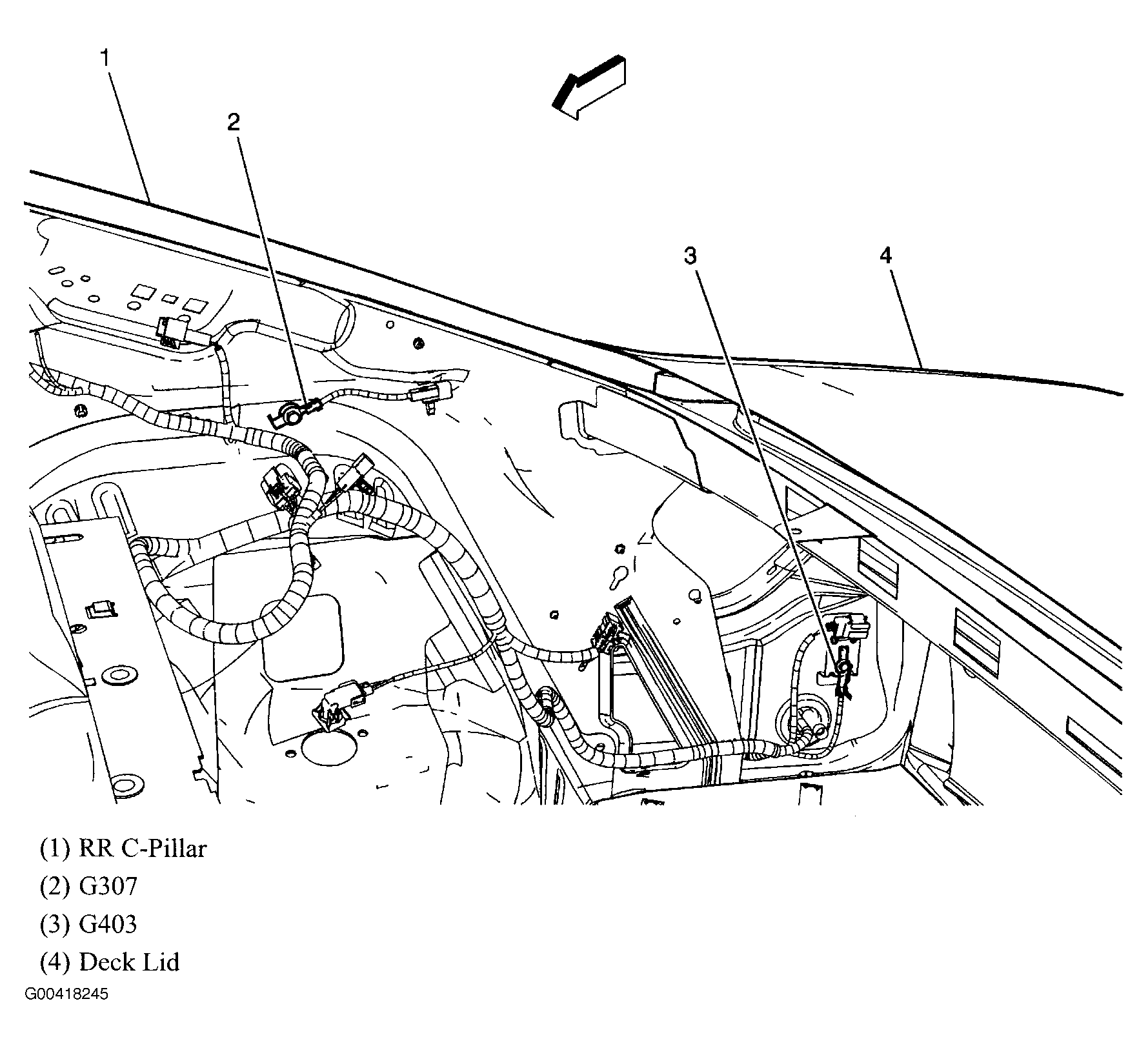

Fig 59: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 60: Vehicle Front Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 61: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 62: Left Side Of Engine (4.6L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Side Of Engine (4.6L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Right Side Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 66: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

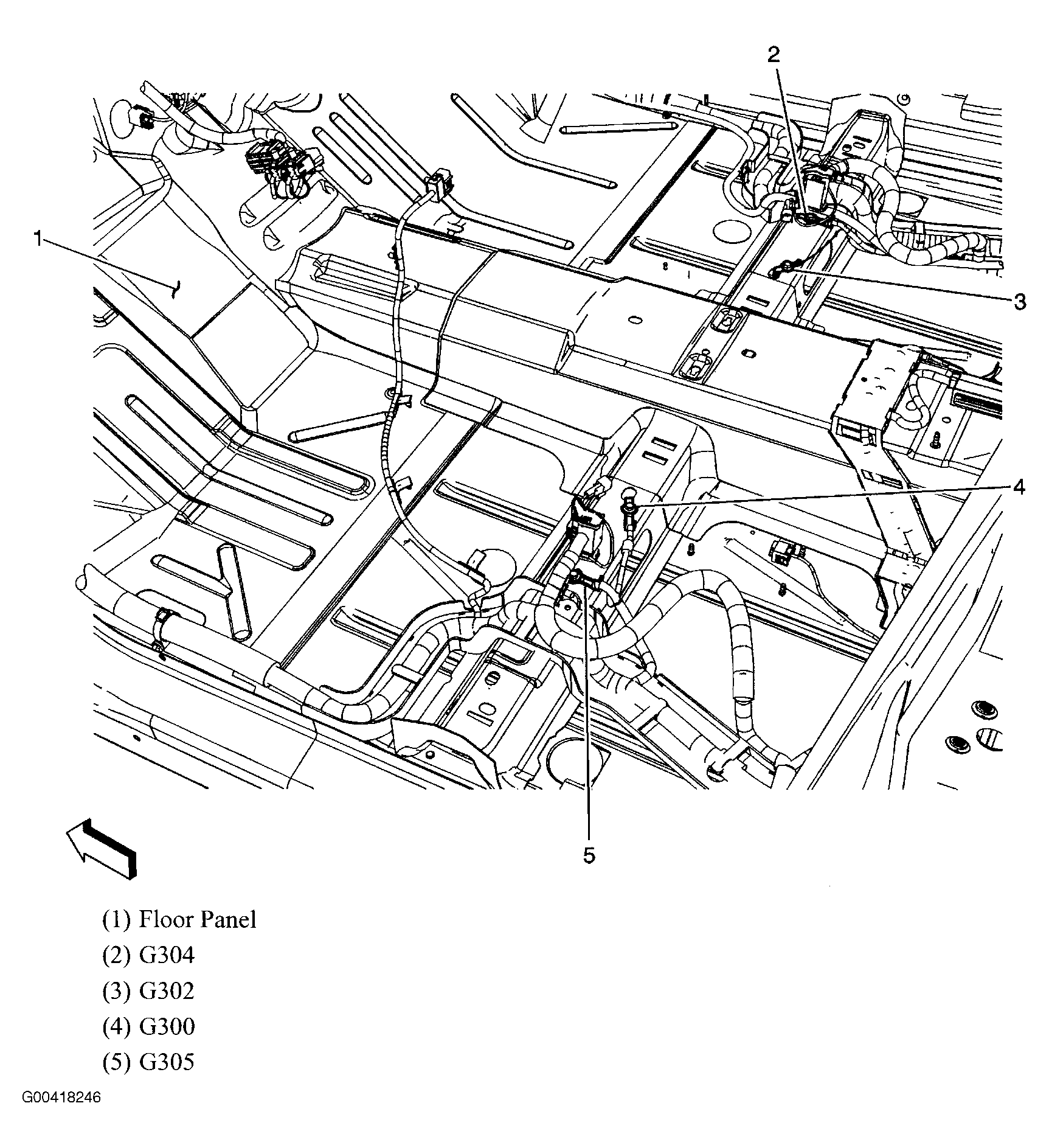

Fig 67: Passenger Compartment Floor
Courtesy of GENERAL MOTORS CORP.
Fig 68: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 69: Driver's Door
Courtesy of GENERAL MOTORS CORP.

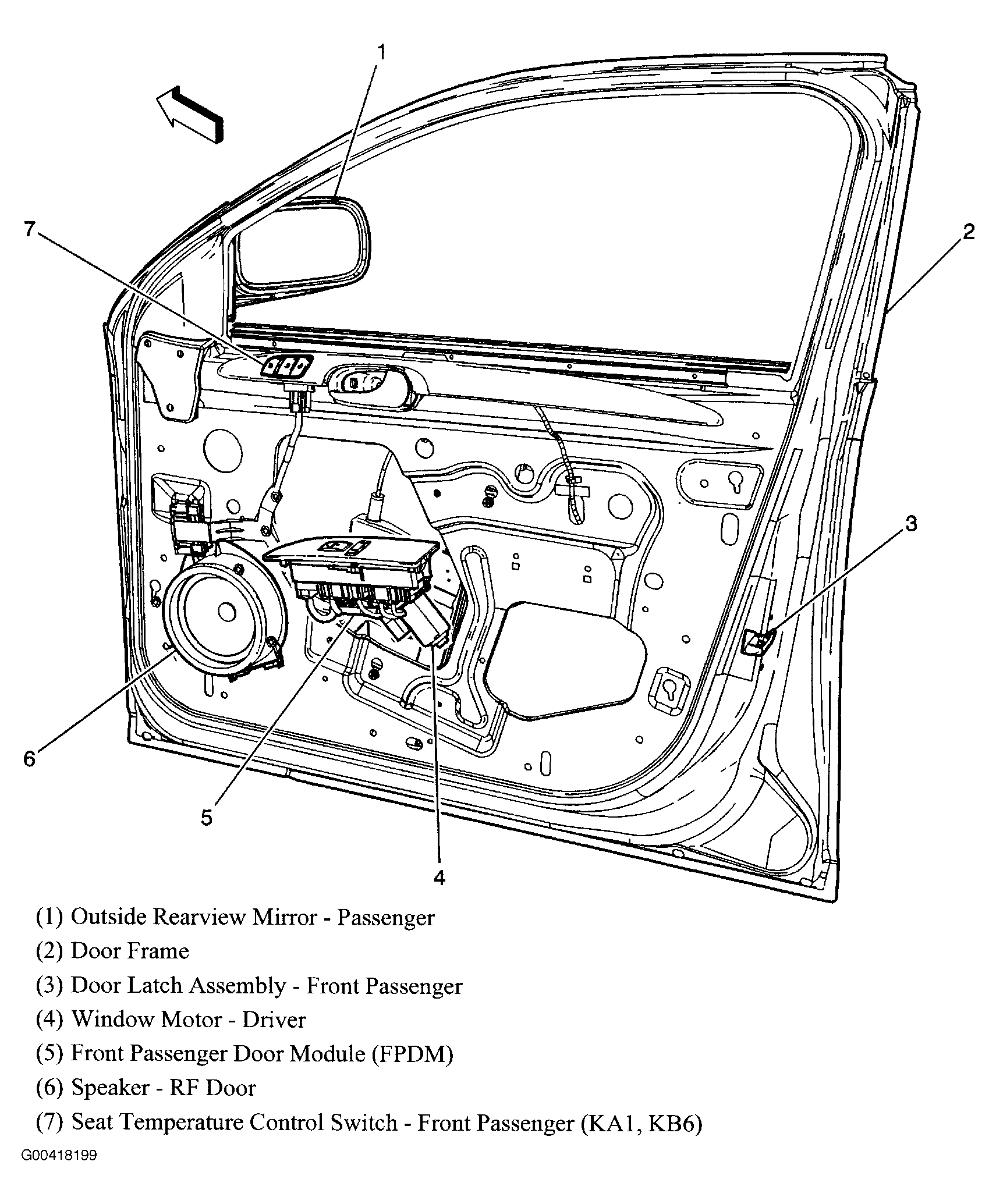

Fig 70: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 71: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 72: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

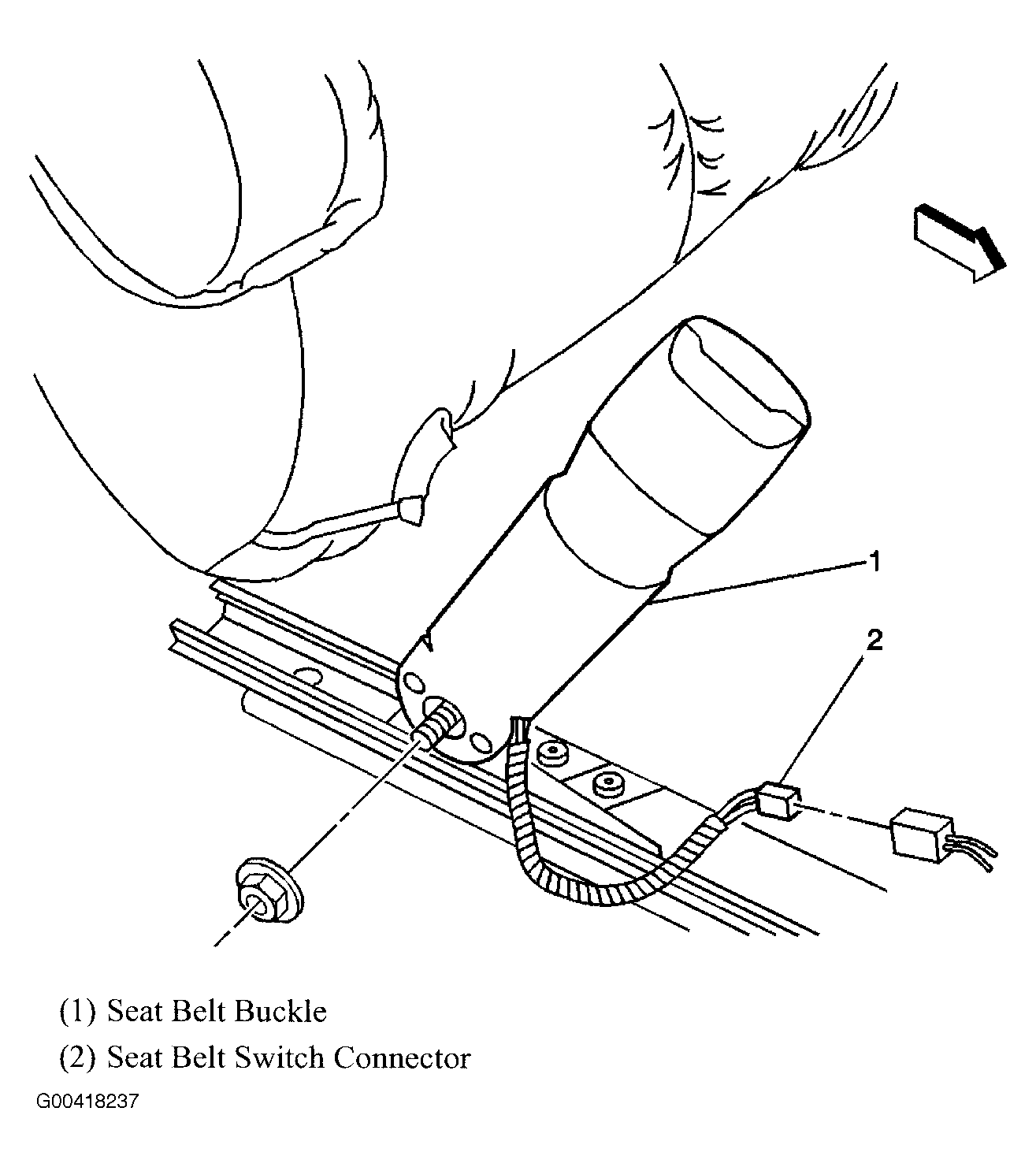

Fig 73: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 74: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 75: Roof (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.

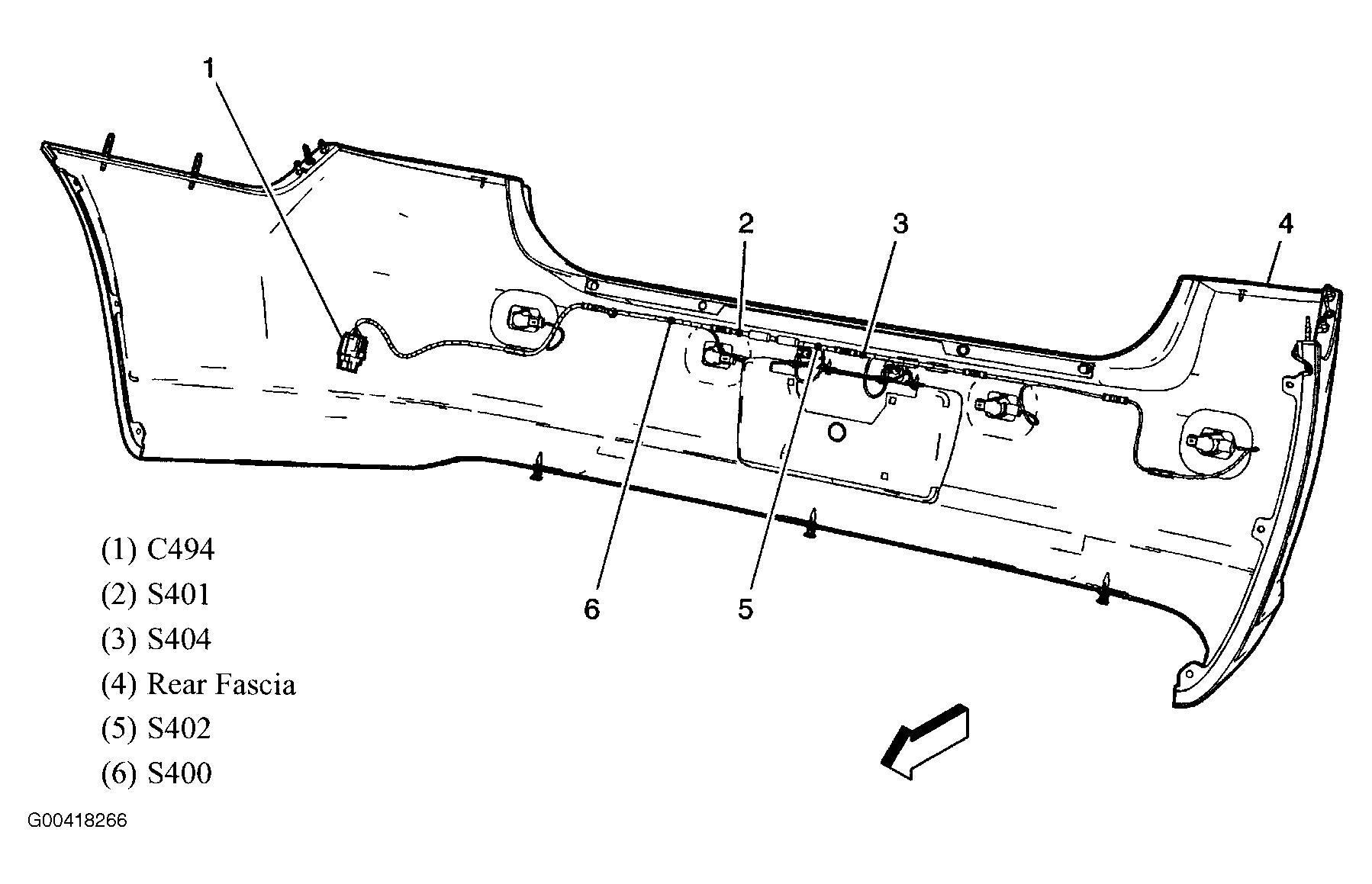

Fig 76: Behind Rear Bumper
Courtesy of GENERAL MOTORS CORP.

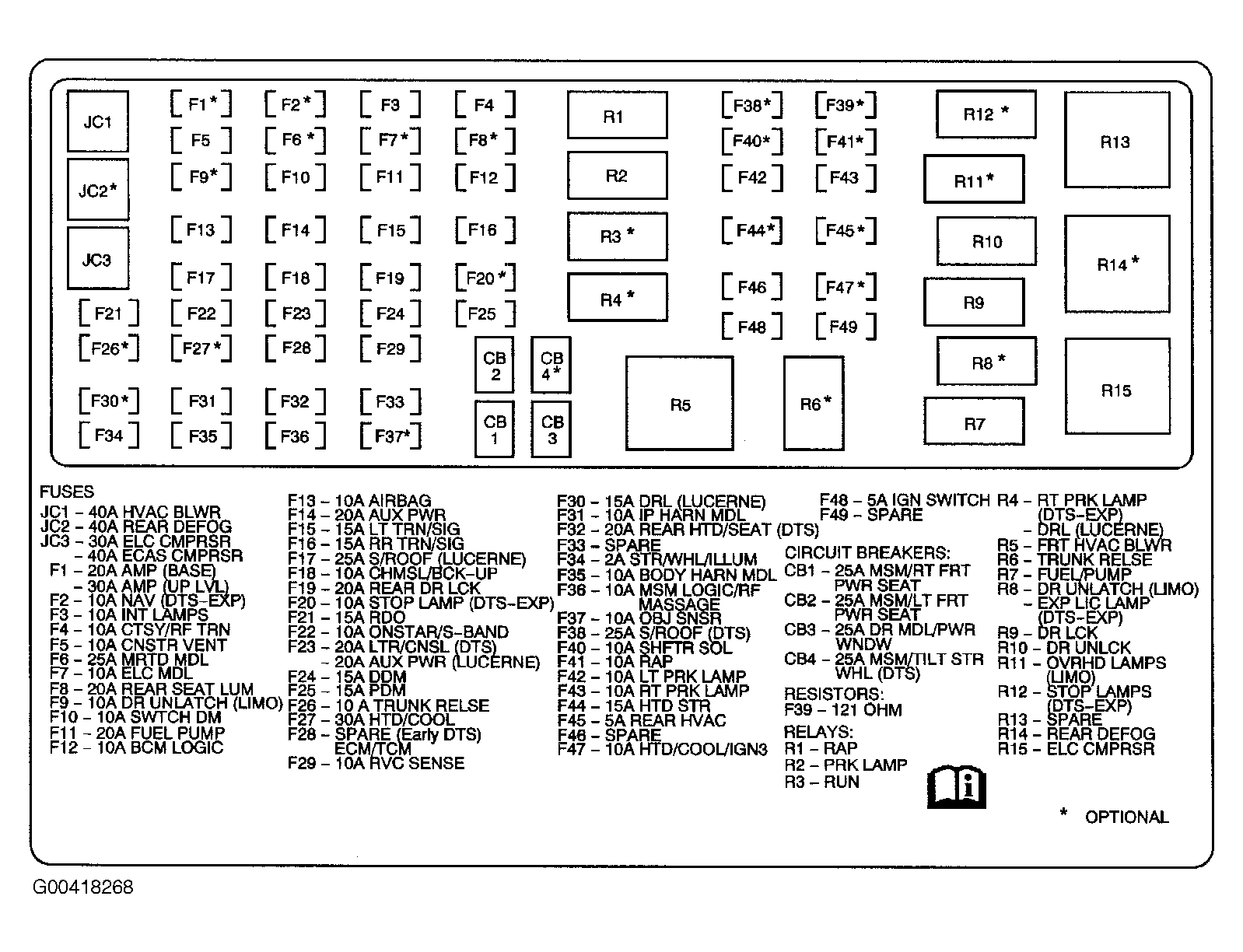

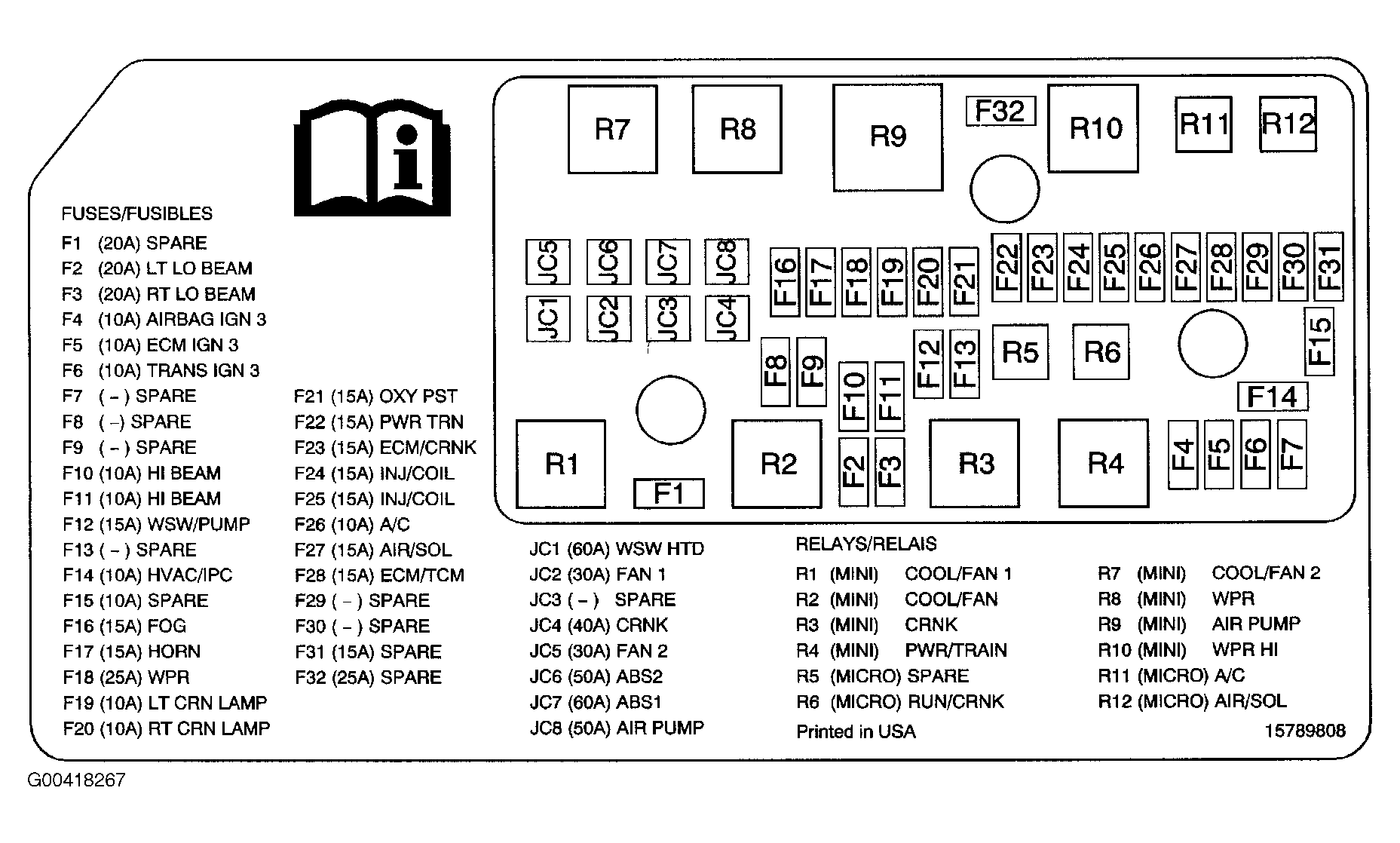

Fig 77: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 78: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
