Front of Vehicle/Engine Compartment Component Views

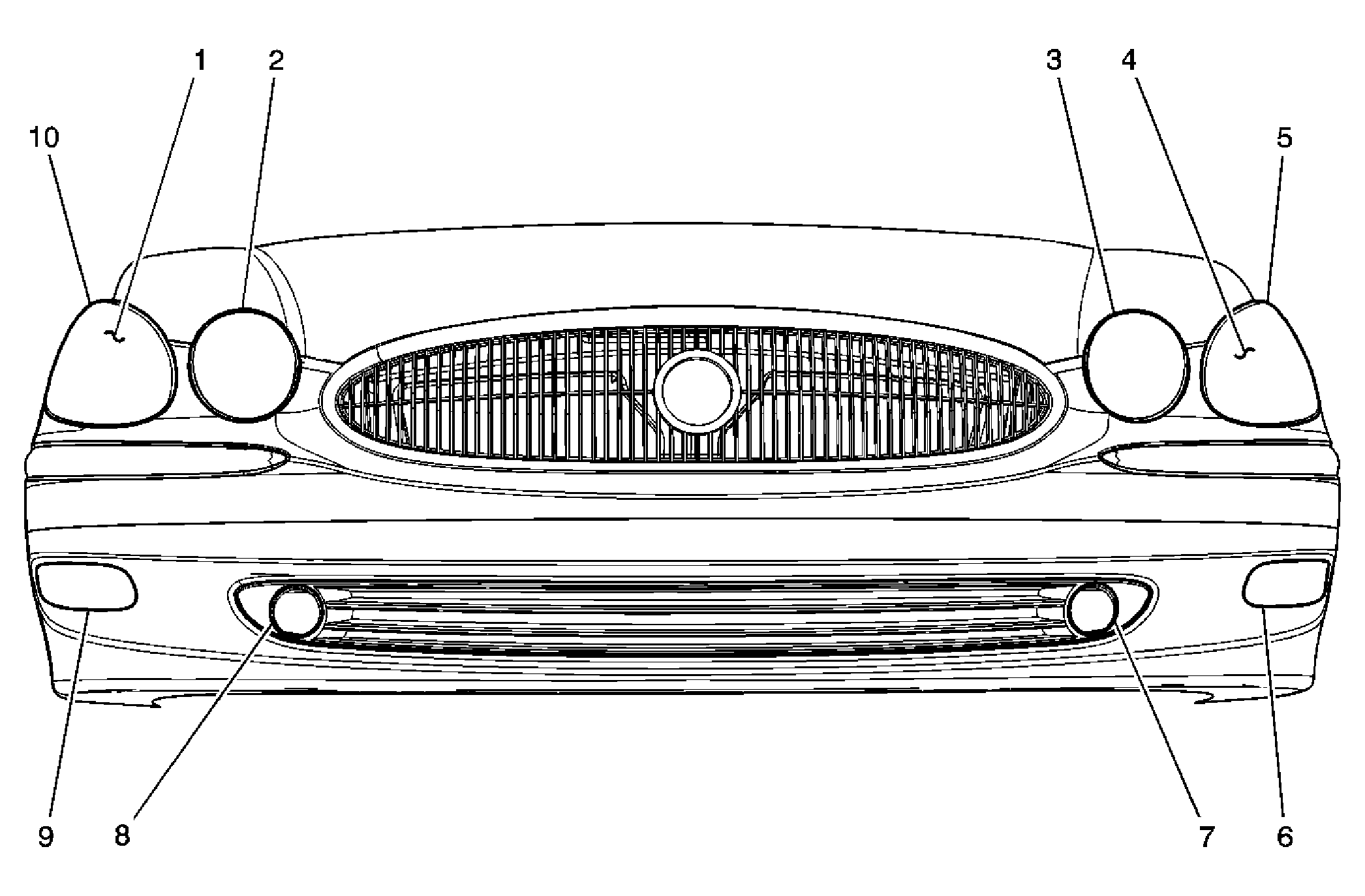

Fig 1: View Of Front Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Headlamp - Low Beam - Left
4	Headlamp - High Beam - Left
5	Park / Turn Signal Lamp - Left Front
6	Marker Lamp - Left Front
7	Fog Lamp - Left Front
8	Fog Lamp - Right Front
9	Marker Lamp - Right Front
10	Park / Turn Signal Lamp - Right Front

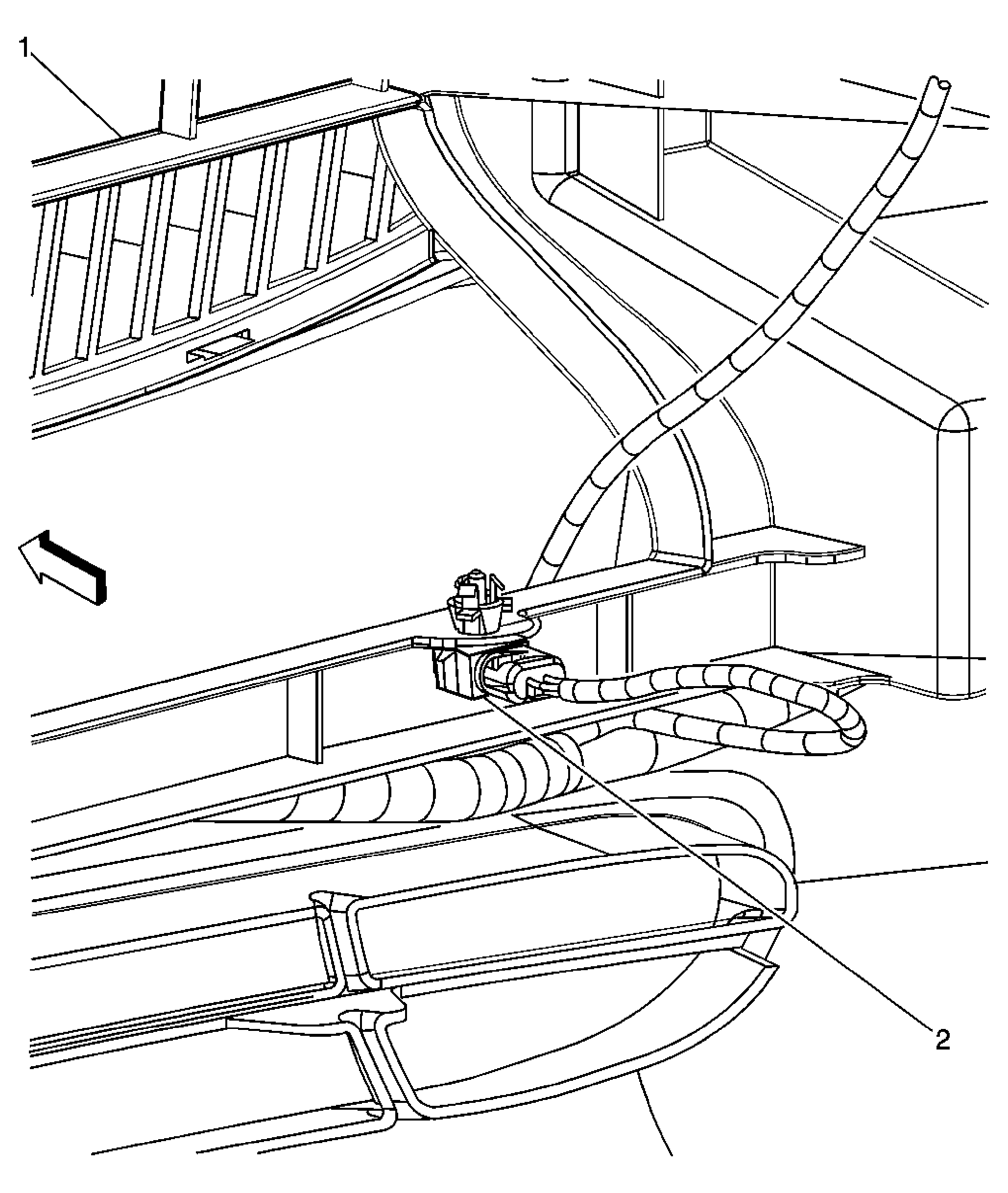

Fig 2: View Of Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Radiator Grill
2	Ambient Air Temperature Sensor

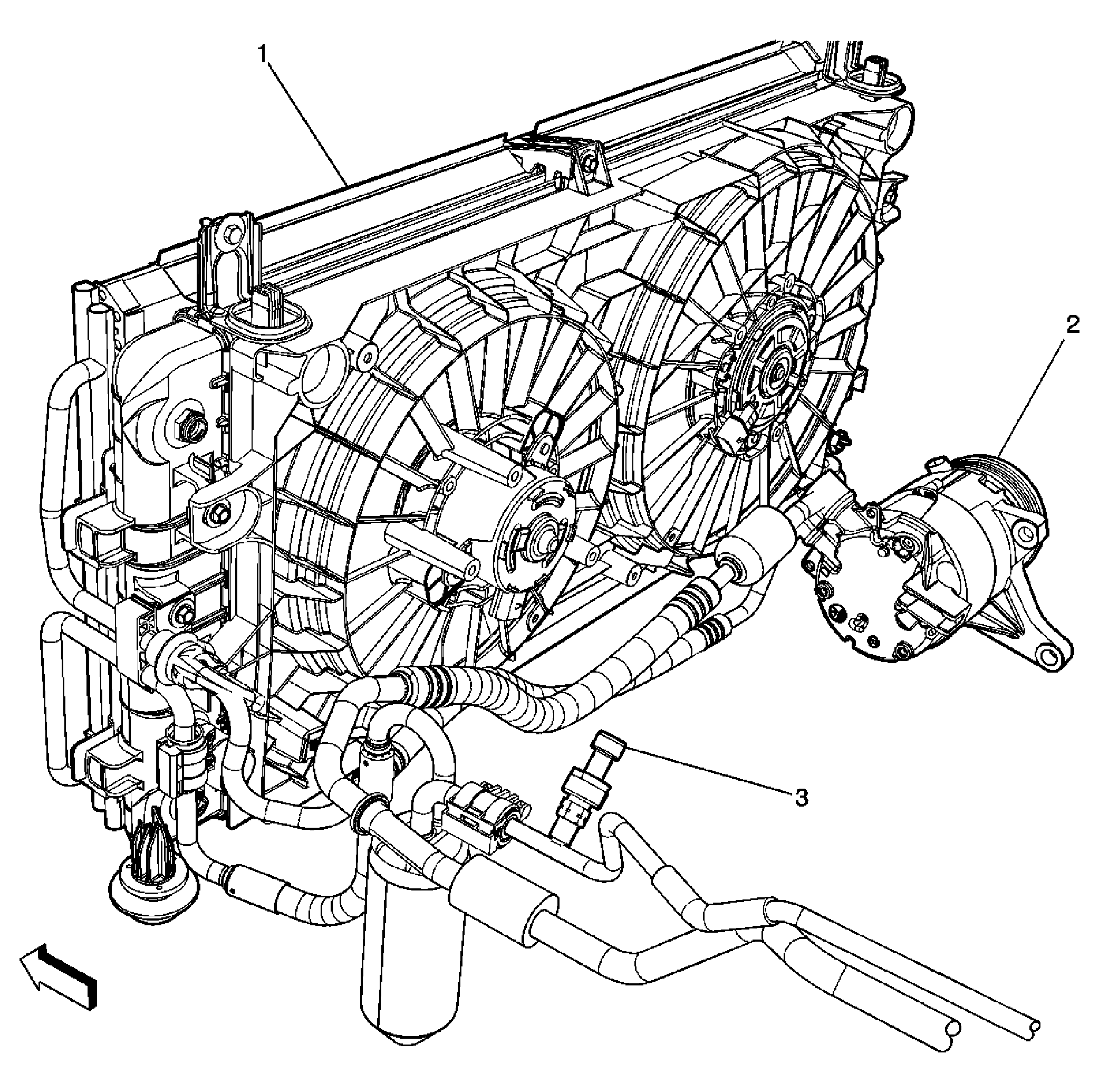

Fig 3: Identifying Front A/C Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator
2	A/C Compressor Clutch
3	A/C Refrigerant Pressure Sensor

Fig 4: Identifying Rear Radiator Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Right
2	Cooling Fan - Left

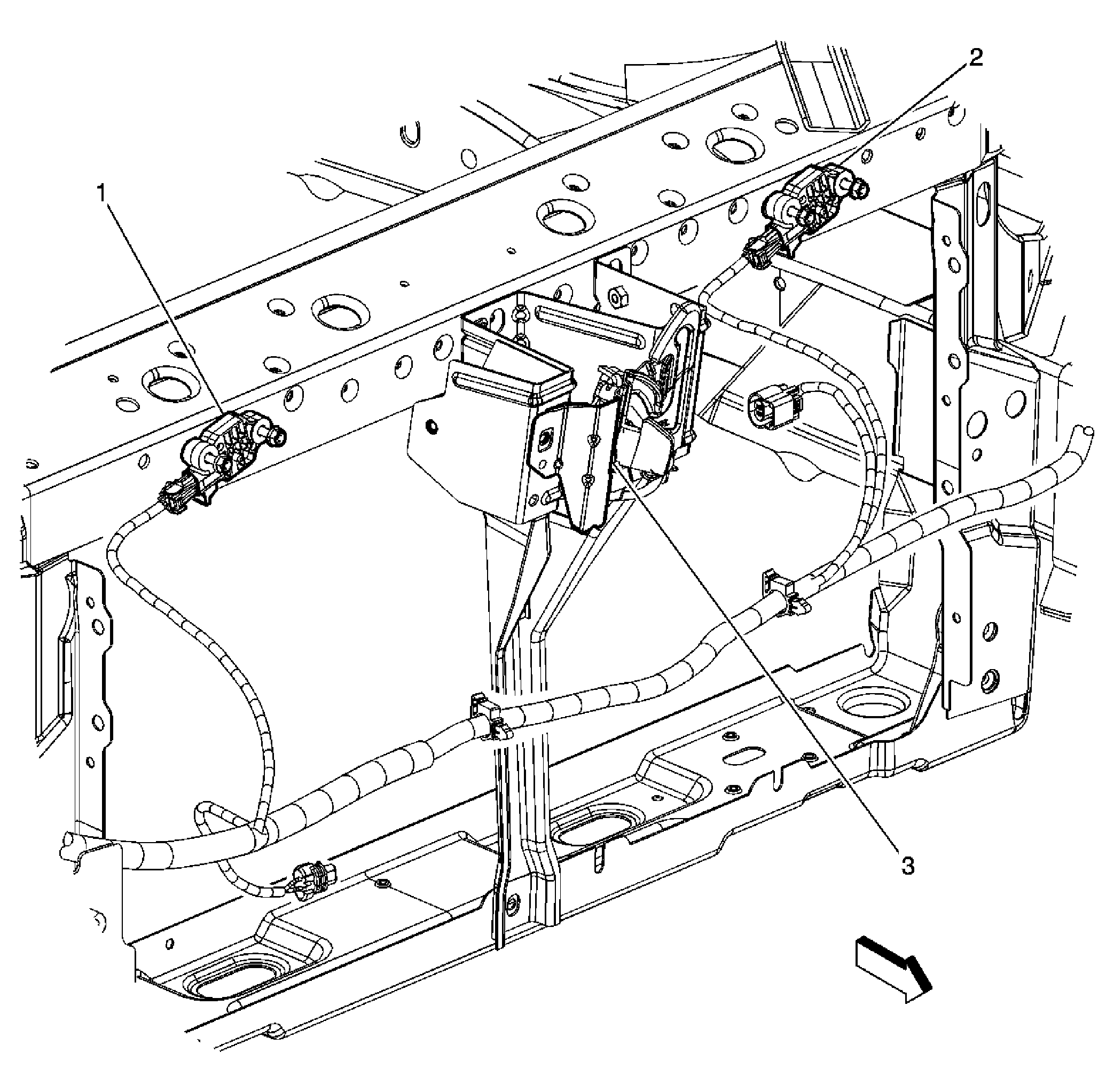

Fig 5: Identifying SIR Components (front Of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left
3	Hood Ajar Switch (AP3)

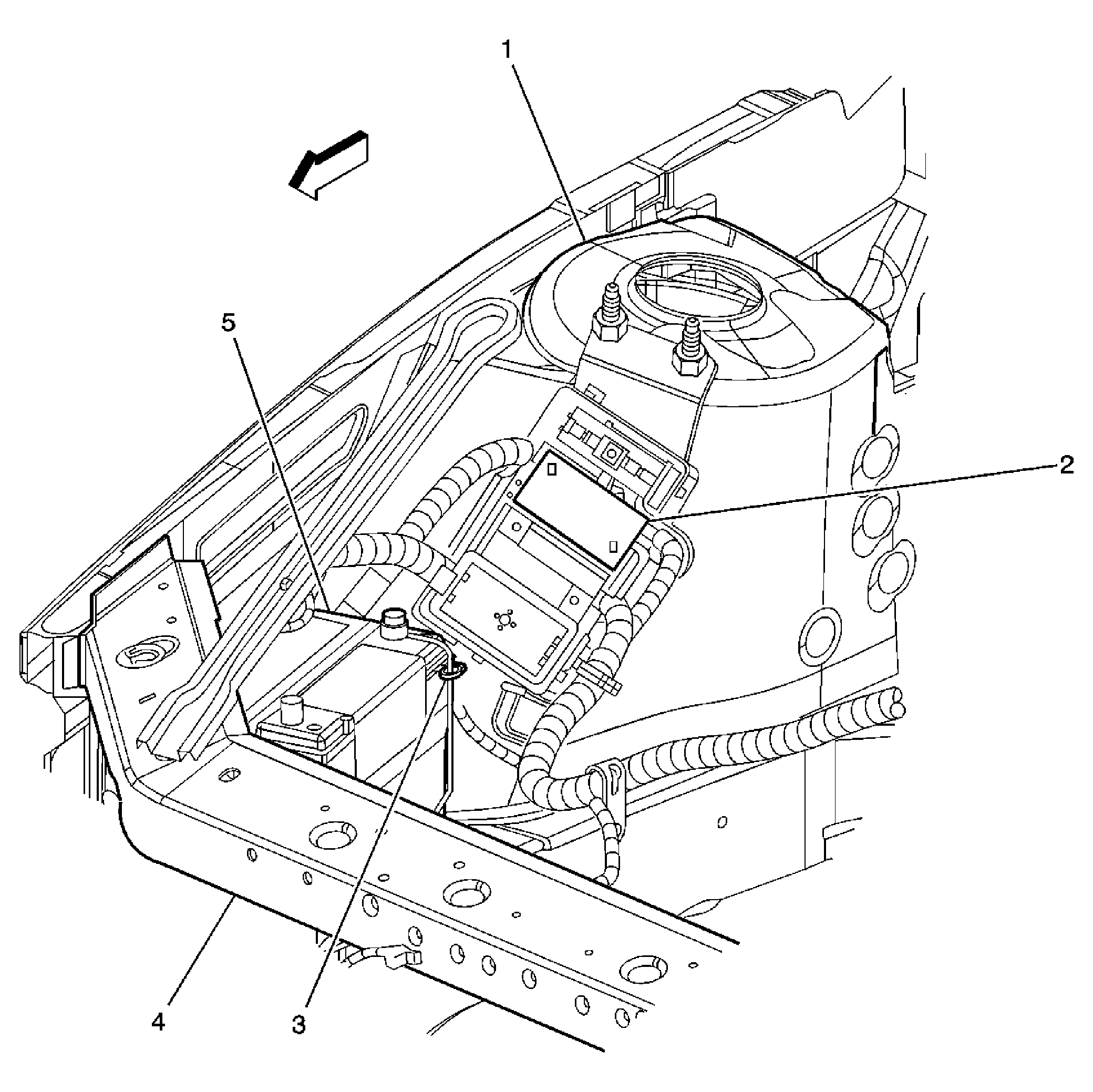

Fig 6: View Of RF Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Transmission Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM)

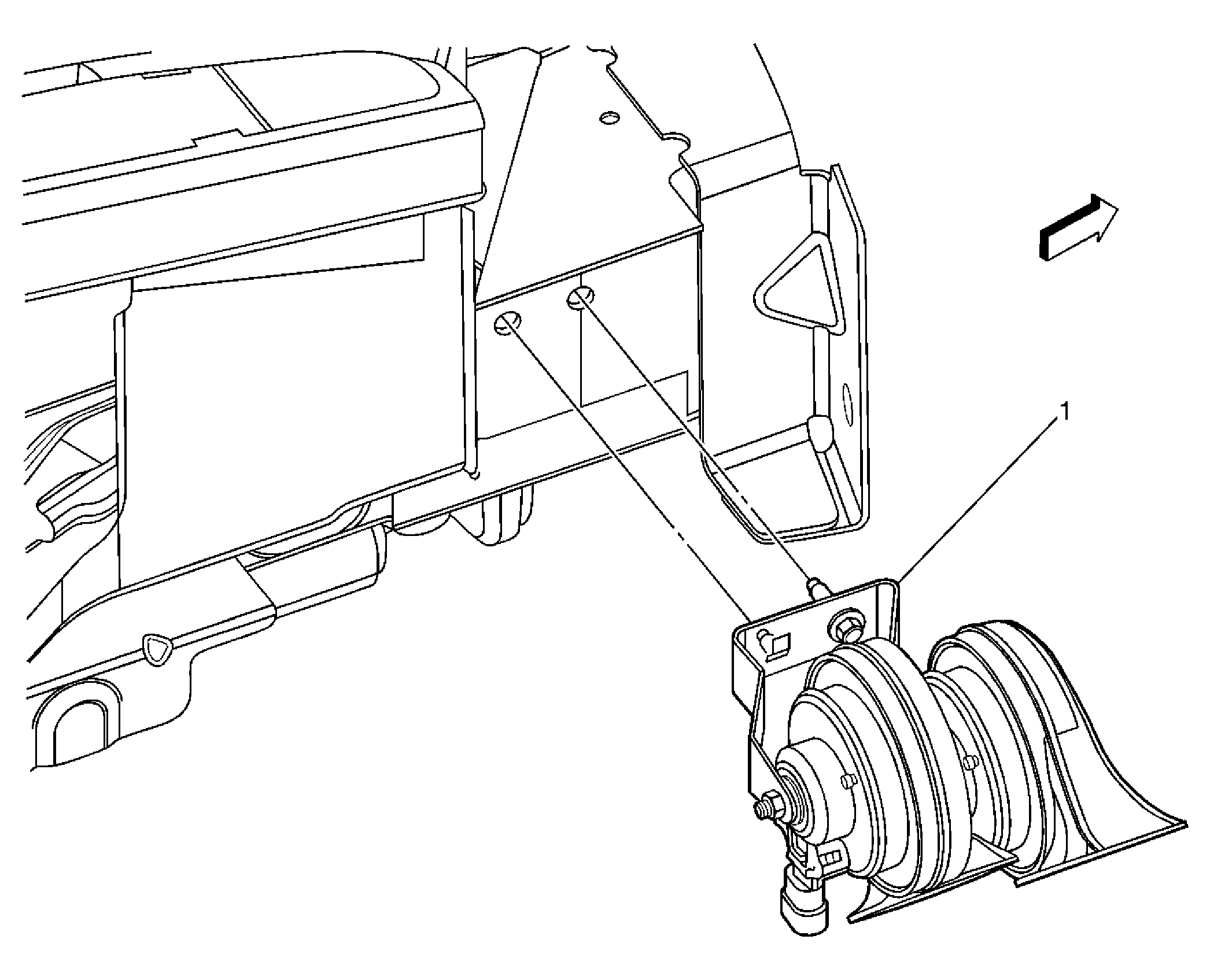

Fig 8: Right Front Of The Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Assembly

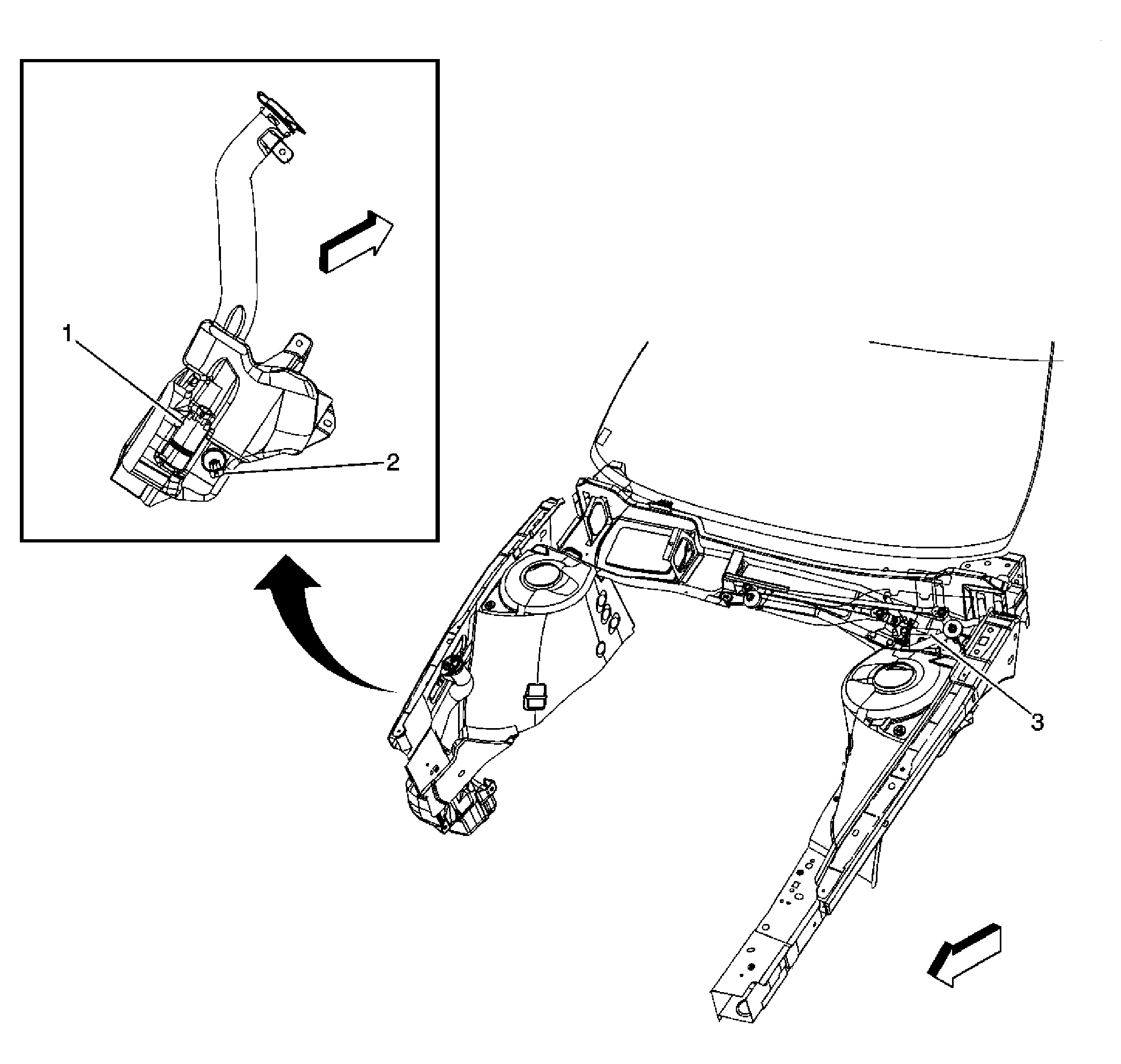

Fig 9: Identifying Wiper/Washer System Components (Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Pump
2	Windshield Washer Fluid Level Switch
3	Windshield Wiper Motor

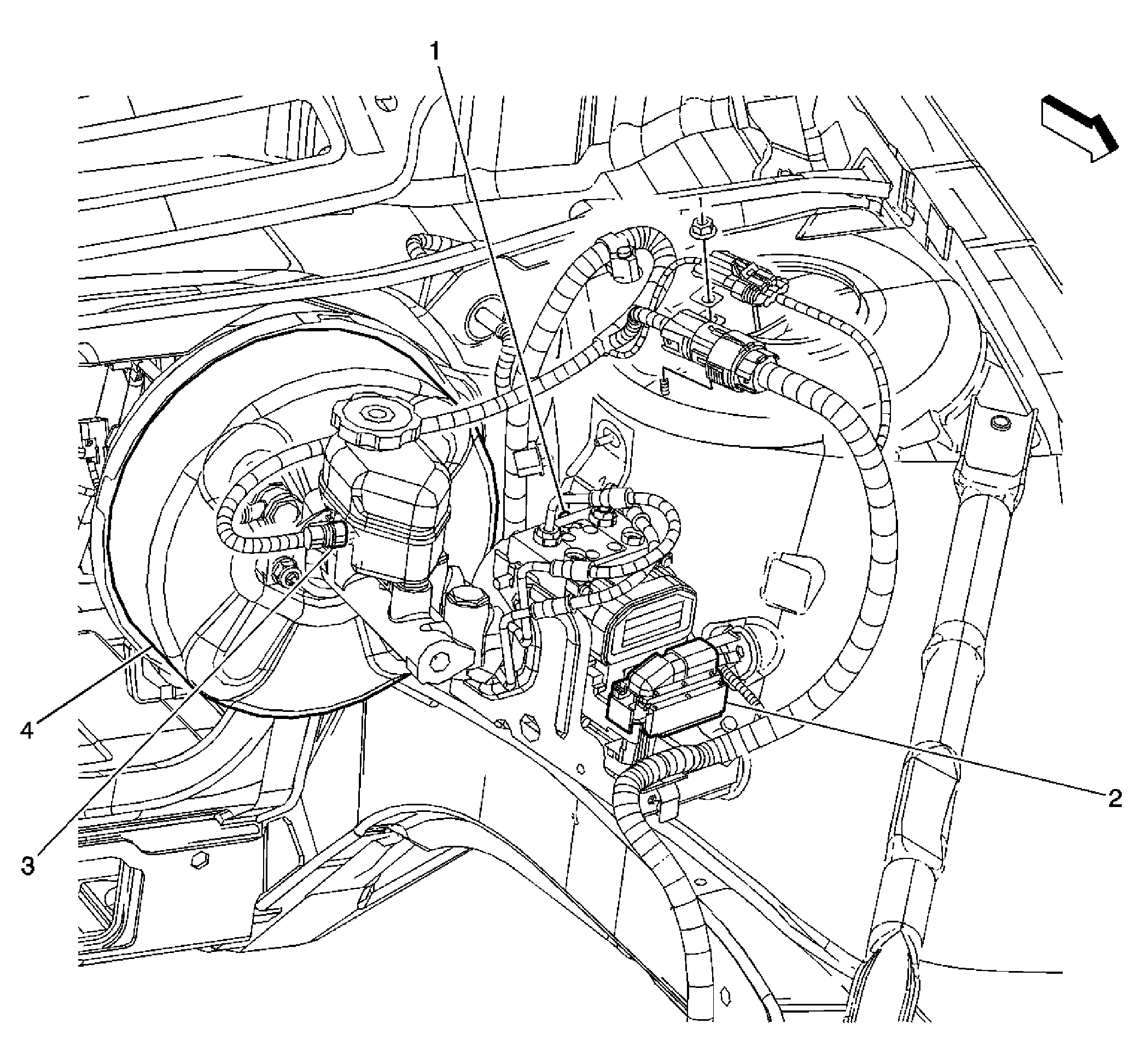

Fig 10: Identifying Brake Components (LR of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pressure Sensor
2	Electronic Brake Control Module (EBCM)
3	Brake Fluid Level Switch
4	Power Brake Booster

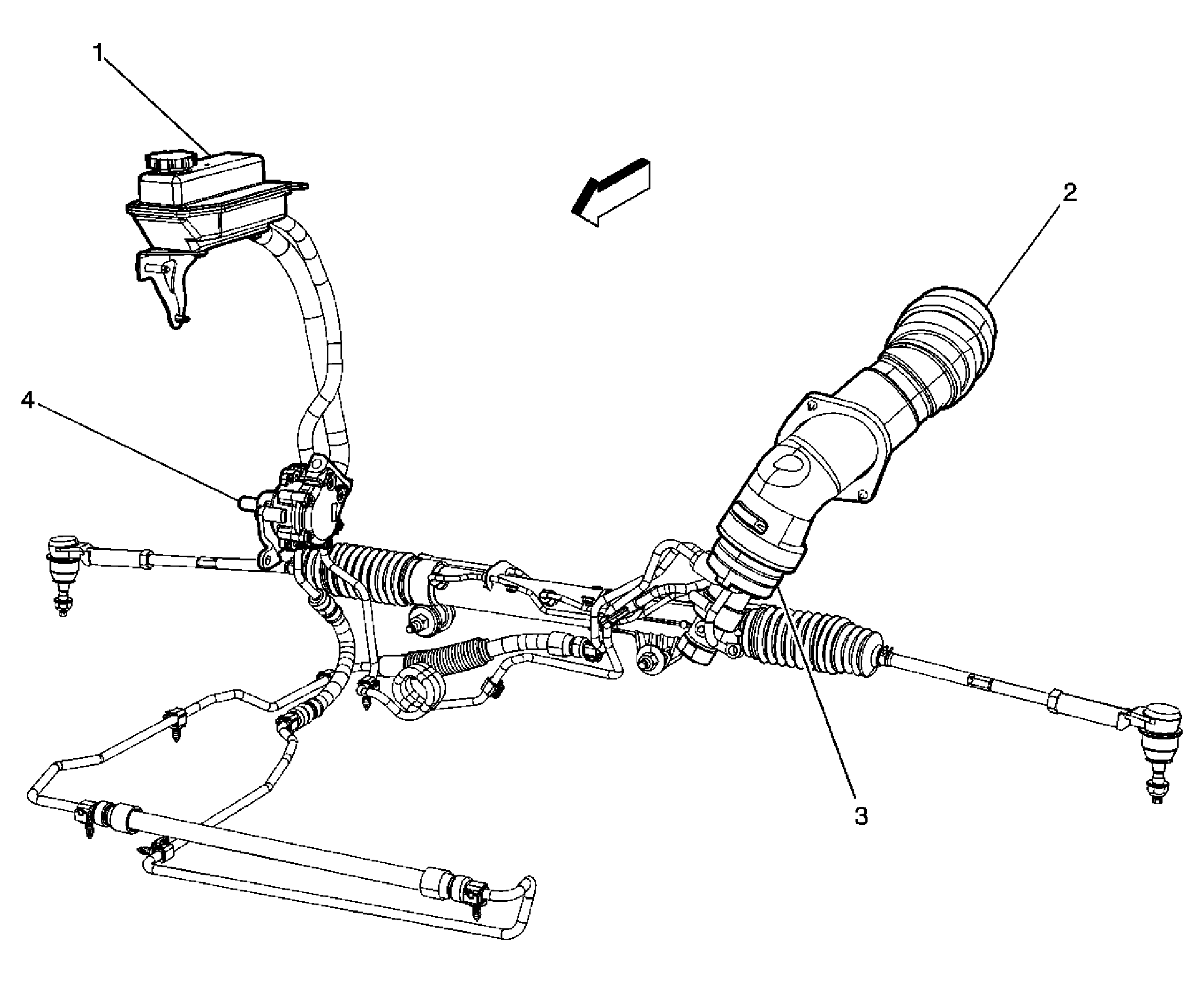

Fig 11: Locating Power Steering Components

Courtesy of GENERAL MOTORS CORP.
