Instrument Panel/Center Console Component Views

Fig 1: Identifying Front Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lamp Switch Assembly - Fog Lamp
2	Instrument Panel Cluster (IPC)
3	Ignition Switch
4	Air Temperature Sensor - Inside
5	Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (C67)
6	Theft LED
7	Driver Information Center (DIC)
8	Radio
9	HVAC Control Module
10	Heated Seat Switch - Front Passenger
11	Cigar Lighter
12	Heated Seat Switch - Driver
13	Steering Wheel Controls - Right
14	Cruise Control Switch
15	Voice Recorder / Cruise Switch Assembly
16	Steering Wheel Controls - Left
17	Turn Signal / Multifunction Switch
18	Instrument Panel Dimmer Switch
19	Lamp Switch Assembly - Interior Lamps

Fig 2: View Behind Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Compartment Lamp
2	HVAC Control Module
3	Radio
4	Air Temperature Sensor - Inside
5	Steering Wheel
6	Instrument Panel Cluster (IPC)
7	Body Control Module (BCM)
8	Steering Angle Sensor
9	Vehicle Communication Interface Module (VCIM)
10	Cigar Lighter
11	Fuse Block - Instrument Panel

Fig 3: View Of Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Theft Deterrent Exciter Module
3	Ignition lock Cylinder Control Actuator

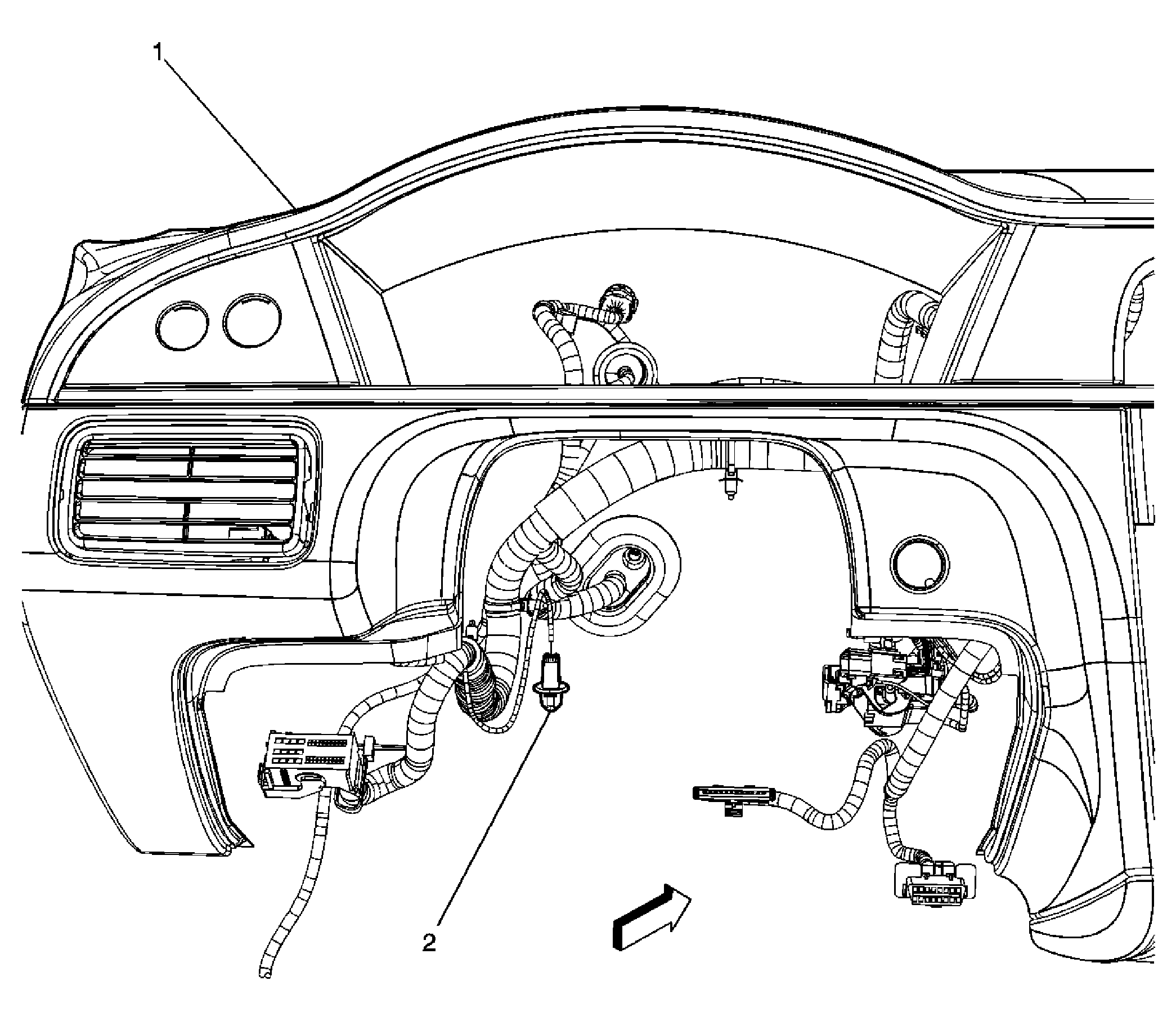

Fig 4: View Of Left Side I/P Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Instrument Panel Courtesy Lamp - Left

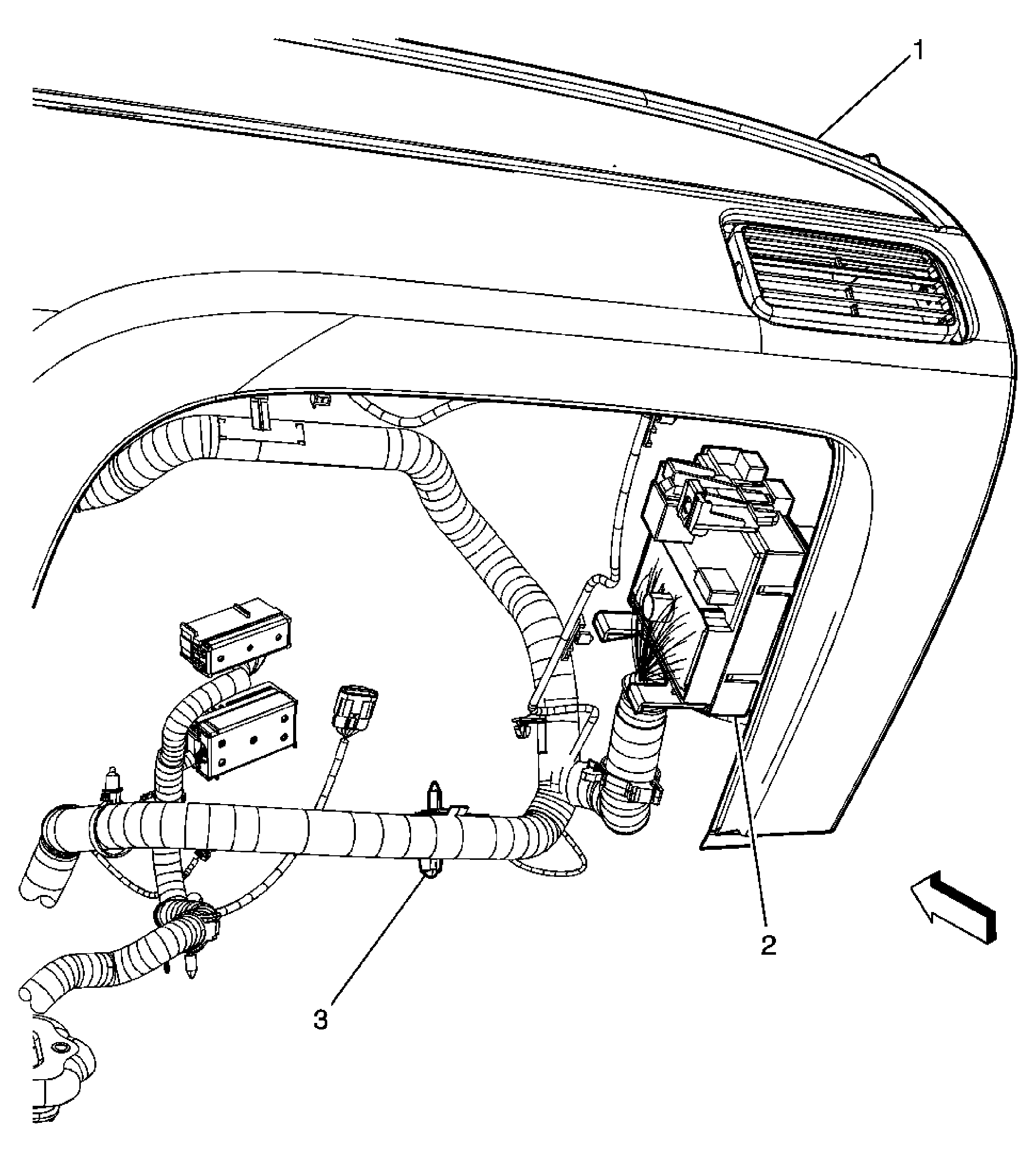

Fig 5: View Of Right Side I/P Lighting Grounding Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Fuse Block - Instrument Panel
3	Instrument Panel Courtesy Lamp - Right

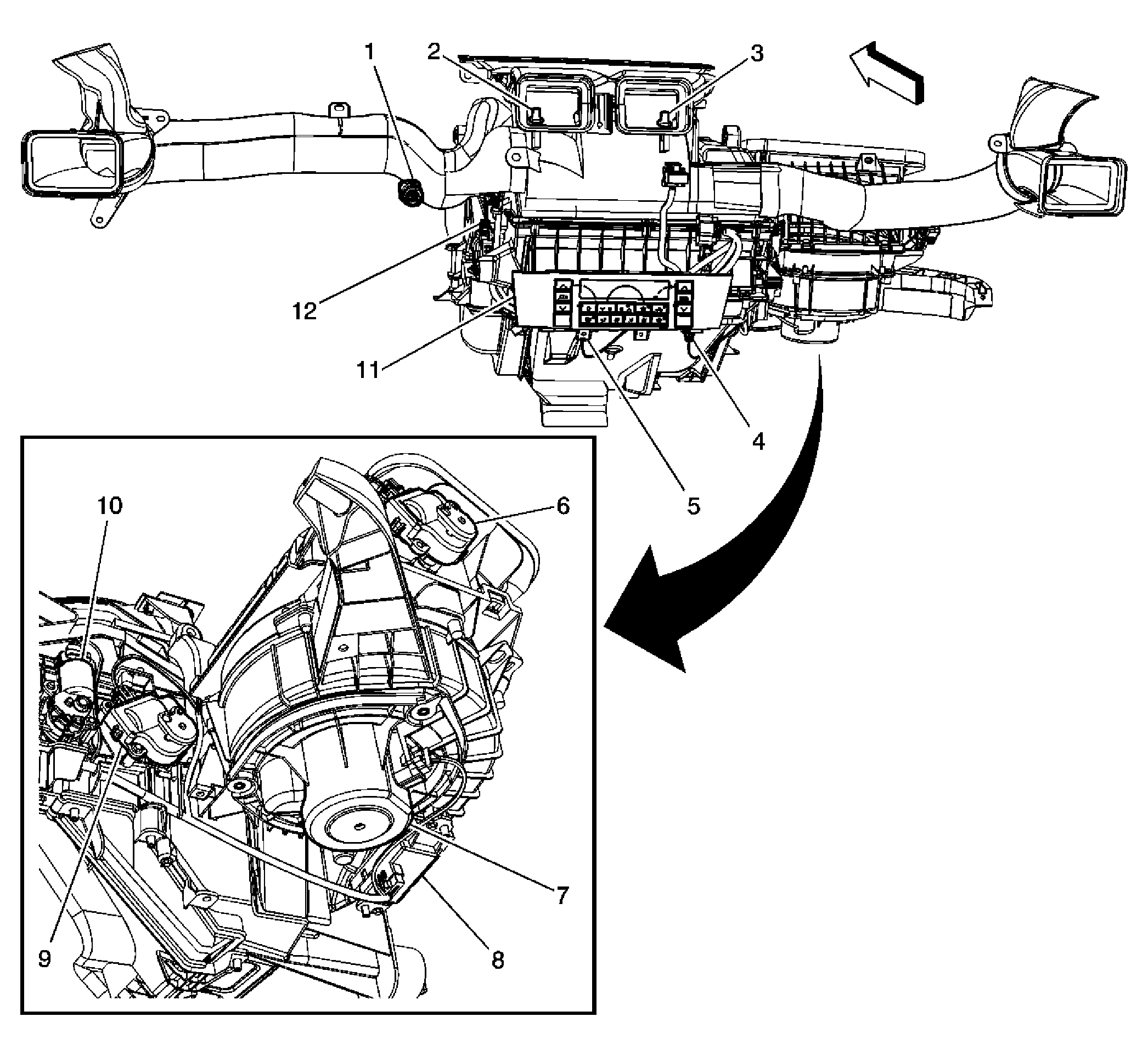

Fig 6: Identifying Interior HVAC Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Inside
2	Air Temperature Sensor - Upper Left
3	Air Temperature Sensor - Upper Right
4	Air Temperature Sensor - Upper Right
5	Air Temperature Sensor - Upper Right
6	Recirculation Actuator
7	Blower Motor
8	Blower Motor Control Processor
9	Air Temperature Actuator - Right
10	Motor Actuator
11	HVAC Control Module
12	Air Temperature Actuator - Left

Fig 7: View Below I/P Carrier

Courtesy of GENERAL MOTORS CORP.

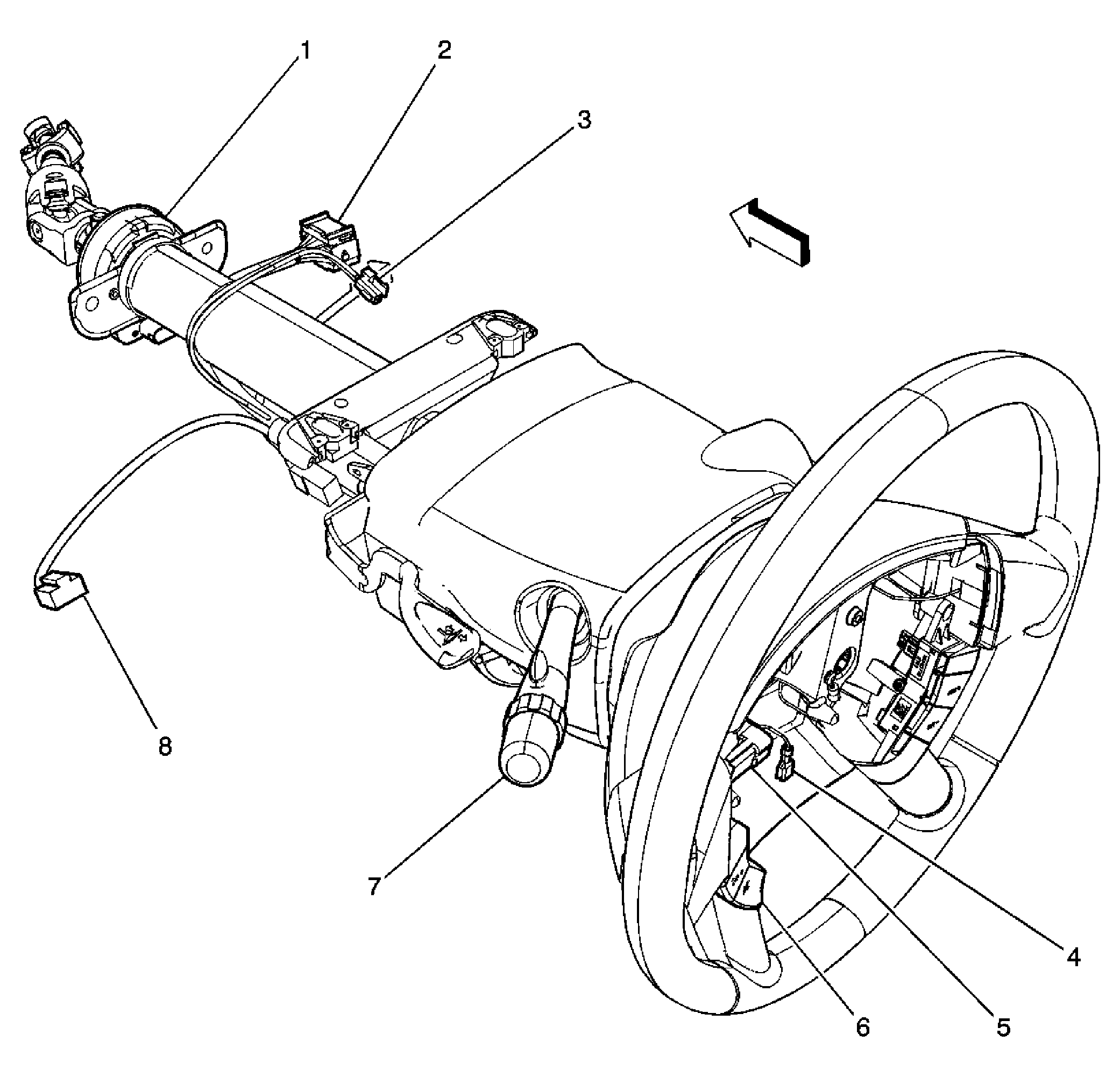

Fig 8: Identifying Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Angle Sensor
2	X201
3	A/T Shiftlock Solenoid Connector
4	Horn Switch Connector
5	X277
6	Steering Wheel Controls
7	Multifunction Accessory Switch
8	Body Control Module (BCM) Connector

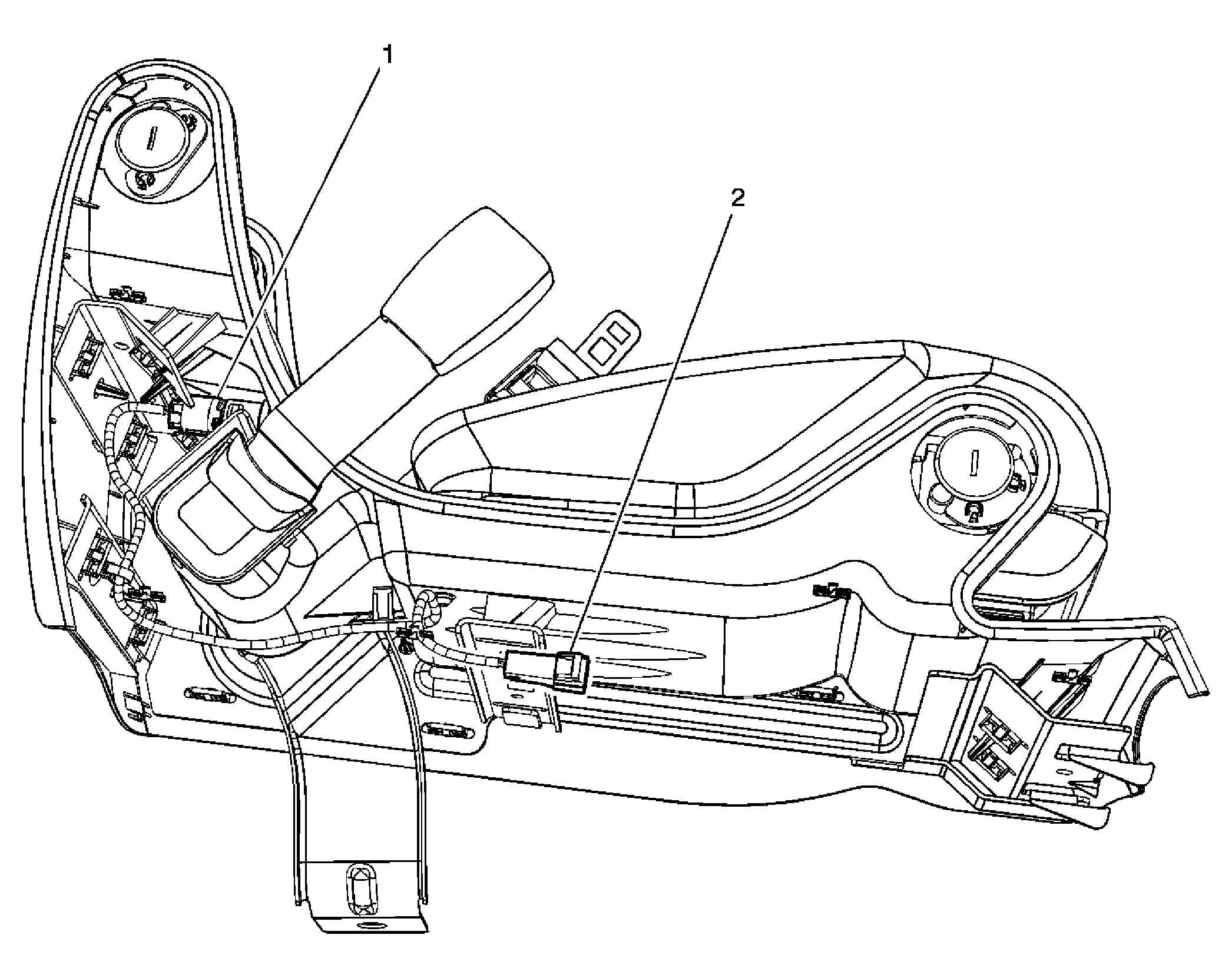

Fig 9: Inside Center Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	PRNDL Lamp
3	X241
4	X240

Fig 10: Identifying Console Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet
2	X240

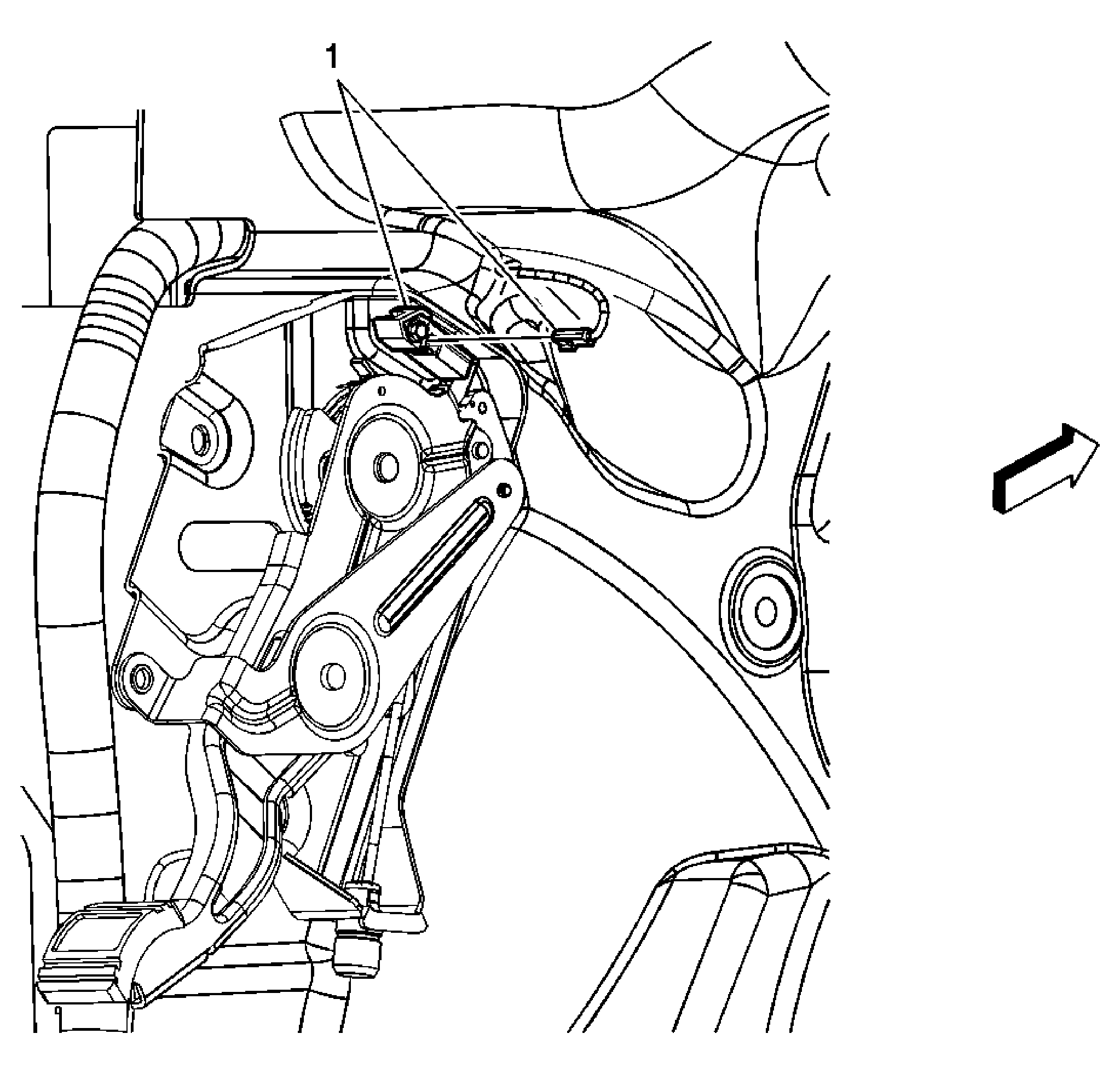

Fig 11: Under the Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch

Fig 12: Left Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	Brake Pedal Position Sensor
