Instrument Panel/Center Console Component Views

Fig 1: Floor Shift Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid (A51)
2	Reverse Lockout Solenoid X1 (A51)
3	Reverse Lockout Solenoid (A51)
4	Reverse Lockout Solenoid X2 (A51)
5	Shifter Background Lamp
6	Auxiliary Power Outlet (A51)
7	Traction Control Switch (A51)
8	Cigar Lighter (DT4+A51) / Auxiliary Power Outlet (A51)

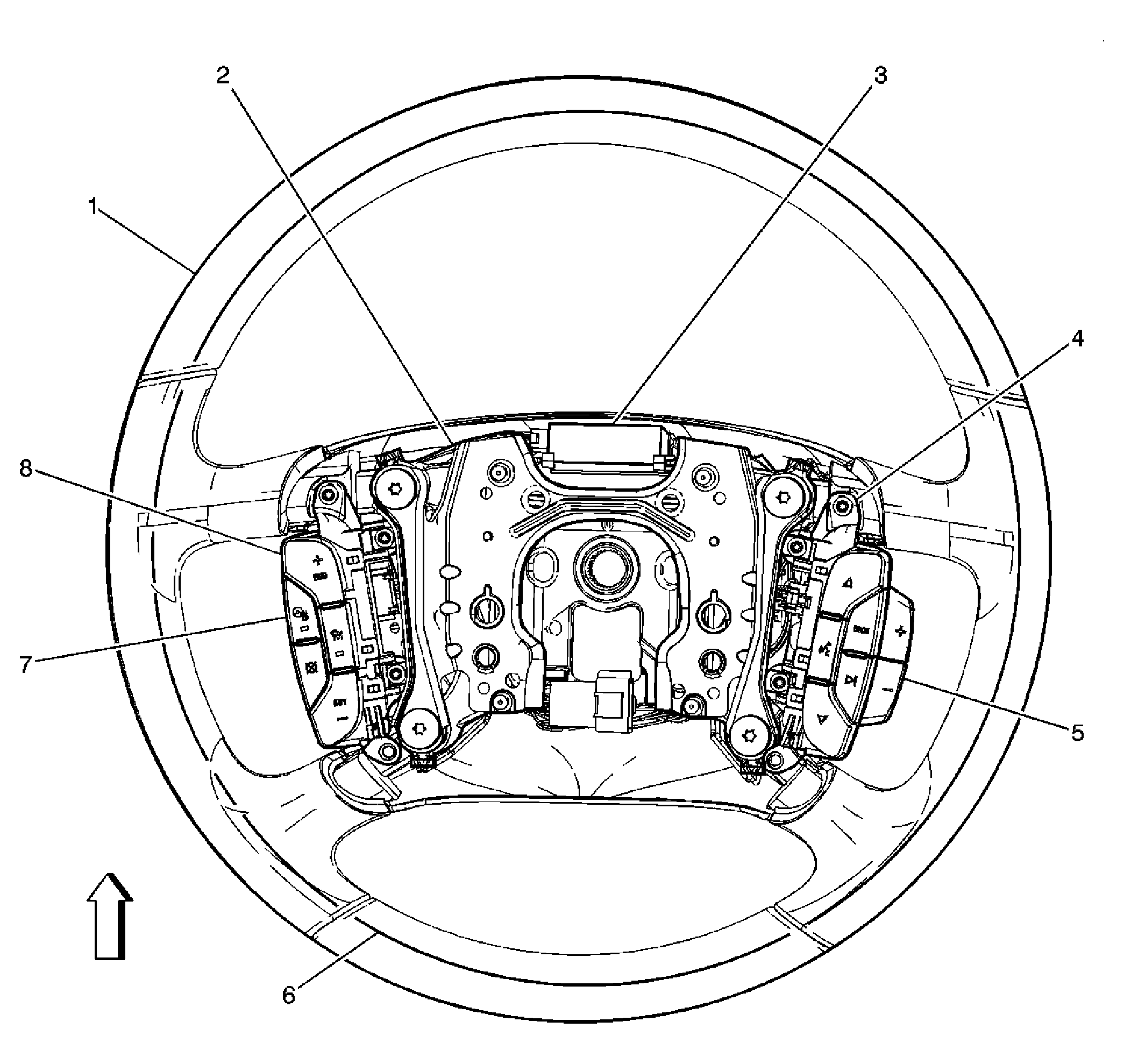

Fig 2: Steering Wheel Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Steering Wheel
2	Horn Switch
3	Heated Steering Wheel Module (NR7)
4	Steering Wheel Control Switch - Right
5	Radio Volume Switch
6	Heated Steering Wheel Element (NR7)
7	Heated Steering Wheel Switch (NR7)
8	Cruise Control Switch

Fig 3: View Of Center Dash Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload Twilight Sensor (CJ2)/Ambient Light Sensor (C67)
2	Global Positioning System (GPS) Antenna (U3U)

Fig 4: View Of Right Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)

Fig 5: Instrument Panel (I/P) Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Instrument Panel Cluster (IPC)
3	Sunload Twilight Sensor (CJ2)/Ambient Light Sensor (C67)
4	Speaker - Front Center (UQA)
5	Hazard Switch
6	Inflatable Restraint I/P Module
7	I/P Compartment Lamp
8	Radio
9	HVAC Control Module
10	Auxiliary Power Outlet - Console (A51)/Cigar Lighter (DT4/A51)
11	Traction Control Switch (A51)
12	Steering Wheel Controls
13	Data Link Connector (DLC)
14	Air Temperature Sensor - Inside (CJ2)
15	Headlamp Switch
16	Turn Signal/Multifunction Switch
17	Driver Information Display Switch

Fig 6: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch - Left
2	Horn Switches
3	Steering Wheel Control Switch - Right
4	Horn Switches
5	Ignition Key Cylinder
6	Theft Deterrent Module (TDM)
7	Gear Shift Solenoid (AN3)
8	Steering Angle Sensor (JL4)
9	Inflatable Restraint Steering Wheel Module Coil
10	Turn Signal/Multifunction Switch

Fig 7: Identifying HVAC Module Components (CJ2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Driver (CJ4/CJ2)
2	Blower Motor
3	Blower Motor Control Module
4	Recirculation Actuator
5	Air Temperature Actuator - Front Passenger (CJ4/CJ2)
6	EVAP Temperature Sensor
7	Mode Actuator

Fig 8: Identifying HVAC Module Components (C67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor
2	Blower Motor Control Module
3	Recirculation Actuator
4	EVAP Temperature Sensor
5	Air Temperature Actuator
6	Mode Actuator

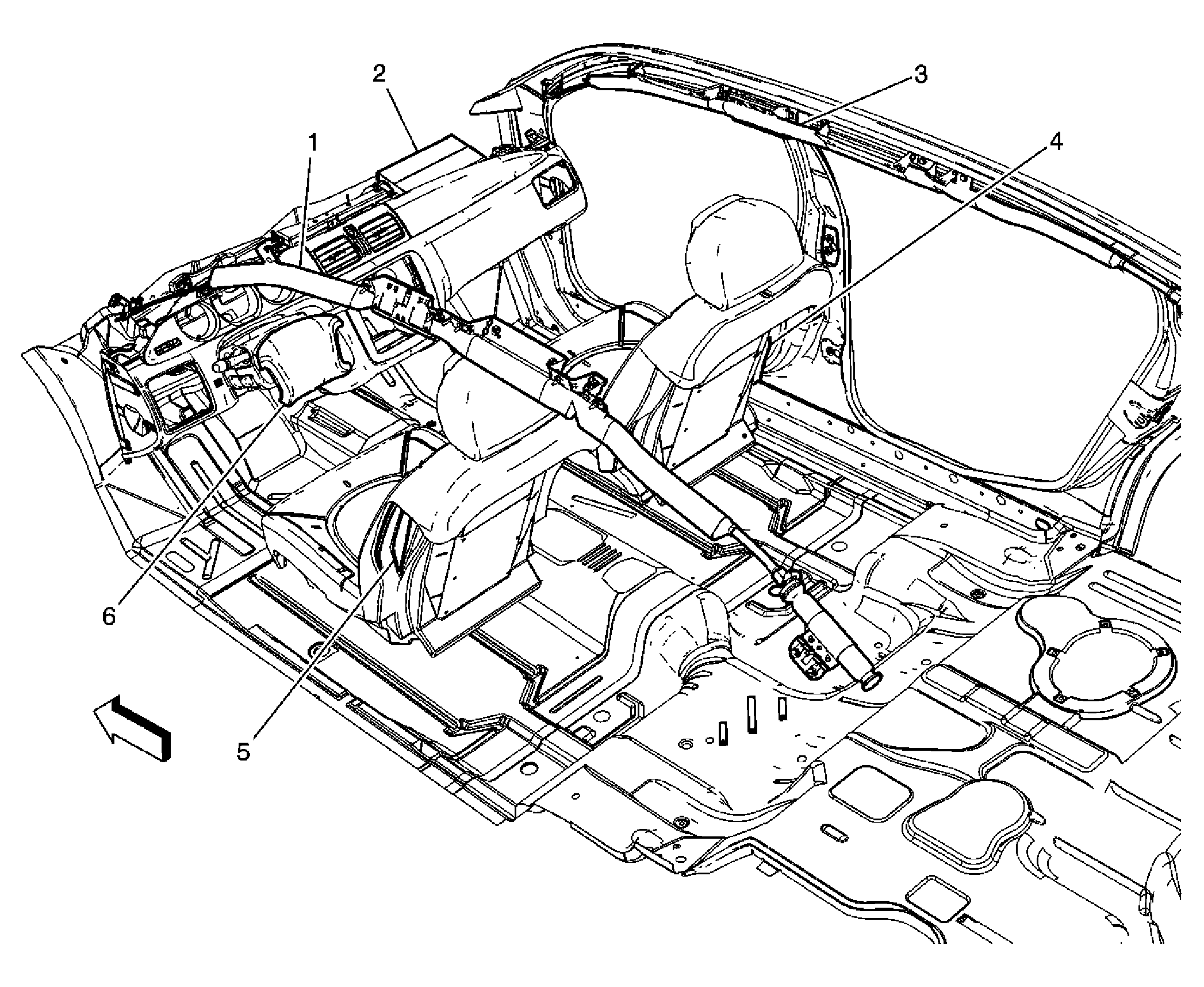

Fig 9: Locating Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (AY0)
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Roof Rail Module - Right (AY0)
4	Inflatable Restraint Steering Wheel Module
