Body Control System Schematics

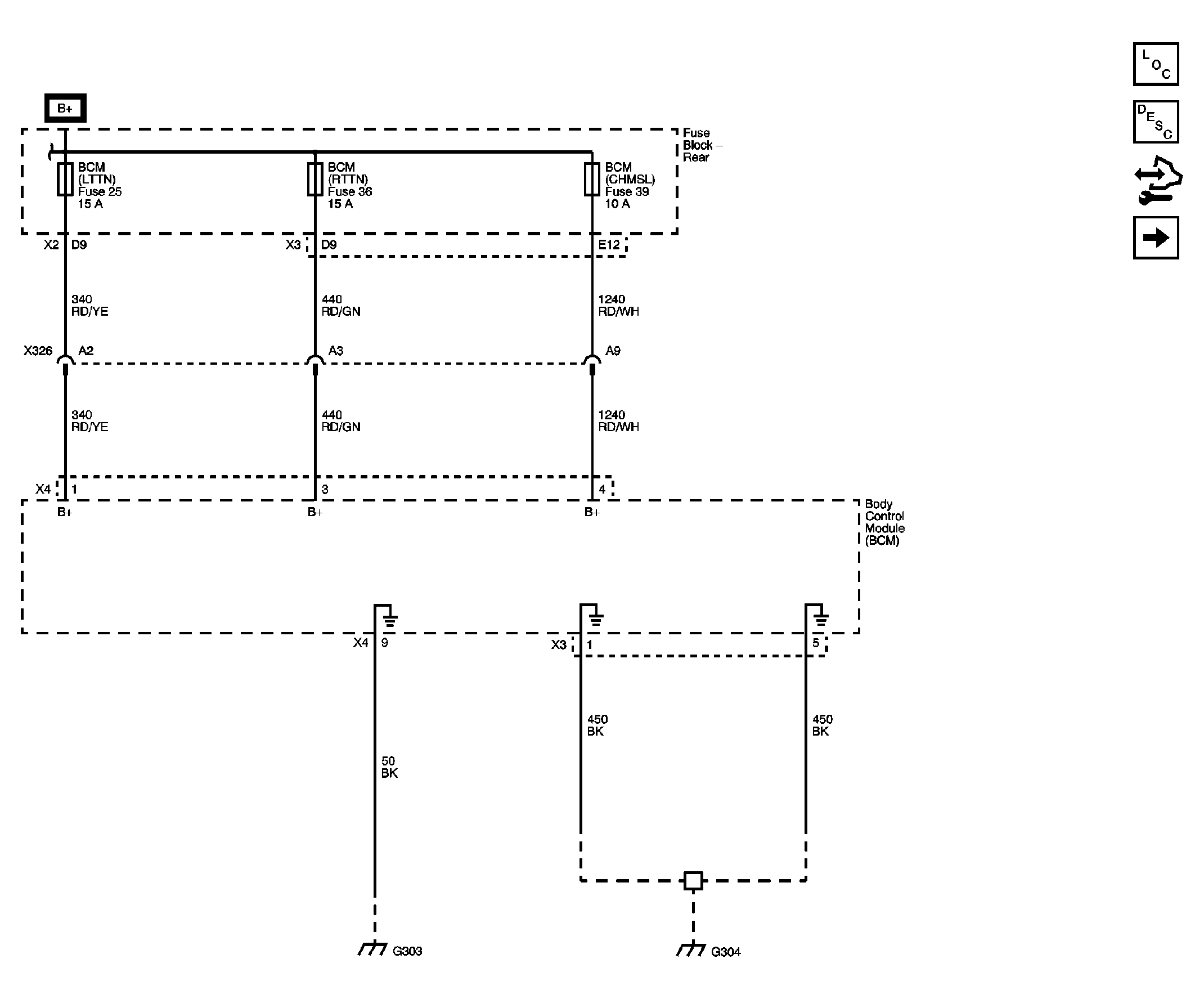

Fig 1: BCM Power, Ground and DLC
GM2228028Courtesy of GENERAL MOTORS CORP.

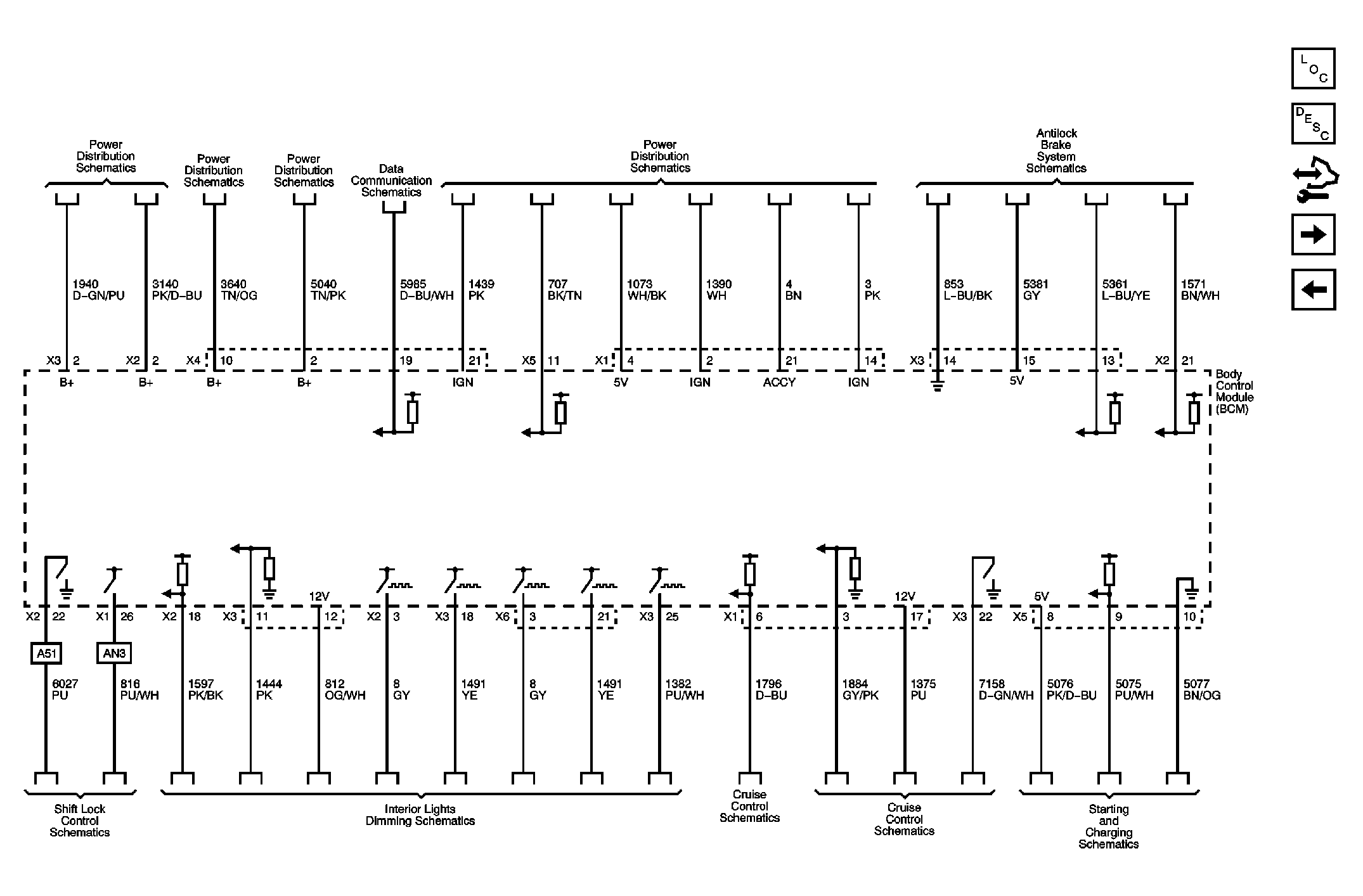

Fig 2: BCM Inputs and Outputs 1 of 4
GM2228029Courtesy of GENERAL MOTORS CORP.

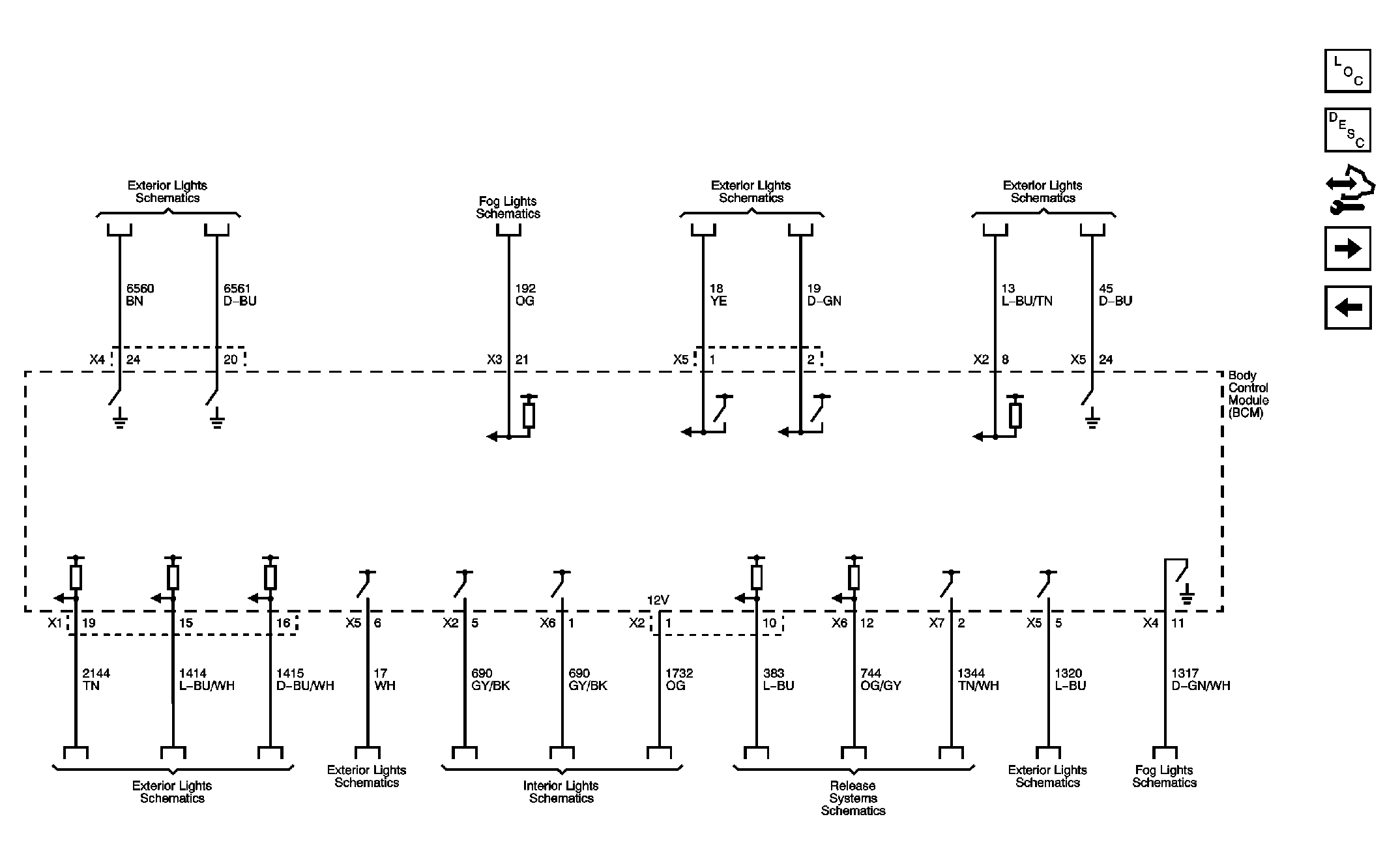

Fig 3: BCM Inputs and Outputs 2 of 4
GM2228030Courtesy of GENERAL MOTORS CORP.

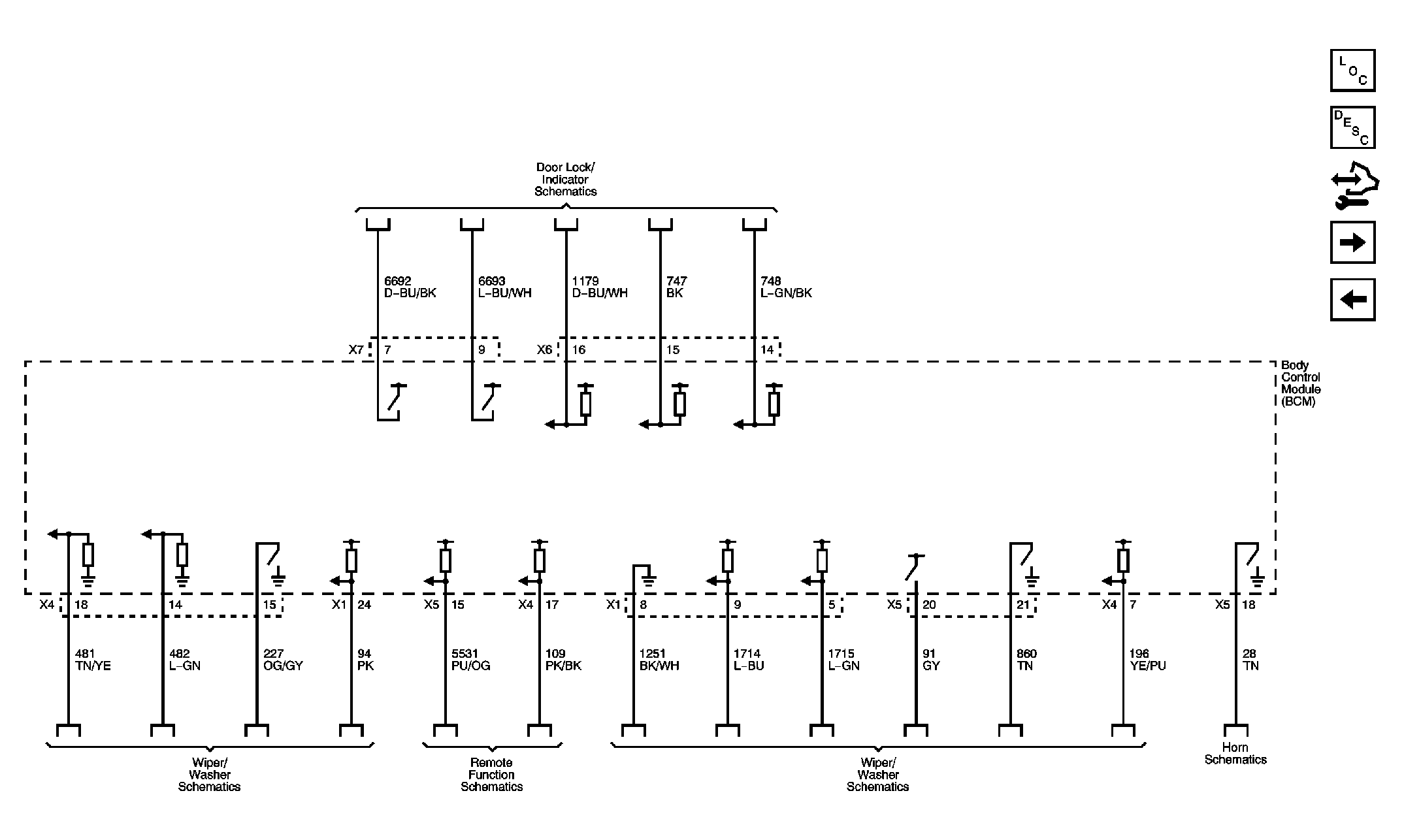

Fig 4: BCM Inputs and Outputs 3 of 4
GM2228031Courtesy of GENERAL MOTORS CORP.

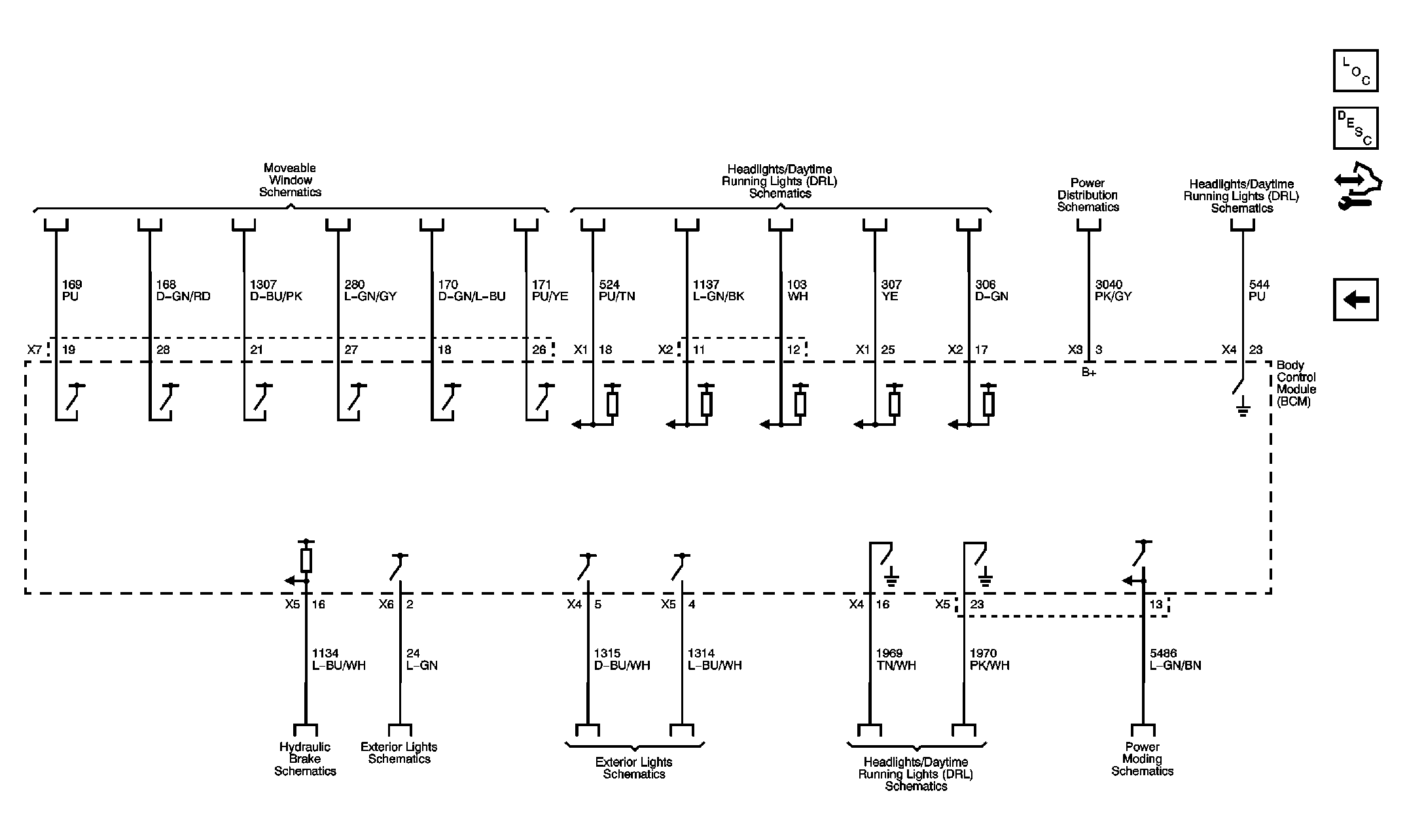

Fig 5: BCM Inputs and Outputs 4 of 4
GM2228035Courtesy of GENERAL MOTORS CORP.
