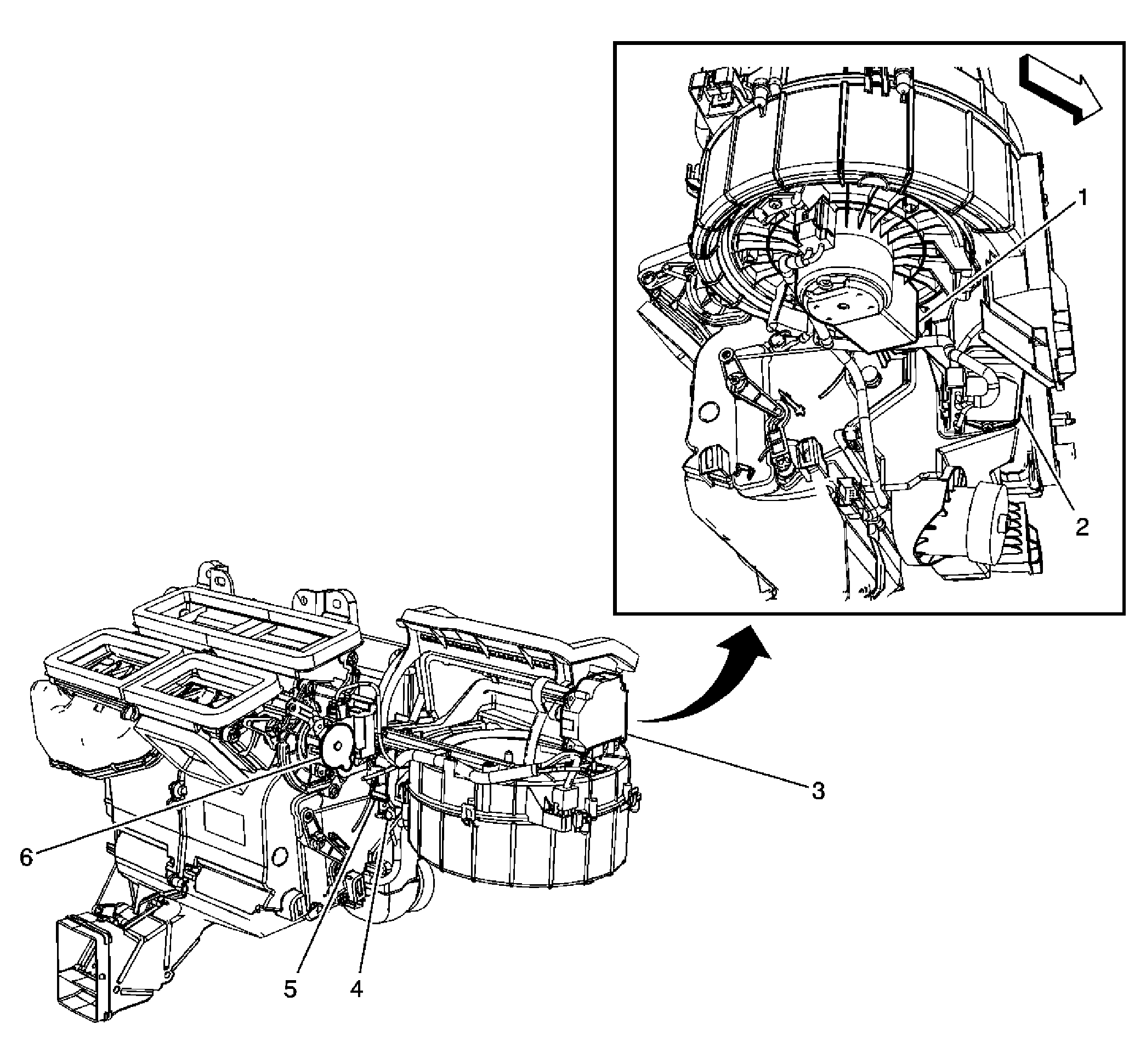

HVAC Module Components (C67)
HVAC Module Components (C67)
| Component Name |
Callout |
| Blower Motor |
1 |
| Blower Motor Control Module |
2 |
| Recirculation Actuator |
3 |
| EVAP Temperature Sensor |
4 |
| Air Temperature Actuator |
5 |
| Mode Actuator |
6 |
Courtesy of GENERAL MOTORS COMPANY
