Body Control System Wiring Schematics

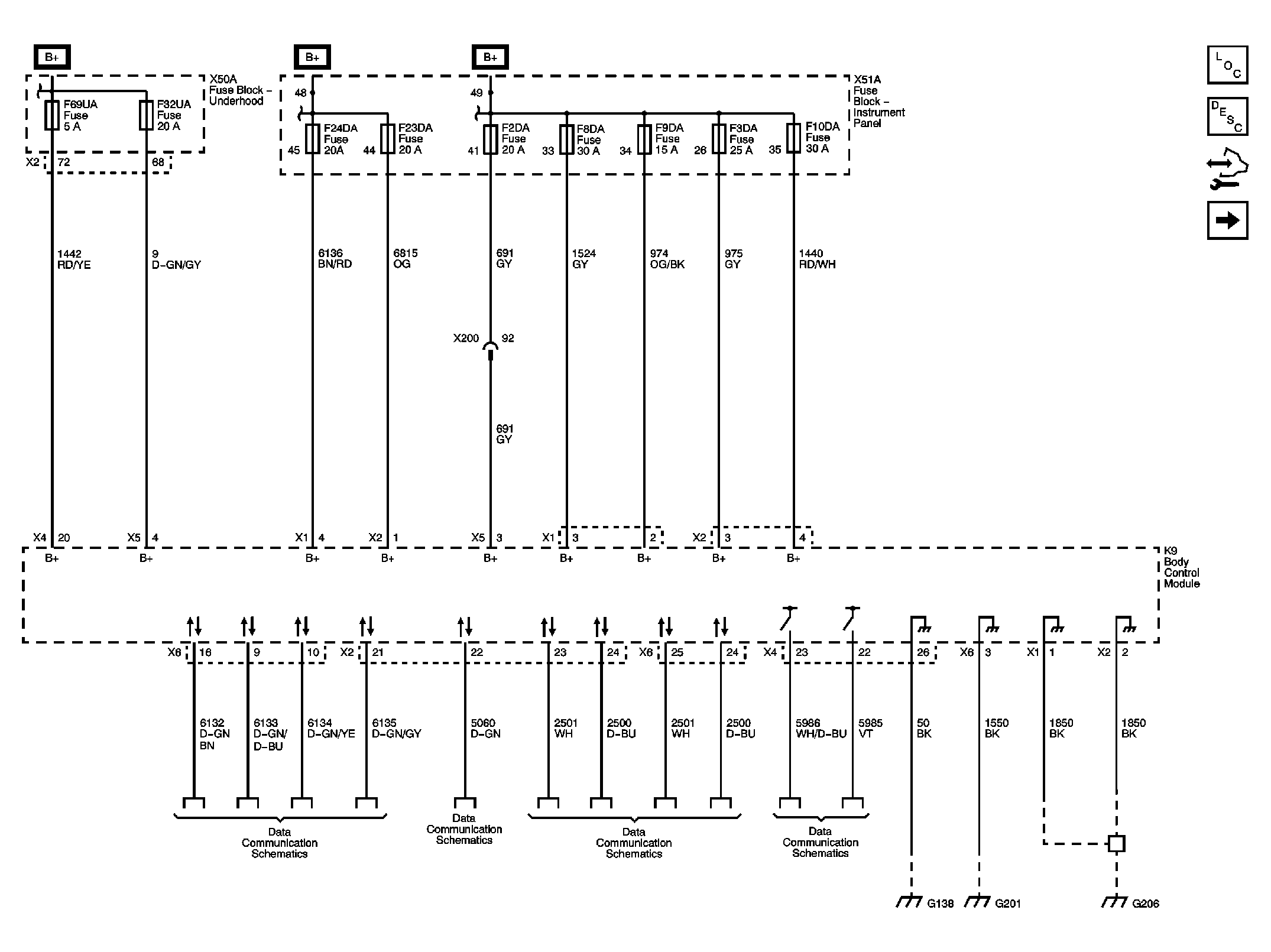

Fig 1: Power, Ground and Serial Data Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

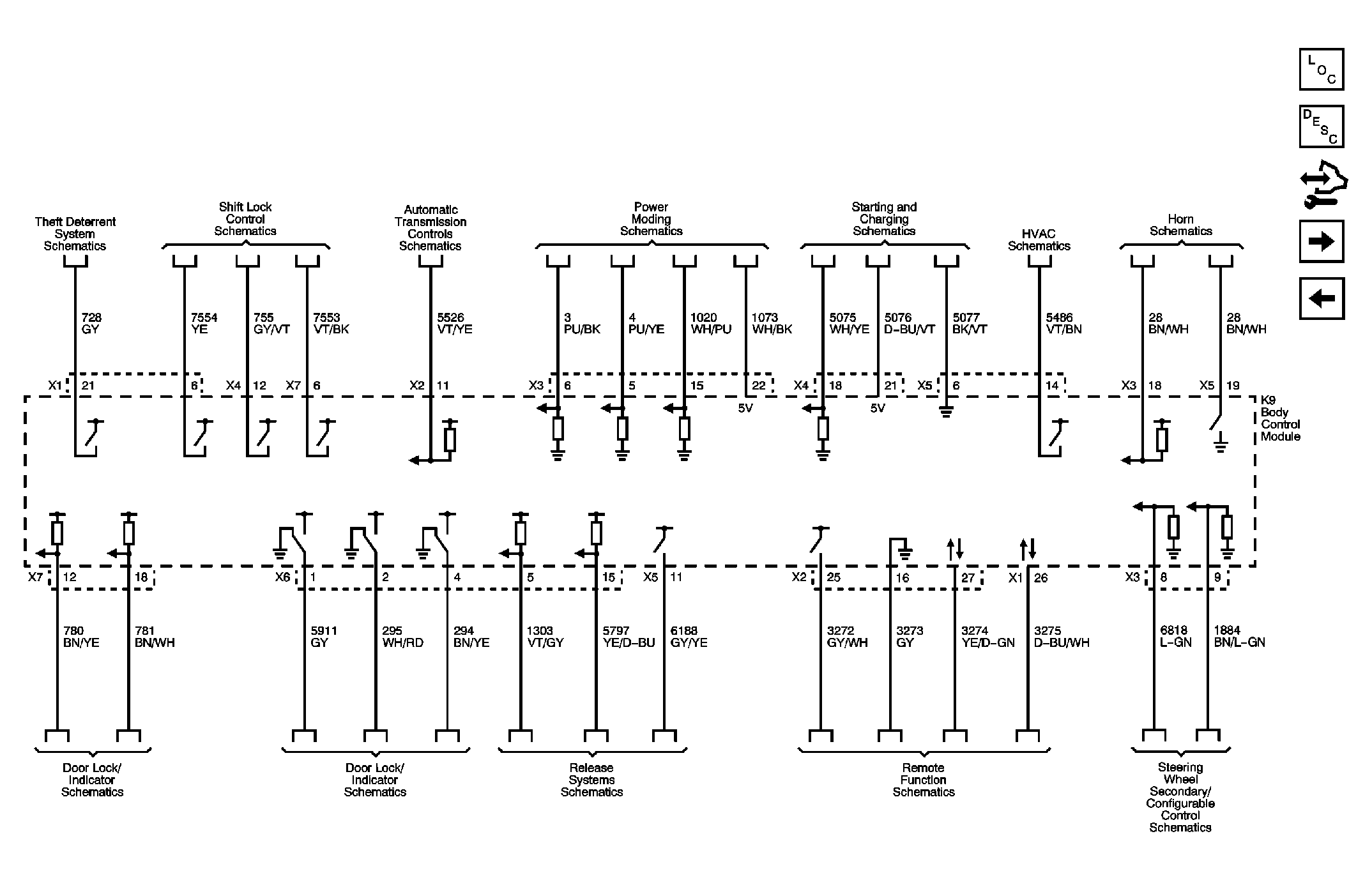

Fig 2: Monitored/Controlled References (1 of 3) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

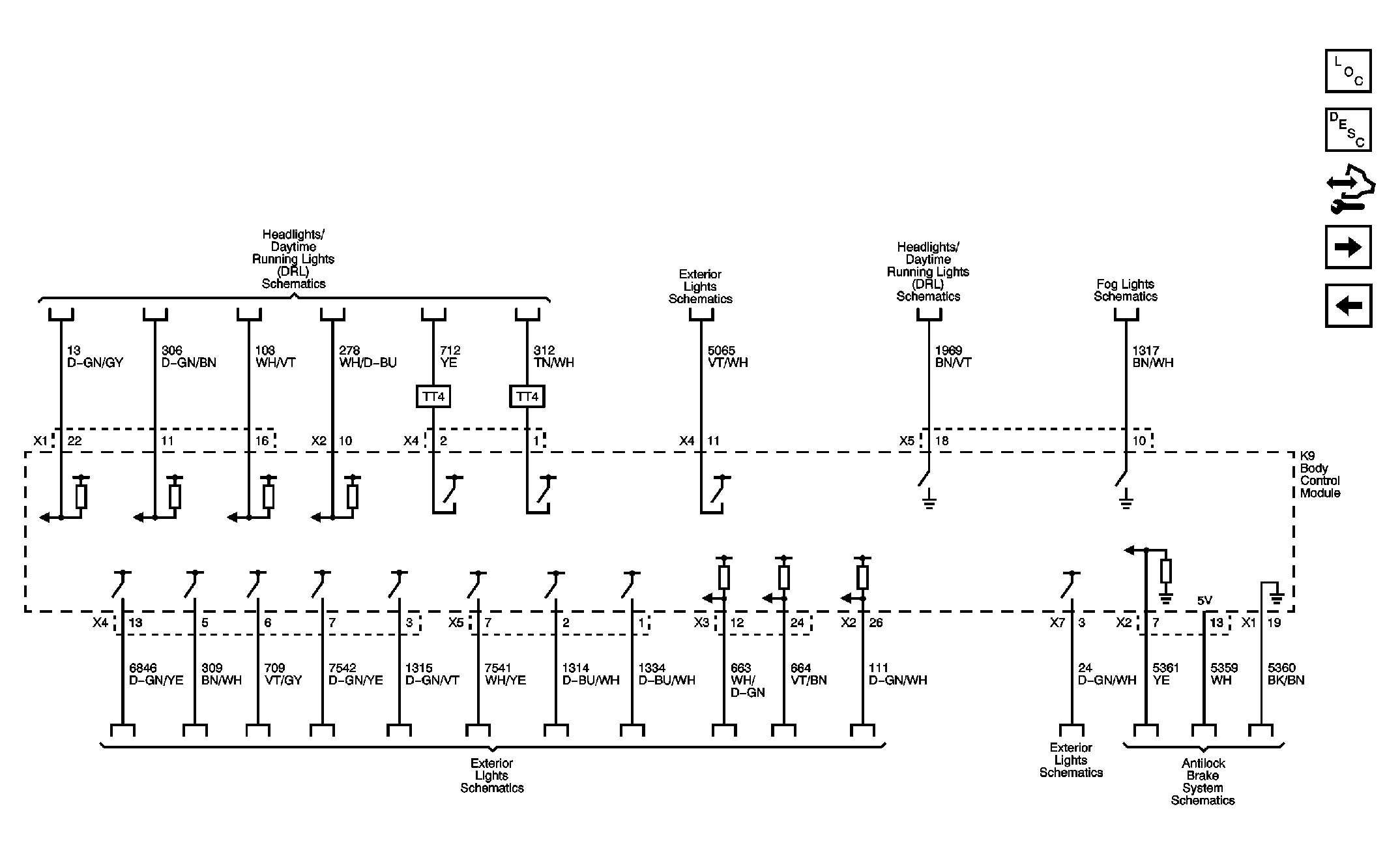

Fig 3: Monitored/Controlled References (2 of 3) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

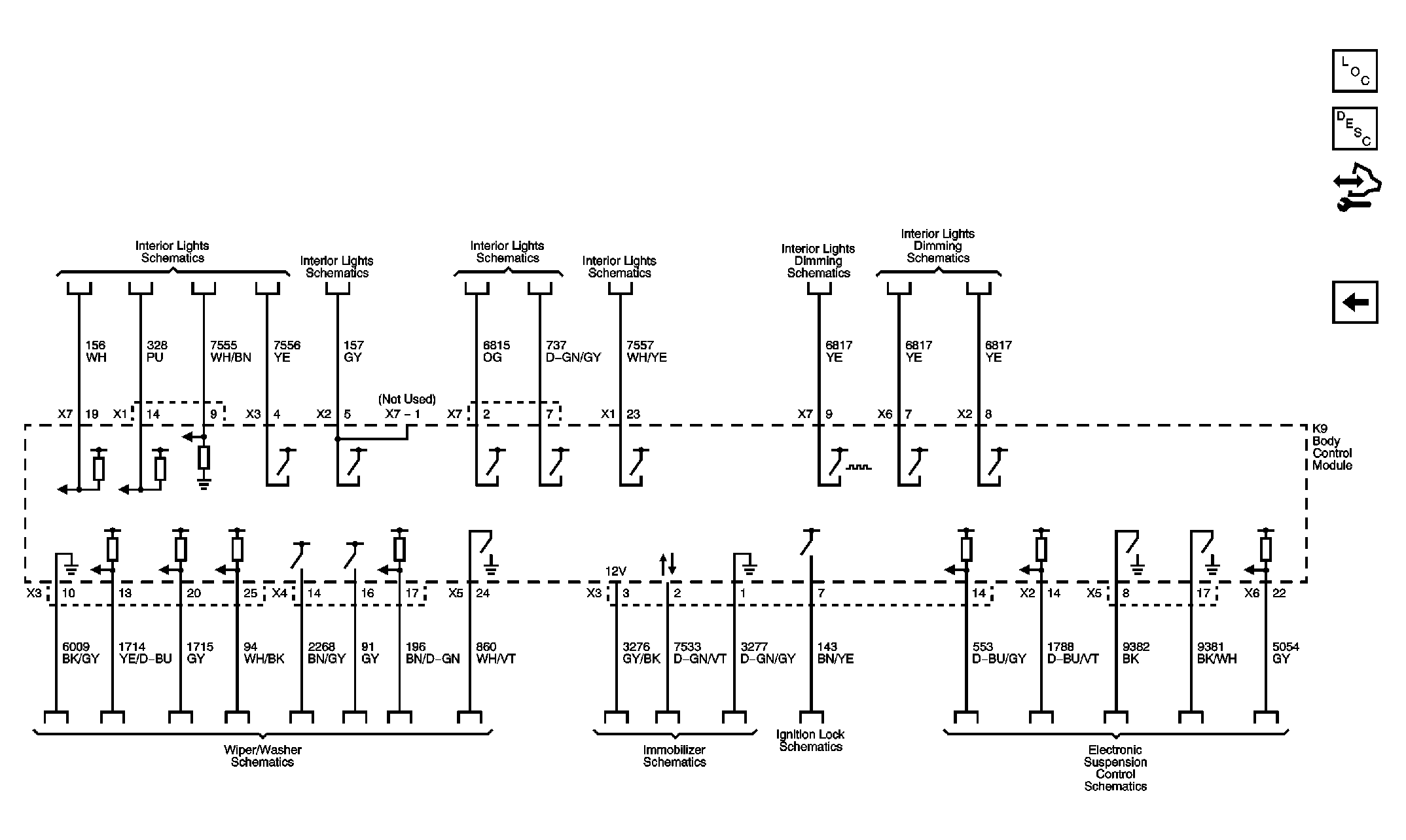

Fig 4: Monitored/Controlled References (3 of 3) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
