Module Power, Ground, Data Communication And Controls

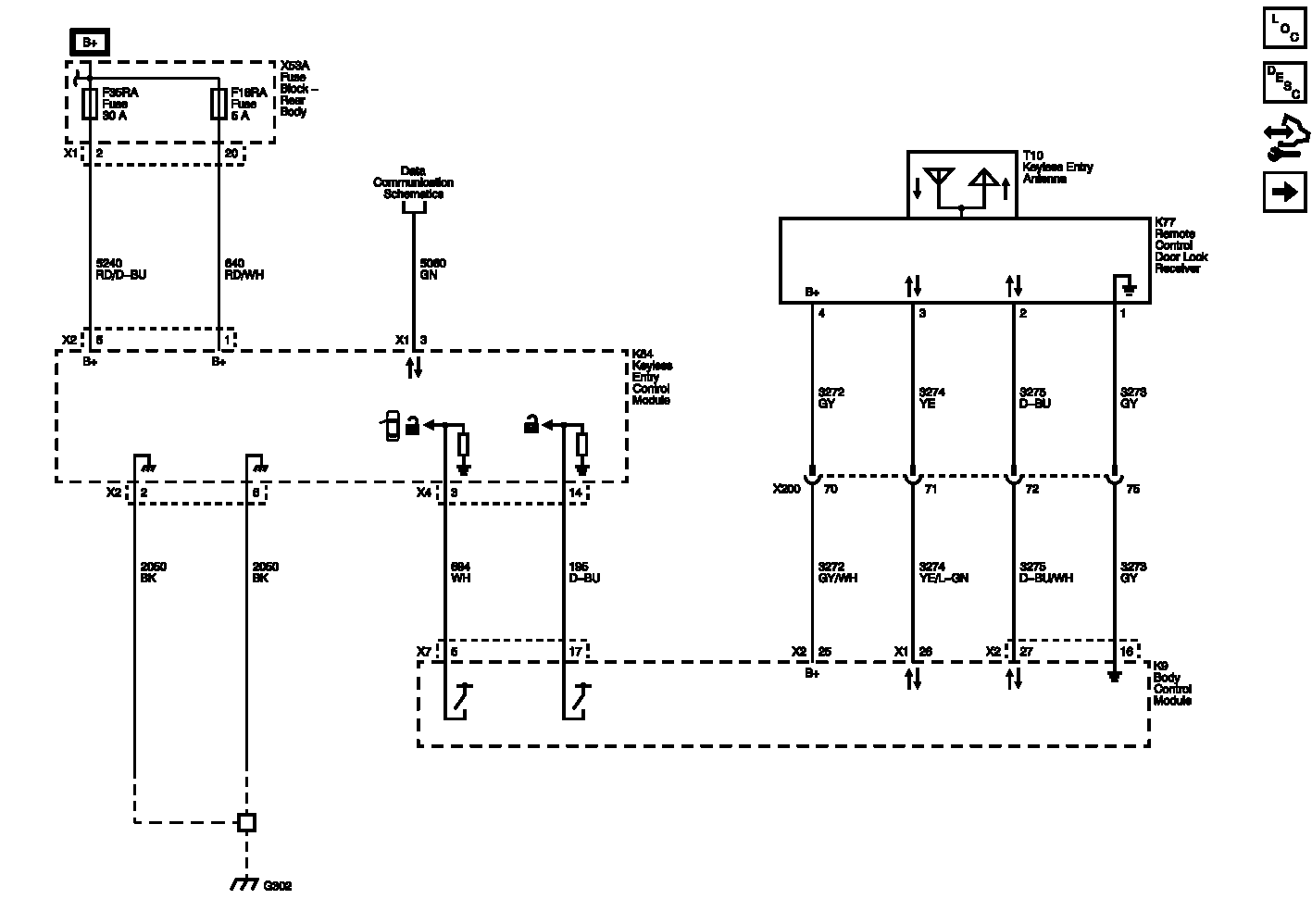

Fig 1: Module Power, Ground, Data Communication And Controls Wiring Schematic

GM2578003

Courtesy of GENERAL MOTORS COMPANY
