Throttle Body Assembly Replacement

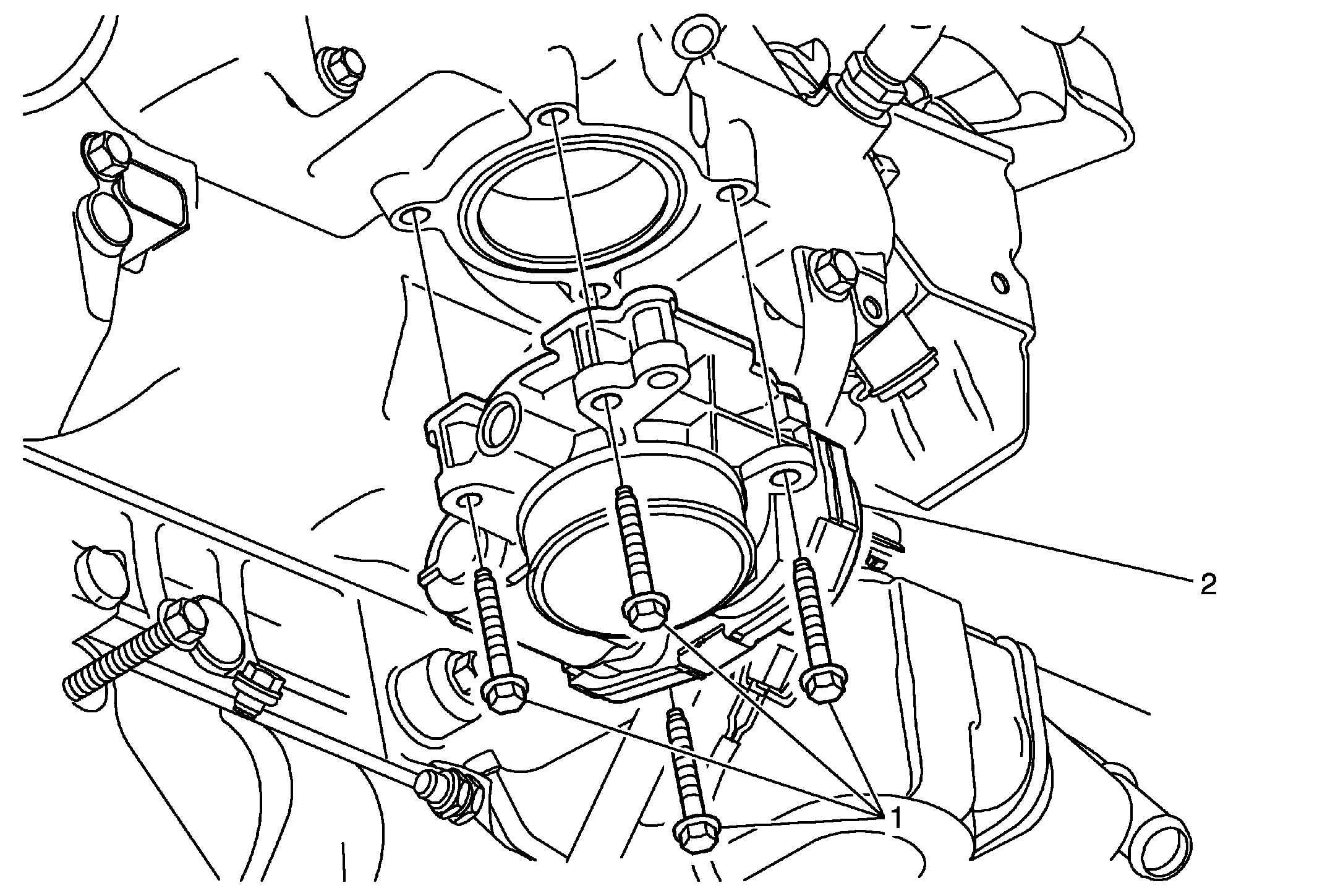

Fig 1: Throttle Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Release the charge air cooler outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement .
1	Throttle Body Assembly Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Release the charge air cooler outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement .

Throttle Body Assembly Fastener (Qty: 4)

CAUTION:

Tighten
10 N.m (89 lb in)

Throttle Body
Procedure
Disconnect the electrical connector.
