Installation Procedure

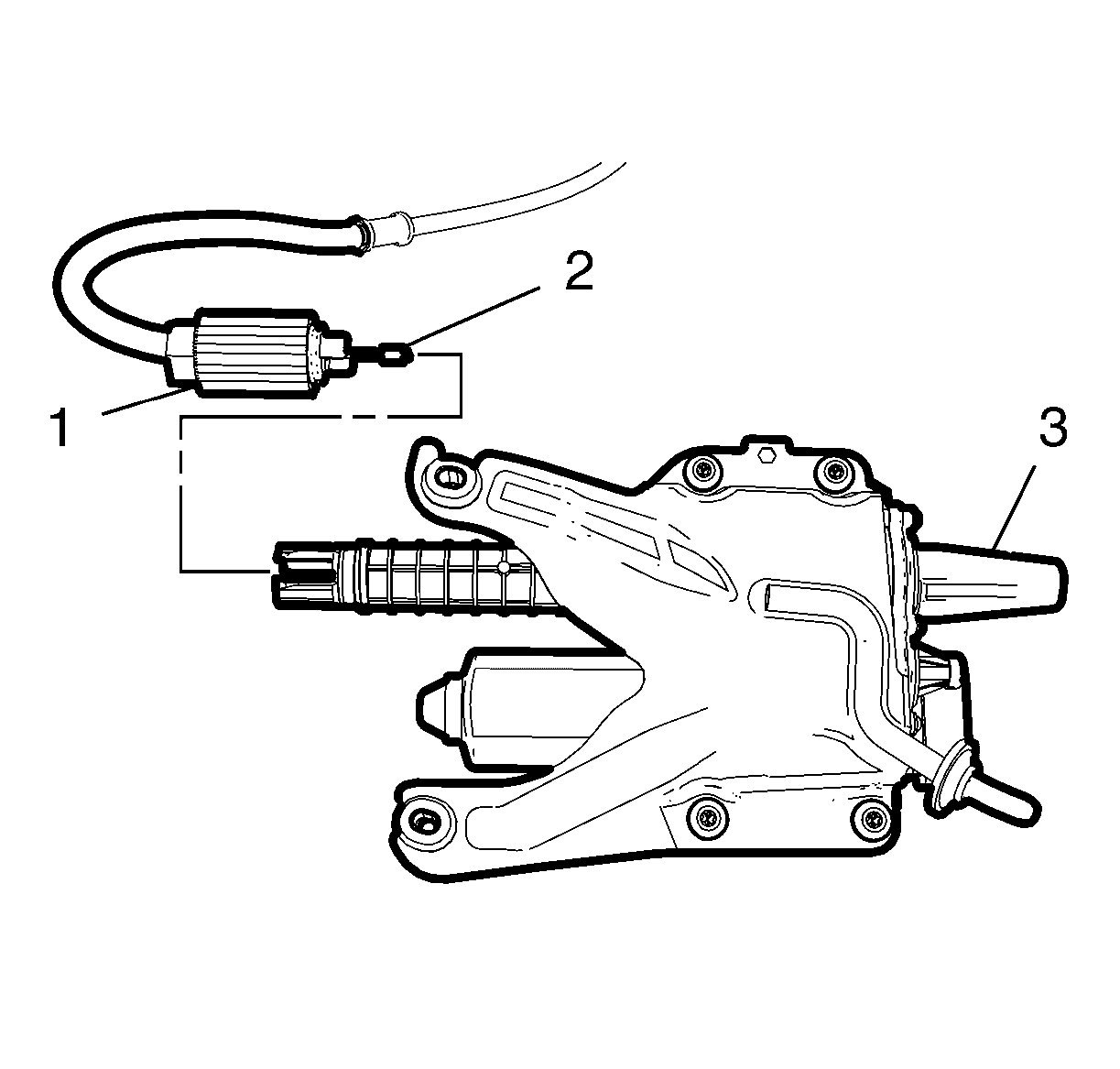

    Fig 1: Electronic Parking Brake Control Module, Parking Brake Cable & Connection Cover
    GM2750556Courtesy of GENERAL MOTORS COMPANY
  1. Install the parking brake cable (2) to the electronic parking brake control module (3).
  2. Install the parking brake cable connection cover (1).

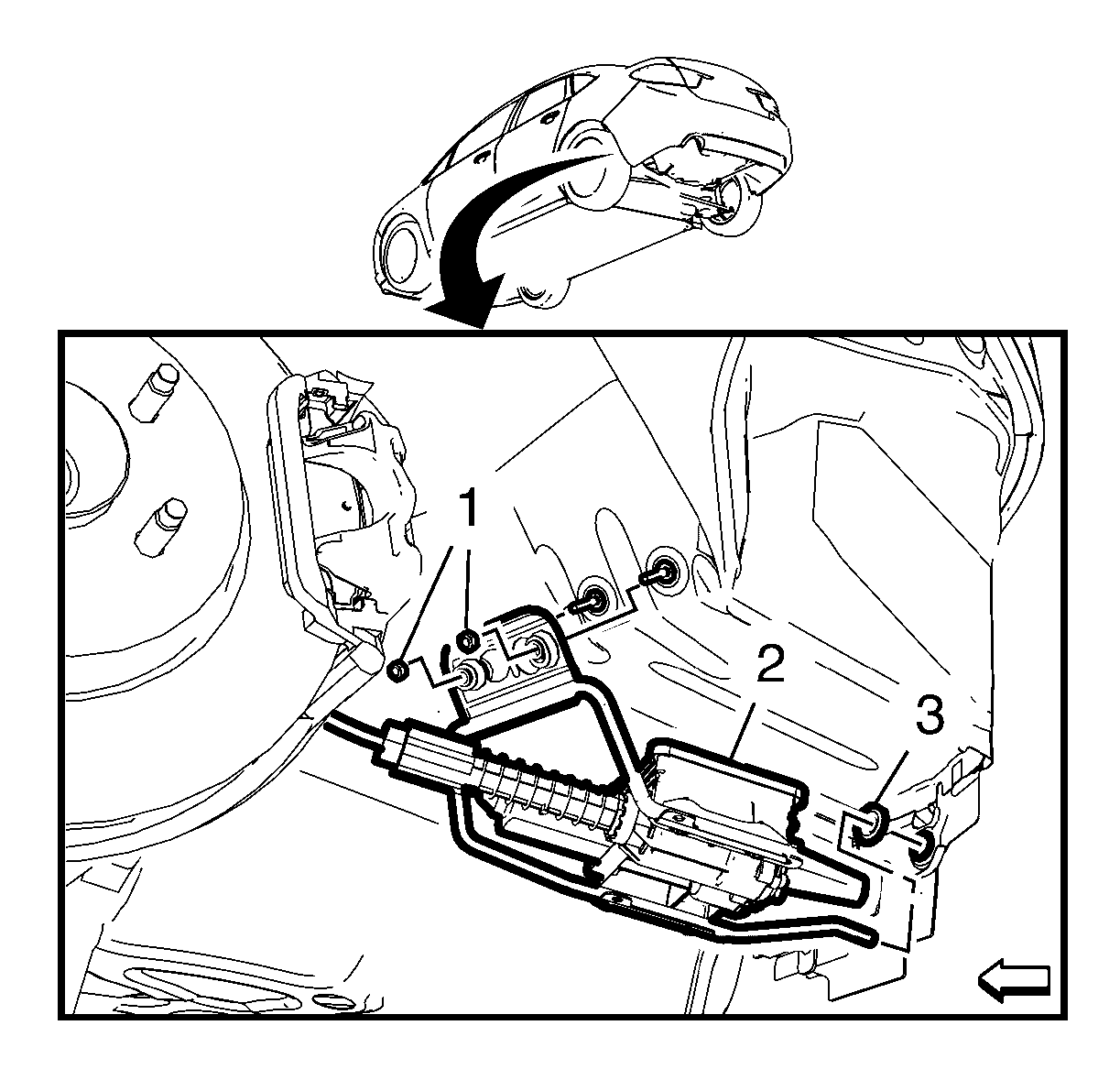

    3. Fig 2: Electronic Parking Brake Control Module & Components
    GM2781540Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the electronic parking brake control module (2) to the vehicle.
  4. Insert the electronic parking brake control module mounting tang into the rubber mounting grommet (3).
  5. Install the 2 electronic parking brake control module nuts (1), and tighten to 9 (80 lb in).
  6. Connect the electronic parking brake control module wiring harness.
  7. Install the wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement .
  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle.
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  11. Program the electronic parking brake control module. Refer to Electronic Parking Brake Control Module Programming and Setup .
