Installation Procedure

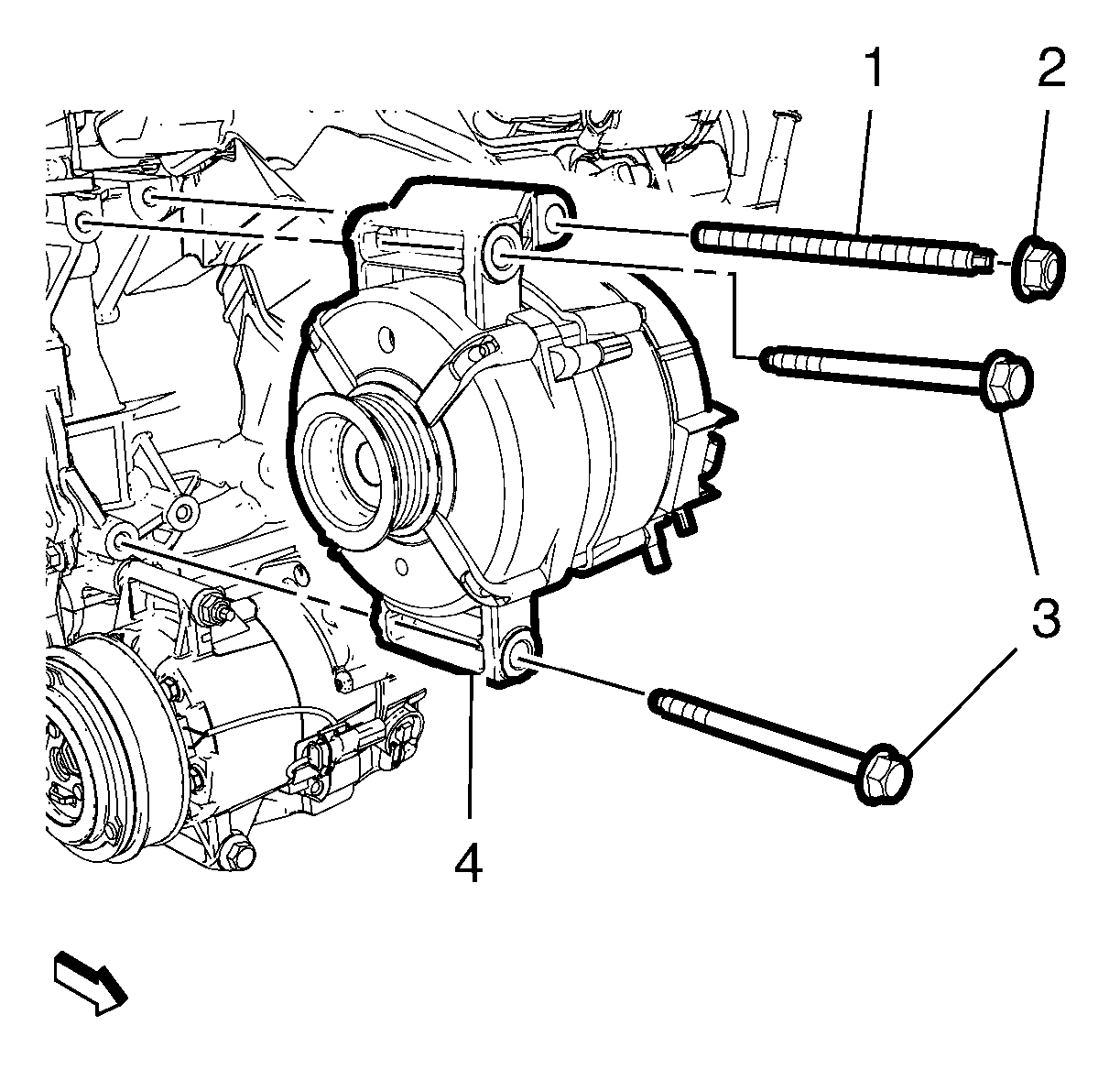

    Fig 1: Generator & Mounting Components
    GM2791226Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator (4) in conjunction with the generator stud (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Tighten the generator stud (1) to 9 N.m (80 lb in).
  3. Install the 2 generator bolts (3) and tighten to 22 N.m (16 lb ft).
  4. Install the generator nut (2) and tighten to 22 N.m (16 lb ft).

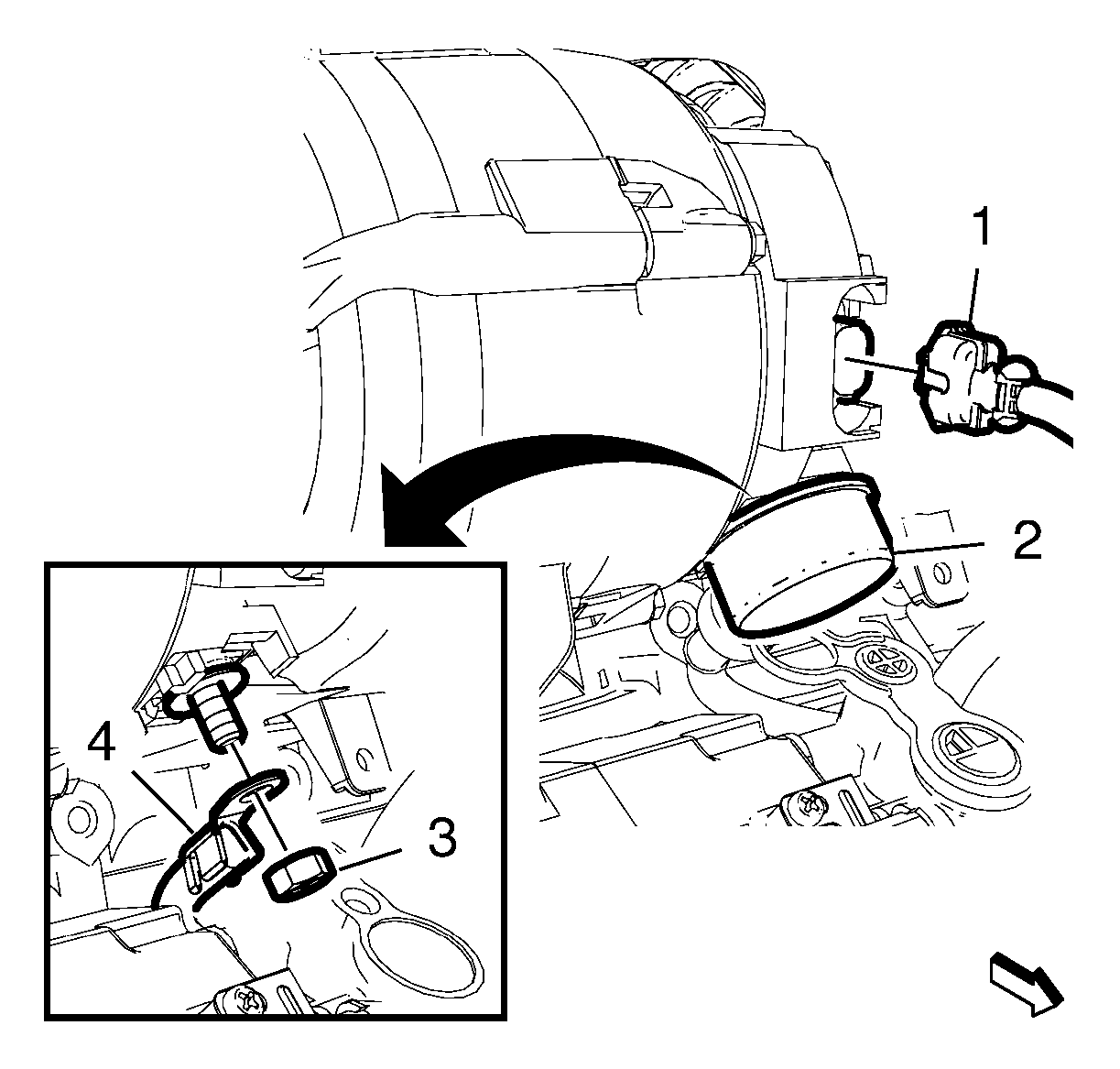

    5. Fig 2: Generator Cap & Positive Cable Components
    GM2512764Courtesy of GENERAL MOTORS COMPANY
  5. Connect the generator wiring harness plug (1) to the generator.
  6. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  7. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  8. Raise the vehicle.
  9. Install the generator positive cable (4) and the generator positive cable retaining nut (3) and tighten to 17 N.m (13 lb ft).
  10. Fold the generator cap (2) to the generator positive cable terminal.
  11. Install the drive belt. Refer to Drive Belt Replacement .
  12. Lower the vehicle.
  13. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
