Air Cleaner Assembly Replacement

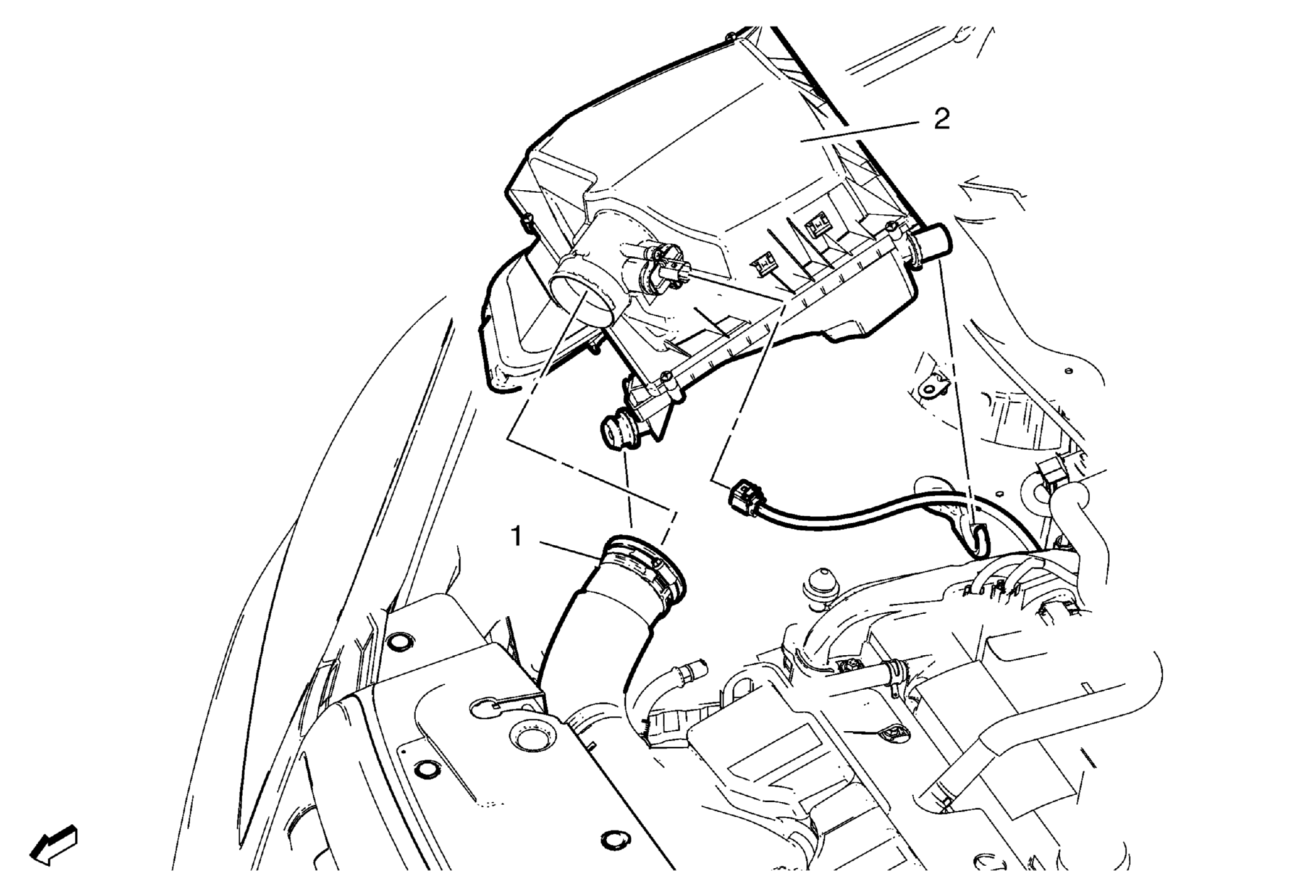

Fig 1: Air Cleaner Assembly & Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Outlet Duct Procedure Loosen the clamp and disconnect the duct from the air cleaner assembly.
2	Air Cleaner Assembly Procedure Disconnect the mass air flow sensor electrical connector. Disconnect the water drain hose from the air cleaner assembly if equipped.

Callout

Component Name

Air Cleaner Outlet Duct
Procedure
Loosen the clamp and disconnect the duct from the air cleaner assembly.

Air Cleaner Assembly

Procedure
