Air Cleaner Element Replacement
Air Cleaner Element Replacement

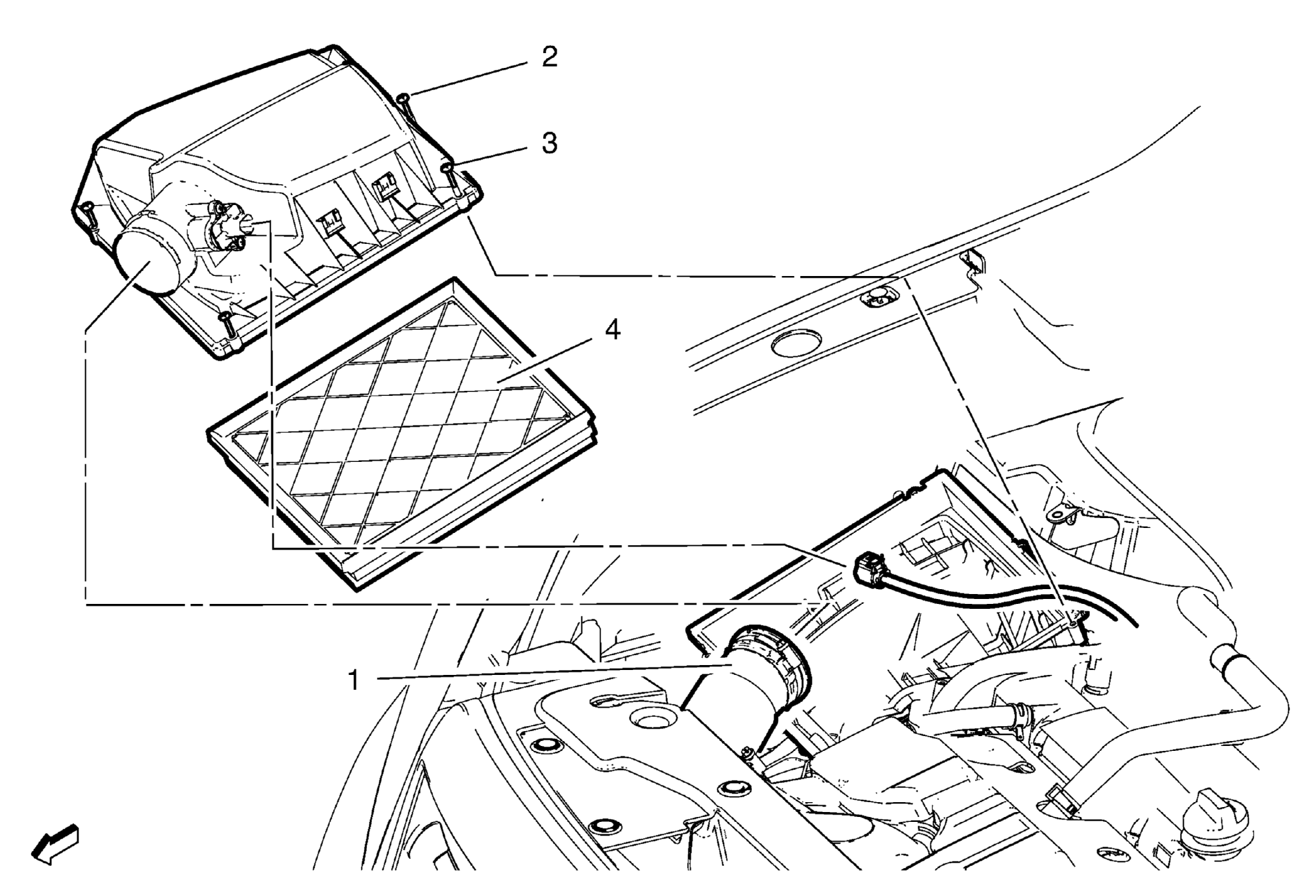

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct |
| 2 | Air Cleaner Housing Cover Bolt (Qty: 6)
CAUTION:
Refer to Fastener Caution . |
| 3 | Air Cleaner Housing Cover Procedure Disconnect the mass air flow sensor electrical connector. |
| 4 | Air Cleaner Element |
