Fuel Feed Intermediate Pipe Replacement
Fuel Feed Intermediate Pipe Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the fuel pump cover and the fuel pump insulator. Refer to Fuel Pump Replacement . |
|

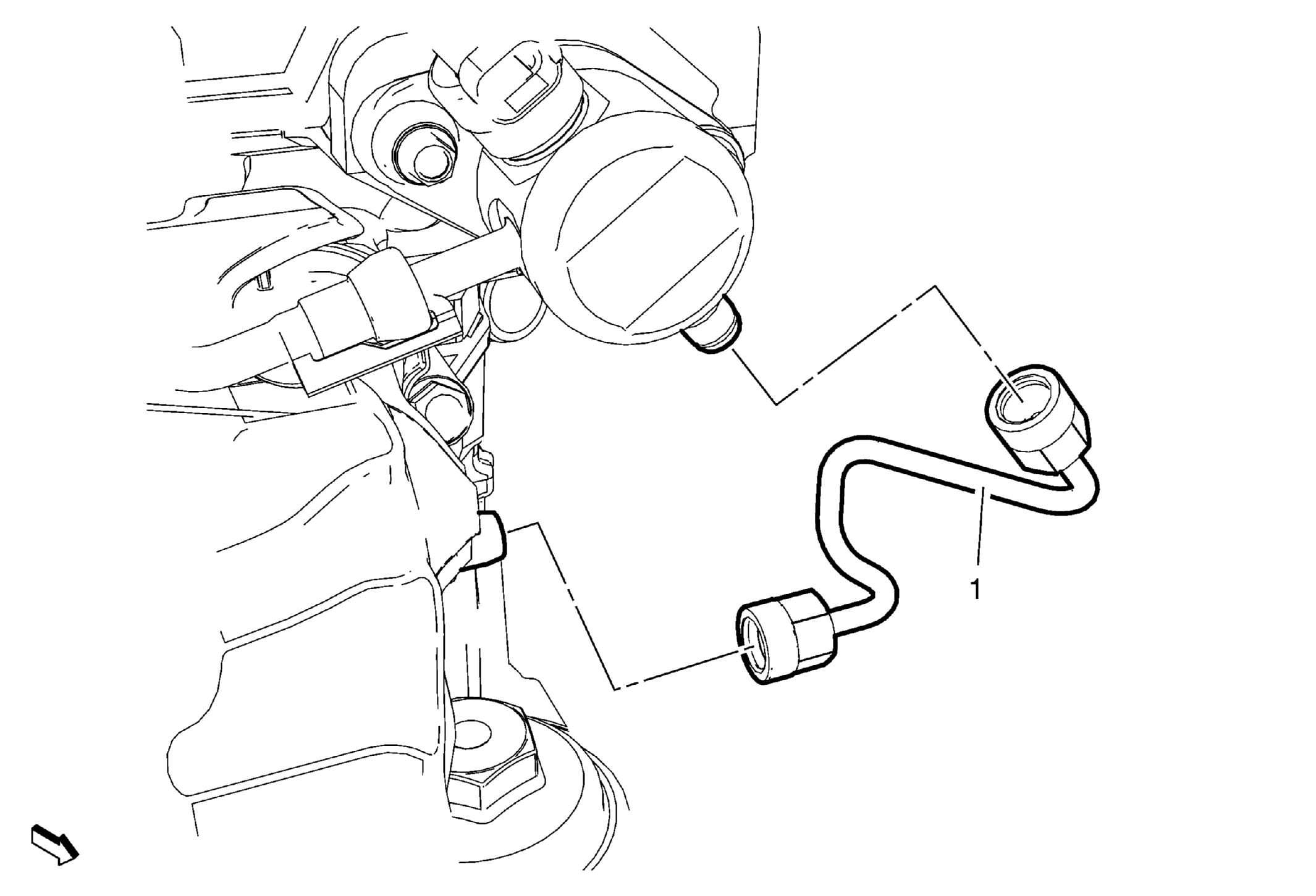

| 1 | Fuel Feed Intermediate Pipe
CAUTION:
Refer to Fastener Caution .
NOTE:
PART MUST BE REPLACED ONCE REMOVED Tighten 28 N.m (21 lb ft) |
