Fuel Injector Replacement

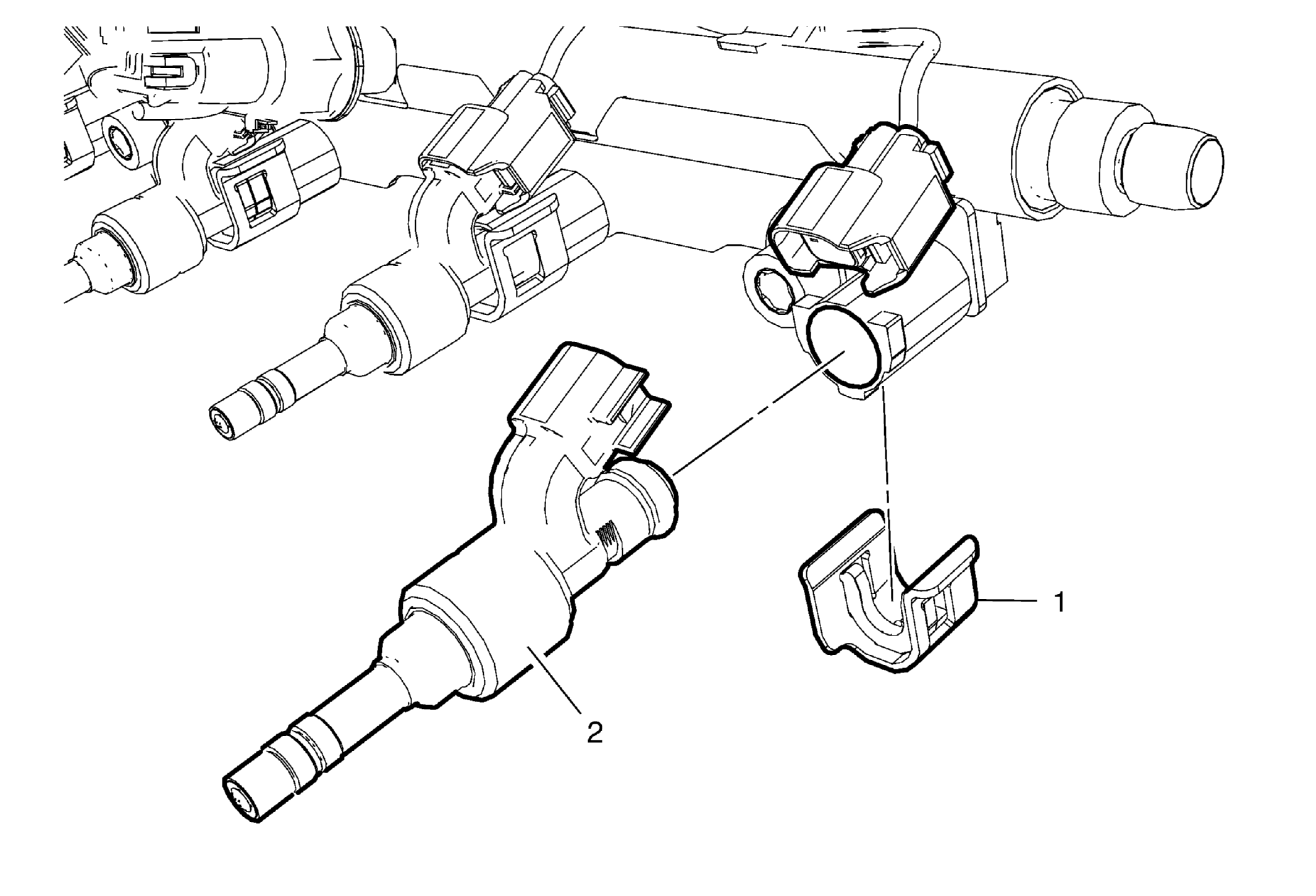

Fig 1: Fuel Injector & Clamp
GM2594972Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Replacement

Callout Component Name
Preliminary Procedures
Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement .
1 Fuel Injector Clamp
2 Fuel Injector
