Data Communications System Wiring Schematics
>>
High Speed Bus 2
High Speed Bus 2

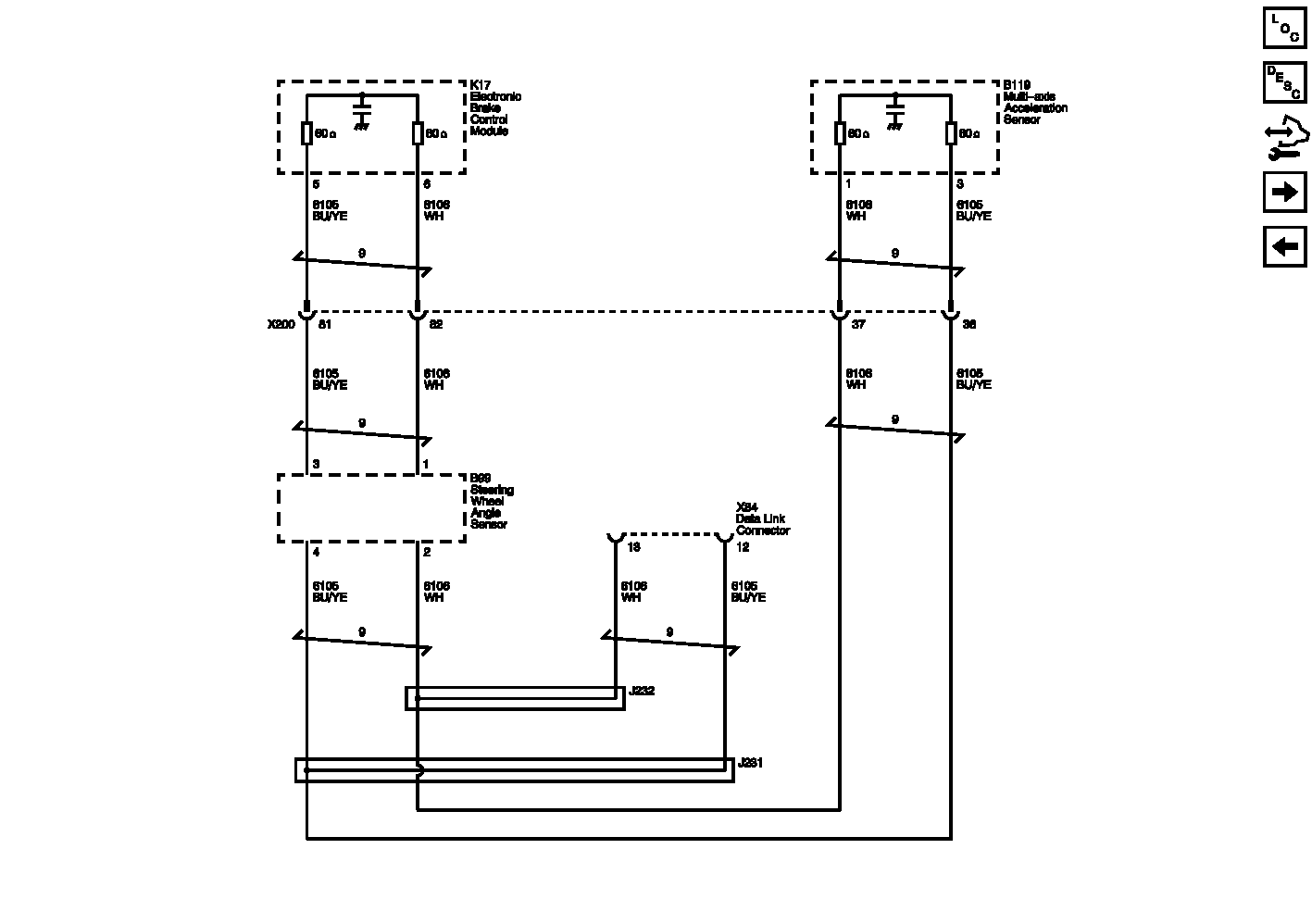

Fig 1: High Speed Bus 2 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
