Data Communications System Wiring Schematics
>>
Low Speed Bus
Low Speed Bus

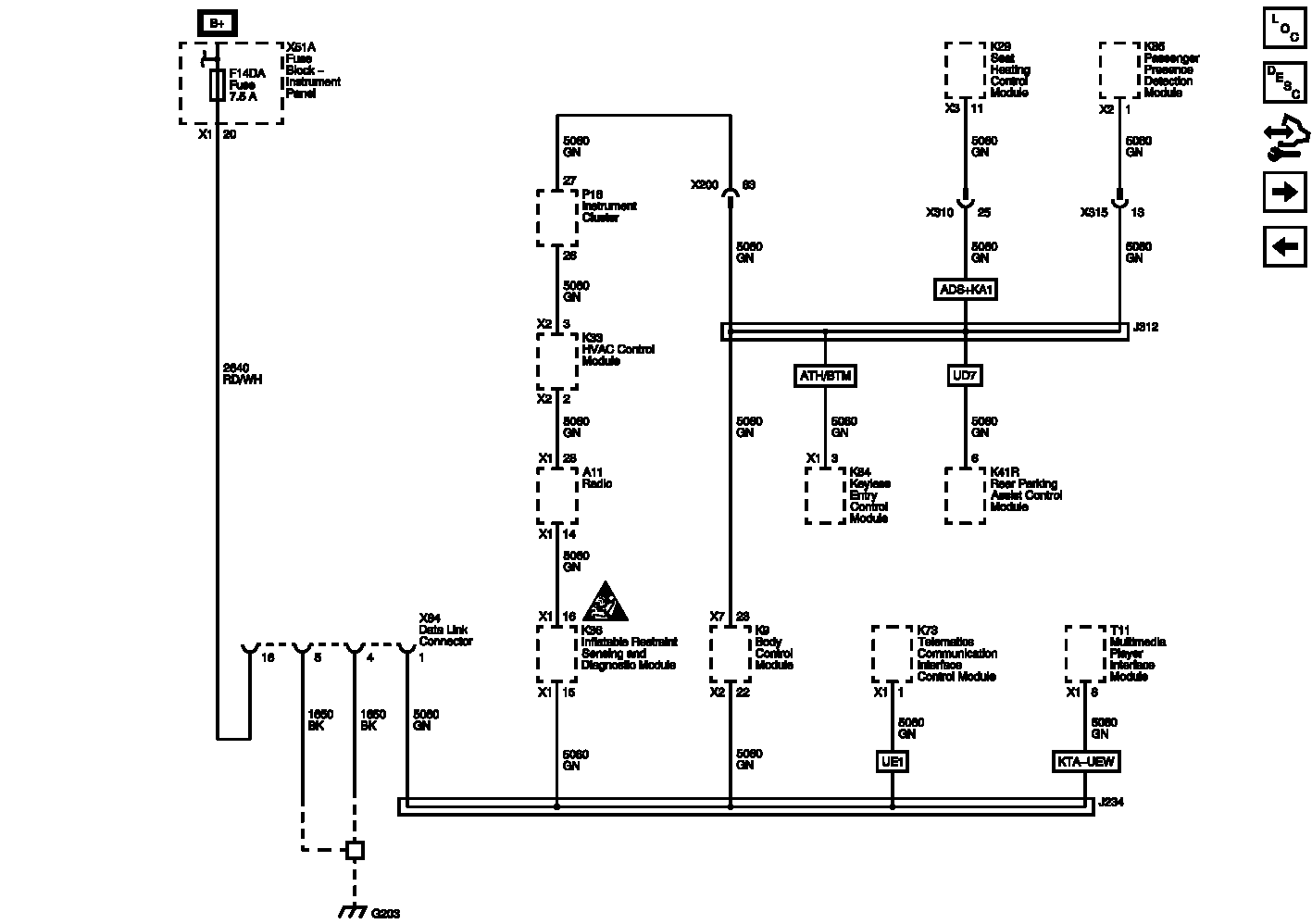

Fig 1: Low Speed Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
