Home >> Buick >> 2014 >> Verano Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Repair Instructions >> Keyless Entry Control Module Replacement

Keyless Entry Control Module Replacement

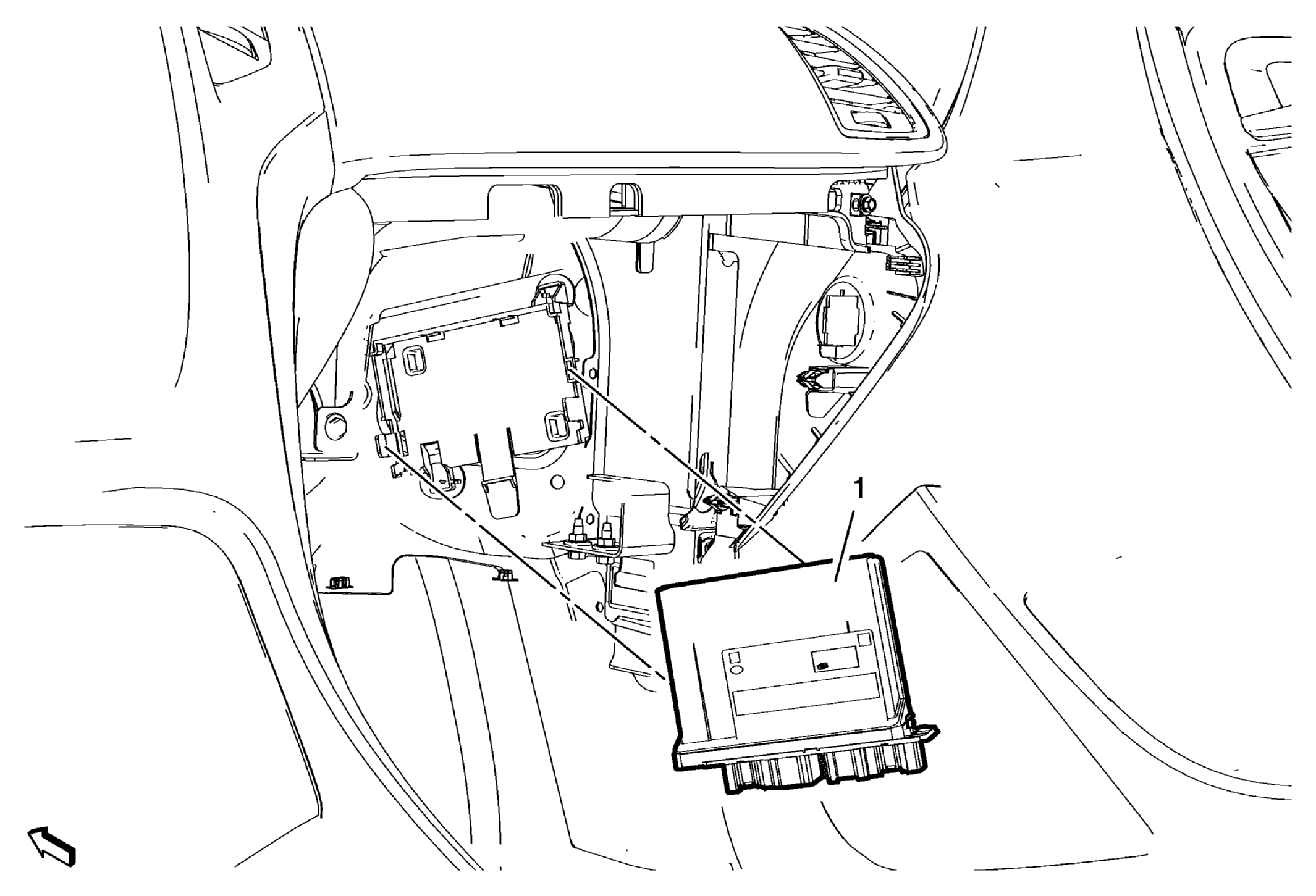

Fig 1: Keyless Entry Control Module
GM2373282Courtesy of GENERAL MOTORS COMPANY
Keyless Entry Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connector.
  2. For programming and set up information refer to Control Module References .
