Window Systems Component Views

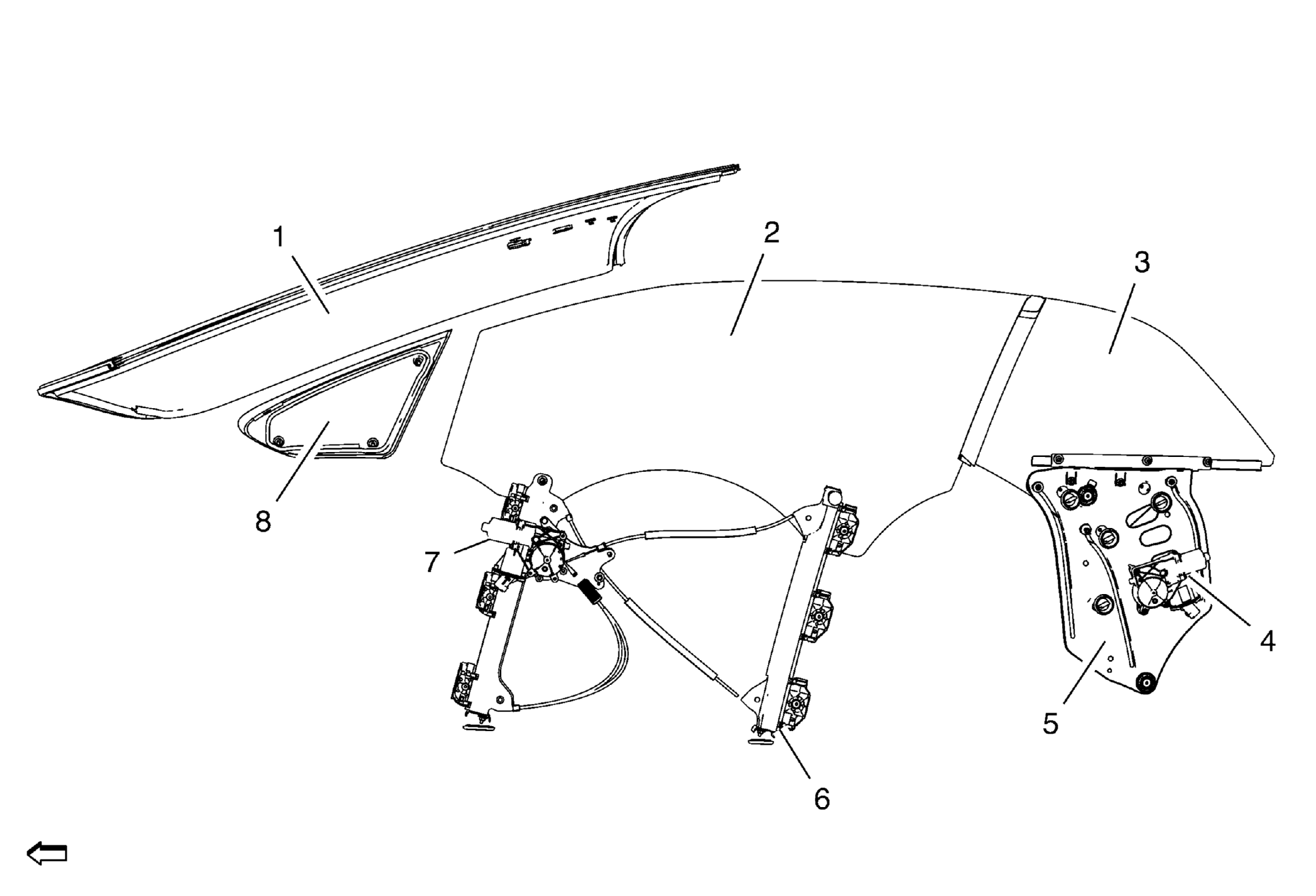

Fig 1: Window Systems

Courtesy of GENERAL MOTORS COMPANY

Number	Description	Procedure
1	Windshield	Windshield Replacement
2	Front Side Door Window	Front Side Door Window Replacement
3	Quarter Window	Quarter Window Replacement
4	Quarter Window Regulator	Quarter Window Regulator Replacement
5	Quarter Window Regulator Motor	Quarter Window Regulator Motor Replacement
6	Front Side Door Window Regulator	Front Side Door Window Regulator Replacement
7	Front Side Door Window Regulator Motor	Front Side Door Window Regulator Motor Replacement
8	Windshield Pillar Stationary Window	Windshield Pillar Stationary Window Replacement
