Removal Procedure

  1. Remove the quarter inner trim finish panel - right side. Refer to Quarter Inner Trim Finish Panel Replacement - Right Side .

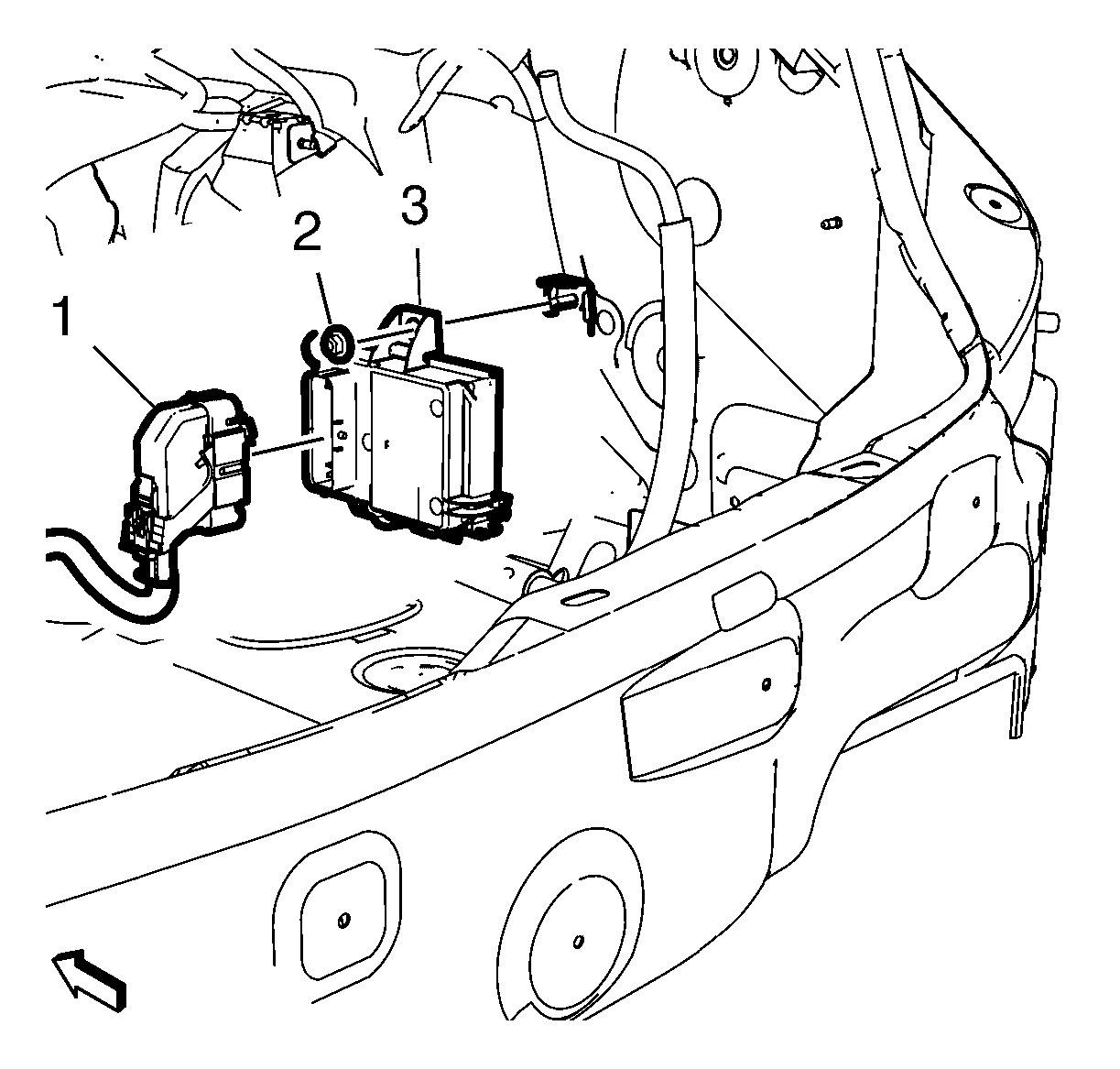

    2. Fig 1: Chassis Control Module
    GM3642881Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the chassis control module wiring harness plug (1).
  3. Remove the chassis control module nut (2)
  4. Remove the chassis control module (3) from the chassis control module bracket.
