Human Machine Interface Control Module Replacement

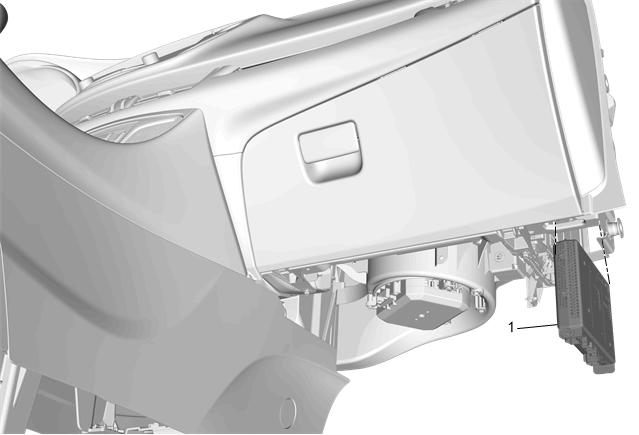

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1	Human Machine Interface Control Module Procedure Disconnect the electrical connector. Push tabs to release the module from the bracket and slide downward. Control Module References for programming and set up information, if required.

Callout

Component Name

Human Machine Interface Control Module

Procedure
