Steering Column Components

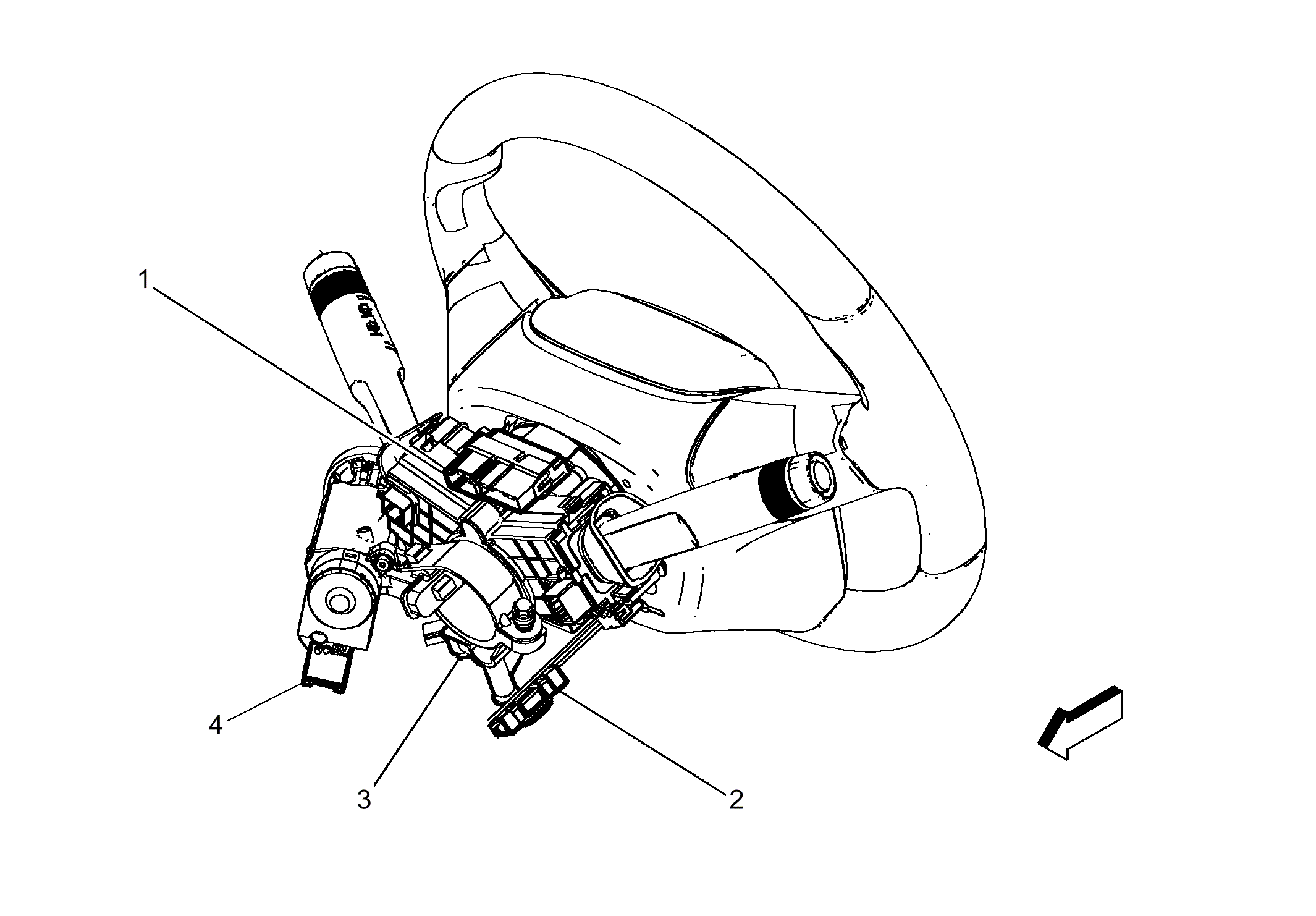

GM4284474Courtesy of GENERAL MOTORS COMPANY
Steering Column Components

Items
1. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2X85 Steering Wheel Air Bag Coil X3X85 Steering Wheel Air Bag Coil X4X85 Steering Wheel Air Bag Coil X5
2. K89 Immobilizer Control Module K89 Immobilizer Control Module
3. B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor
4. S39 Ignition Switch S39 Ignition Switch
