Wireless Charging System Module Replacement

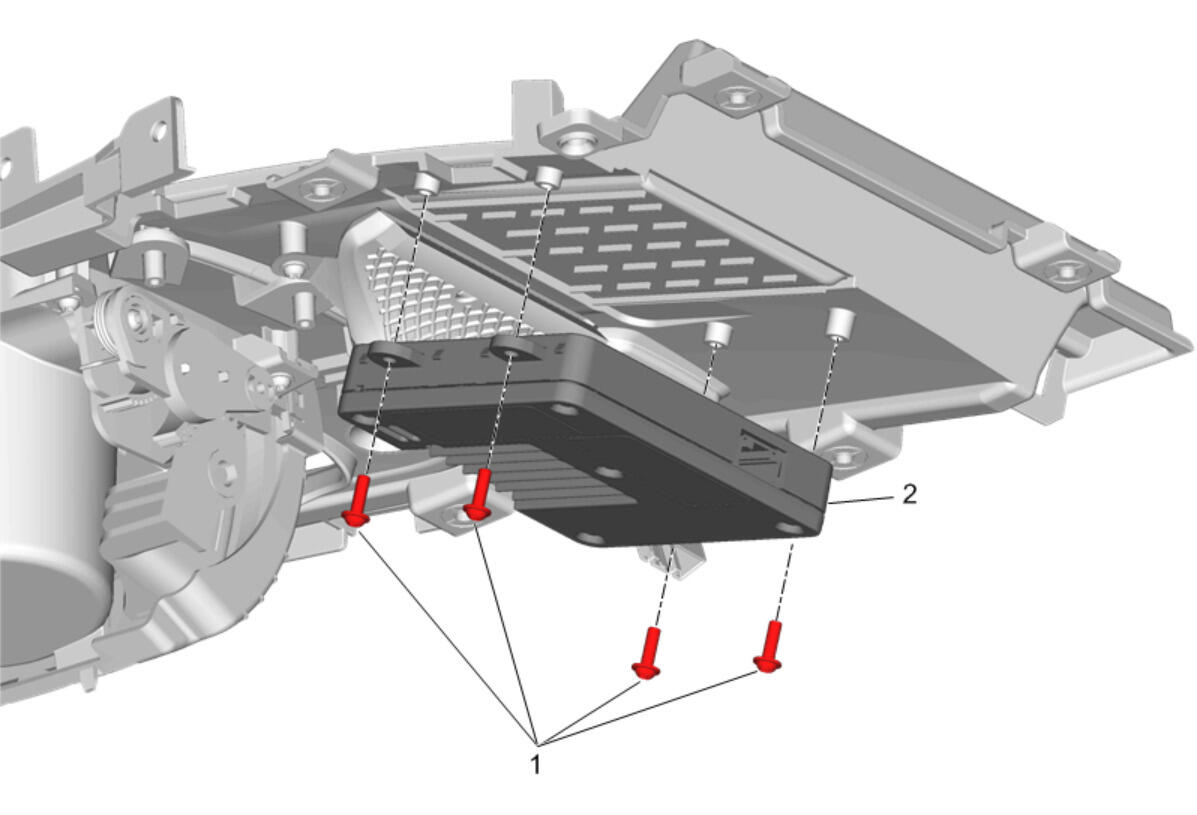

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Trim Plate Replacement |
|
| 1 | Wireless Charging System Module Bolt [4x]
CAUTION:
Tighten 1 N.m (9 lb in) |
| 2 | Wireless Charging System Module |
