Home >> Buick >> 2018 >> LaCrosse Base >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator - Instrument Panel/Center Console Component Views >> Instrument Panel/Center Console Component Views >> Steering Column Components

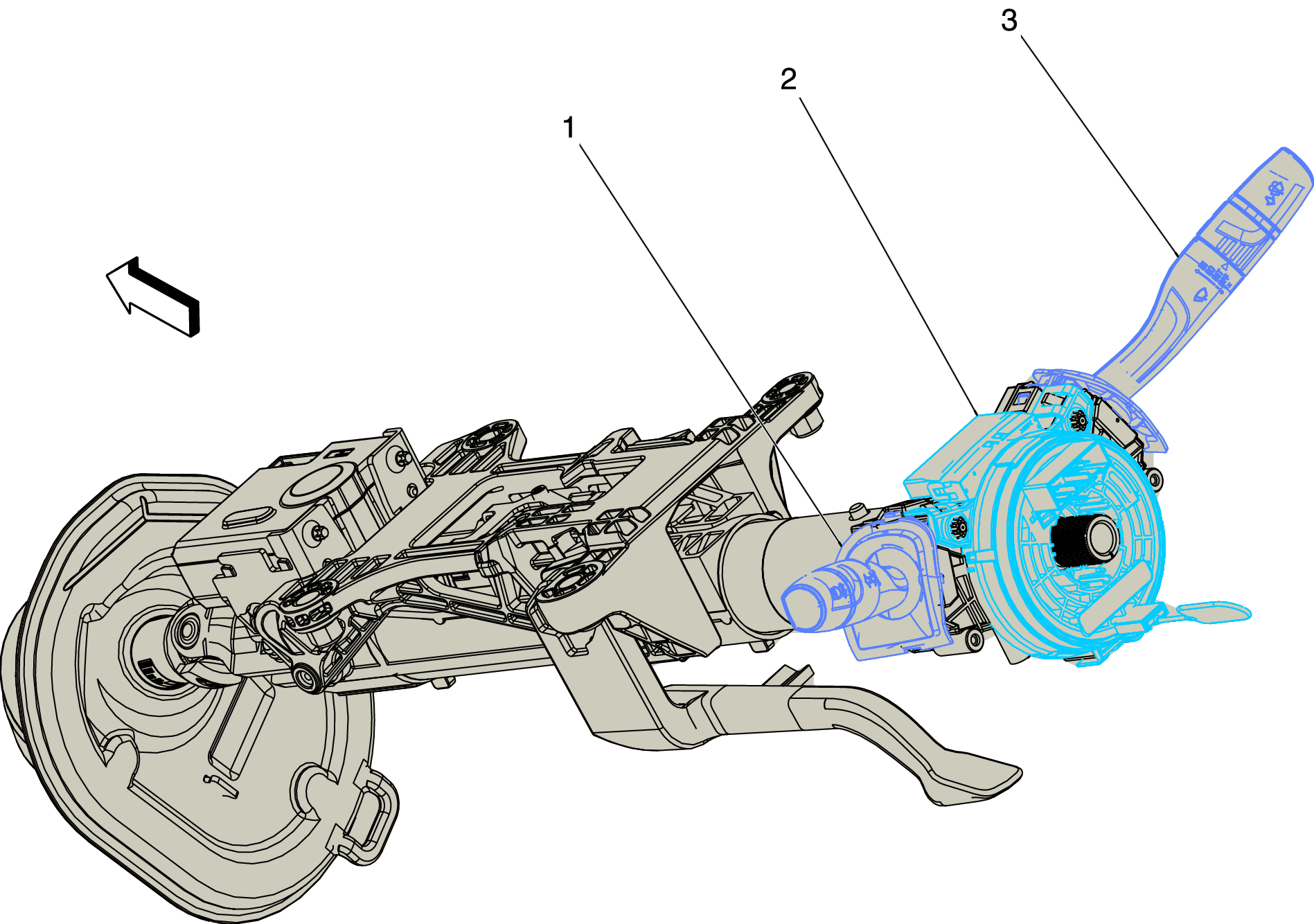

Steering Column Components

GM5001799
Steering Column Components

Items
1. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
2. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2
3. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
