Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

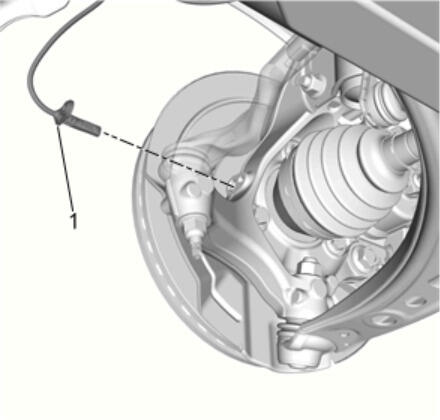

Wheel Speed Sensor(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

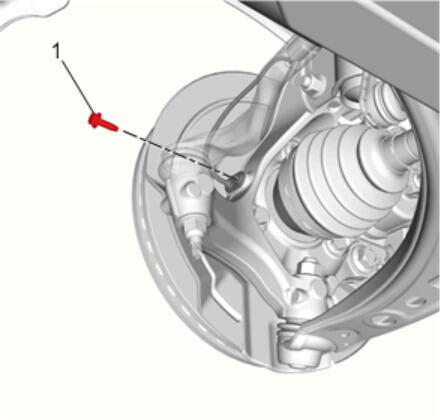

Wheel Speed Sensor Bolt(1) - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

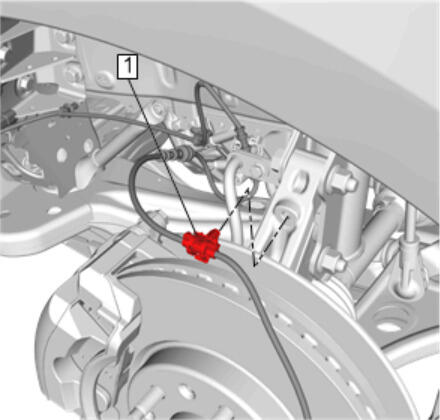

Retainer(1)@Steering Knuckle - Secure
Courtesy of GENERAL MOTORS COMPANY

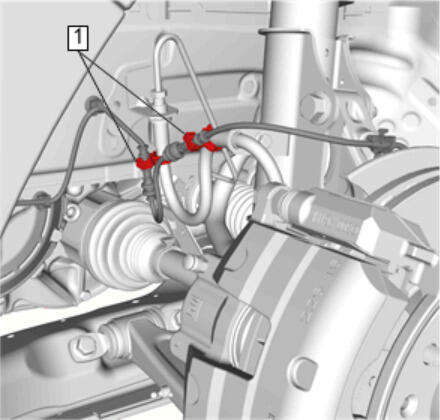

Retainer(1)@Front Brake Hose - Secure[2x]
Courtesy of GENERAL MOTORS COMPANY

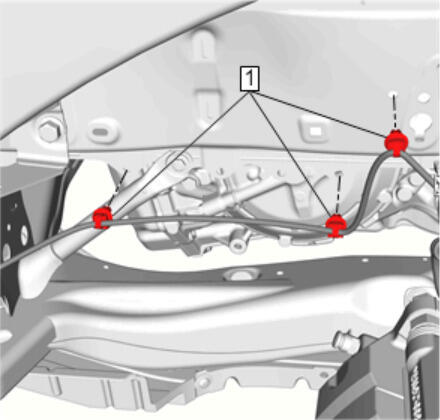

Retainer(1)@Side Rail - Secure[3x]
Courtesy of GENERAL MOTORS COMPANY

Retainer(1)@Radiator Support - Secure

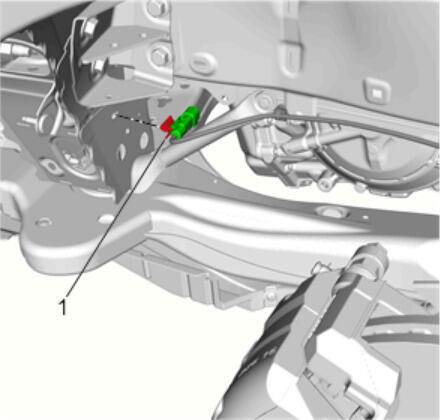

Wheel Speed Sensor Electrical Connector - Connect
Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement (3.6L LGX) or Front Wheelhouse Liner Replacement (2.0L LTG)
Verify the repair is complete. Refer to Diagnostic Repair Verification
