Remote Function Actuator Module Replacement

Courtesy of GENERAL MOTORS COMPANY

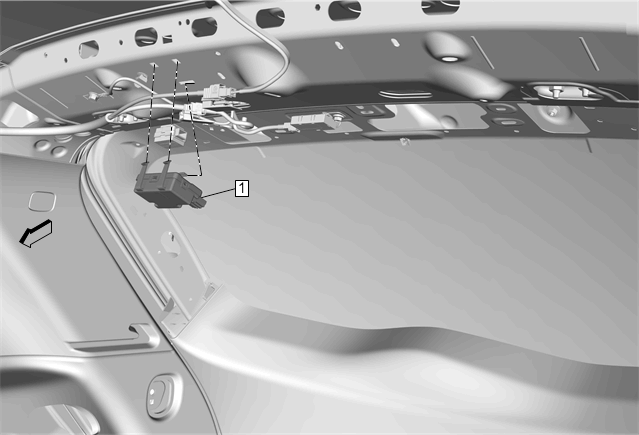

Callout	Component Name
Preliminary Procedure Lower the rear of the headliner. Headlining Trim Panel Replacement
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Use the appropriate tool to release the tabs on the receiver from the roof structure.

Callout

Component Name

Preliminary Procedure
Lower the rear of the headliner. Headlining Trim Panel Replacement

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Use the appropriate tool to release the tabs on the receiver from the roof structure.
