Installation Procedure

  1. Connect the electrical connector.
  2. GM3926758Courtesy of GENERAL MOTORS COMPANY

    Vehicle Dynamic Sensor (2) - Install

    3. CAUTION:

    Refer to Fastener Caution

  3. Vehicle Dynamic Sensor Fastener (1) - Install and tighten [2x] 9 N.m (80 lb in)

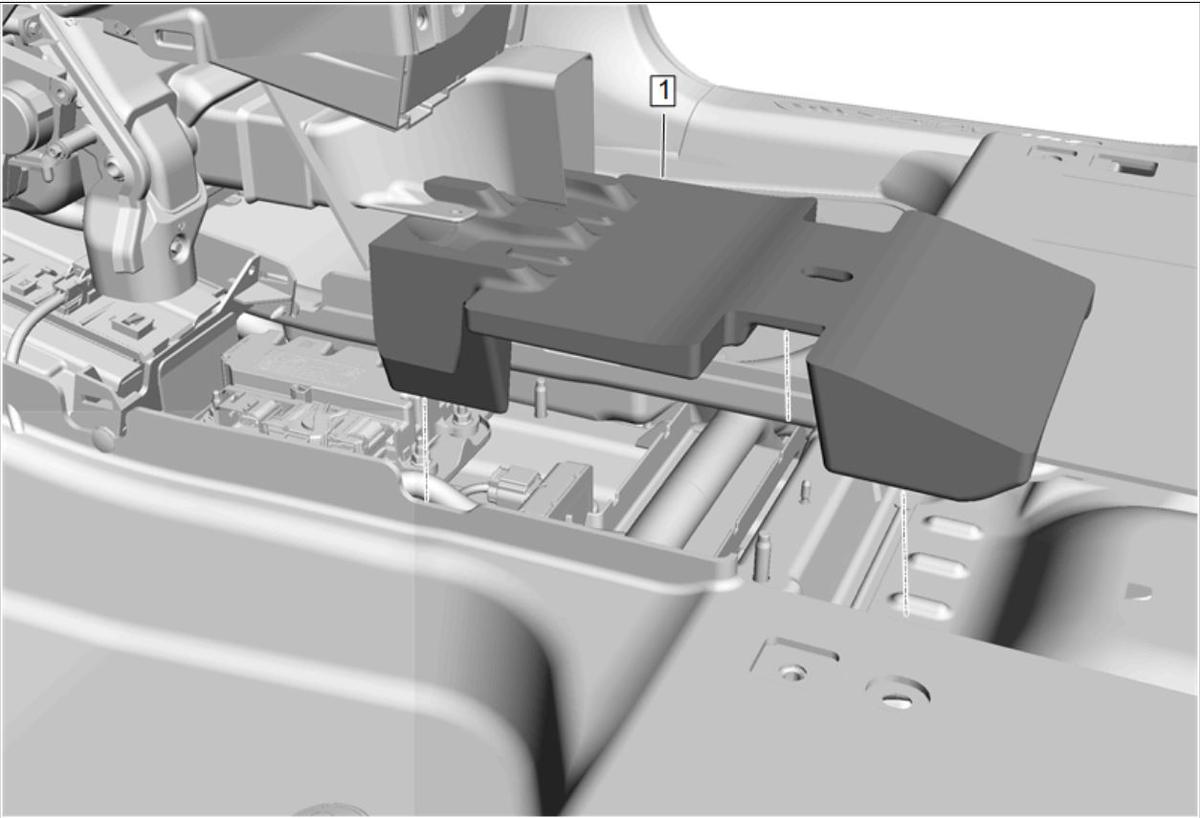

  4. GM5324131Courtesy of GENERAL MOTORS COMPANY

    Install the front floor panel tunnel panel insulator (1).

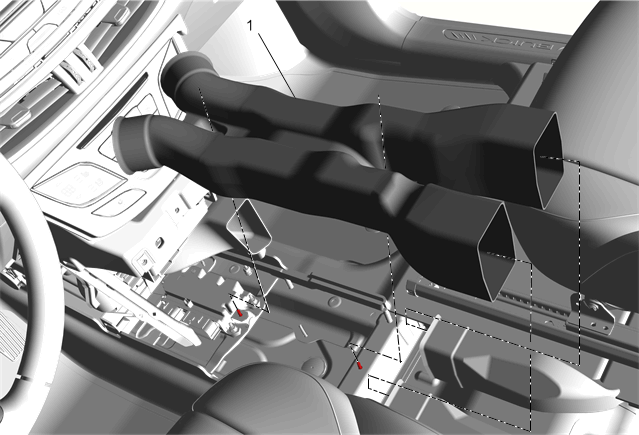

  5. GM3838574Courtesy of GENERAL MOTORS COMPANY

    Install the center floor rear air outlet rear duct (1). Floor Rear Air Outlet Rear Duct Replacement (Center)

  6. Perform the vehicle yaw sensor learn. Vehicle Yaw Sensor Learn
