Remote Function Actuator Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Quarter Window Trim Finish Panel Replacement

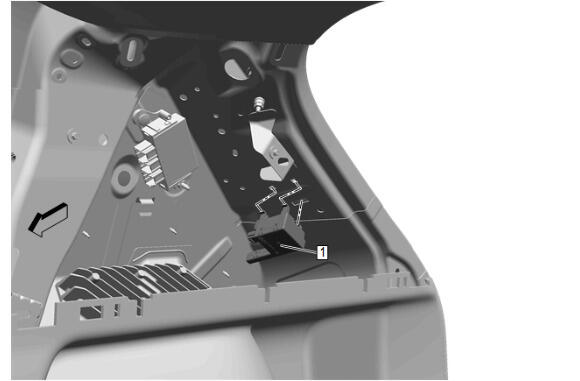

1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Remote Control Door Lock Receiver

Procedure
