Installation Procedure

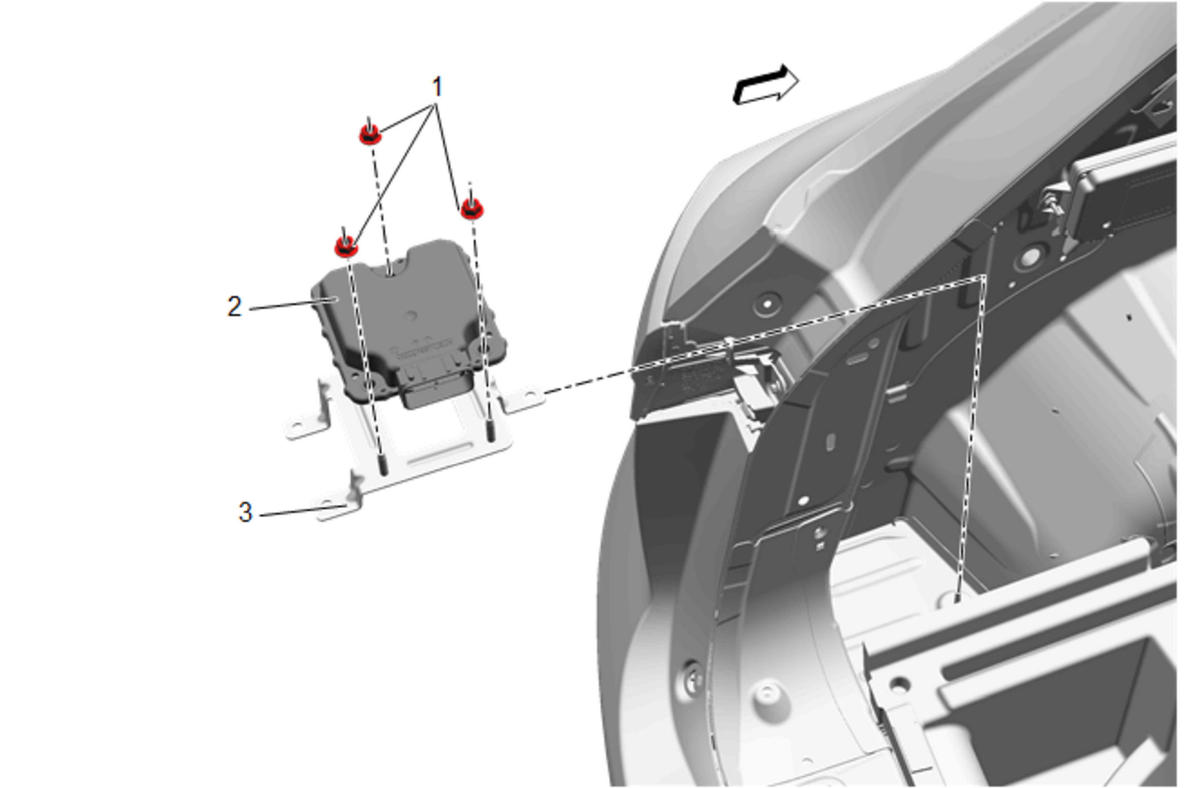

  1. GM5591230Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Electronic Suspension Control Module (2) @ Electronic Suspension Control Module Bracket (3) - Install

  2. Electronic Suspension Control Module Bracket Nut (1) - Install and tighten [3x] 9 N.m (80 lb in)
  3. Connect the electrical connector.

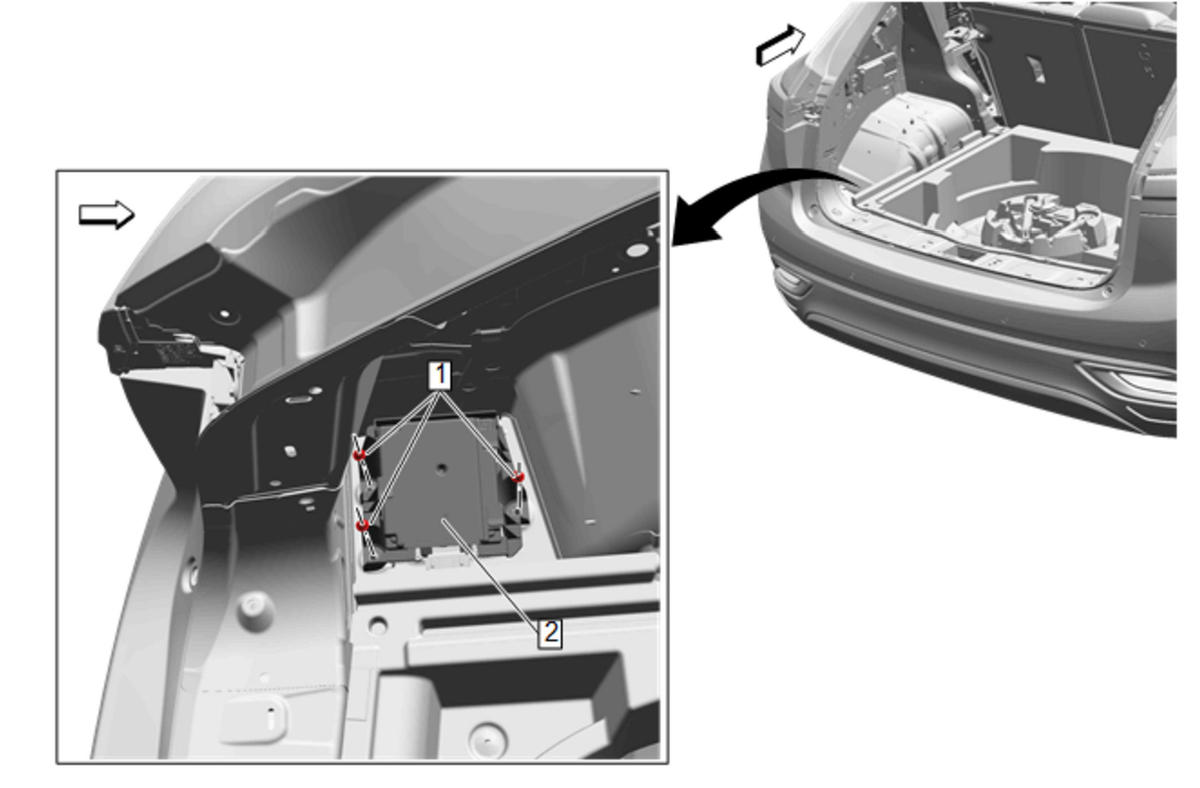

  4. GM5591225Courtesy of GENERAL MOTORS COMPANY

    Install the active safety control module and bracket assembly (2) to the vehicle.

  5. Active Safety Control Module Bracket Nut (1) - Install and tighten [3x] 9 N.m (80 lb in)
  6. Connect the electrical connectors.

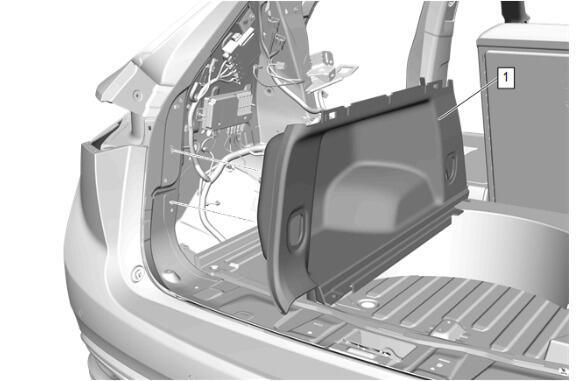

  7. GM5591217Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel (1) - Install - Quarter Lower Rear Trim Panel Replacement
