Fuel Level Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Fuel/gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. Preliminary Procedures Remove the fuel tank fuel pump module. Fuel Tank Fuel Pump Module Replacement (FWD) , or Fuel Tank Fuel Pump Module Replacement (AWD) Disconnect the electrical connector.

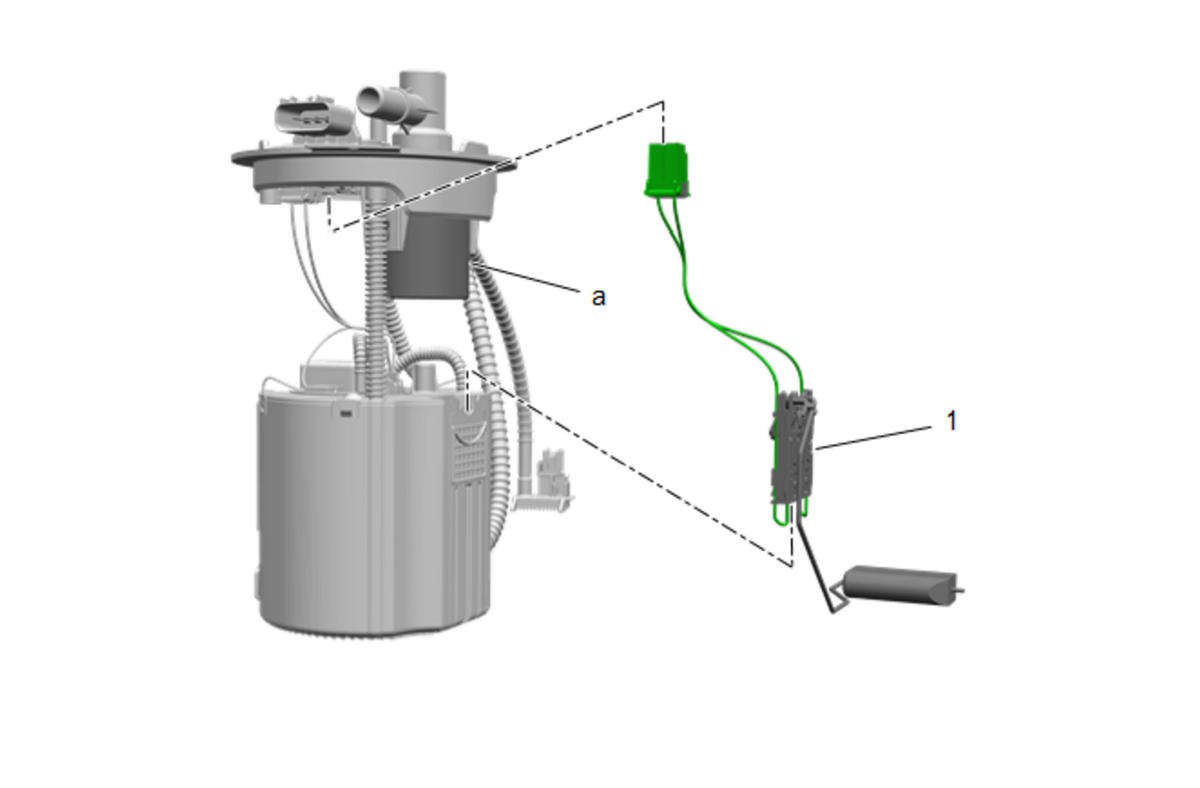

1	Fuel Level Sensor Procedure Release tabs and slide fuel level sensor up to remove. NOTE: The fuel level sensor shall be installed on the side of fuel level limit valve (a) when installed to the fuel pump. Install the fuel level sensor on the side of fuel level limit valve (a) of the fuel pump.

Callout

Component Name

WARNING:

Fuel/gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

Preliminary Procedures

Remove the fuel tank fuel pump module. Fuel Tank Fuel Pump Module Replacement (FWD) , or Fuel Tank Fuel Pump Module Replacement (AWD)
Disconnect the electrical connector.

Fuel Level Sensor

Procedure

Release tabs and slide fuel level sensor up to remove.

NOTE:

The fuel level sensor shall be installed on the side of fuel level limit valve (a) when installed to the fuel pump.

Install the fuel level sensor on the side of fuel level limit valve (a) of the fuel pump.
