Video Processing Module Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

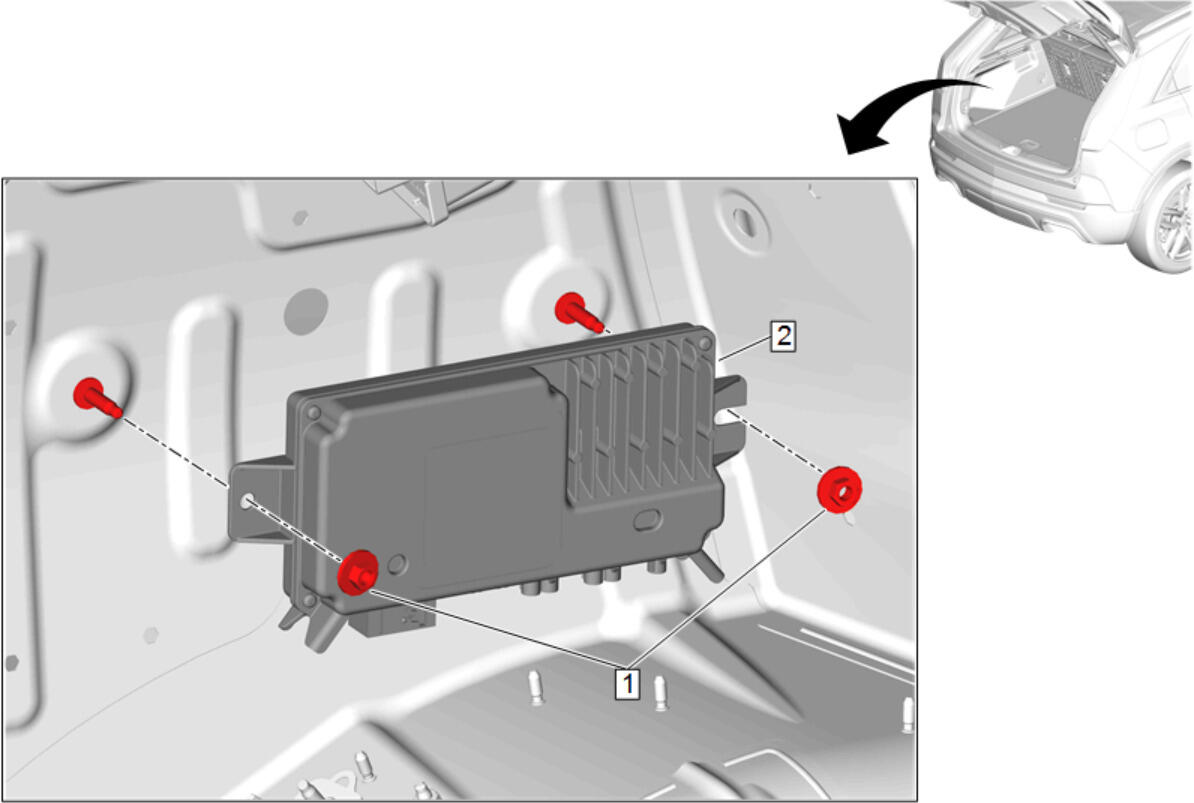

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Reposition the quarter lower rear trim panel. Quarter Lower Rear Trim Panel Replacement
1	Video Processing Module Nut [2x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Reposition the quarter lower rear trim panel. Quarter Lower Rear Trim Panel Replacement

Video Processing Module Nut [2x]

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb in)

Video Processing Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
