Installation Procedure

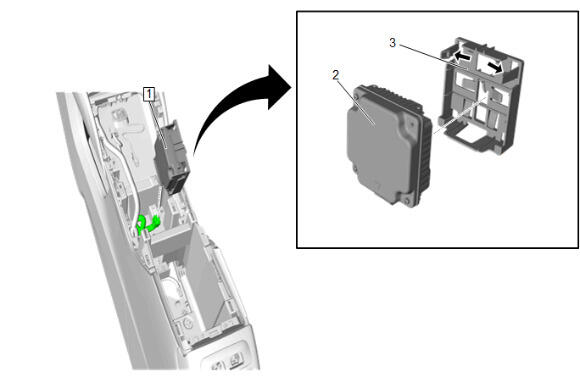

  1. GM6403347Courtesy of GENERAL MOTORS COMPANY

    Accessory AC and DC Power Control Module (2) @ Accessory AC and DC Power Control Module Bracket (2) - Install

  2. Connect the electrical connector.
  3. Accessory AC and DC Power Control Module Assembly (1) - Install
  4. Front Floor Console Trim Plate - Install - Front Floor Console Trim Plate Replacement
