Wireless Charging System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

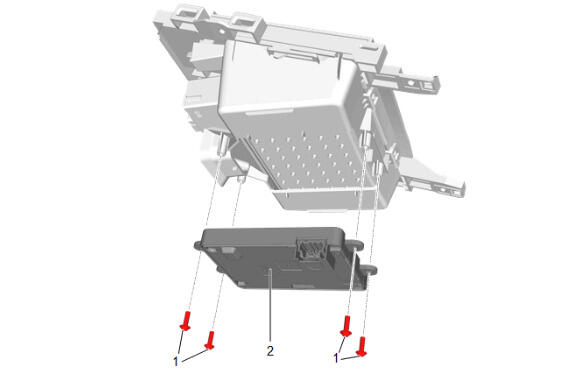

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Floor Console Front Compartment Replacement
1	Wireless Charging System Module Bolt [4x] CAUTION: refer to Fastener Caution Tighten 1 N.m (9 lb in)
2	Wireless Charging System Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Wireless Charging System Module Bolt [4x]

CAUTION:

Tighten
1 N.m (9 lb in)

Wireless Charging System Module

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
