Removal Procedure

  1. Quarter Lower Rear Trim Panel - Remove - Quarter Lower Rear Trim Panel Replacement

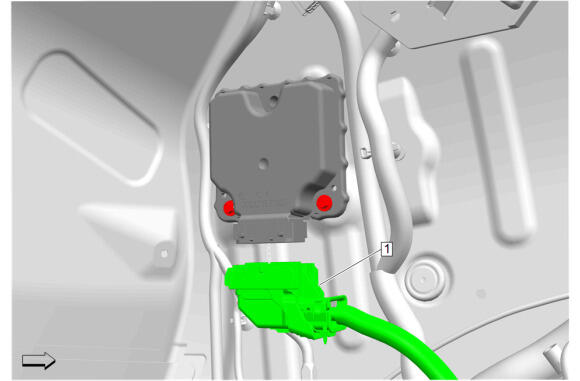

  2. GM6402946Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

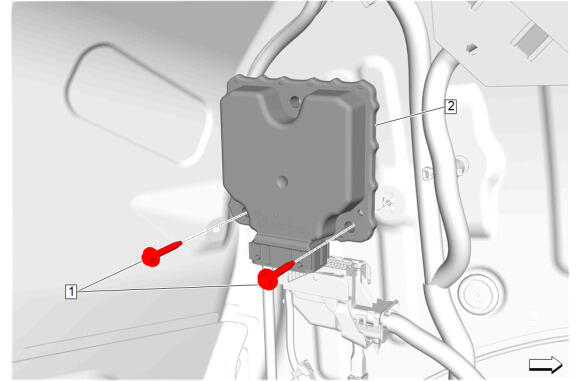

  3. GM6402947Courtesy of GENERAL MOTORS COMPANY

    Electronic Suspension Control Module Bolt (1) - Remove [2x]

  4. Electronic Suspension Control Module (2) - Remove
